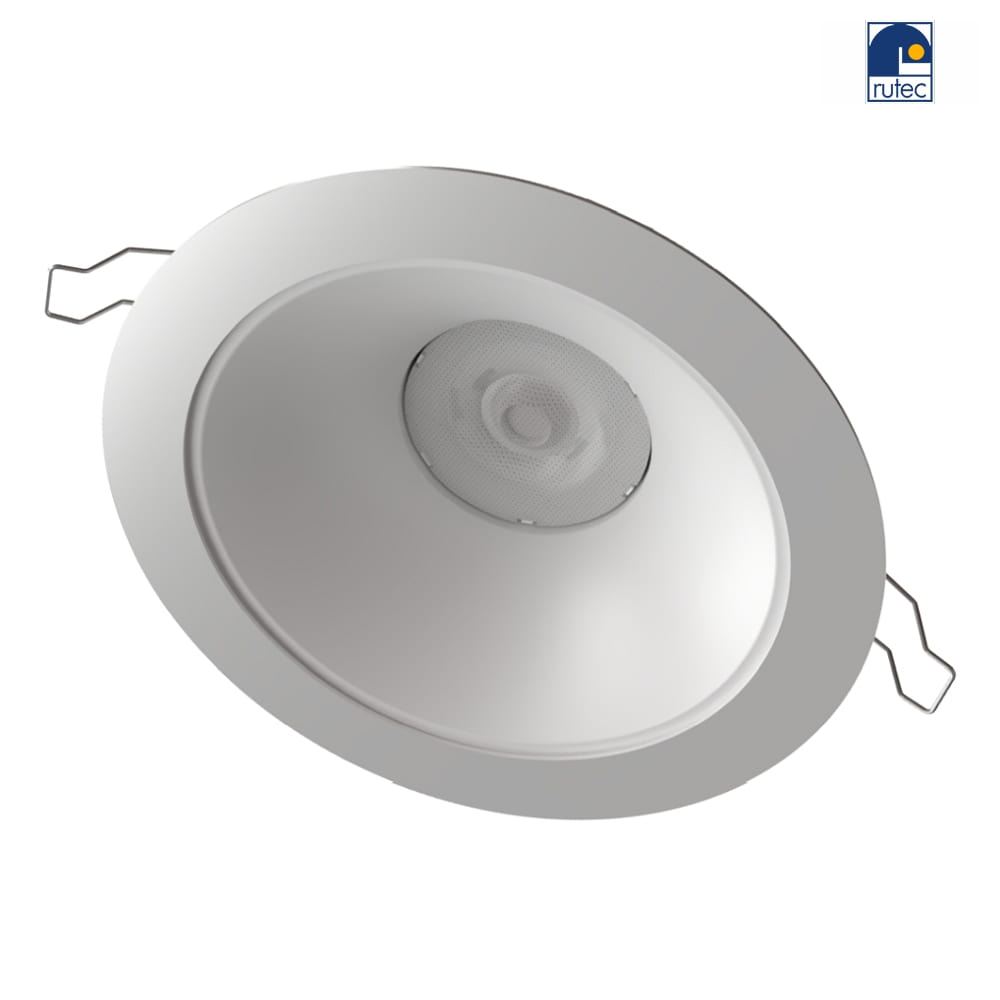

downlight CYRA+ XS - Ø 182MM / CRI80 rigid, DALI controllable, multipower IP20, traffic white dimmable

Rutec



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient and durable LED Downlight for versatile applications

The LED Downlight CYRA+XS from Rutec is a high-quality retrofit downlight suitable for both new installations and replacing older fixtures. With state-of-the-art LED technology, it offers a highly efficient and long-lasting lighting solution for various applications.

Versatile customization options for individual lighting design

Thanks to the ability to adjust the power level and brightness via DIP switch on the control device, the downlight can be set to 7 watts (1050lm), 9 watts (1300lm), or 14 watts (2090lm) as needed. This allows for individual customization to meet specific requirements.

Neutral white light with good color rendering for pleasant illumination

The downlight provides neutral white and symmetrical light output with excellent color rendering of over 80Ra. This makes it ideal for general lighting in various environments, from residential spaces to offices.

Easy and flexible mounting options for uncomplicated installation

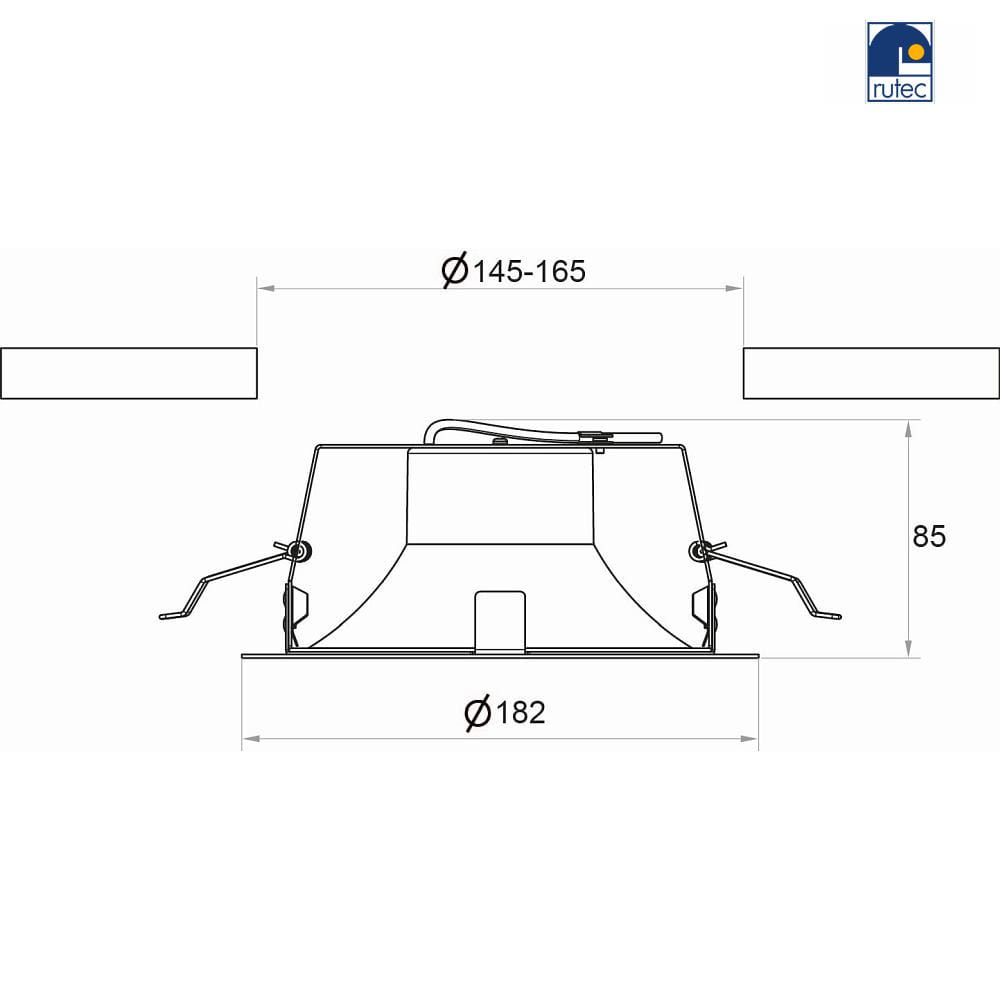

The downlight can be mounted toollessly in existing ceiling cutouts and offers a wide input voltage tolerance of 220-240V AC. With a variable ceiling cutout of Ø14.5 to 16.5cm, easy and flexible installation is ensured.

Glare-free lighting with high energy efficiency and eligibility for funding

Thanks to its excellent glare control, the downlight is also suitable for lighting in screen workstations (BAP-compliant) with a UGR value of less than 15. Additionally, it is eligible for funding under the Federal Funding for Efficient Buildings (BEG) due to its energy efficiency, providing additional benefits.

RAL color value:
9016
Reflector color:
mat,traffic white
Dimension:
H: 8,5 cm
min. material thickness-Ø: 0,1 cm
max. material thickness-Ø: 3 cm
LED driver-L∕ B∕ H: 19,16∕ 5,84∕ 2,3 cm
Product type:
downlight
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI,in several steps,push dimmer
Power consumption:
7/9/14 W
Emitting angle:
60 °
Number of bulbs:
1
Beam direction:
down
Light flux:
1050/1300/2090 lm
Light yield:
160,71 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
>80 Ra
UGR:
< 15
Colour rendering index:
1B
Protection class:
2
IP-protection class:
IP20
Accessories:
clip springs included
dimming switch included
lens included
reflector included
driver included
controller excluded
dimmer excluded
ambient temperature:
-20 ... +50 °C
Energy efficiency category:
C
Energy consumption:
14 kWh/1.000 h
Article number:
RU-C+XS-1-1-NW-80-60-12
Purchasing quantity:
1 piece
Brand:
Rutec
Manufacturer:
Rutec
Manufacturer information
rutec Licht GmbH & Co. KG, Carl-Zeiss-Str. 15, 28857, Syke, Germany, info@rutec.de
