downlight CYRA+ XS - Ø 182MM / CRI80 rigid, DALI controllable, multipower IP20, traffic white dimmable

Rutec



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient LED Downlight

The LED Downlight CYRA+XS from Rutec is a highly efficient and durable retrofit downlight, suitable for both new installations and replacing older fixtures with modern technology. With a power consumption of 18/24W and a light output of 145.83lm/W, it provides excellent illumination.

Energy Efficient and Eligible for Funding

With its energy efficiency class D and a average lamp lifespan of 60000 hours, the LED Downlight CYRA+XS is very economical to use. Additionally, due to its efficiency, it is eligible for funding and can benefit from the Federal Funding for Efficient Buildings.

Adjustable Power Level

The downlight features an adjustable power level that can be set via DIP switch on the control gear. With options of 18 watts (2500lm) or 24 watts (3465lm), it offers flexible brightness settings for various requirements.

Versatile Applications

With warm white, symmetrical light distribution and good color rendering, the LED Downlight CYRA+XS is ideal for general lighting. It is also suitable for lighting at screen workstations due to its very good anti-glare properties, and offers easy tool-free installation.

Technical Details

The downlight has a beam angle of 60° and a color temperature of 3000K. With a color rendering index of over 80Ra and an IP protection rating of IP20, it offers a high-quality and secure lighting solution. The product comes complete with accessories, including clip springs, dimmer switch, lens, reflector, and driver.

RAL color value:
9016
Reflector color:
glossy,silver,faceted

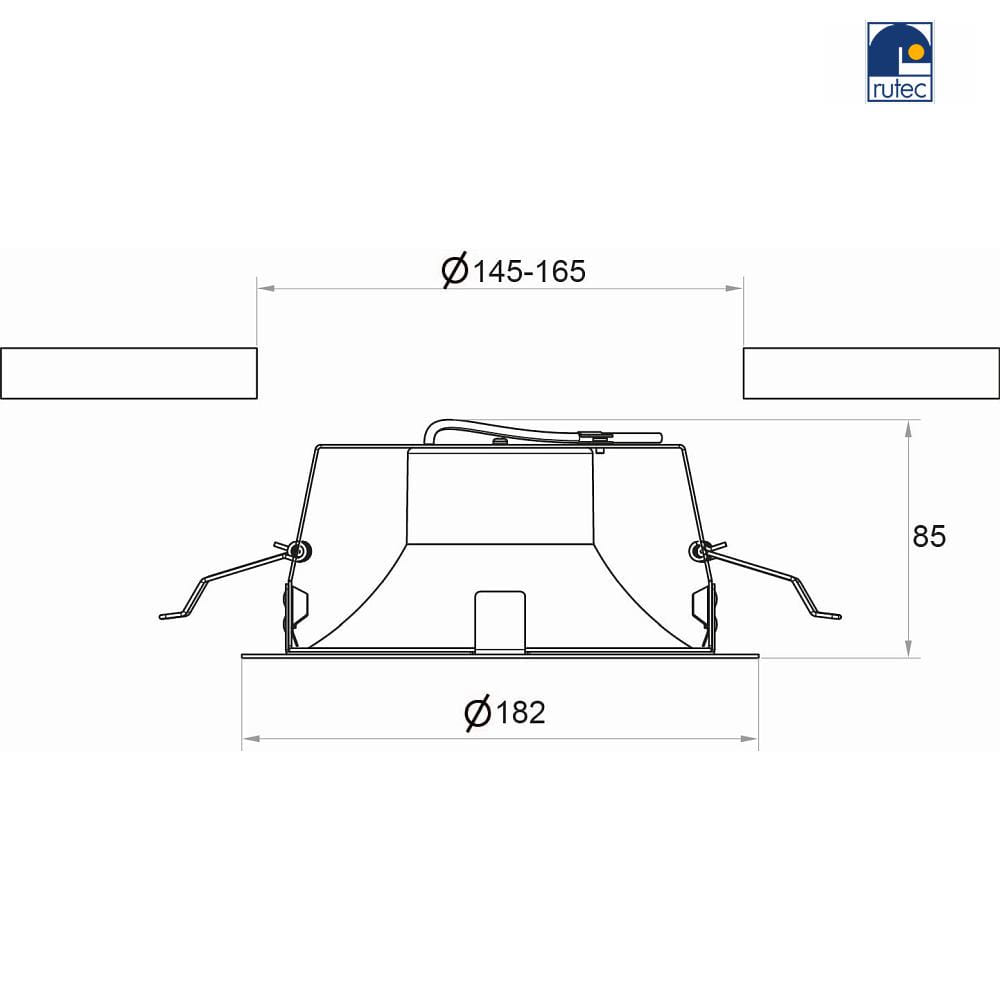

Dimension:
H: 8,5 cm
min. material thickness-Ø: 0,1 cm
max. material thickness-Ø: 3 cm
LED driver-L∕ B∕ H: 19,16∕ 5,84∕ 2,3 cm
Product type:
downlight
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI,in several steps,push dimmer
Power consumption:
18/24 W
Emitting angle:
60 °
Number of bulbs:
1
Beam direction:
down
Light flux:
2500/3465 lm
Light yield:
145,83 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
60000 h
Colour rendering index:
>80 Ra
UGR:
< 15
Colour rendering index:
1B
Protection class:
2
IP-protection class:
IP20
Accessories:
clip springs included
dimming switch included
lens included
reflector included
driver included
controller excluded
dimmer excluded
ambient temperature:
-20 ... +50 °C
Energy efficiency category:
D
Article number:
RU-C+XS-1-4-WW-80-60-13
Purchasing quantity:
1 piece
Brand:
Rutec
Manufacturer:
Rutec
Manufacturer information
rutec Licht GmbH & Co. KG, Carl-Zeiss-Str. 15, 28857, Syke, Germany, info@rutec.de
