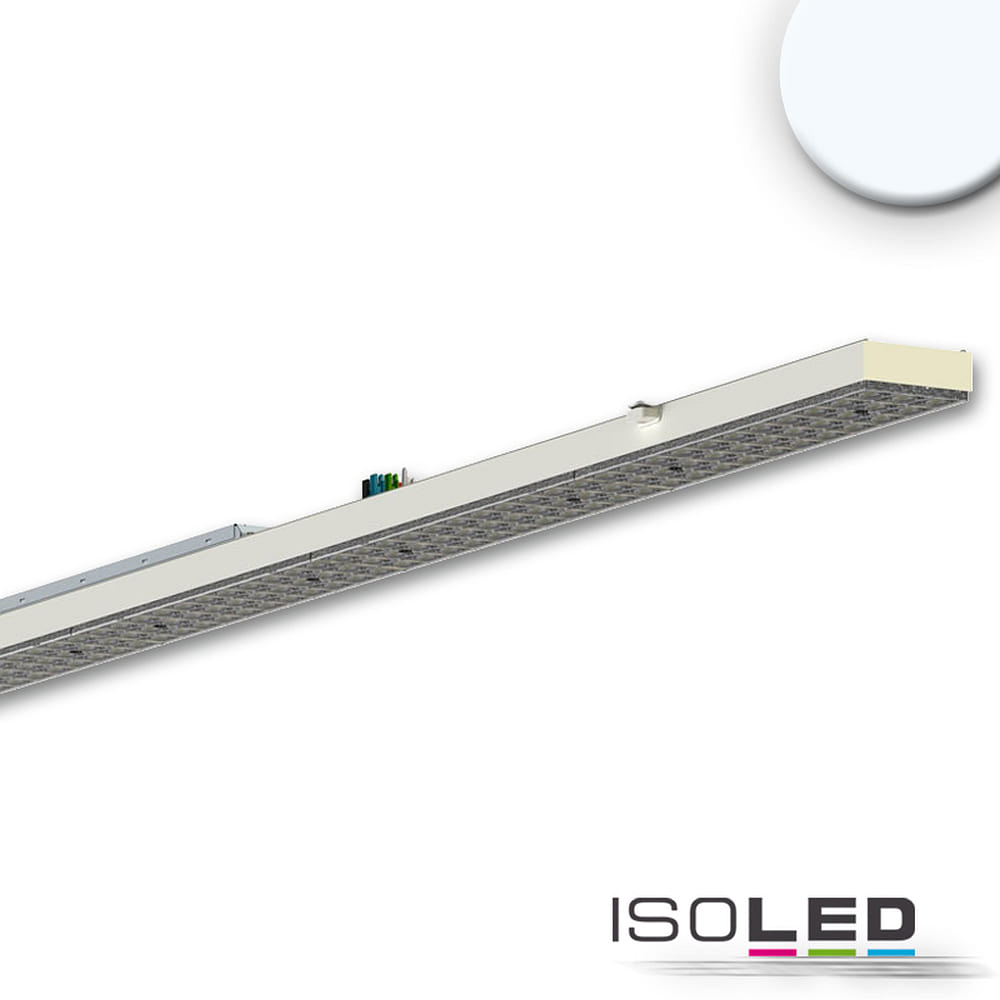

FastFix LED linear system S Modul, IP40, 150cm, 1-10V dimmable, 25-75W 5000K, 10600lm 25° left

Efficient FastFix LED Linear System S Module for Indoor Use

The FastFix LED Linear System S Module from ISOLED offers a high-quality lighting solution for indoor use. With a power consumption of 25-75W and a luminous flux of 10600lm, this linear luminaire provides bright and uniform illumination. Thanks to the neutral white light color and color rendering index of 80-89Ra, natural color reproduction is achieved.

Versatile Dimming Options and Easy Installation

This linear luminaire features dimmability from 0-10V, allowing for individual adjustment of light intensity. The installation is simple and quick, either surface-mounted or in a track system. Additionally, a quick-locking mechanism for attachment to a beam holder is available, making installation easier.

Durable and Energy Efficient

With an average lamp life of 36000 hours and a power factor of 0.93, the FastFix LED Linear System S Module is a durable and energy-efficient lighting solution. The energy efficiency class C and the energy efficiency index (EEI) of the power supply A1 BAT help optimize energy consumption.

Safe and Reliable

With protection class 1 and IP40 protection rating, this linear luminaire is safe and reliable to use. The option of through-wiring and the push-in terminal connection type facilitate installation and ensure a reliable electrical connection. Furthermore, the system is suitable for use with emergency lighting.

Technical Details and Accessories

The FastFix LED Linear System S Module comes with mounting accessories and includes a control gear. The system power can be flexibly set between 25-75W, either through jumper settings on the power supply or via a 1-10V control signal. With an operating voltage of 180-265V~ and an operating temperature range of up to 90°C, this linear luminaire offers a reliable and effective lighting solution. Perfect for use in ceiling lighting systems.
