floor recessed luminaire DASAR® S round, swivelling, passable, switchable IP67, stainless steel

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

SLV floor recessed luminaire DASAR® S round, swivelling, passable, switchable IP67, stainless steel

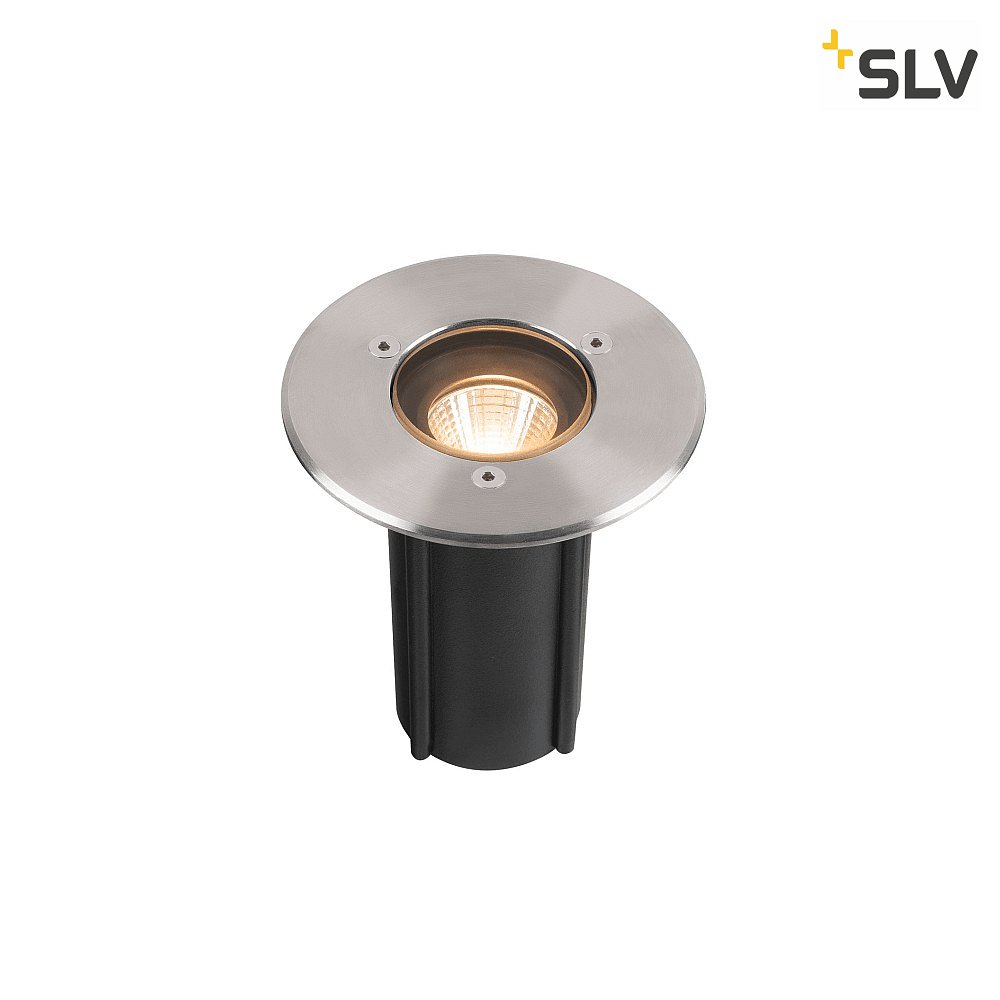

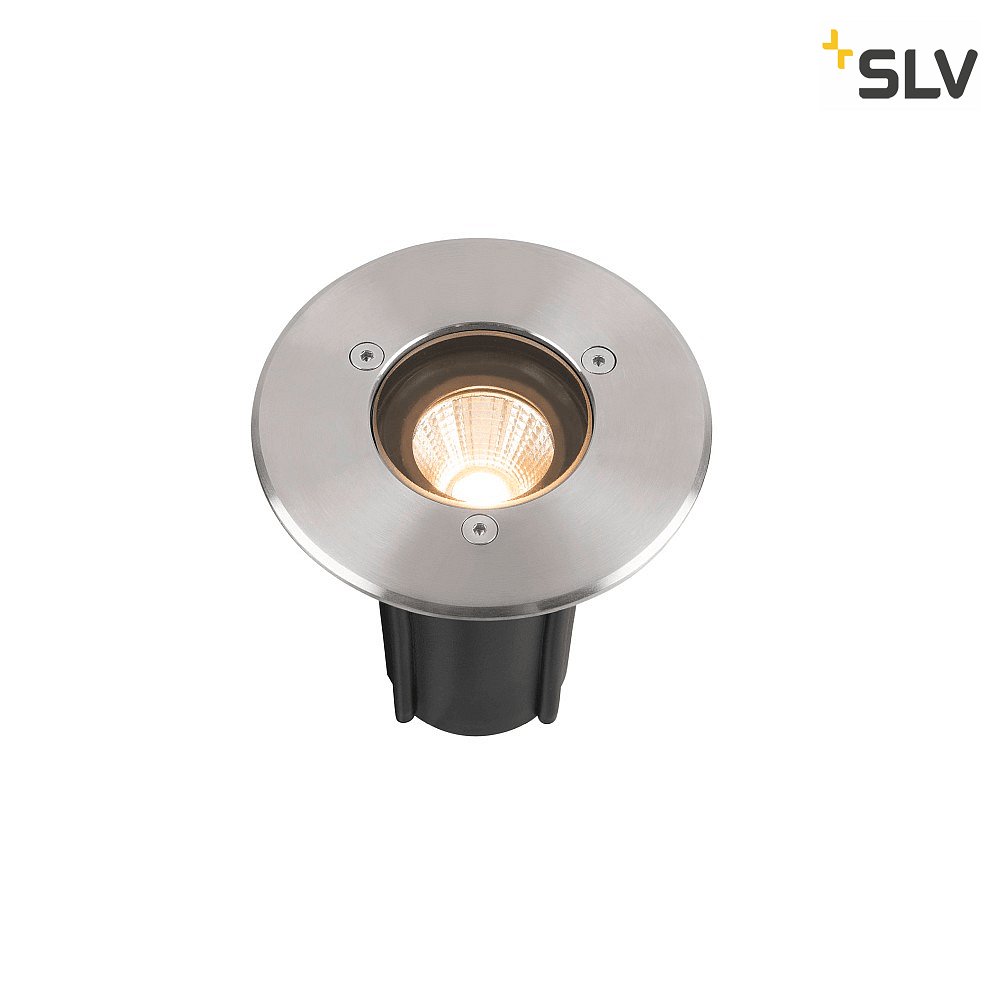

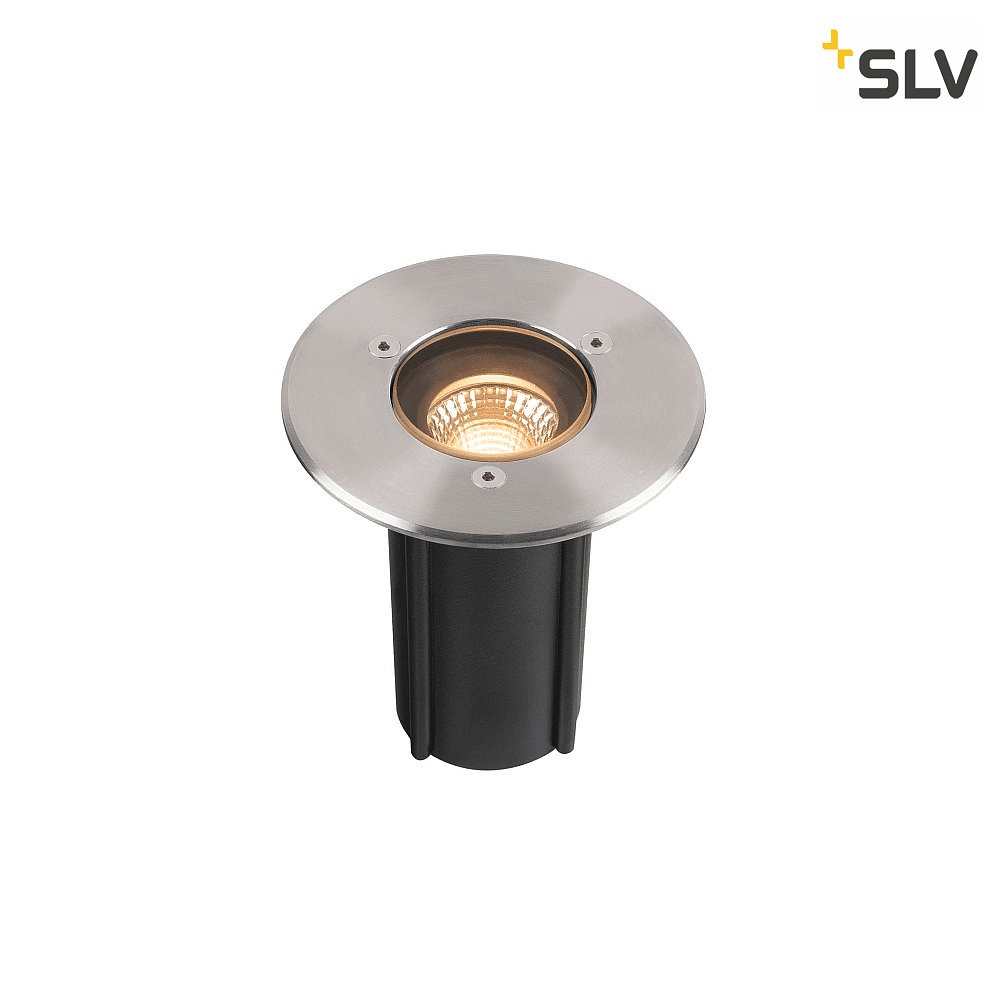

LED recessed floor light DASAR® S

The LED recessed floor light DASAR® S from the brand SLV is a switchable and swiveling luminaire, ideal for ground installation. With a power consumption of 4W and a light output of 350lm, it offers excellent illumination with a color temperature of 3000K and a color rendering index of 80Ra.

Technical details

The recessed floor light has an energy efficiency class of D and an operating voltage of 220-240V. With a swivel range of 15° and a beam angle of 24°, it provides targeted light distribution. The luminaire is protected according to IP67 and IK10 standards and can support weights of up to 2000kg.

Installation

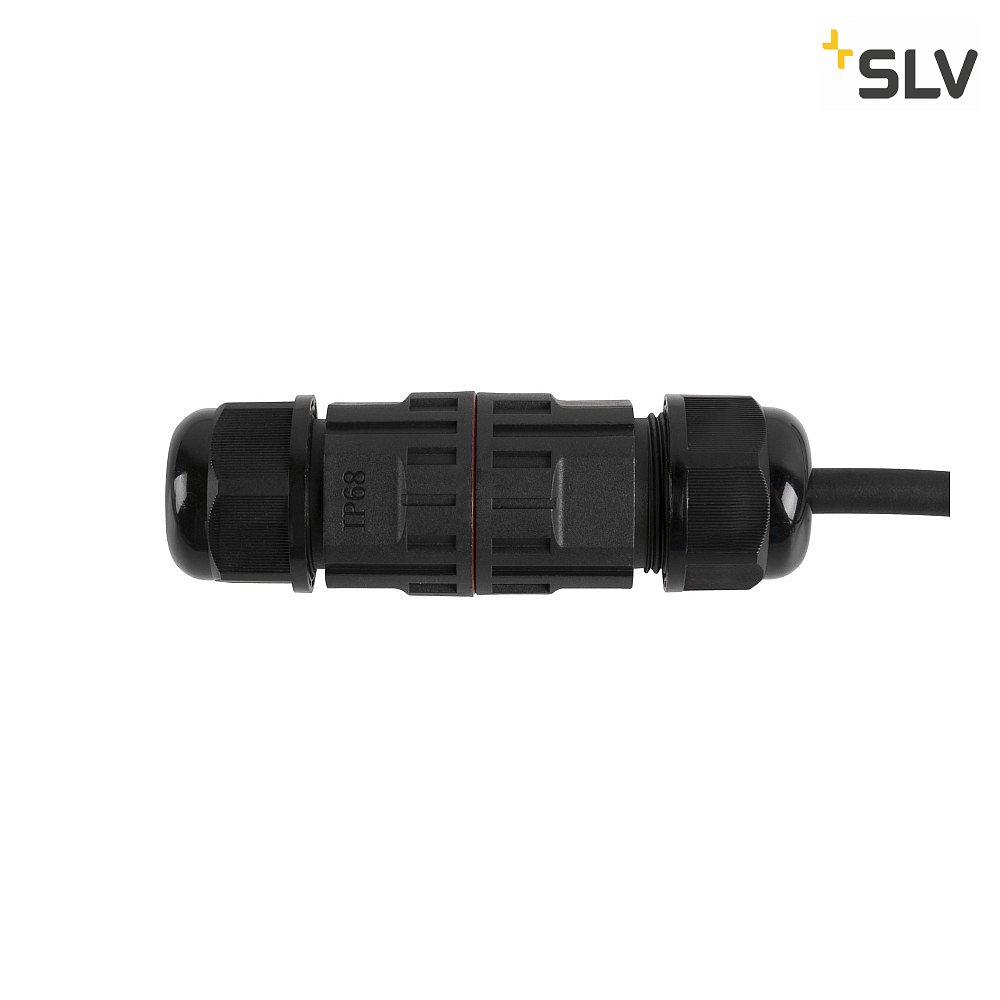

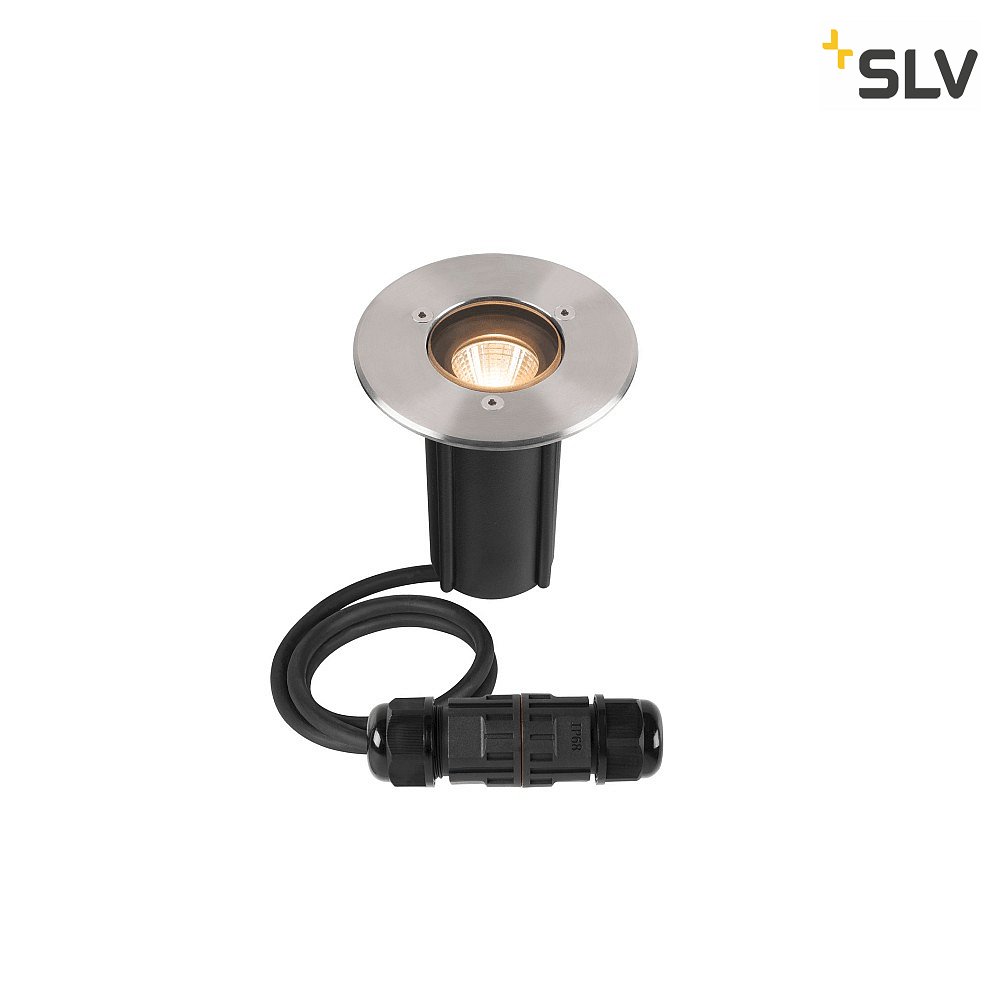

The recessed floor light comes with accessories such as connection box, connection cable, driver, and through-wiring. Installation can be done by recessed mounting or with accessories, and the power connection is made via a terminal or connection box. The luminaire has a mounting opening of 15cm in diameter and a connection cable with a length of 50cm.

Material and design

The recessed floor light is made of aluminum and plastic and has a stainless steel color. With a diameter of 10.5cm and a height of 11.5cm, the luminaire has a round shape and a warm white light color. The light output is 88lm/W and the average lamp lifespan is 50000 hours.

Application area

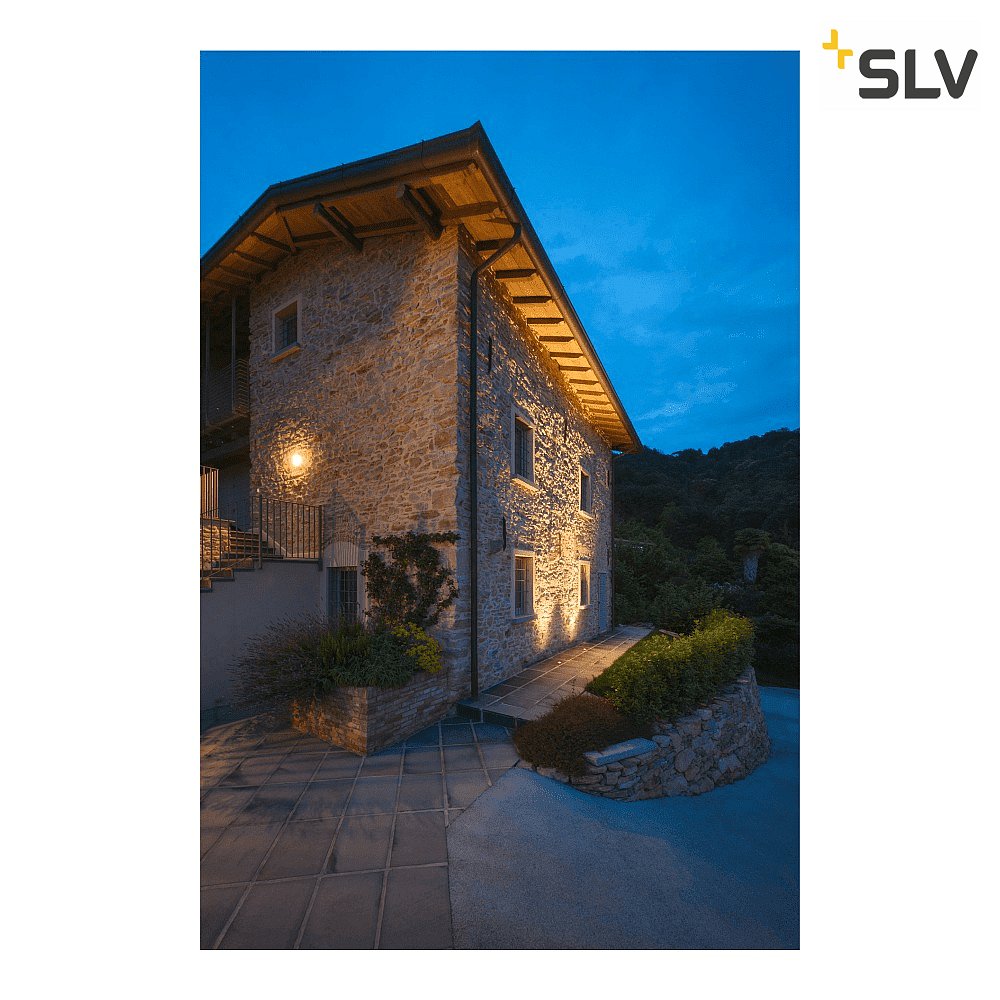

Thanks to protection class 1 and suitability for outdoor use, the LED recessed floor light DASAR® S is ideal for use in ground areas. The luminaire offers direct light distribution and is ENEC certified. Please note that this is a switchable version that is not dimmable.

Colour:
stainless steel
Secondary color:
black
Glass color:
clear
Dimension:

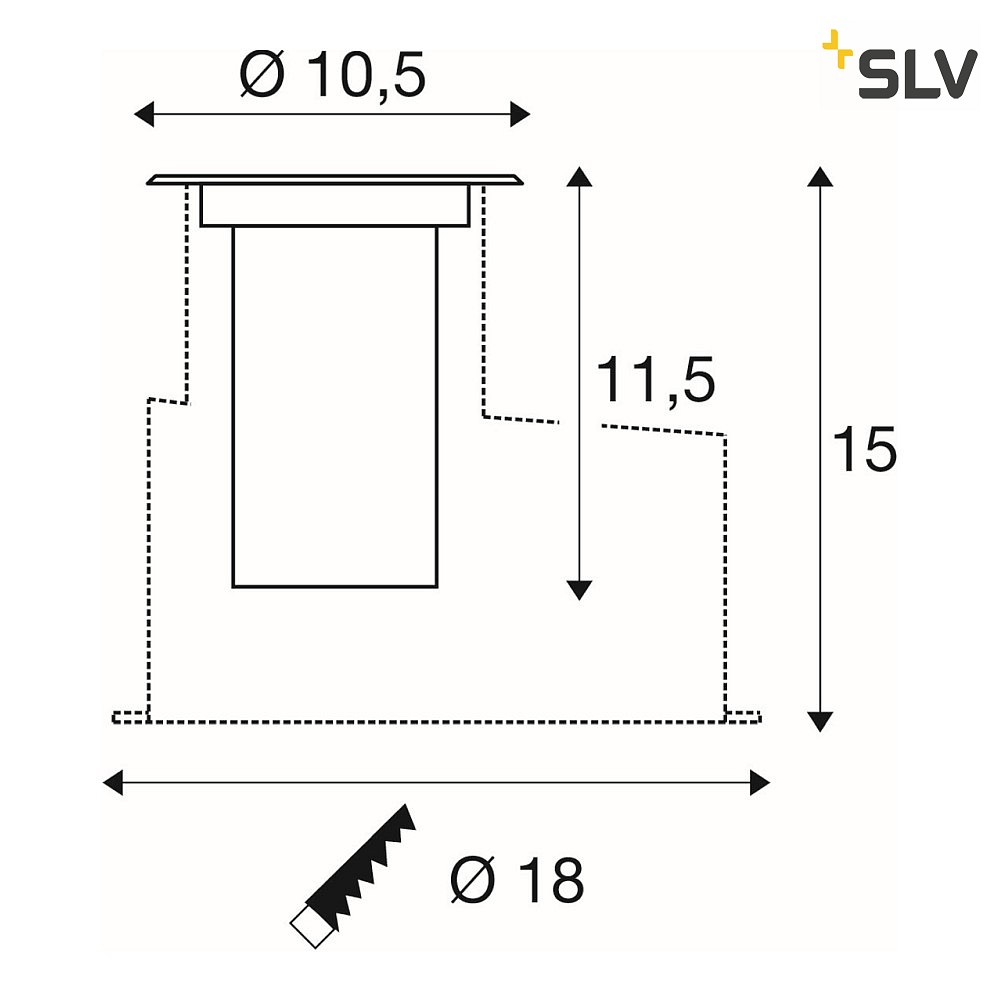

Ø∕ H: 10,5∕ 11,5 cm
Material:
aluminium
plastic
Weight:
0,6 kg
Product type:
through wiring included
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for outdoor use
Field of application:
floor
Operating voltage:
220-240
Dimmable:
no
Power frequency:
50/60 Hz
Power consumption:
4 W
Light colour:
warm white
Light emission:
direct
Beam direction:
swivelling
Light flux:
350 lm
Light yield:
88 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
80 Ra
1B
IK-Rating:
IK10 up to 20.00 Joule
Swivel range:
15 °
Fitting opening circle :
15 cm
Wire/connection lead diameter:
7 - 12 mm
Length of connection lead:
50 cm
Current consumption:
200 mA
Weight capacity of product:
2000 kg
Mounting:
recessed mounting
mounting accessories required
Protection class:
1
IP-protection class:
IP67
Product ENEC tested:
yes
Accessories:
connection box included
connection cable included
driver included

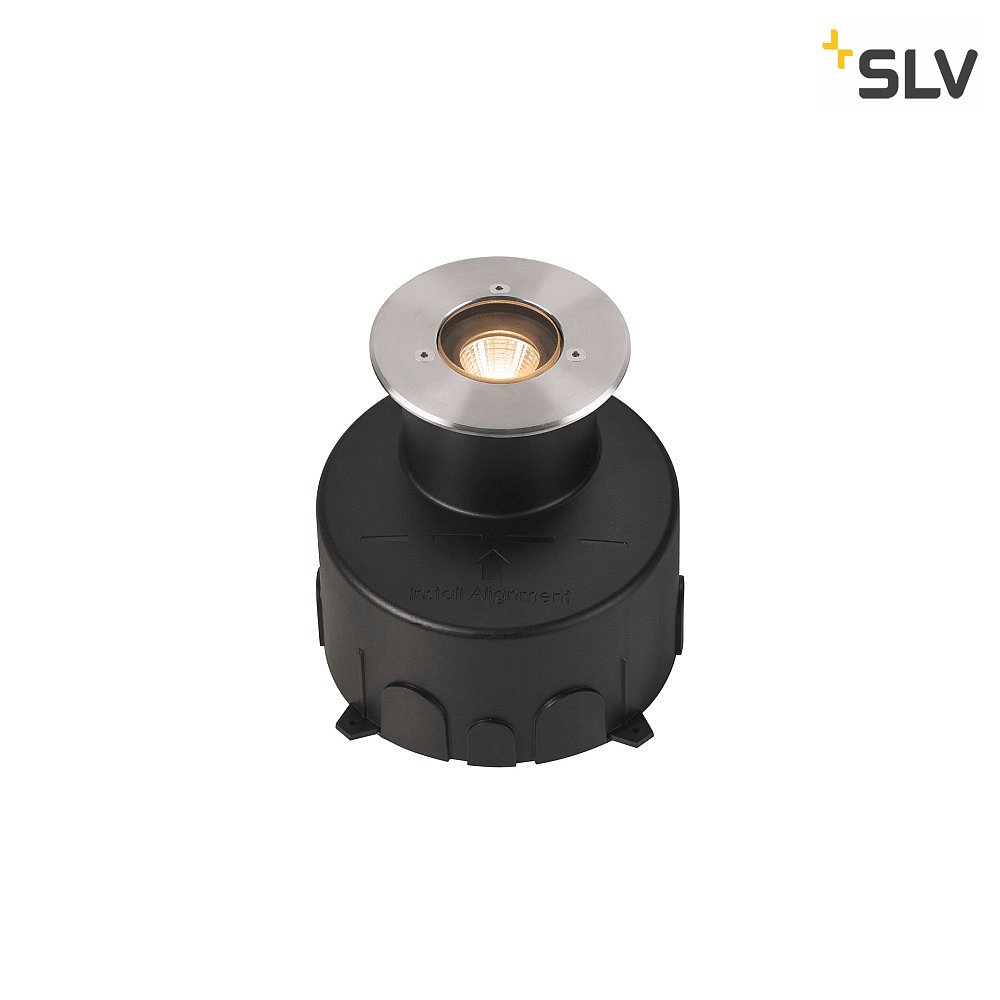

mounting pot excluded
ambient temperature:
-20 ... +45 °C
Energy efficiency category:
D
EPREL No:
1642674
Energy consumption:
4 kWh/1.000 h
Article number:
1007680
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, Übach-Palenberg, Germany, info@slv.de
