Heitronic LED Recessed spot round KELHEIM 4, warm white

HEICONNECT LED Recessed Accent Spot KELHEIM 4

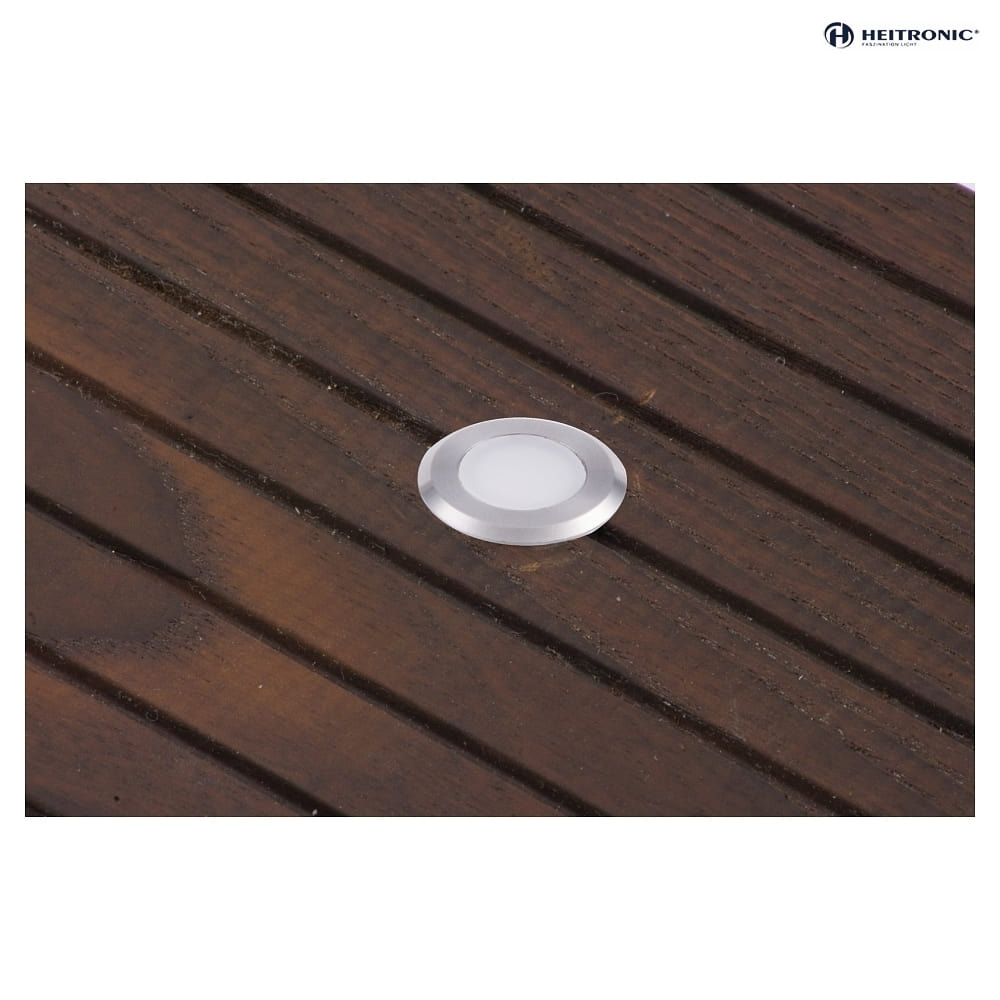

The HEICONNECT LED Recessed Accent Spot KELHEIM 4 is a small concept light from the HEICONNECT 12V system, ideal for accent and path lighting. With a housing made of milled V4A stainless steel and glass, this light is extremely robust and even walkable up to 5 kN. Thanks to its extreme weather resistance and IP67 protection class, it is protected from moisture and dirt.

Technical Details

The recessed accent spot has a power consumption of 0.2W and a luminous flux of 8lm. With a color temperature of 2900K, it produces a pleasant warm white light. The light source consists of 3x Epistar SMD LEDs and has an average lamp lifespan of 35000 hours. The beam angle is 160° and the light distribution is direct.

Installation and Connection

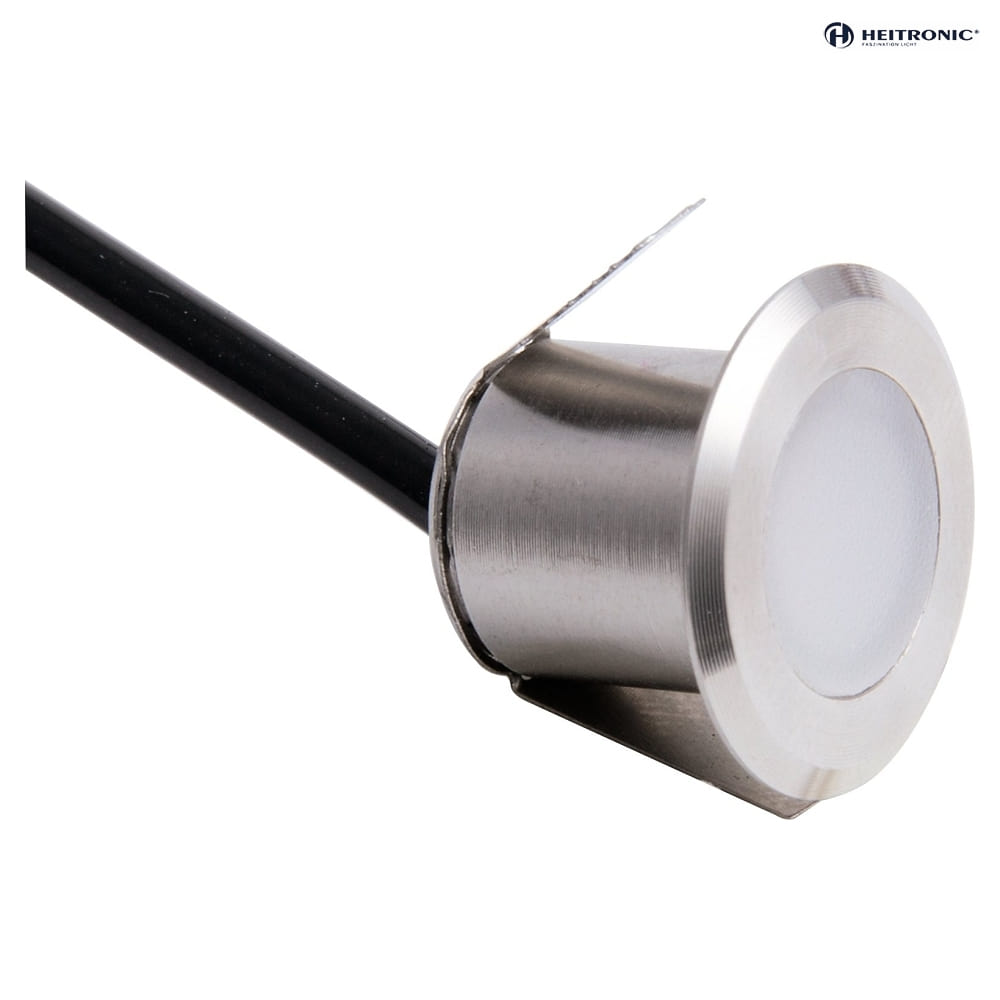

Installation is done by recessing and connecting via HEICONNECT plug connection. The connection cable has a length of 30cm and the operating voltage is 12V. The spot is suitable for the HEICONNECT low voltage system and can be connected to the 230V mains voltage with a transformer. Please note the suitable IP protection class of the sockets.

Design and Material

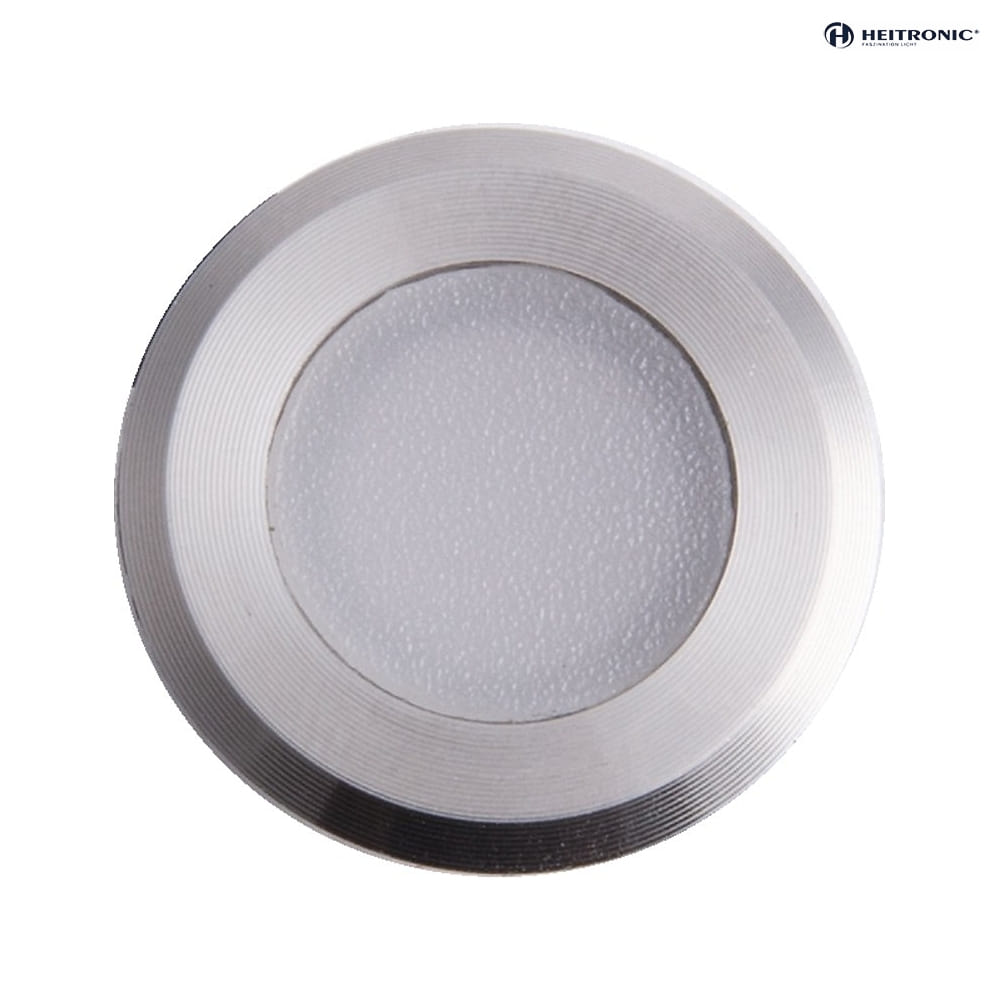

The design of the light is round and the installation depth is 2cm. The visible part has a diameter of 2cm and a height of 0.13cm. The housing is made of acrylic glass and stainless steel in stainless steel color. The shape of the light is modern and timeless at the same time.

Accessories and Application Area

Accessories include plugs, connecting cables, and operating devices. The spot is not dimmable and can be used indoors as well as outdoors. With an energy consumption of 1kWh per 1000 hours and a color rendering index of 80Ra, this light is an efficient and high-quality lighting solution.
