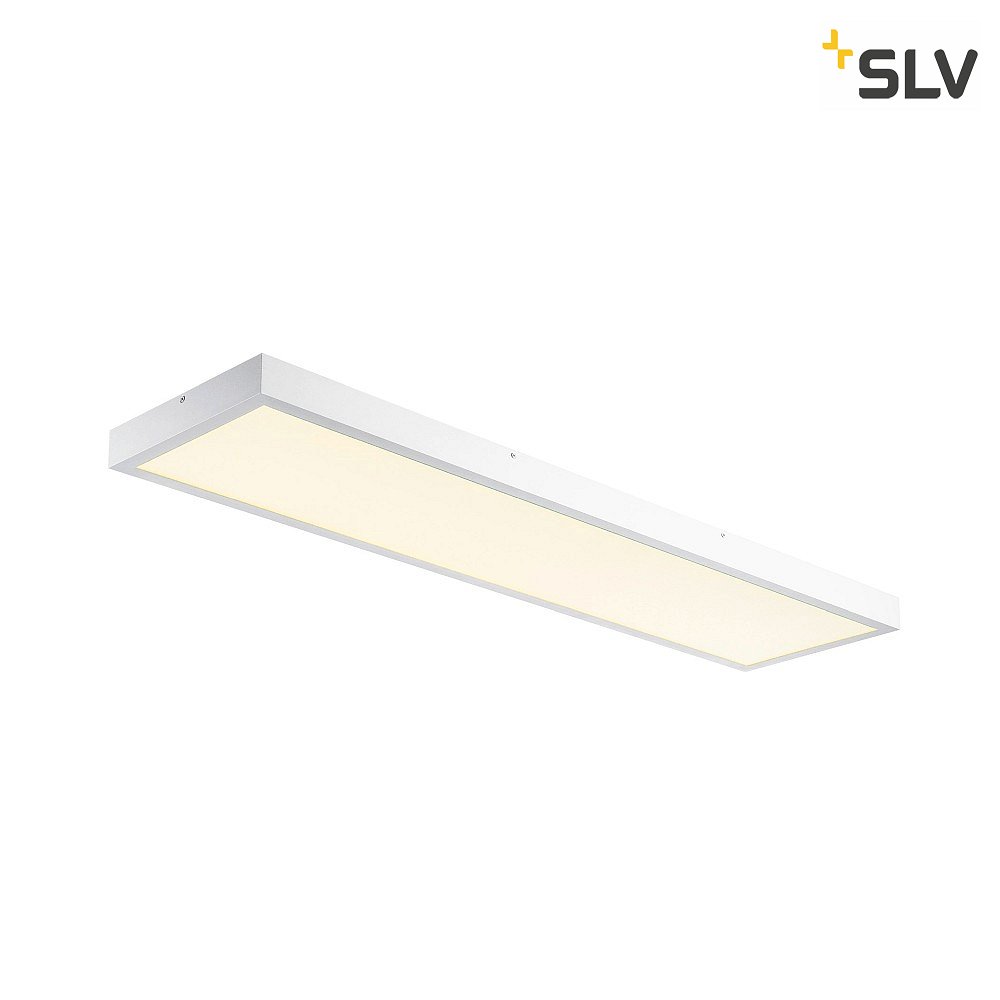

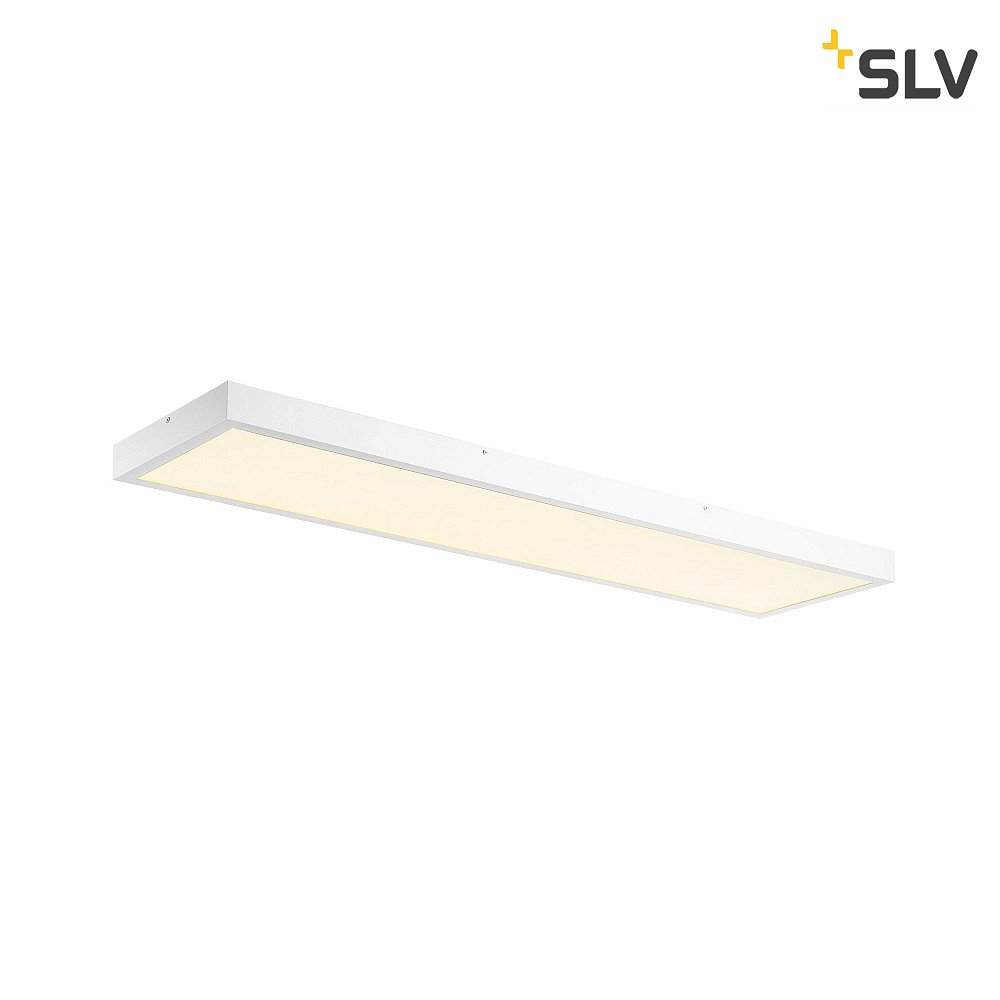

LED Ceiling luminaire PANEL für BAP, 120 x 30cm, 45W, TRIAC dimmable, white, 4000K 3400lm 90°

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Ceiling Light PANEL for BAP, 120 x 30cm, UGR <19, TRIAC dimmable

The LED Ceiling Light PANEL is the ideal solution for use in offices or other indoor spaces. With a size of 120 x 30 cm and a beam angle of 90°, it provides uniform light distribution and glare-free working conditions. Thanks to its TRIAC dimmability, the brightness can be adjusted individually.

Technical Details

The ceiling light has a power consumption of 45W and a luminous flux of 3400lm. With an energy efficiency class E and an energy consumption of 45kWh/1,000h, it is also very efficient. The color temperature is 4000K and the color rendering index is 80Ra.

Easy Installation and Long Lifespan

The LED Ceiling Light PANEL is easy to assemble and can be easily mounted by a professional. With an average lamp lifespan of 30,000 hours, it is also very durable and maintenance-free. The ceiling light is made of aluminum and weighs 4.515kg.

Additional Information

The ceiling light is IP20 protected and is perfect for use at computer workstations, as it provides glare reduction of UGR <19. In addition, daisy chaining is possible, allowing up to 40 similar lights to be connected together.

Conclusion

The dimmable, efficient, and durable LED Panel PANEL for BAP is the optimal solution for long-term use in offices or other indoor spaces. With its high-quality construction and technical details, it offers an ideal lighting solution for demanding work environments.

Colour:
white

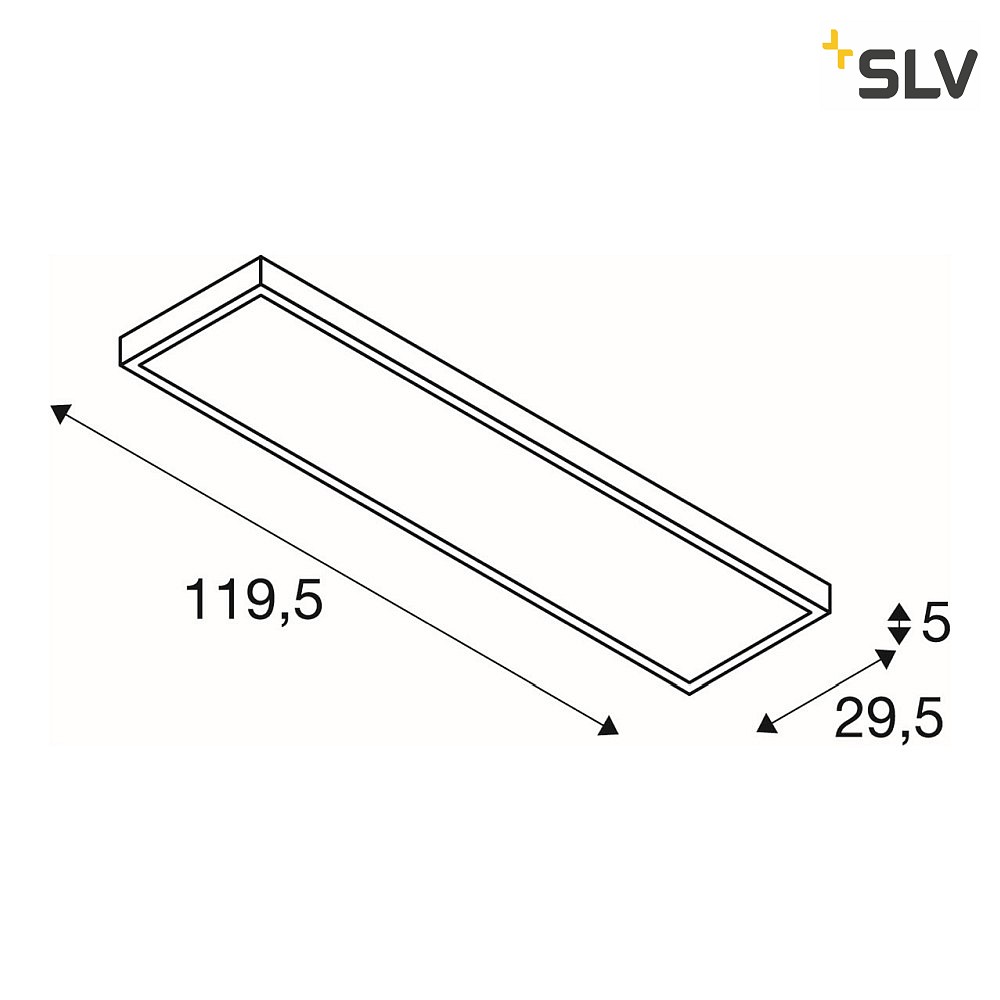

Dimension:
L∕ W∕ H: 119,5∕ 29,5∕ 5 cm
Material:
aluminium
Weight:
4,515 kg
Product type:
ceiling luminaire
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge, TRIAC
Power frequency:
50/60 Hz
Power consumption:
45 W
Emitting angle:
90 °
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Voltage:
Clamp
Light colour:
neutral white
Light emission:
diffuse
Light flux:
3400 lm
Nominal current:
1000 mA
Colour temperature:
4000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
80 Ra
1B
Plug type:
clamping connection
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP20
Additional information:
Through wiring up to 40 lamps possible.
Screen workstation suitable
UGR<19
Accessories:
driver included
Energy efficiency category:
E
EPREL No:
916385
Energy consumption:
45 kWh/1.000 h
Article number:
1001506
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
