LED Ceiling recessed luminaire PATTA-F, square, 12W, COB LED, 38°, 3000K, IP65, incl. Driver, black

SLV

Print product information sheet▶

question regarding the article

SLV LED Ceiling recessed luminaire PATTA-F, square, 12W, COB LED, 38°, 3000K, IP65, incl. Driver, black

Print product information sheet▶

question regarding the article

Product data sheet

CHF 65,21

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 97.00

You save 32,8 %

Shipping time: 4-5 days

Product no.: 114450
EAN: 4024163151443
In stock

Alternative product variants:

LED Ceiling recessed luminaire PATTA-F, square, 12W, COB LED, 38°, 3000K, IP65, incl. Driver, black LED Ceiling recessed luminaire PATTA-F, square, 12W, COB LED, 38°, 3000K, IP65, incl. Driver, white

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

High quality and versatility

The outdoor LED recessed downlight PATTA-F from SLV stands out for its high-quality construction and versatile applications. With its square shape and recessed design, it blends harmoniously into any environment and provides pleasant lighting.

Optimal light color for every situation

The color temperature of the downlight is 3000K, creating a warm and cozy atmosphere. Whether in the living room, hallway, or outdoor area, the light is pleasant and glare-free. The dimmable feature allows you to adjust the brightness according to your preferences.

Robust and weatherproof

With an IP65 protection rating and IK02 impact resistance, the PATTA-F downlight is ideal for outdoor use. Rain, snow, or dust won't affect it, ensuring long-lasting enjoyment of the lighting. The cleaning process is also simple due to the robust design.

Easy installation and customization

The downlight comes with a driver, allowing you to use it immediately. With phase-cut and phase-dimmable features, you can adjust the light intensity to your liking. The installation is easy and straightforward, suitable even for beginners.

Environmentally friendly and energy-saving

Equipped with LED technology, the PATTA-F downlight not only offers durability but also energy efficiency. You not only save on electricity costs but also contribute to environmental protection. Enjoy bright and pleasant light without harming the environment.

Article number:

114450

Purchasing quantity:

1 piece

Brand:

SLV

Energy efficiency category:

EPREL No:

916451

Product type:

Ceiling recessed luminaire

Energy consumption:

12 kWh/1.000 h

Operating voltage:

220-240 V~

Dimmable:

yes

Dimmability:

trailing edge, leading edge

Lamp shape:

square

Power frequency:

50/60 Hz

Power consumption:

12 W

Emitting angle:

38.00 °

Bulbs in delivery:

yes

LED can be replaced :

replaceable by a specialist

Bulb type:

LED

Lamps/bulbs:

1x COB LED, System power: 12W

Light colour:

warm white

Light emission:

direct

Light flux:

745 lm

Nominal current:

500 mA

Colour temperature:

3000 K

Average life span of a bulb in hours:

40000 h

Colour rendering index:

80 Ra
1B

IK-Rating:

IK02 up to 0.20 Joule

Colour:

black

Glass color:

clear

Material:

aluminium
glass

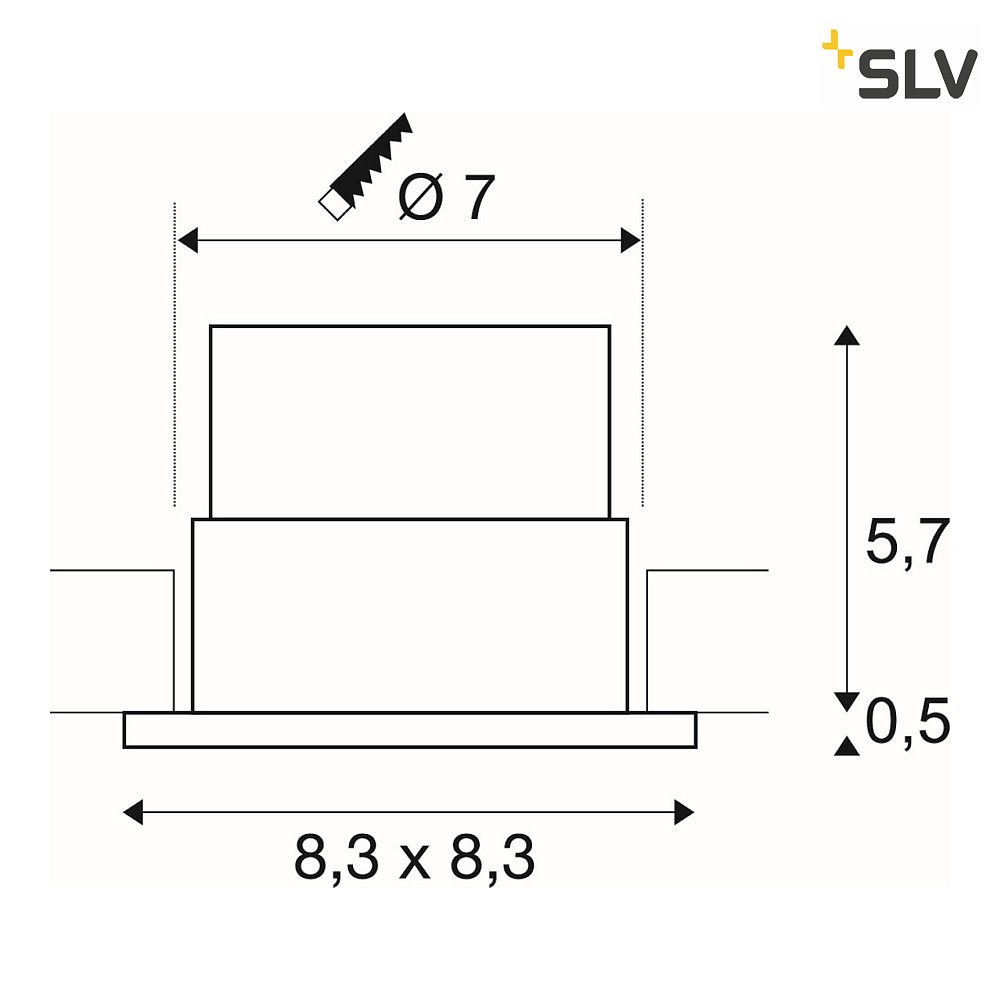

Fitting depth:

6 cm

Fitting opening circle :

7 cm

Dimension:

L∕ W∕ H: 8,3∕ 8,3∕ 6,2 cm

Weight:

0,32 kg

Mounting:

recessed mounting

Field of application:

ceiling

Protection class:

IP-protection class:

IP65 / IP20

Application area:

suitable for indoor use
suitable for outdoor use

Additional information:

Integrated converter for 220-240V AC voltage to 500mA constant DC.
3 beam angles available
Premium LED
clip springs
Protective glass inside.
Material thickness Ceiling: 20mm max.
We will be pleased to send you a light distribution curve for the respective product on request.
System power: 12W
System power: 12W

Accessories:

driver incl
dimmer excl

ambient temperature:

-20 ... +45 °C
