LED Ceiling recessed luminaire PATTA-I, round, 12W, COB LED, 38°, 3000K, IP65, incl. Driver, alu brushed

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

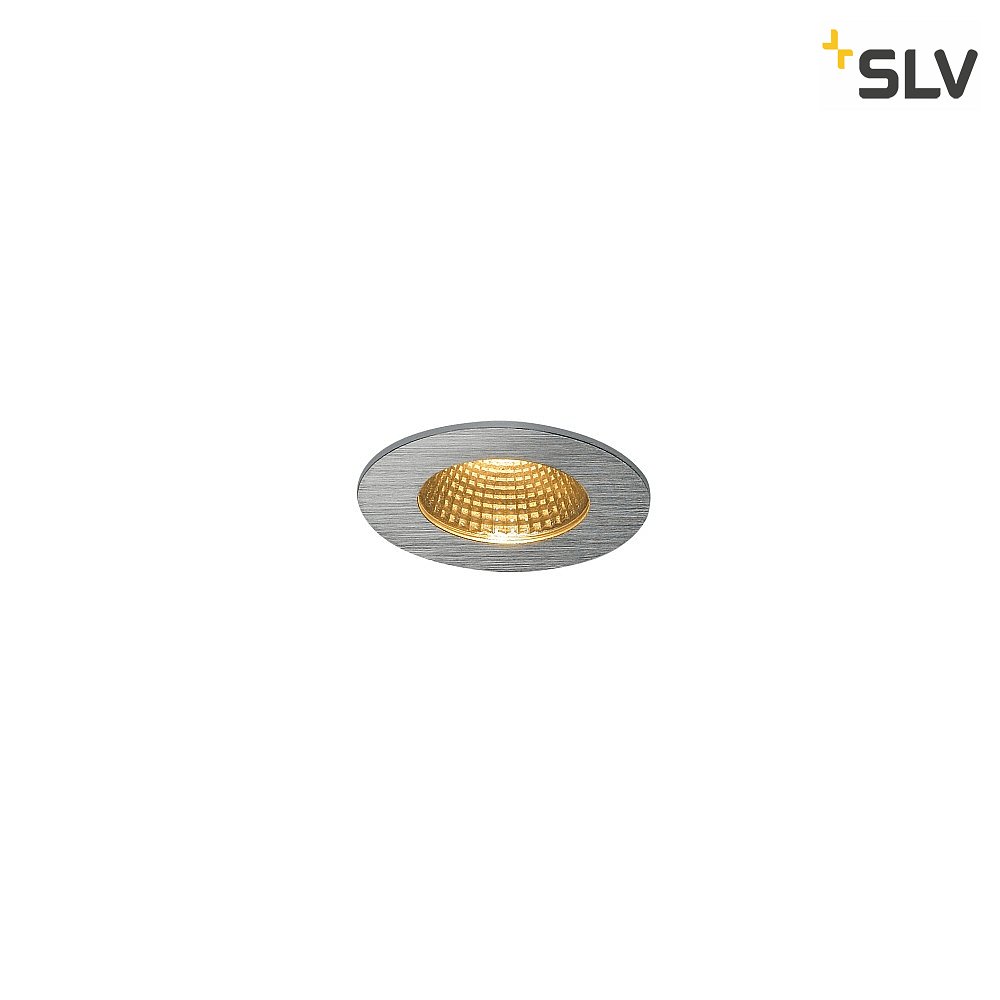

SLV LED Ceiling recessed luminaire PATTA-I, round, 12W, COB LED, 38°, 3000K, IP65, incl. Driver, alu brushed

Product Description:

The Outdoor LED Recessed Downlight PATTA-I ROUND is a high-quality ceiling recessed light that emits a constant warm white light. With a power of 11W and a luminous flux of 910lm, it provides pleasant lighting in your indoor or outdoor space. The round shape and brushed aluminum design make it a stylish accessory.

Technical Details:

The downlight has a beam angle of 38° and can be easily connected to an operating voltage of 220-240V~. With a diameter of 8 cm and a installation depth of 6 cm, it fits easily into ceilings with a material thickness of 15-25mm. The IP65 protection rating on the front ensures protection against moisture and foreign objects.

Energy Efficiency:

The energy efficiency class E and the low energy consumption of 11kWh/1,000 h make the downlight an environmentally friendly lighting solution. With an average lamp lifespan of 40,000 hours, you can enjoy this luminaire for a long time.

Accessories and Application:

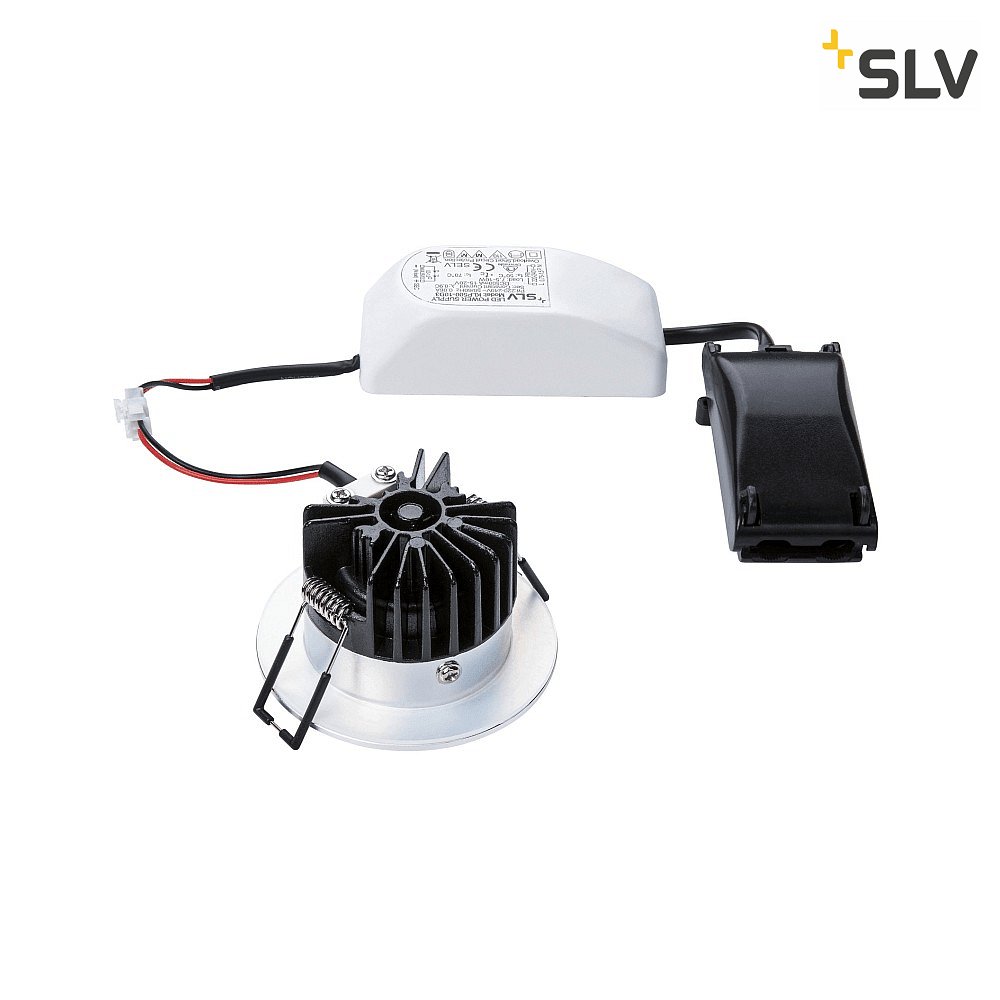

The package includes a dimmer, cables, plug, and driver to enable easy installation. The downlight is dimmable and can be controlled with a trailing edge or leading edge dimmer. It is suitable for both indoor and outdoor use and can be used in wet areas.

Additional Information:

Thanks to the COB LED light source and the 80Ra color rendering index, the downlight offers high light quality. The flexible mounting with clip springs and the option to replace the LED by a professional make it a durable and practical lighting solution. Contact us for a light distribution curve or further details about this product.

Colour:
brushed aluminium
Glass color:
clear

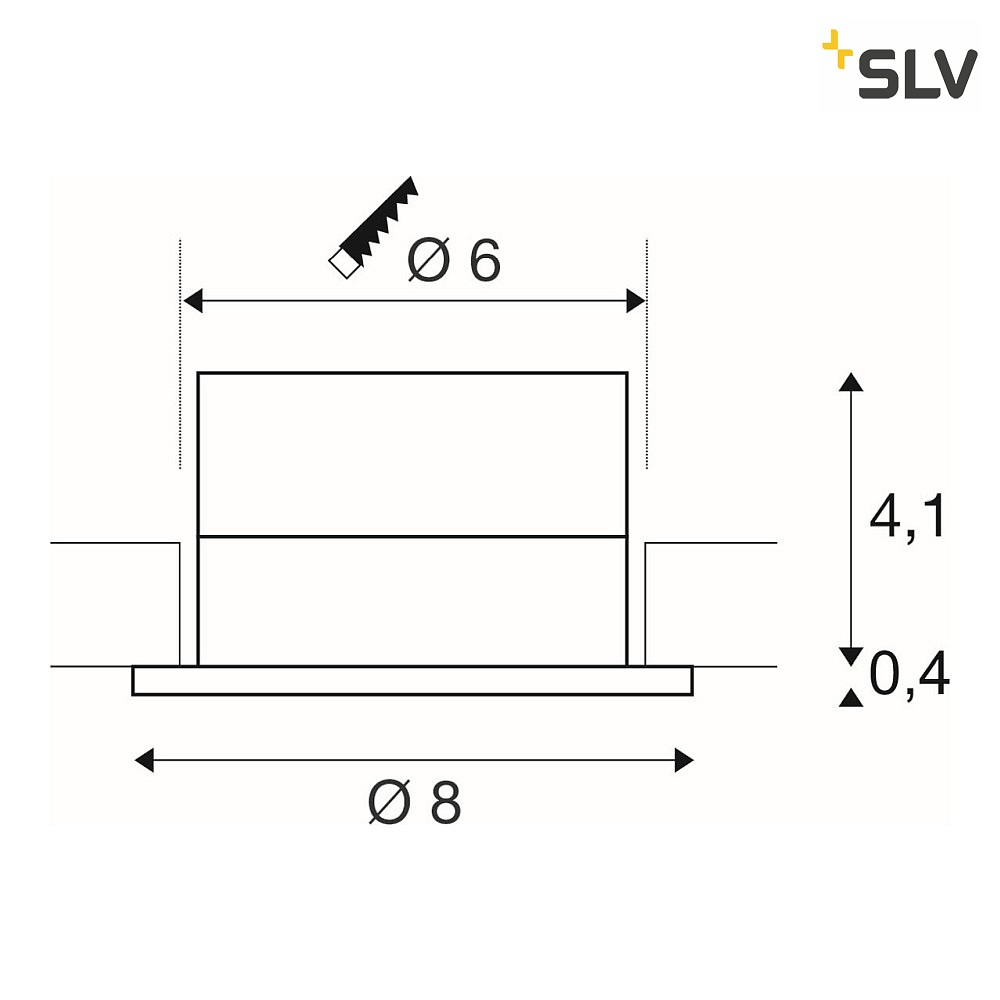

Dimension:
Ø∕ H: 8∕ 4,5 cm
Material:
glass
aluminium
Weight:
0,25 kg
Product type:
ceiling recessed luminaire
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for outdoor use
suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge, leading edge
Power frequency:
50/60 Hz
Power consumption:
11 W
Emitting angle:
38 °
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Lamps/bulbs:
COB LED
Light colour:
warm white
Light emission:
direct
Light flux:
910 lm
Nominal current:
500 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
40000 h
Colour rendering index:
80 Ra
1B
IK-Rating:
IK02 up to 0.20 Joule
Fitting depth:
6 cm
Fitting opening circle :
6 cm
Plug type:
clamping connection
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP65 / IP20
Additional information:
clip springs
3 beam angles available
Integrated converter for 220-240V AC voltage to 500mA constant DC.
System power: 12W
Dimmable with Phase section dimmer / Phase-fired dimmer

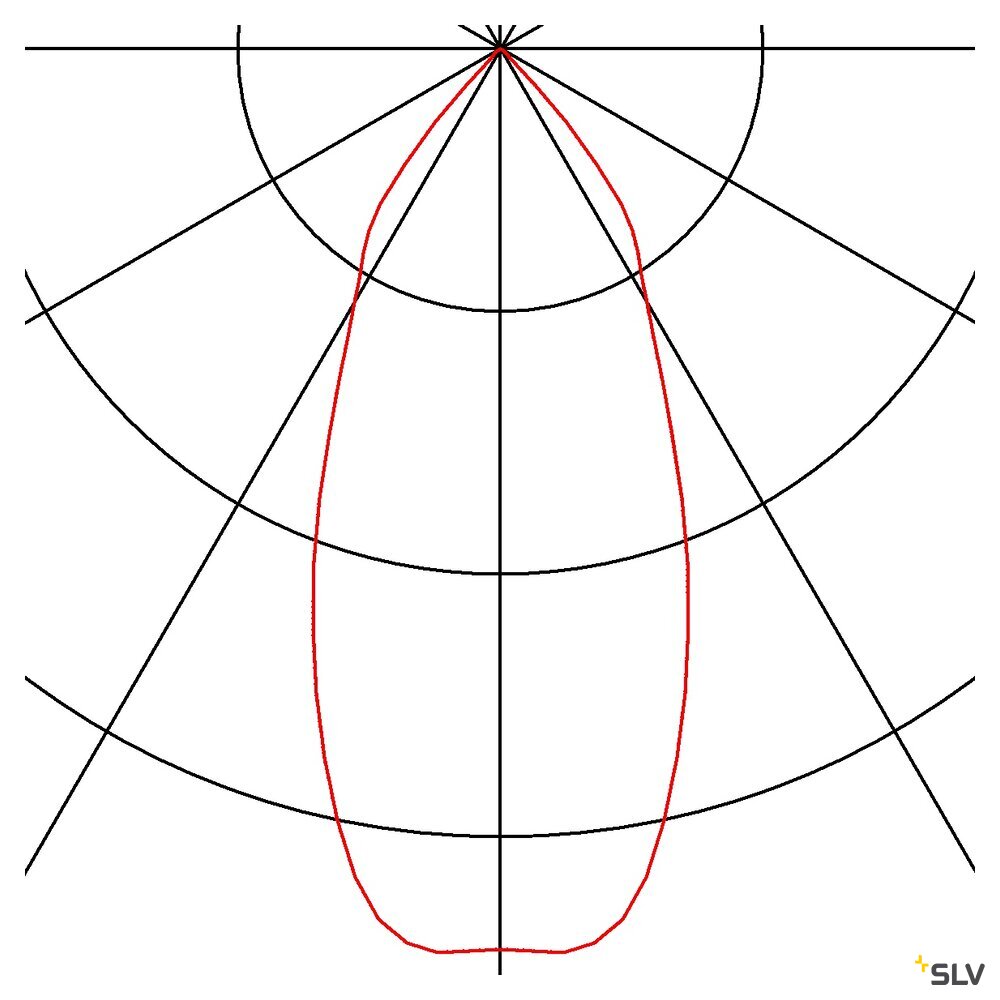

We will be pleased to send you a light distribution curve for the respective product on request.
Material thickness ceiling: 25mm max.
Protective glass inside.
High IP protection (protective glass)
Accessories:
plug included
driver included
cable included
dimmer excluded
ambient temperature:
-20 ... +45 °C
Energy efficiency category:
E
EPREL No:
916451
Energy consumption:
11 kWh/1.000 h
Article number:
114426
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
