LED Ceiling recessed luminaire PATTA-I, square, 12W, COB LED, 38°, 3000K, IP65, incl. Driver, black

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Outdoor LED Downlight PATTA-I SQUARE

The Outdoor LED Downlight PATTA-I SQUARE is a high-quality recessed ceiling light suitable for both indoor and outdoor use. With a power of 12W and a light output of 910lm, this dimmable LED light provides a pleasant warm white light with a color rendering index of 80Ra.

Technical Details

The square trim made of aluminum and glass gives the light a modern design. Measuring 8x8x4.5 cm and weighing 0.25 kg, the PATTA-I SQUARE is ideal for recessed mounting. The IP65 protection against moisture and foreign objects allows for use in wet areas and outdoor spaces.

Easy Installation

Thanks to the included driver and accessories such as dimmer, cables, and plug, the installation of the Outdoor LED Downlight PATTA-I SQUARE is effortless. The external converter allows for connection to 220-240V AC and ensures a constant warm white light output.

Energy Efficient and Durable

With an energy efficiency class E and an energy consumption of 11kWh/1,000h, the PATTA-I SQUARE is an energy-efficient lighting solution. The average lamp lifespan of 40,000 hours guarantees long-lasting and reliable use of the LED light.

Variations and Additional Information

The Outdoor LED Downlight PATTA-I SQUARE is available in various color options and with a round or square trim. The light is dimmable with phase-cut or phase-dimmable dimmers and can be replaced by a professional. Further technical details and a light distribution curve are available upon request.

Article number:
114430
Purchasing quantity:
1 piece
Brand:
SLV
Energy efficiency category:
E
EPREL No:
916451
Product type:
Ceiling recessed luminaire
Energy consumption:
11 kWh/1.000 h
Manufacturer:
SLV
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge, leading edge
Lamp shape:
square
Power frequency:
50/60 Hz
Power consumption:
11 W
Emitting angle:
38.00 °
Bulbs in delivery:
yes
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Lamps/bulbs:
1x COB LED, System power: 12W
Light colour:
warm white
Light emission:
direct
Light flux:
910 lm
Nominal current:
500 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
40000 h
Colour rendering index:
80 Ra
1B
IK-Rating:
IK02 up to 0.20 Joule
Colour:
black
Glass color:
clear
Material:
aluminium
glass
Fitting depth:
6 cm
Fitting opening circle :
6 cm
Dimension:
L∕ W∕ H: 8∕ 8∕ 4,5 cm
Weight:
0,25 kg
Plug type:
clamping connection
Mounting:
recessed mounting
Field of application:
ceiling
Protection class:
2
IP-protection class:
IP65 / IP20
Application area:
suitable for outdoor use
suitable for indoor use
Additional information:
Integrated converter for 220-240V AC voltage to 500mA constant DC.
System power: 12W
Dimmable with Phase section dimmer / Phase-fired dimmer

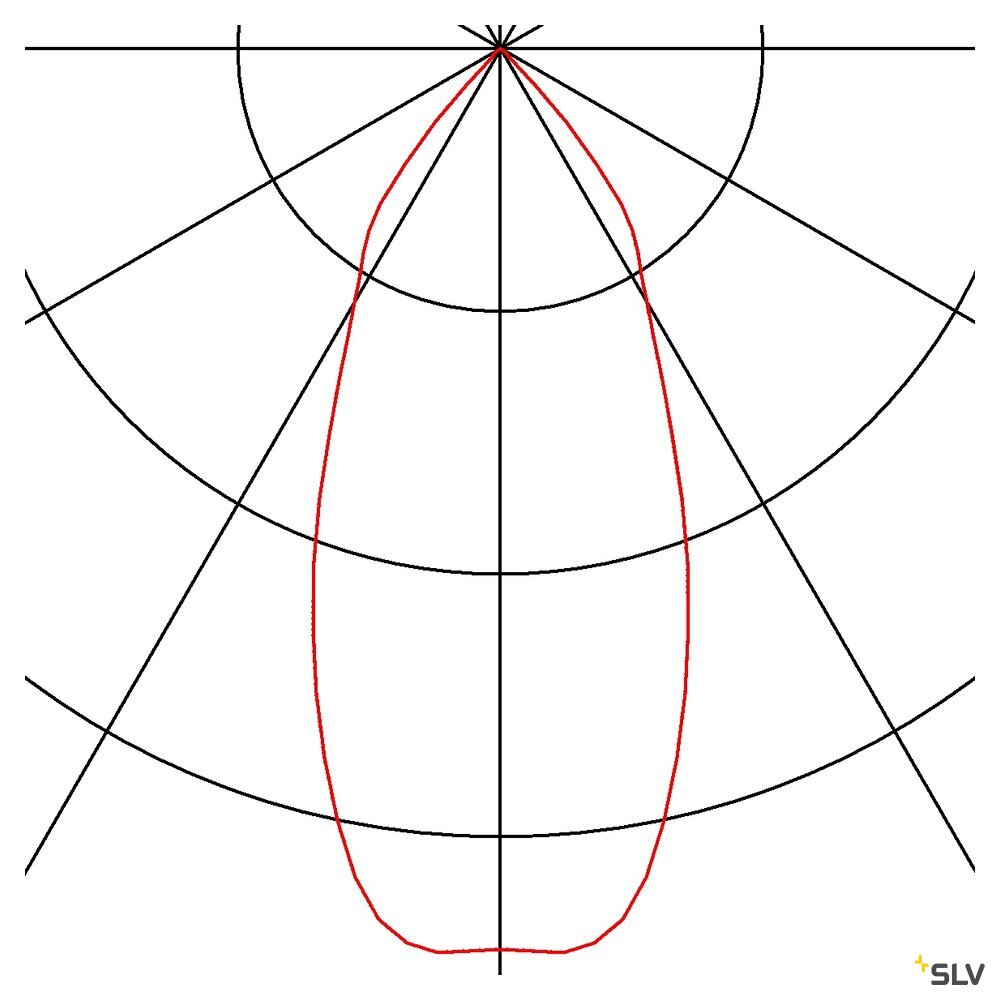

We will be pleased to send you a light distribution curve for the respective product on request.
clip springs
3 beam angles available
High IP protection (protective glass)
Material thickness ceiling: 25mm max.
Protective glass inside.
Accessories:
driver incl
plug incl
Kabel incl
dimmer excl
ambient temperature:
-20 ... +45 °C
