LED Grid luminaire, asymmetrical, 30W, 4000K, 3800lm, IP20, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

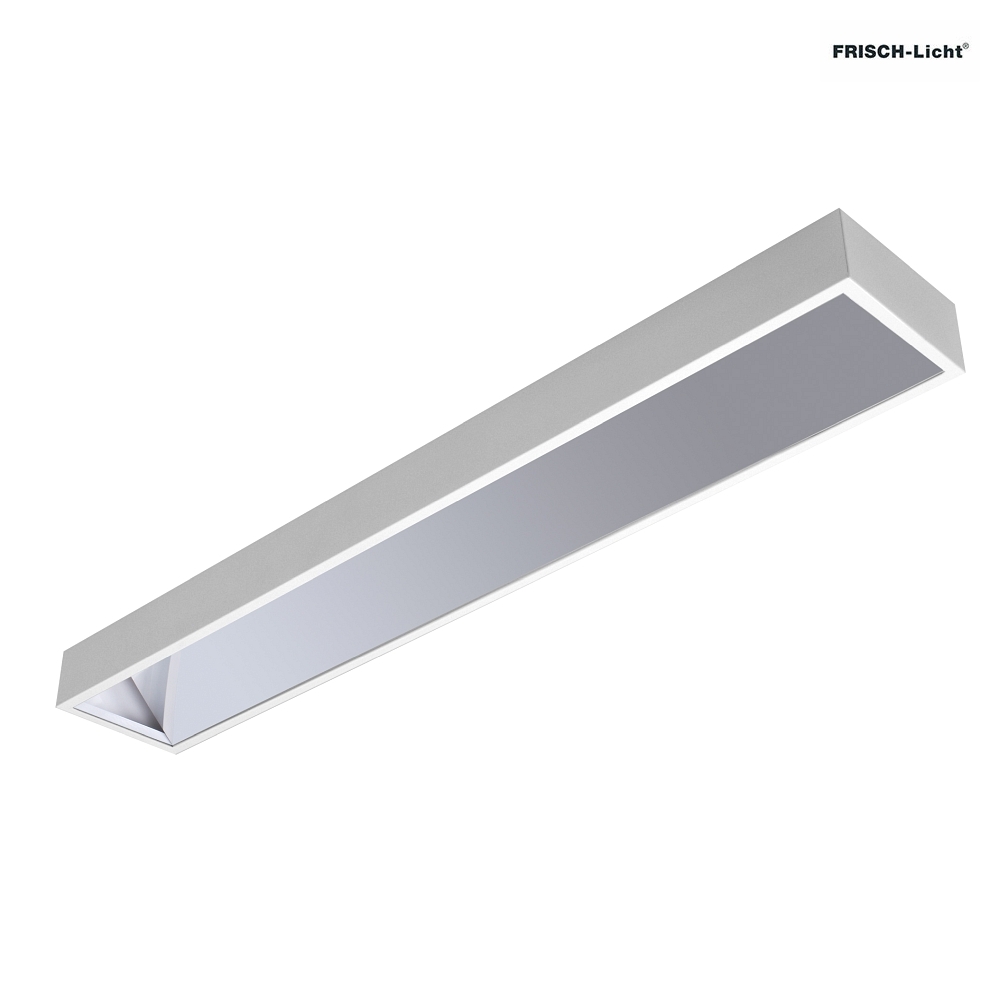

LED surface-mounted grid luminaire, asymmetrical, IP20, white

The LED surface-mounted grid luminaire by the brand Frisch-Licht is an efficient lighting element for indoor use. With a power consumption of 30W and a luminous flux of 3800lm, it provides bright and uniform illumination.

Technical Details

The grid luminaire has protection class 1 and an IP protection rating of IP20. It has a beam angle of 65° and a color temperature of 4000K. The material is made of sturdy sheet steel and the dimensions are 119 x 17.5 x 6 cm (L/W/H/D).

Energy Efficiency

With an energy consumption of 30kWh/1,000 h and an average lamp lifespan of 50,000 hours, the LED grid luminaire is not only durable but also energy efficient. The color rendering index is 1B, ensuring a true representation of colors.

Installation and Application

The surface-mounted installation allows for easy installation on the ceiling. The grid luminaire is suitable for use in various indoor spaces and is particularly suitable for use in emergency lighting or light band configurations. The control gear is included in the delivery.

Accessories and Additional Information

The accessories include the control gear and the light source. The LED cannot be replaced as it is permanently installed. The luminaire is square in shape and weighs 4.5kg. For more information on system performance and light output, please refer to the product specifications.

Article number:
FL-ARL134590T.3884
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Product type:
grid luminaire
Energy consumption:
30 kWh/1.000 h
Manufacturer:
Frisch-Licht
Operating voltage:
220-240 V~
Dimmable:
no
Lamp shape:
square
Power frequency:
50-60 Hz
Power consumption:
30 W

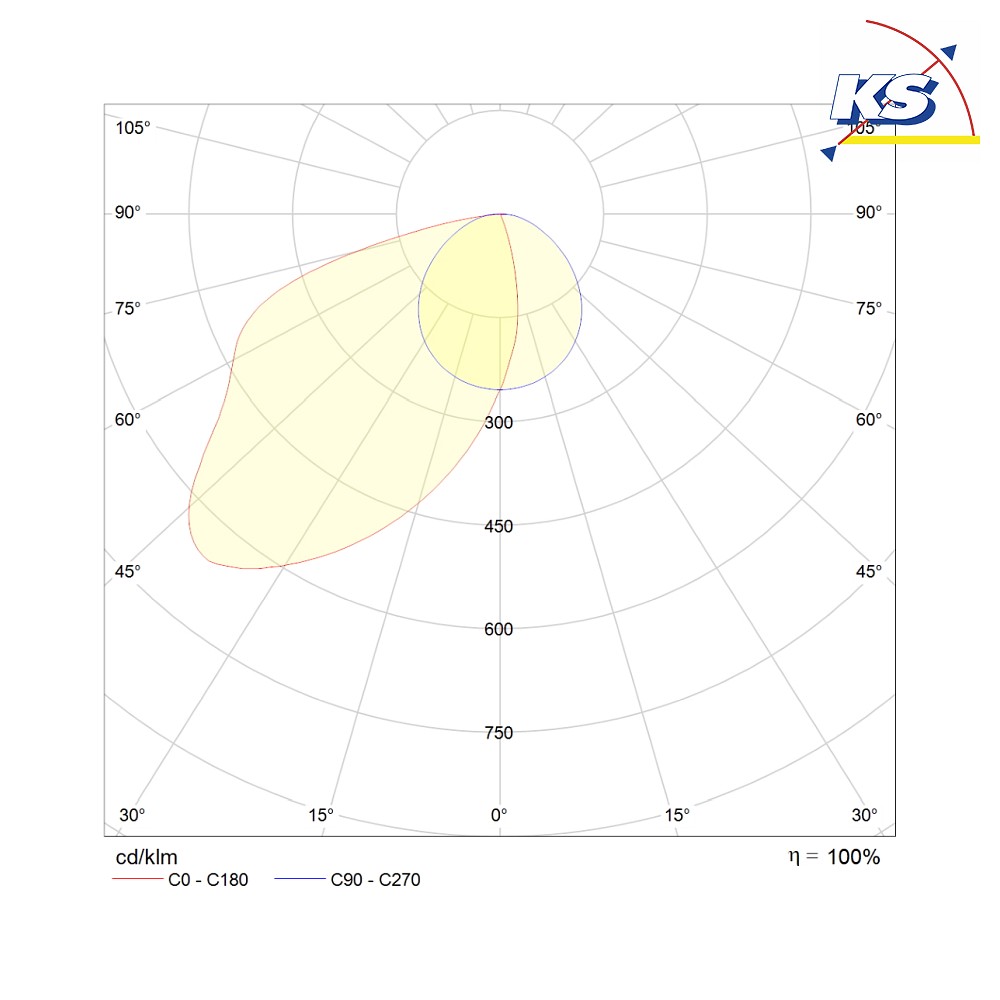

Emitting angle:
65 °
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
1
Temperature range:
-20 - +35 °C
Light colour:
neutral white
Light emission:
direct
Light flux:
3800 lm
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
1B
IK-Rating:
IK02 up to 0.20 Joule
Colour:
white
Material:
steel sheet

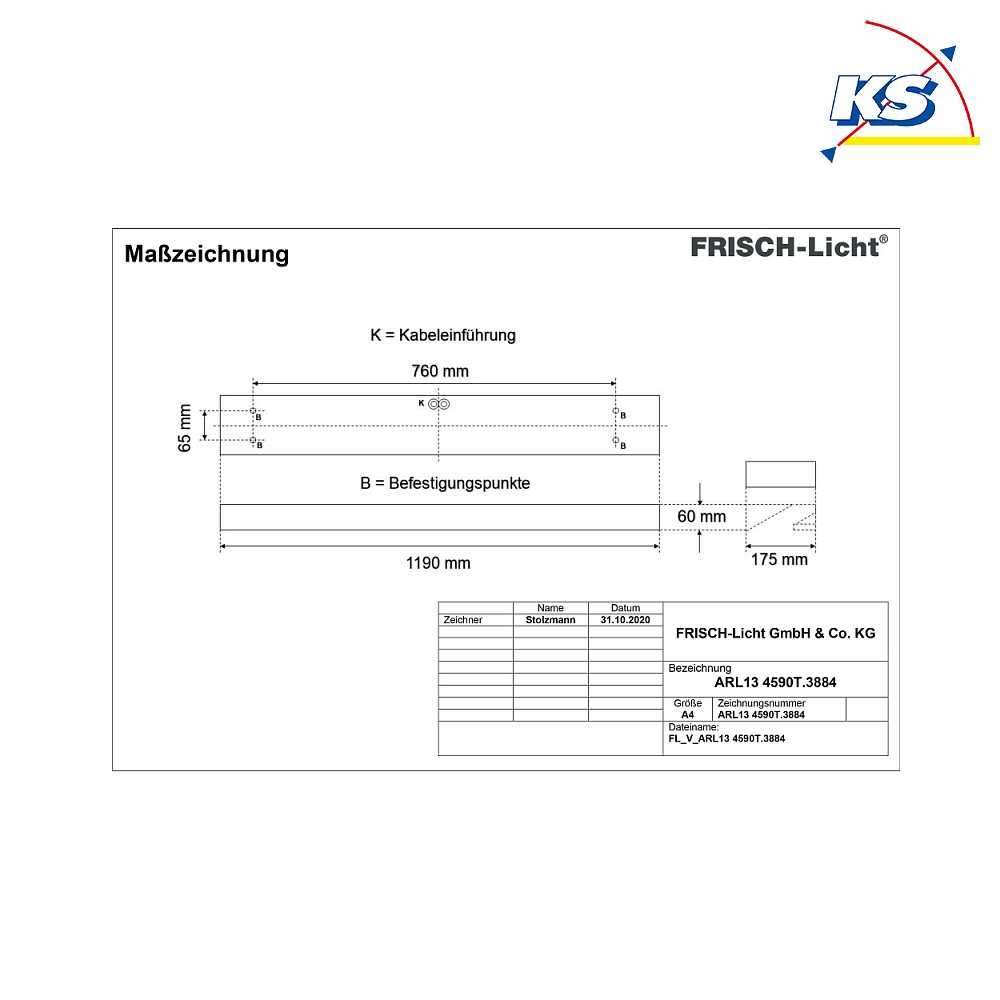

Dimension:
L∕ W∕ H∕ D: 119∕ 17,5∕ 6∕ 6 cm
Weight:
4,5 kg
Mounting:
surfaced mounting
Field of application:
ceiling
Protection class:
1
IP-protection class:
IP20
Application area:
only suitable for indoor use
Additional information:
Light emission: direct
System power: 30W
Accessories:
control gear incl
ambient temperature:
Tq +25 °C
