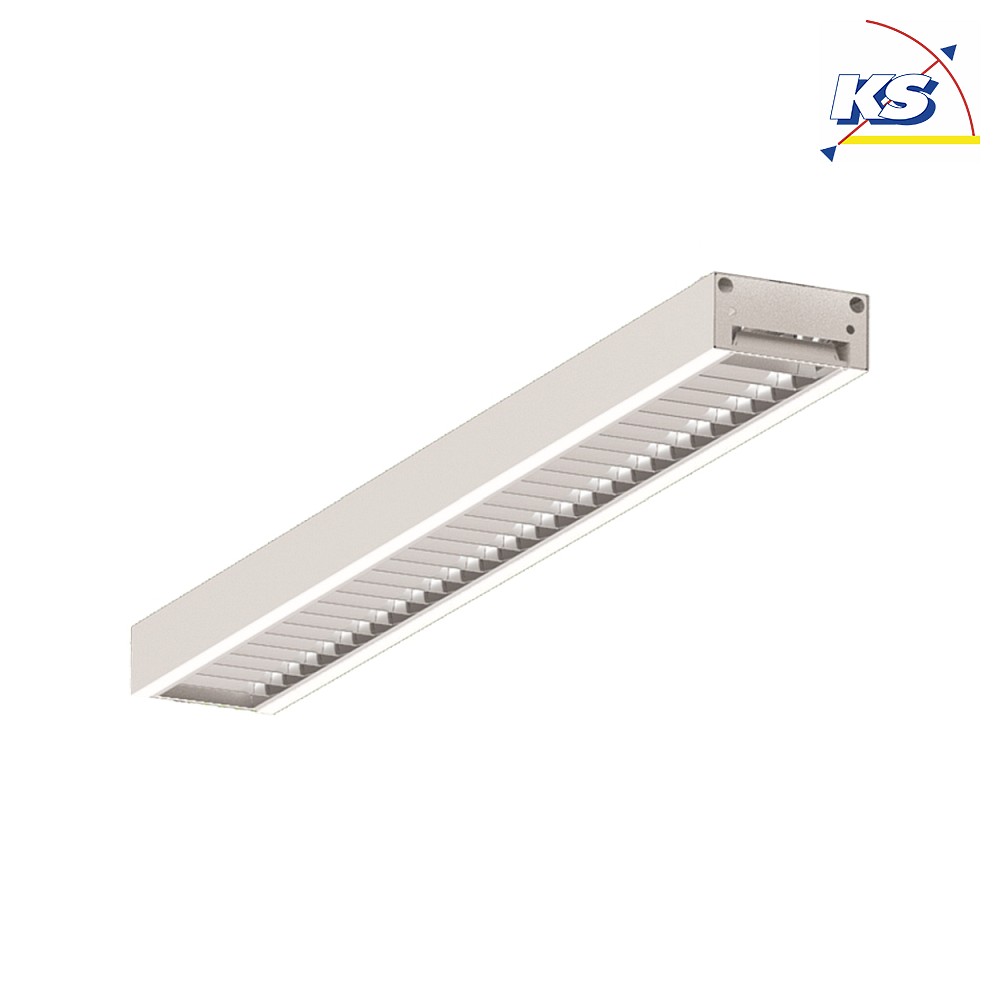

LED Light strip Surfaced /Pendant grid luminaire, 56W, 3000K, 7300lm, IP20, direct, UGR < 19, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Light Strip Surface/Pendant Grid Luminaire, IP20, direct, UGR <19, switchable, white

The LED Light Strip Surface/Pendant Grid Luminaire is a high-quality product from the brand Frisch-Licht. With a power consumption of 56W and a luminous flux of 7300lm, it provides bright lighting in your space. The color temperature of 3000K and warm white light create a pleasant atmosphere.

Technical Details

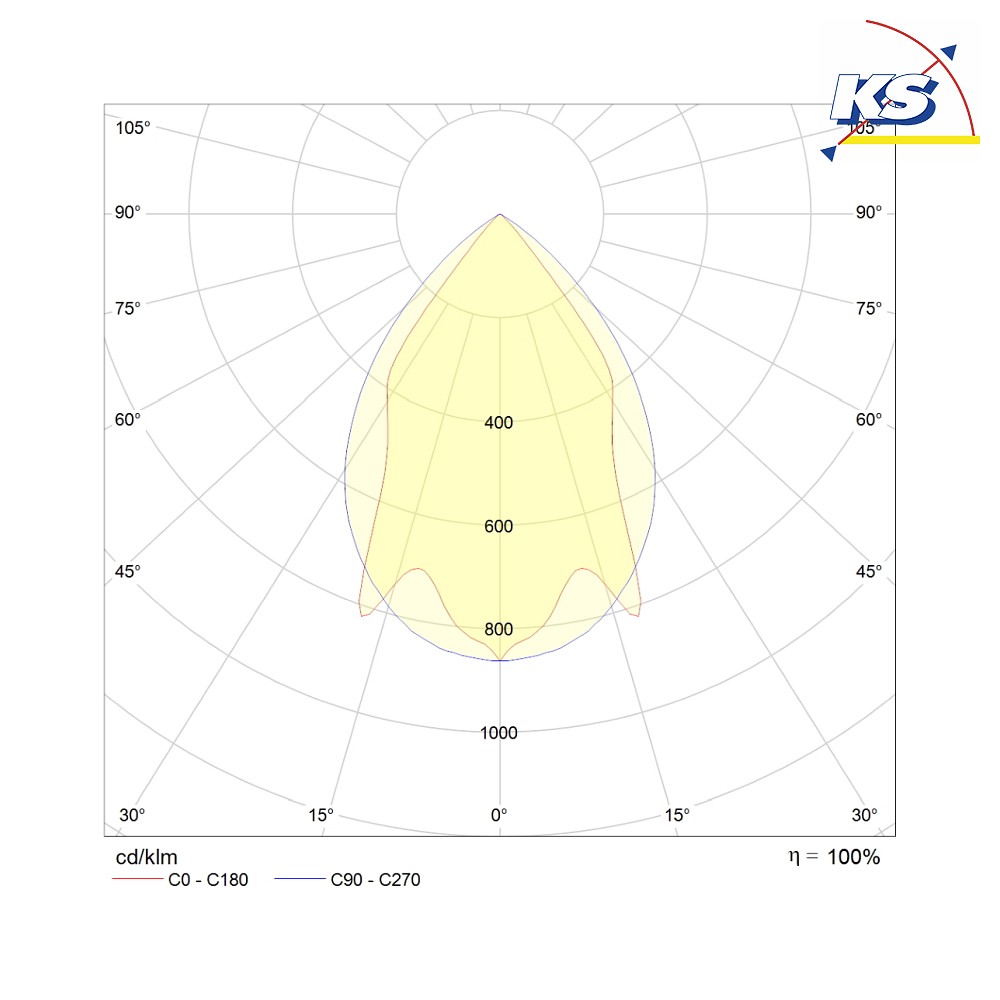

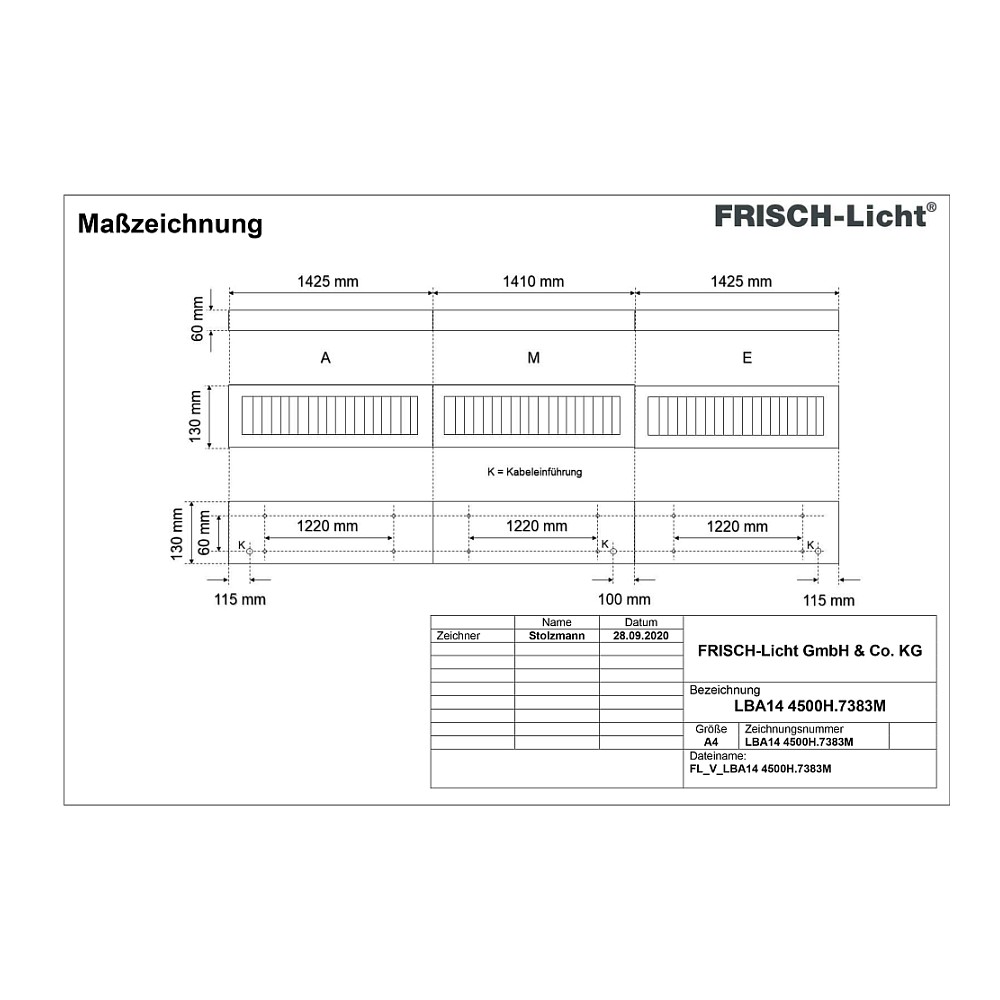

The dimensions of the luminaire are L/W/H/D: 141/13/6/6 cm and it weighs 5kg. The beam angle is 60° and the light distribution is direct. The product is rated Class 1 for protection and has an IP20 protection rating. The average lamp lifespan is 50000 hours.

Functions and Features

The LED Light Strip Surface/Pendant Grid Luminaire is switchable and has a UGR value below 19, ensuring glare-free lighting. The product is suitable for indoor use only and is ideal for ceiling mounting. It is energy-efficient with a consumption of 56kWh/1,000 h.

Accessories and Included Items

The luminaire includes the operating device. The accessories include an operating device of the EVG Standard type. The luminaire is also suitable for use at workstation screens and can be used for emergency lighting and light strip configurations.

Application and Installation

The LED Light Strip Surface/Pendant Grid Luminaire is suitable for surface mounting and can be used as a single luminaire or in a light strip configuration. It is made of steel sheet and has a square shape. The temperature range is between -20 and +35 °C, and the ambient temperature should not exceed Tq +25°C.

Colour:
white
Dimension:
L∕ W∕ H∕ D: 141∕ 13∕ 6∕ 6 cm
Material:
steel sheet
Weight:
5 kg
Product type:
light strip middle element
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
Power frequency:
50-60 Hz
Power consumption:
56.00 W
Emitting angle:
60 °
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
1
Temperature range:
-20 - +35 °C
Light colour:
warm white
Light emission:
direct
Light flux:
7300 lm
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
UGR:
< 19
Colour rendering index:
1B
IK-Rating:
IK02 up to 0.20 Joule
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP20
Additional information:
Light emission: direct
System power: 56W
Accessories:
control gear included
ambient temperature:
Tq +25 °C
Energy consumption:
56.00 kWh/1.000 h
Article number:
FL-LBA144500H.7383M
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Manufacturer:
Frisch-Licht
Manufacturer information
FRISCH-Licht GmbH & Co. KG, Schlachthofweg 2, 59755, Arnsberg, Germany, info@frisch-licht.de
