LED module BACKLIGHT 840 DIM - 117.5CM for VDU workstation, 2-pole, with lens optics 16W 1175lm 4000K 180° CRI 80-89 dimmable

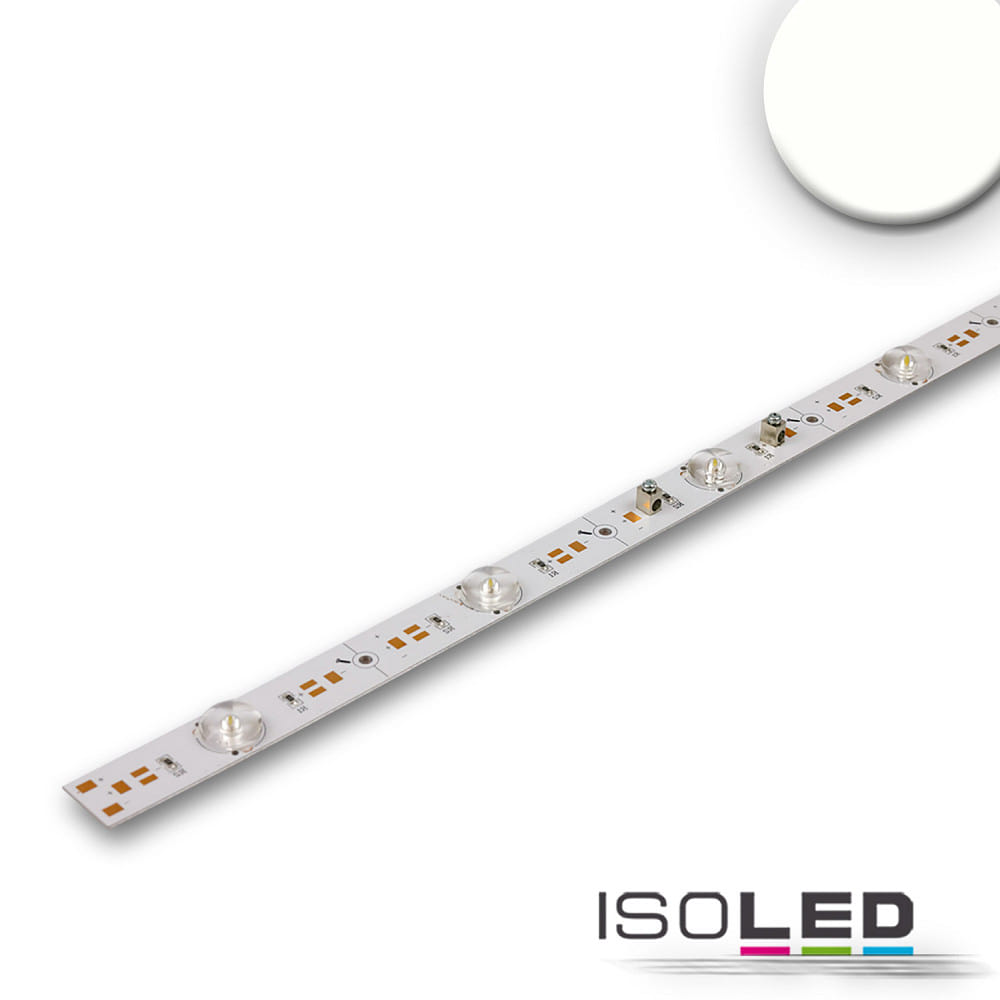

LED Retrofit Board Backlight 865, 117.5cm, IP20, 24V, 16W, neutral white, 180° lens, dimmable

The LED retrofit board Backlight 865 from ISOLED is a high-quality LED module designed for installation in systems. With a power consumption of 16W and a luminous flux of 1175lm, this module offers a high light output of 139lm/W. The color temperature is 4000K and the light color is neutral white. Thanks to the 180° lens, the light is distributed symmetrically.

Technical Data

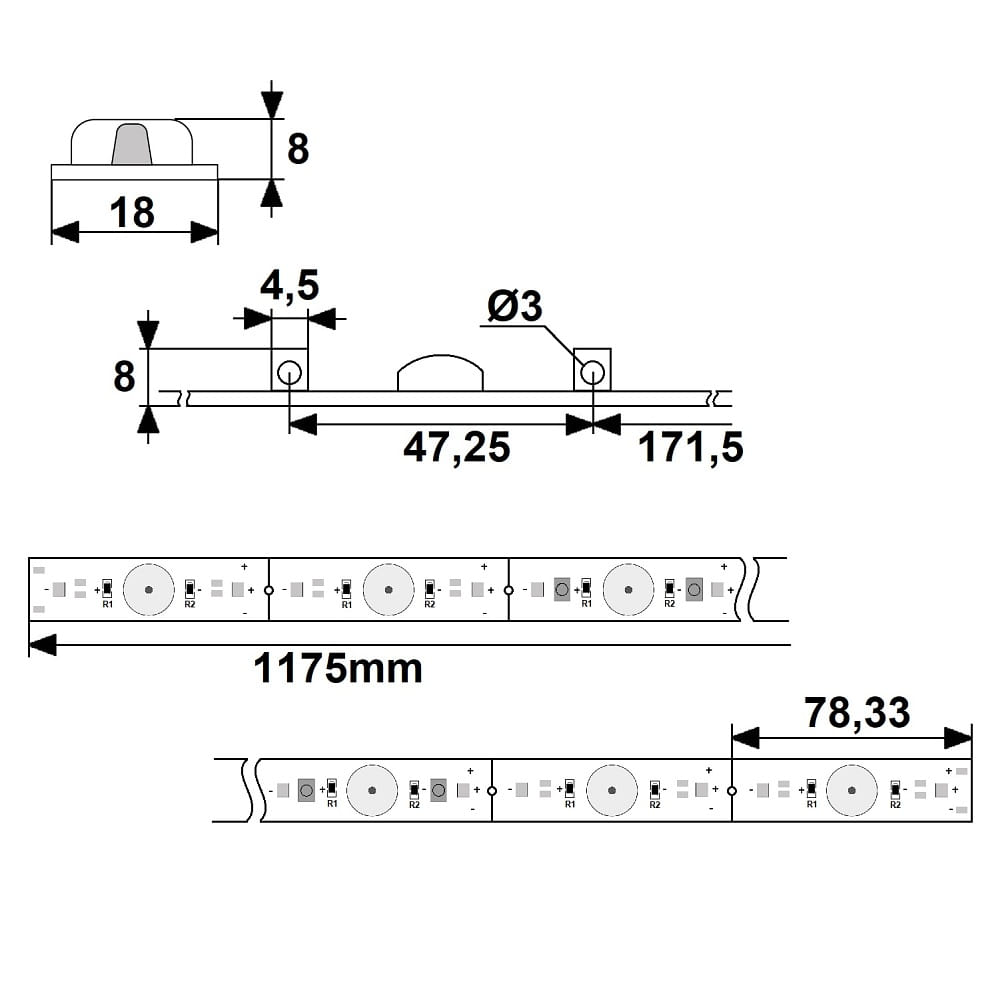

The retrofit board has a color rendering index of 80-89Ra and an average lamp lifespan of 50000 hours. It has dimensions of L/W/H: 117.5/1.8/0.8 cm and is made of plastic. It operates with a voltage of 24V and an electronic transformer as the operating device. The power factor is 0.95 and the conductor cross-section is 0.75mm2.

Dimmable and Phase-cut

The LED retrofit board is dimmable and supports the phase-cut dimming method. It has a protection class of 1 and an IP protection rating of IP20. The product is suitable for indoor use only and can be mounted on ceilings or walls. The power connection is made via screw terminals.

Energy Efficiency and Accessories

The energy efficiency of ballasts is rated as A1 BAT. The LED retrofit board is suitable for emergency lighting and has an extremely wide beam angle of over 80°. Accessories such as the driver are not included. The color rendering stage is 1B.

ISOLED Quality

This product comes from the brand ISOLED, known for high-quality LED products. With this retrofit board, you get a reliable and durable lighting element for indoor use that offers high light quality and energy efficiency. Get the LED retrofit board Backlight 865 now and benefit from ISOLED's innovative LED technology.
