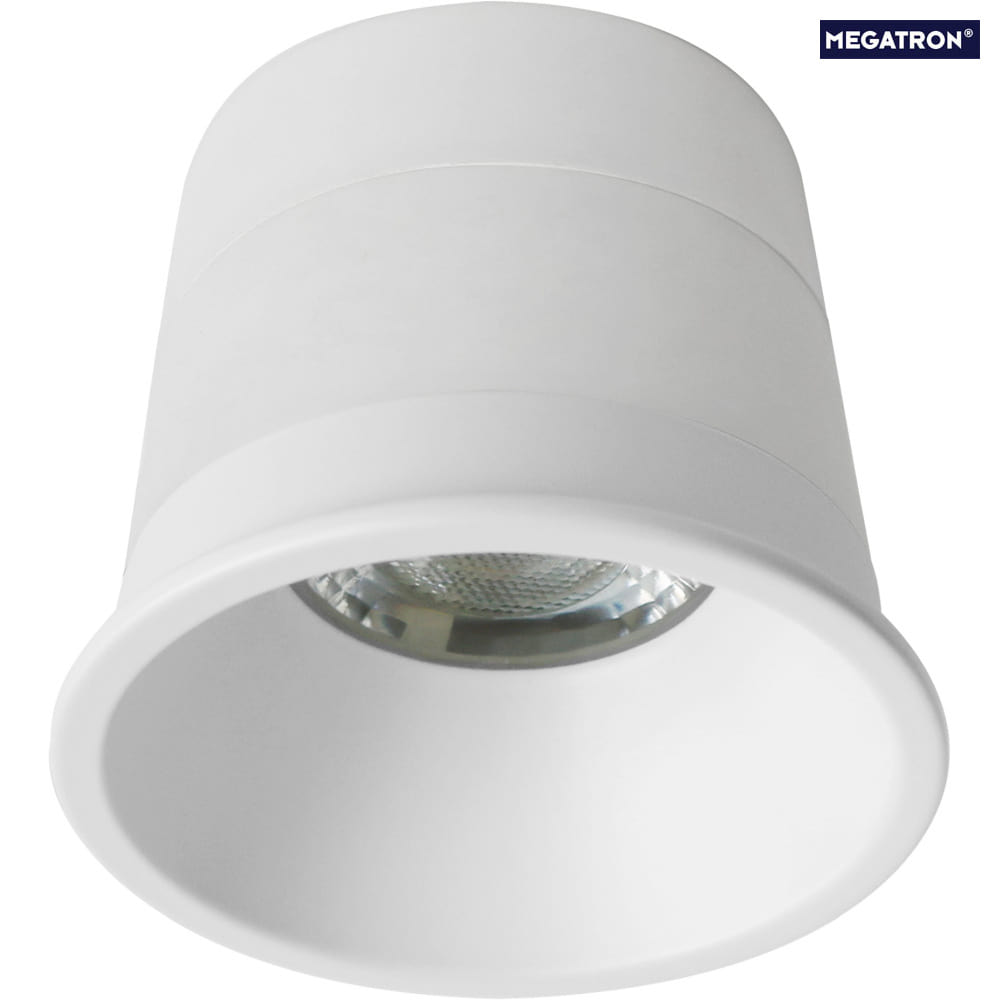

LED module KOIN FLEX set of 1, with decorative ring 4,9W 460lm 3000K 38° dimmable

Megatron



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient LED Module Set KOIN FLEX DIM

The LED Module Set KOIN FLEX DIM is an innovative lighting solution for indoor spaces. With a diameter of 5 cm and a installation depth of 4.2 cm, it fits perfectly into 68 mm ceiling cutouts. The set includes a 15 cm long connecting cable and a glare protection ring for easy installation.

High Light Quality and Energy Efficiency

The LED module offers a warm white light color with a color temperature of 3000K and a light intensity of 460lm. With a power consumption of only 4.9W and a light output of 102lm/W, it is extremely energy efficient. The high color rendering index of CRI >90 ensures natural and pleasant lighting.

Flexible and Dimmable

The LED module set is dimmable, allowing it to be adjusted to the desired light atmosphere. The 38° beam angle ensures targeted light distribution. Thanks to its sturdy construction of ceramic and aluminum, the module is durable and robust.

Easy Installation and Space-Saving

With a low installation depth of only 4.2 cm and the integrated LED driver, the module can be directly connected to the 230V AC mains voltage without needing a separate operating device. The space-saving compared to traditional recessed solutions with GU10 reflector lamps is significant.

Versatile Application Possibilities

The LED Module Set KOIN FLEX DIM is ideal for use in ceilings, providing a symmetrical light distribution. With an average lamp lifespan of 50000 hours and an energy efficiency class of E, it is a sustainable and reliable lighting solution for various indoor spaces.

Colour:
white
Reflector color:
white matt
Dimension:
Ø∕ H: 5/4.2 cm
Material:
ceramics
Weight:
0.084 kg
Product type:
LED module
Lamp shape:
round
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
230 V~
Dimmable:
yes
Dimmability:
with optional features only
Power frequency:
50/60 Hz
Power consumption:
4,9 W
Emitting angle:
38 °
Bulb type:
LED
Light colour:
warm white
Light emission:
symmetric
Light flux:
460 lm
Light intensity:
900 cd
Light yield:
102 lm/W
Nominal current:
35 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Switching cycles:
40000
Fitting depth:
4.2 cm
Fitting opening circle :
5 cm
Plug type:
clamping connection
Mounting:
recessed mounting
mounting accessories required
IP-protection class:
IP20
Accessories:
dimmer excluded
mounting ring excluded
connection cable included
Reflektor included
driver included
ambient temperature:
-20°C ... + 40°C
Energy efficiency category:
E
Energy consumption:
5 kWh/1.000 h
Article number:
MT76769WH
Purchasing quantity:
1 piece
Brand:
MEGATRON
Manufacturer:
MEGATRON
