LED module T5/T8 EXCHANGE - 88 LED - MINIAMP - 55CM with plug, 2-pole

ISOLED


B

CHF 13,14

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 18.77

You save 30,0 %

Shipping time: 10-13 days

Product no.: ISO-116406
EAN: 9009377159923
In stock: 50


Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

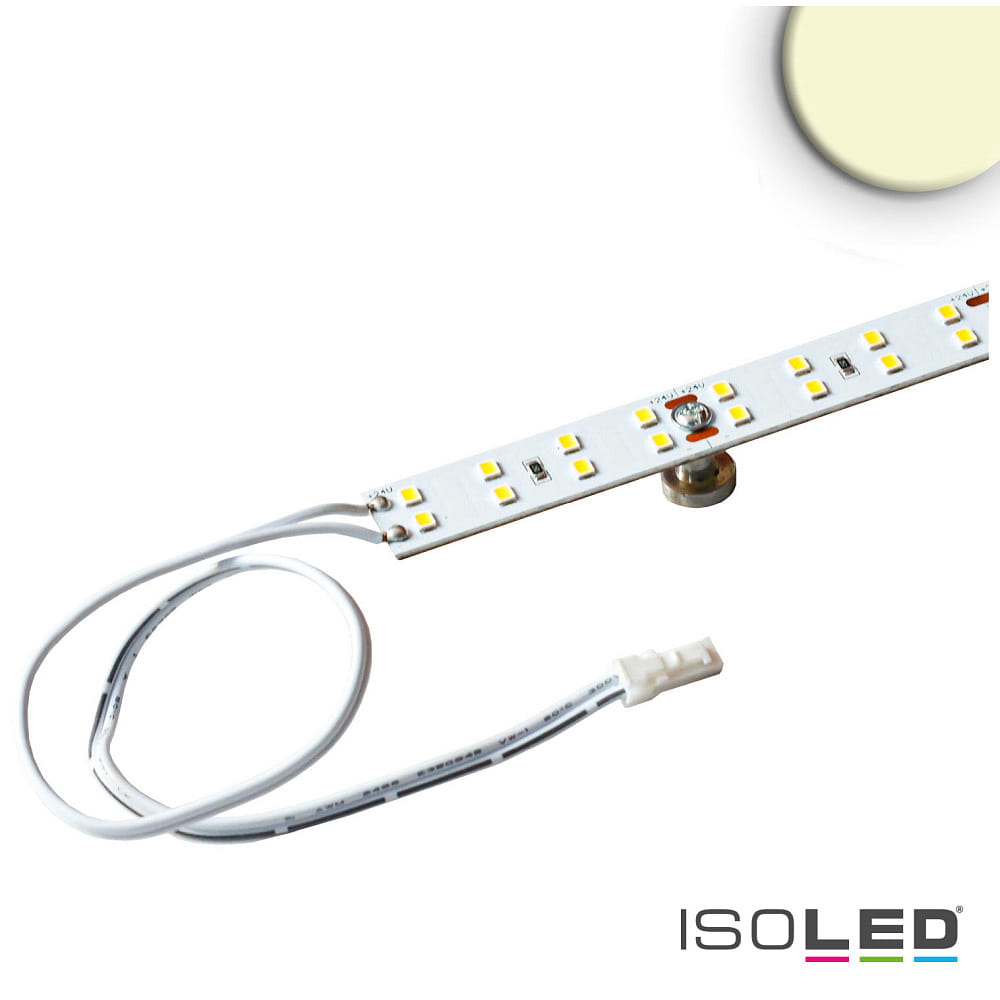

Modern LED T5/T8 Retrofit Board 830

The LED T5/T8 Retrofit Board 830 from ISOLED is a modern indoor lighting solution. With a length of 55cm and 88 warm white LEDs, it provides a pleasant light atmosphere. The MiniAMP technology ensures high energy efficiency and a long lifespan of up to 50,000 hours.

High Light Quality and Energy Efficiency

With a color rendering index of 80Ra and a luminous flux of 1500lm, the retrofit board offers excellent light quality. The color temperature of 3000K provides a warm light color, ideal for living spaces. With a power consumption of only 9W and an energy efficiency class of B, the LED board is also very energy efficient.

Flexible and Dimmable

Thanks to the dimming capability, you can adjust the brightness of the lighting individually. The 120° beam angle ensures even light distribution in the room. The operating voltage of 24V allows for easy installation and connection to the power grid.

Compact Design and Durable Materials

The retrofit board has a compact design with dimensions of 55x1.5x0.1cm and a weight of only 0.07kg. The housing is made of high-quality copper-colored plastic. The IP20 protection rating makes the board dustproof and ideal for indoor use.

Versatile Application Possibilities

The LED T5/T8 Retrofit Board 830 is ideal for use in living spaces, offices, or shops. With direct light distribution and high light quality, it creates a pleasant atmosphere. With its modern design and easy installation, it is a versatile lighting solution for various applications.

Colour:
white
Dimension:
L∕ W∕ H: 55/1.5/0.1 cm
Material:
plastic
copper
metal
Weight:
70 g
Product type:
LED module
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling, wall
Dimmable:
yes
Dimmability:
trailing edge
Emitting angle:
120 °
LED can be replaced :
no
Lamps/bulbs:
LED
Number of bulbs:
88
Light colour:
warm white
Light emission:
symmetric
Light flux:
1500 lm
Light intensity:
477
Light yield:
166,67 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK00 no impact resistance
lamp performance:
8,8
Maximum operable length:
500 cm
Length of connection lead:
30.00 cm
Mounting:
recessed mounting, system based mounting, mounting accessories required
Protection class:
3
IP-protection class:
IP20
Additional information:
Efficiency: 87%
Accessories:
connection cable included
adhesive back included
mini plug included
magnet included
cover excluded
dimmer excluded
luminaire excluded
driver excluded
ambient temperature:
-10°C ... +40°C
Energy efficiency category:
B
Article number:
ISO-116406
Purchasing quantity:
1 piece
Brand:
ISOLED
Manufacturer:
ISOLED
