LED Netzgerät DC 120W 24V SLIM RM DALI, 24V, 120W , DALI / 1-10V dimmable

TCI

Print product information sheet▶

question regarding the article

Print product information sheet▶

question regarding the article

CHF 68,20

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 86.28

You save 21,0 %

Shipping time: 5-6 weeks

Product no.: TCI-127966
EAN: 8010703815292
In stock: 50

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

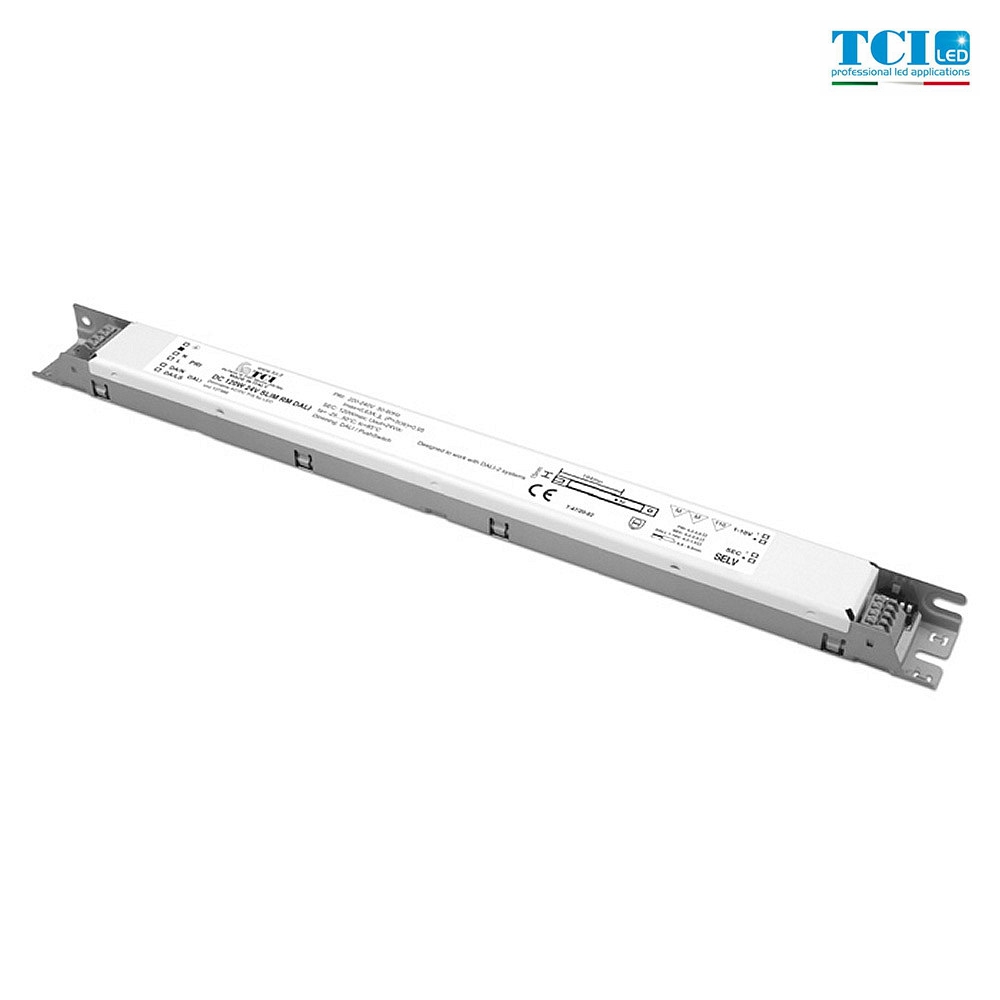

LED Power Supply DC 120W 24V SLIM RM DALI

The LED power supply with a power of 120W and an operating voltage of 24V is ideal for connecting LED strips. It features the option of external dimming via DALI (digital) and 1-10V (analog).

Versatile Application Possibilities

This power supply can be connected to both alternating current (AC) and direct current (DC). With an AC supply voltage of 198-264V and a DC supply voltage of 176-264V, it is flexible for use in various applications.

Reliable Protection and Compliance with Standards

The LED power supply is equipped with various protection mechanisms, including protection against overheating, short circuits, voltage spikes, and overloads. It complies with standards EN 50172, EN 55015, EN 61000-3-2, EN 61000-3-3, and others to ensure the highest safety standards.

Efficient and User-Friendly

With a maximum power factor of >0.95 and an efficiency of >92, the power supply is energy-efficient and helps save electricity costs. The opposite terminal blocks for input and output, as well as individual terminals on the primary and secondary circuits, make installation and connection easier.

Compact Design and High Quality

The LED power supply is housed in a slim surface-mount enclosure and weighs only 2.15kg. With a protection class of 1 and an IP protection rating of IP20, it is suitable for indoor use. The high-quality construction and the TCI brand guarantee reliable and long-lasting performance.

Article number:

TCI-127966

Purchasing quantity:

1 piece

Product type:

LED power supply

Operating voltage:

176-264 V

Dimmable:

yes

Power frequency:

50-60 Hz

Bulb type:

LED

Colour:

white

Dimension:

L∕ W∕ H: 36∕ 3∕ 2,1 cm

Weight:

2,15 kg

Short circuit protected safety transformer:

yes

Protected by more than 110°C in fault:

yes

Max. current carrying capacity:

5 A

Current consumption:

30 A

Mounting:

surfaced mounting
recessed mounting

Protection class:

IP-protection class:

IP20

Application area:

only suitable for indoor use

Additional information:

Single terminal at the primary and secondary circuit (wire cross-section up to 2.5mm2 / AWG15)
Input and output terminal blocks on opposite sides.
Max. Power Factor: >0.95, max. effieciency: > 92
Standards compliance:
EN 50172 (VDE 0108)
EN 55015
EN 61000-3-2
EN 61000-3-3
EN 61347-1
EN 61347-2-13
EN 61547

EN 62386-101
EN 62386-102
EN 62386-207
EN 62386-251 (2)
VDE 0710-T14
Protections:
- against overheating and short circuits
- against mains voltage spikes
- against overloads
- protection fuse at input
Output from 0 to 120 watts.
AC operation range: 198-264V, DC operation range: 1176-264
Suitable for primary connection to AC current an DC current both.
The 24V LED driver (constant current) is suitable for LED strips. It can be dimmed with externally by DALI (digital) and 1-10V (analog).

Accessories:

Dimmer excl
surface mounted housing excl

ambient temperature:

-25...+50 °C

Tc (°C):

80 °C
