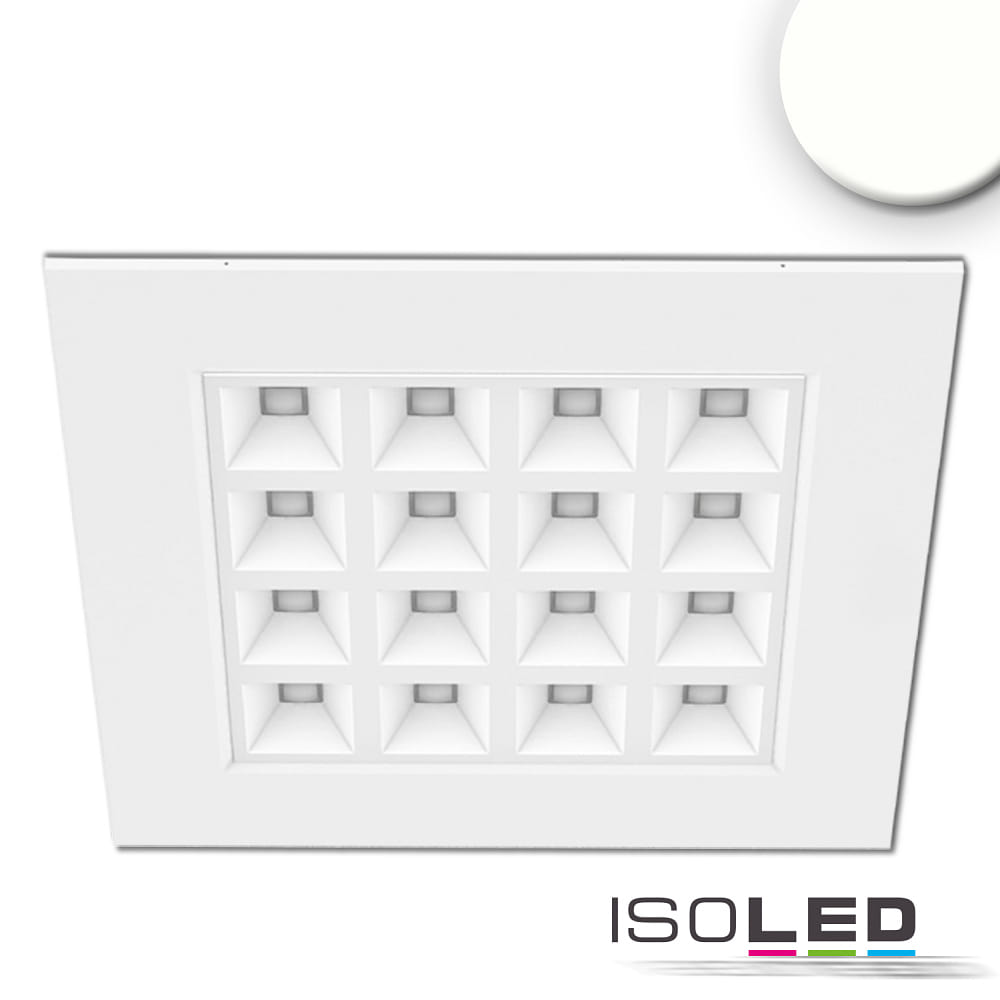

LED office panel UGR<16 Line 625, IP40, 16 light outlets, 36W 4000K 4200lm, white, push/DALI dimmable

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient LED Panel for Indoor Use

The ISOLED UGR<16 Line 625 LED panel is a high-quality lighting fixture specifically designed for indoor use. With a power of 36W and a luminous flux of 4200lm, it provides bright and uniform illumination in any room.

Glare-free and Energy-efficient

Thanks to its UGR<16 value and BAP suitability, the panel is particularly glare-free and ideal for screen workstations. With an energy efficiency class of D and a light output of 117lm/W, it is also very energy-efficient and helps reduce energy consumption.

Easy Installation and Durable Technology

The square panel measuring 62x62x4.7 cm can be installed for both recessed and surface mounting. The aluminum housing and diffuse light distribution ensure a long lifespan of up to 50000 hours. The operating device is already included in the delivery.

Safe and Versatile Applications

The LED panel operates within a voltage range of 220-240V~ and has protection class 1. With an IP40 protection rating, it is protected against dust and splashing water. With its neutral white light color and a color rendering index of over 85Ra, it offers natural and pleasant lighting.

Flexibly Dimmable and Compatible

The panel can be dimmed via DALI or a conventional switch. It is suitable for use in emergency lighting situations and has an extremely wide beam angle of >80°. With its modern design and high-quality construction, the ISOLED UGR<16 Line 625 LED panel is an ideal solution for efficient and flexible indoor lighting.

Article number:
ISO-114182
Brand:
ISOLED
Energy efficiency category:
D
EPREL No:
805667
Product type:
LED panel
Energy consumption:
36 kWh/1.000 h
Manufacturer:
ISOLED
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI, switch
Lamp shape:
square
Power consumption:
36 W
Emitting angle:
120 °
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
diffuse
Light flux:
4200 lm
Light intensity:
1871 cd
Light yield:
117 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>85 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
Colour:
white
Material:
aluminium
Fitting opening square/rectangular width:
62.00 cm
Fitting opening square/rectangular length:
62.00 cm
Dimension:
L∕ W∕ H: 62∕ 62∕ 4,7 cm
Mounting:
recessed mounting
surfaced mounting
Field of application:
ceiling
Protection class:
1
IP-protection class:
IP40
Application area:
only suitable for indoor use
Additional information:
System power: 36W
Accessories:
control gear incl
transformer box excl
mounting set excl
ambient temperature:
-20 - 40 °C
