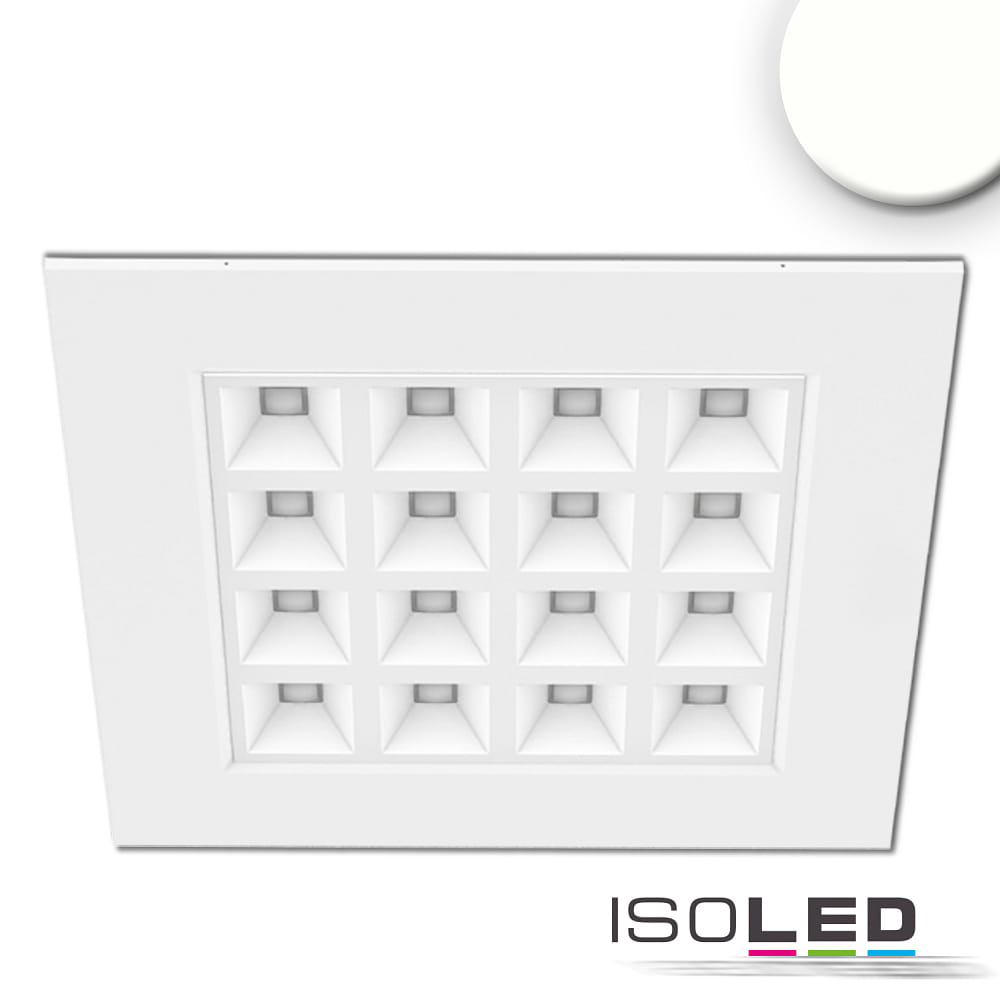

LED office panel UGR<16 Line 625, IP40, 16 light outlets, 36W 4000K 4200lm, white, KNX dimmable

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient LED panel for glare-free light

The LED panel UGR<16 Line 625 from ISOLED offers glare-free light with a color temperature of 4000K. With 16 light outlets, it provides uniform illumination in rooms of any size. The BAP suitability guarantees pleasant lighting without disturbing glare effects.

High performance and energy efficiency

With a power of 36W and a brightness of 4200lm, this LED panel is not only powerful but also extremely energy efficient. By using modern LED technology, you save energy costs in the long term and also protect the environment.

Robust design for a long lifespan

The IP40-certified LED panel is dustproof and provides reliable protection against contact. Therefore, it is ideal for use in various indoor spaces. The high-quality white design also fits in with any decor.

Easy control with KNX Dimmart

Thanks to the KNX Dimmart function, the brightness of the LED panel can be easily adjusted to your needs. With just a few simple steps, you can individually control the lighting in your space and create a pleasant atmosphere.

Versatile applications and easy installation

Whether in the office, living room, or hallway - the LED panel UGR<16 Line 625 is suitable for various applications. The easy installation allows for quick installation, so you can benefit from high-quality lighting in no time. The EAN number 9009377073595 also facilitates product identification.

Colour:
white
Dimension:
L∕ W∕ H: 62∕ 62∕ 4,7 cm
Material:
aluminium
Product type:
LED panel
Lamp shape:
square
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
180-295 V~
Dimmable:
yes
Dimmability:
KNX
Power consumption:
36 W
Emitting angle:
120 °
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
diffuse
Light flux:
4200 lm
Light intensity:
1871 cd
Light yield:
117 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>85 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
Fitting opening square/rectangular width:
62.00 cm
Fitting opening square/rectangular length:
62.00 cm
Mounting:
recessed mounting
surfaced mounting
Protection class:
1
IP-protection class:
IP40
Additional information:
System power: 36W
Accessories:
control gear included
transformer box excluded
mounting set excluded
ambient temperature:
-20 - 40 °C
Energy efficiency category:
D
EPREL No:
805668
Energy consumption:
36 kWh/1.000 h
Article number:
ISO-114183
Brand:
ISOLED
Manufacturer:
ISOLED
Manufacturer information
ISOLED FIAI Handels GmbH, Egerbach 48, 6334, Schwoich, Austria, product-details-service@isoled.shop, www.isoled.shop/details
