LED Outdoor luminaire ESKINA FRAME FL SINGLE LED Floor lamp, CCT switch, 3000/4000K, 1100/1200lm, IP65, anthracite, 45cm

SLV


D
Product data sheet

CHF 189,59

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 282.00

You save 32,8 %

Shipping time: 4-5 days

Product no.: 1004749
EAN: 4024163248990
In stock


Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

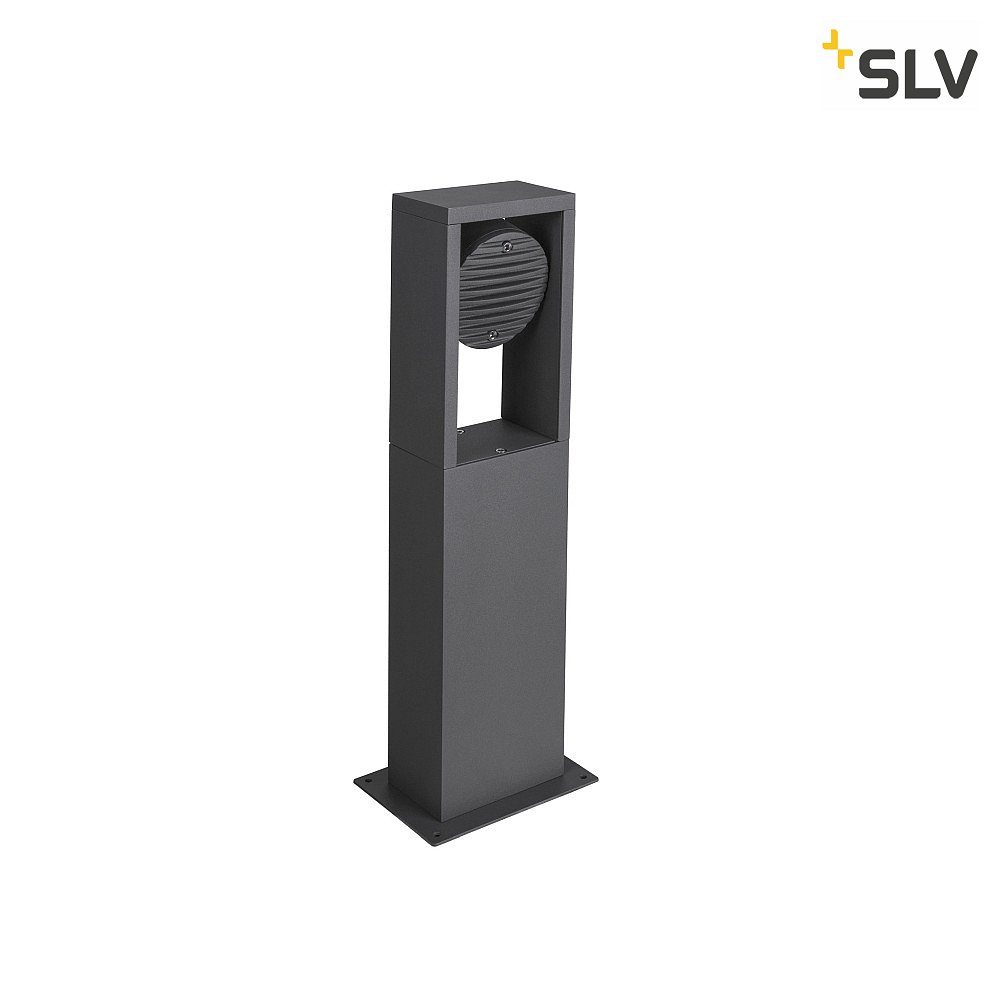

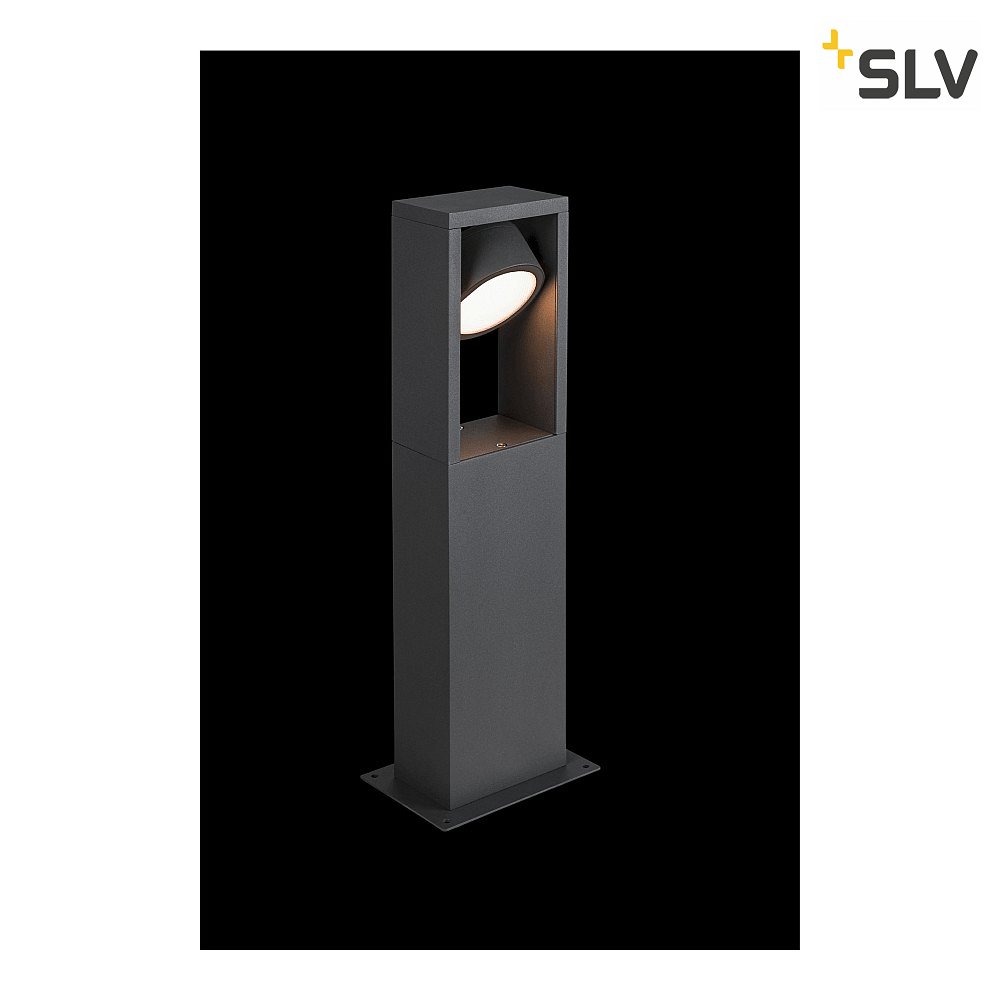

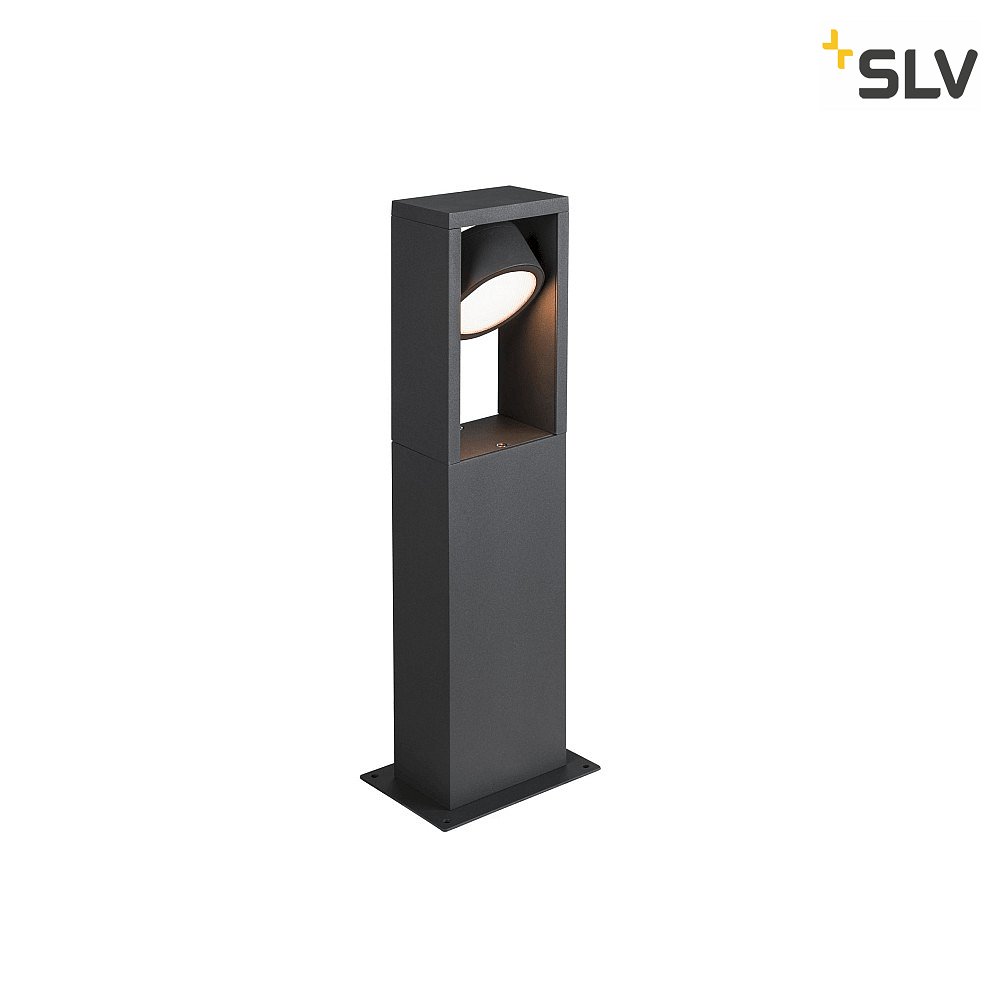

The Outdoor LED Floor Lamp ESKINA FRAME 45 SINGLE CCT

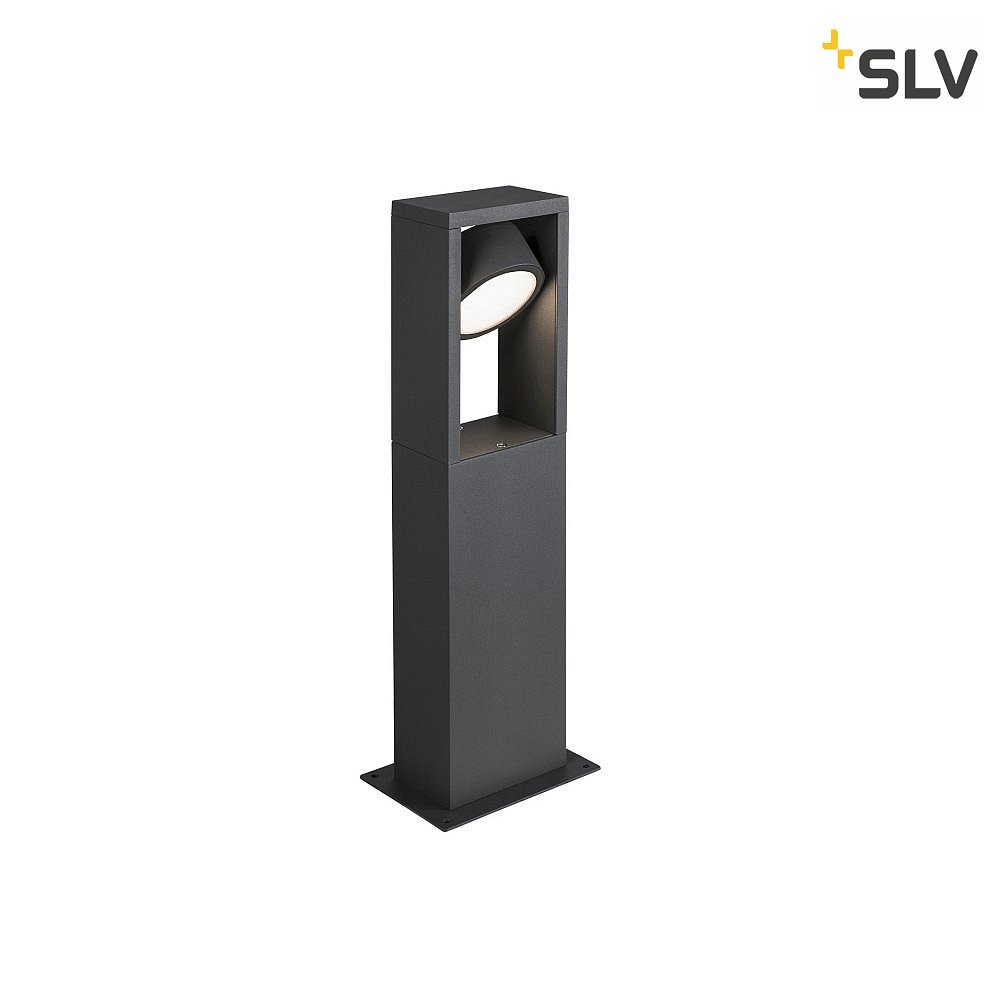

The Outdoor LED Floor Lamp ESKINA FRAME 45 SINGLE CCT is a modern outdoor light. With a highly adjustable, round light head in a square housing, it offers an attractive design for outdoor spaces.

High Protection and Robust Construction

Thanks to the IP65 protection rating, the floor lamp is protected against foreign objects and moisture. It also has a high impact resistance rating of IK06, protecting it against vandalism. The robust construction of aluminum and glass ensures durability.

Adjustable Light Color

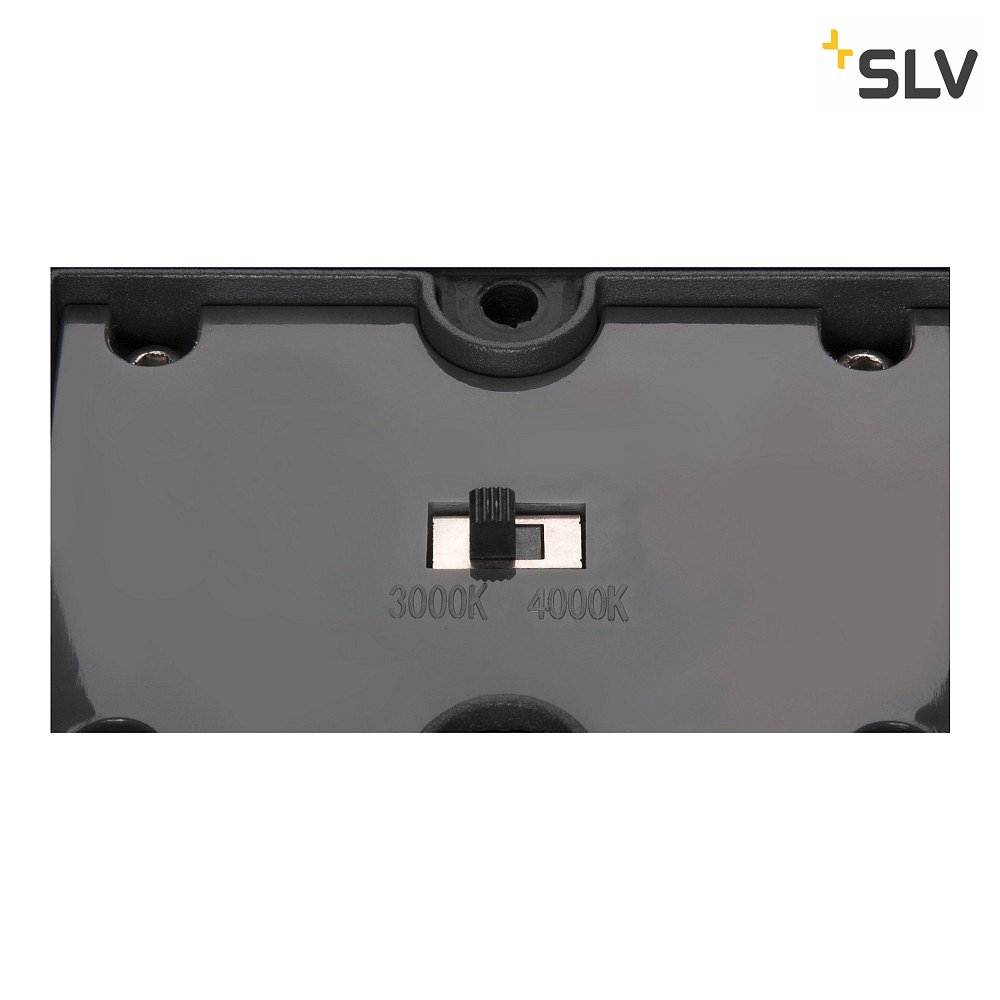

The light color of the ESKINA FRAME Floor Lamp can be easily adjusted between warm white and neutral white using the DIP switch located under the screw-on cover in the lamp body. This prevents accidental adjustment of the light color.

Easy Installation and Accessories

The floor lamp is ready for direct connection to 230V mains voltage. The connection is made using an H05RN-F cable with an IP-protected connection box, which is included in the accessories. The accessories also include dowels, allen key, screws, drivers, and washers.

Additional Information and Areas of Application

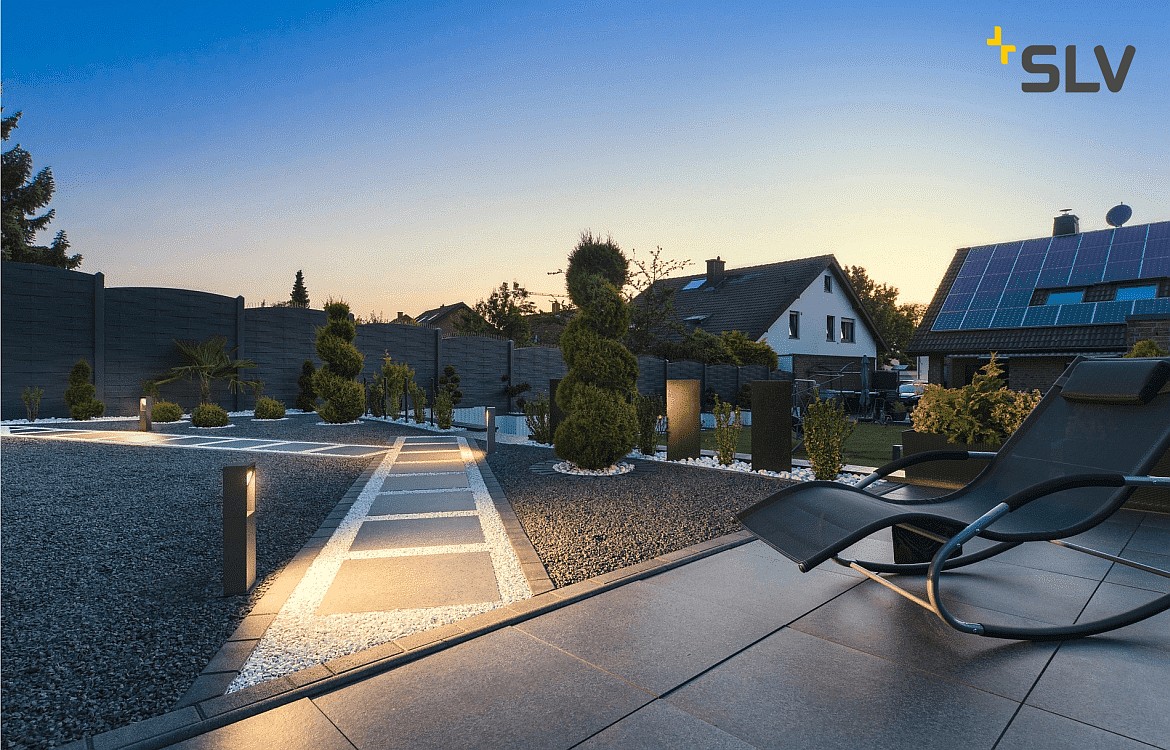

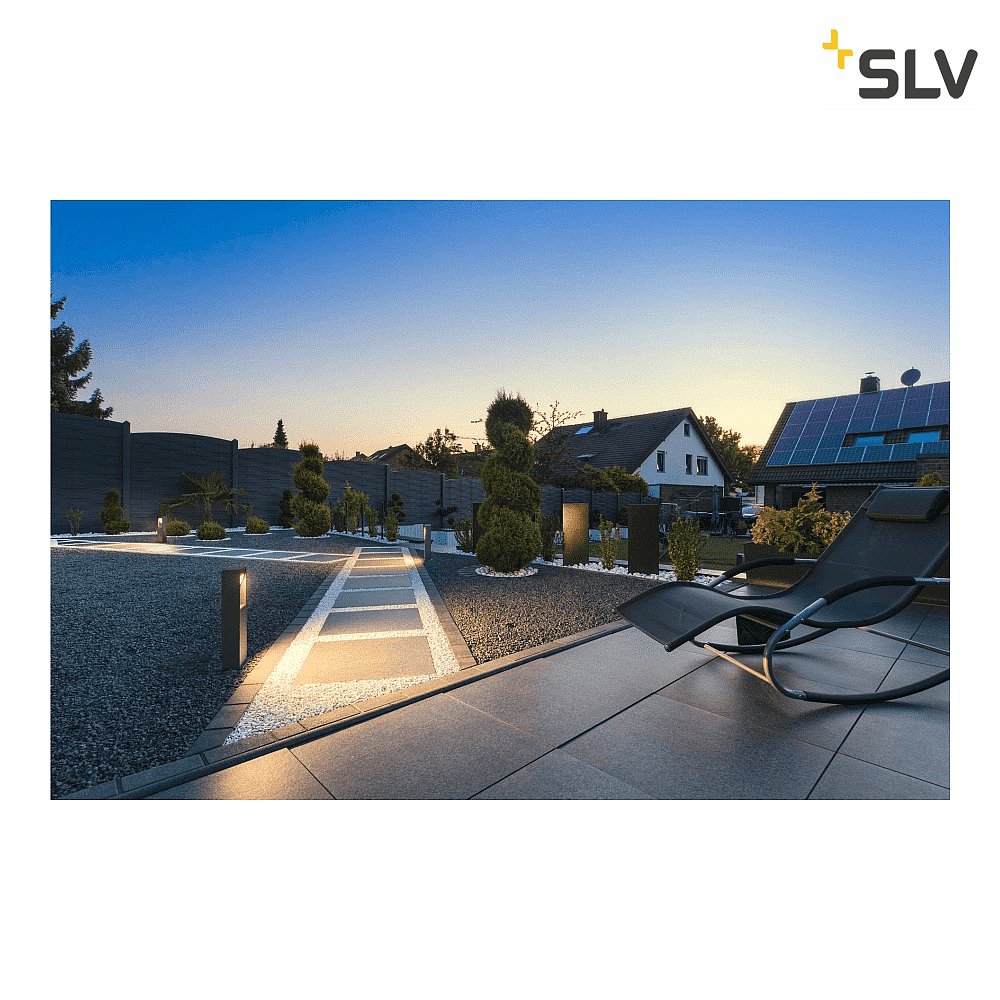

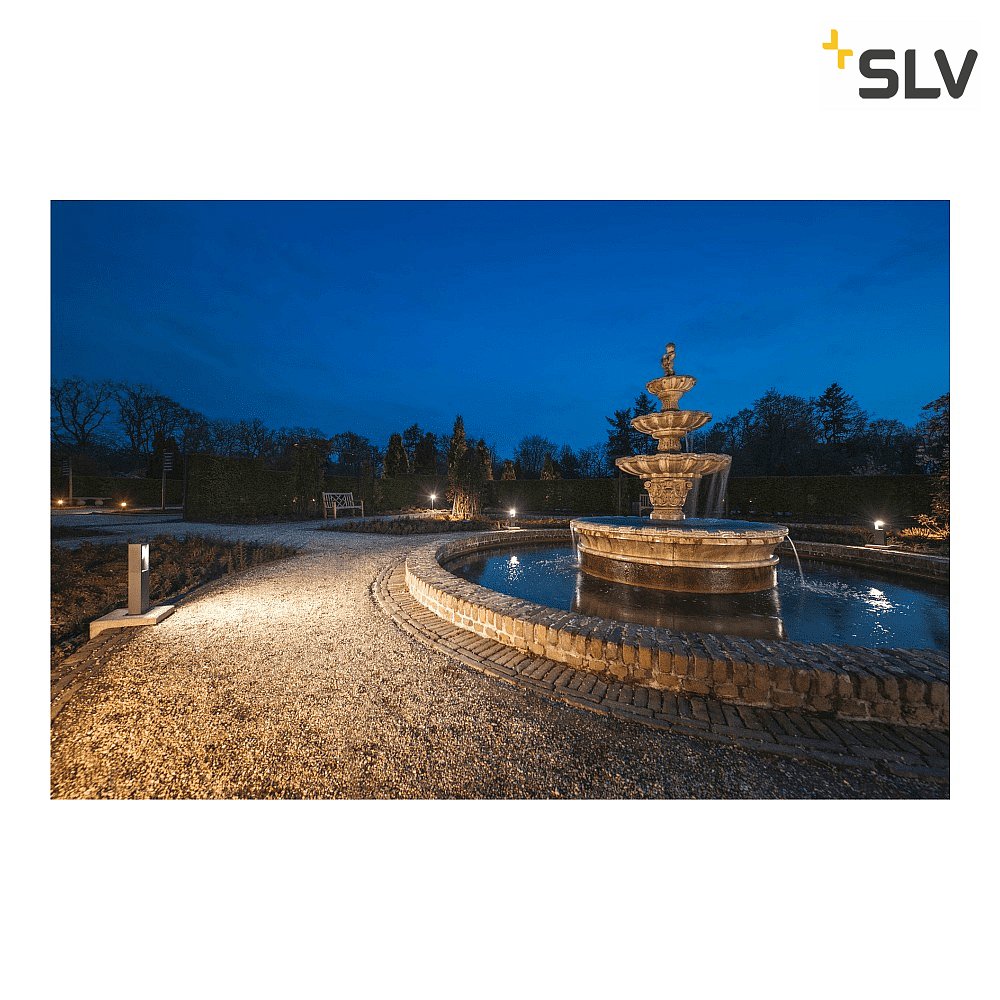

The ESKINA FRAME floor lamps are available in various heights with 1 or 2 adjustable spotlights. They are suitable for outdoor use and can also be mounted on walls and ceilings. With a luminous flux of 1100lm at 3000K and 1200lm at 4000K, they provide pleasant lighting for outdoor spaces.

Article number:
1004749
Purchasing quantity:
1 piece
Brand:
SLV
Prizes & Awards:
German Design Award 2022 winner
Energy efficiency category:
D
EPREL No:
916483
Product type:
outdoor floor lamp
Energy consumption:
15 kWh/1.000 h
Operating voltage:
220-240 V~
Dimmable:
no
Lamp shape:
square
Power frequency:
50/60 Hz
Lamptype:
LED
Power consumption:
15 W
Emitting angle:
95 °
Bulbs in delivery:
yes
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Number of bulbs:
1
Light colour:
warm white / neutral white (in steps)
Light emission:
direct
Light flux:
@ 3000K: 1100lm / @ 4000K: 1200 lm
Light yield:
81,4815 lm/W
Nominal current:
350 mA
Colour temperature:
3000/4000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
80 Ra
1B
IK-Rating:
IK06 up to 1.00 Joule
Colour:
anthracite
Glass color:
prisma
Material:
aluminium
glass
Throughwiring (installation of multiple luminaires in a row) is possible:
no

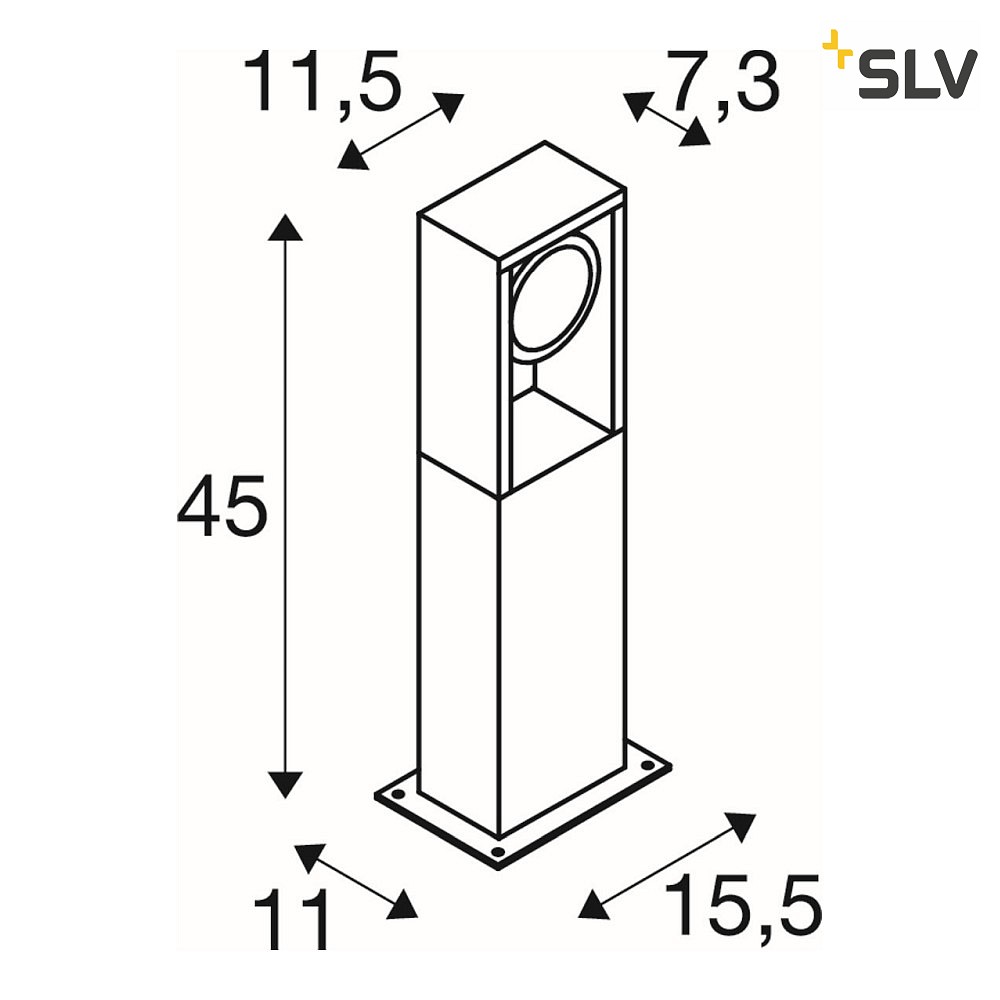

Dimension:
ground base-W∕ D: 15,5∕ 11 cm
luminaire body-W∕ D: 11,5∕ 7,3 cm
total-W∕ H∕ D: 15,5∕ 45∕ 11 cm
Weight:
2,3 kg
Mounting:
surfaced mounting
Field of application:
floor
Protection class:
1
IP-protection class:
IP65
Application area:
suitable for outdoor use
Additional information:
System power: 15W
We will be pleased to send you a light distribution curve for the respective product on request.
Accessories:
dowel incl
allen key incl
light colour switch incl
screws incl
driver incl
washers incl
connection box excl
ambient temperature:
-20°C ... +35°C
