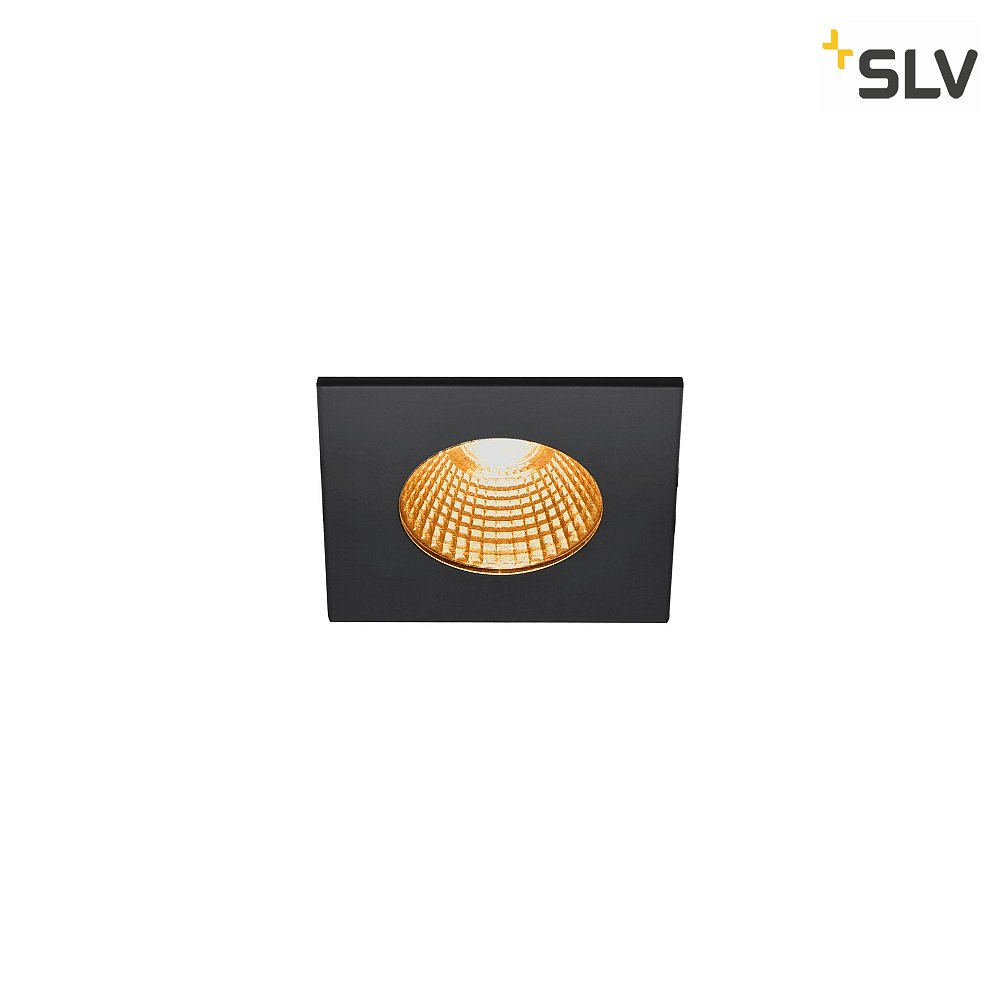

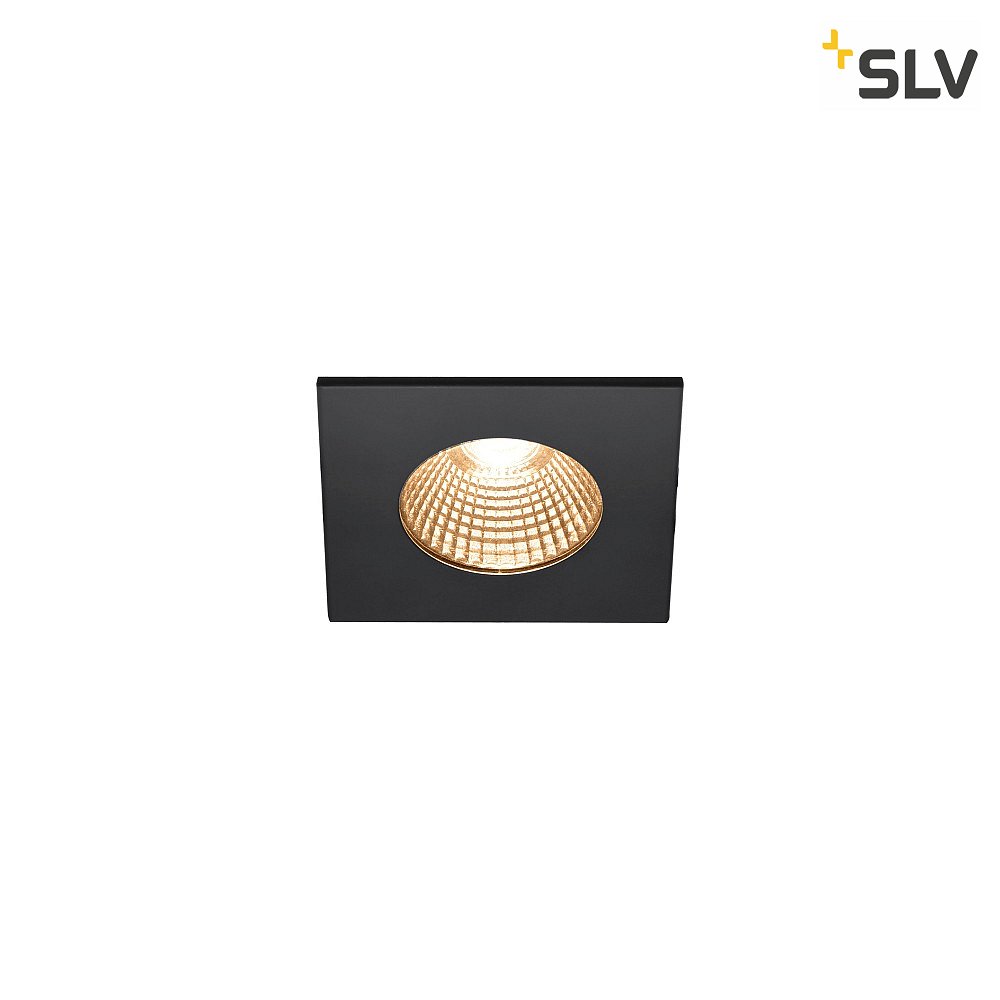

LED Outdoor Recessed Downlight PATTA-I square, IP65 IK02, 7.3W 1800-3000K 440lm, dim to warm, black

SLV



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Outdoor Recessed Downlight PATTA-I SQUARE DTW, IP65 IK02, 7.3W 1800-3000K 440lm, CRI 97, Dim-to-Warm

The LED Outdoor Recessed Downlight PATTA-I SQUARE DTW is a high-quality LED recessed spotlight suitable for outdoor use. With a power consumption of 7.3W and a light output of 440lm, it offers an efficient lighting solution with individually adjustable color temperature from 1800 to 3000 Kelvin.

Technical Details and Accessories

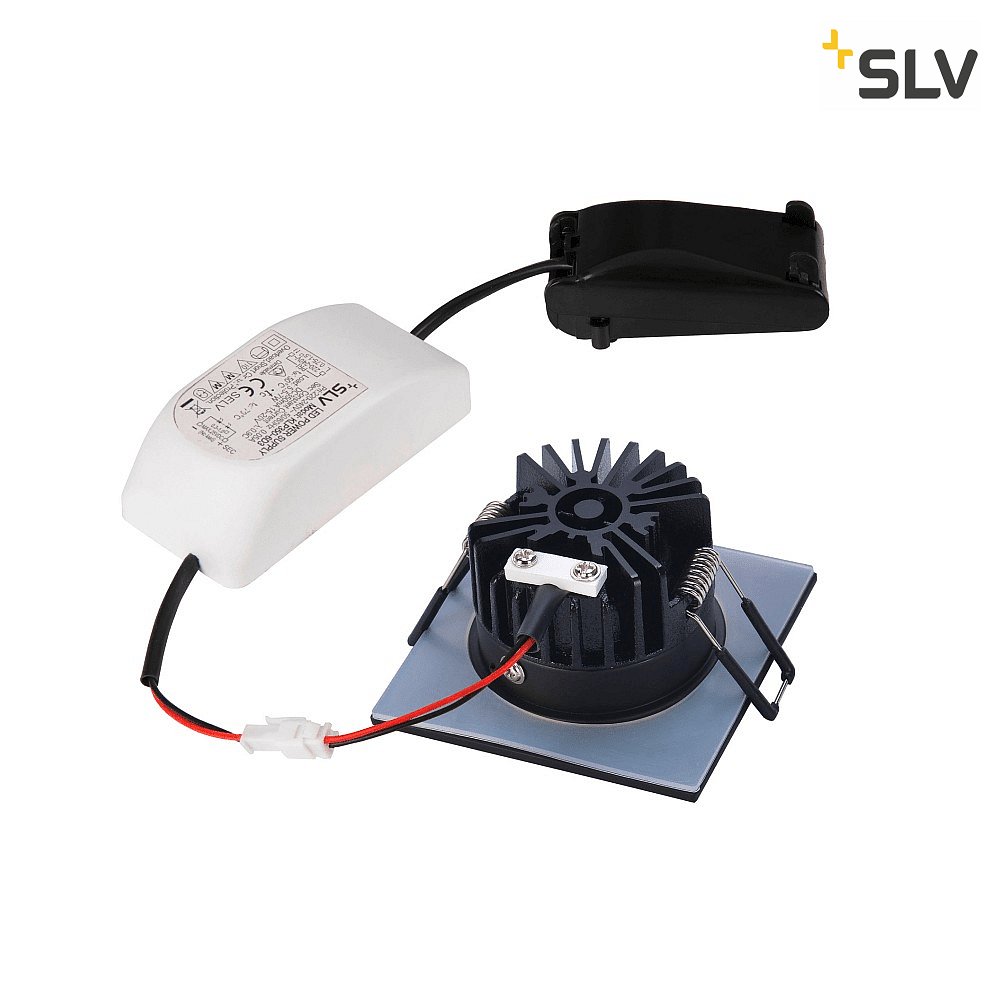

The downlight has a color rendering index of 97Ra and a color rendering grade of 1A. It has a beam angle of 38° and can be operated with a dimmer. Included in the package are accessories such as cables, plugs, and drivers that enable easy installation.

Design and Material

The LED Recessed Downlight PATTA-I SQUARE DTW has a square shape and is made of high-quality aluminum and glass. With dimensions of 8x8x4 cm and a weight of 0.24kg, it is compact and easy to install. The installation is done by recessing it into the ceiling with clip springs.

Protection and Application

The downlight has an IP20 / IP65 protection rating, protecting it from moisture and foreign objects. It is suitable for outdoor areas and damp spaces. Protection class 2 provides additional safety. The energy efficiency class F and low energy consumption of 8kWh/1,000 h make the product particularly sustainable.

Additional Information and Application

The LED Outdoor Recessed Downlight PATTA-I SQUARE DTW offers a warm light atmosphere and is dimmable. With Dim-to-Warm technology, individual lighting conditions can be created. The external converter converts alternating current into constant direct current, ensuring efficient use. The simple clamp connection allows for a quick and secure connection to the power grid.

Colour:
black
Glass color:
clear

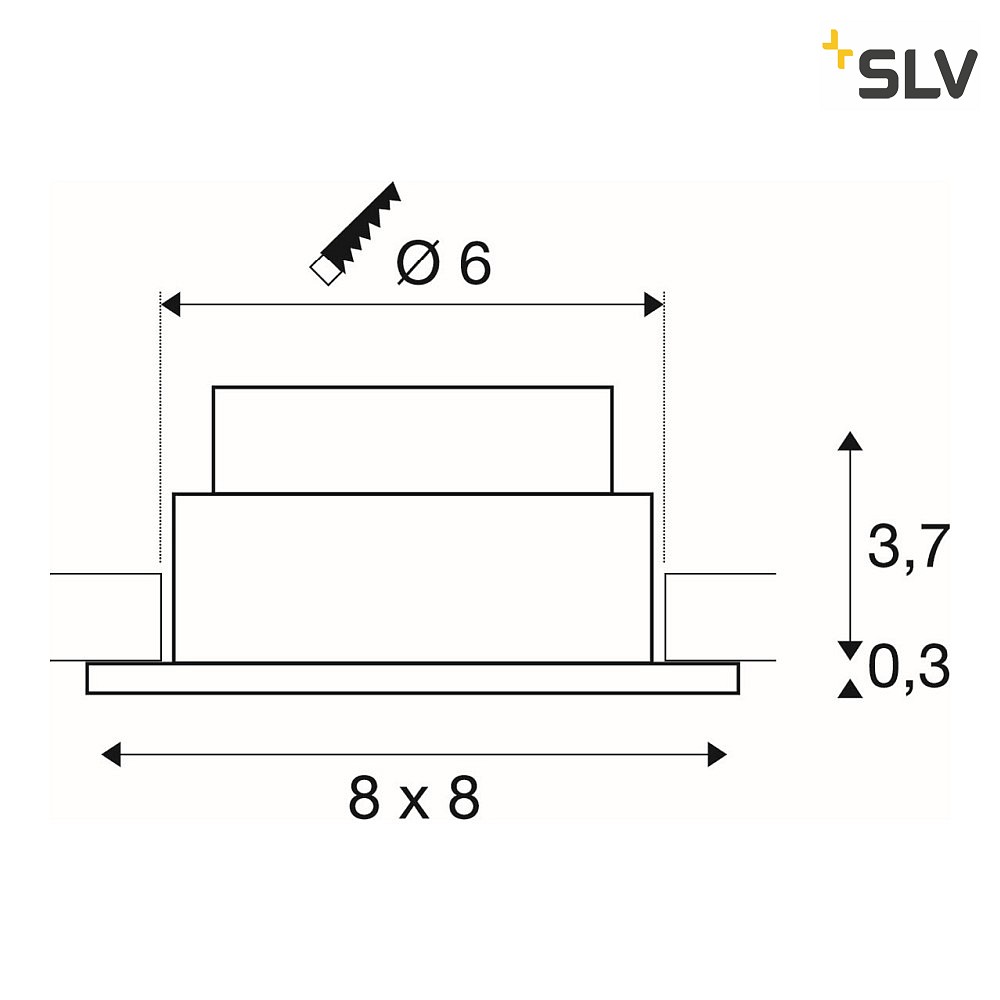

Dimension:
L∕ W∕ H: 8∕ 8∕ 4 cm
Material:
glass
aluminium
Weight:
0,24 kg
Product type:
outdoor recessed luminaire
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
suitable for outdoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
dim to warm
Power frequency:
50/60 Hz
Power consumption:
7,3 W
Emitting angle:
38 °
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Lamps/bulbs:
LED
Light colour:
amber to warm white
Light emission:
direct
Light flux:
440 lm
Nominal current:
350 mA
Colour temperature:
1800-3000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
97 Ra
1A
IK-Rating:
IK02 up to 0.20 Joule
Fitting opening circle :
6 cm
Plug type:
clamping connection
Mounting:
recessed mounting
Protection class:
2
IP-protection class:
IP20 / IP65
Additional information:
Material thickness of the mounting surface: max. 20 mm
Individual warm lighting moods from 1800 to 3000 Kelvin.
Available in three color versions with round or square cover.
Ready for direct connection to 230V~.
Material thickness ceiling: 25mm max.
Protective glass inside.
High IP protection (protective glass)
clip springs
3 beam angles available
Accessories:
plug included
cable included
driver included
dimmer excluded
ambient temperature:
-20 ... +45 °C
Energy efficiency category:
F
EPREL No:
916436
Energy consumption:
8 kWh/1.000 h
Article number:
1002101
Purchasing quantity:
1 piece
Brand:
SLV
Manufacturer information
SLV GmbH, Daimlerstraße 21-23, 52531, Übach-Palenberg, Germany, info@slv.de
