LED panel Frame 620 (61.5 x 61.5cm), IP40, 40W 4000K 3700lm 120°, illuminated frame, 1-10V dimmable

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

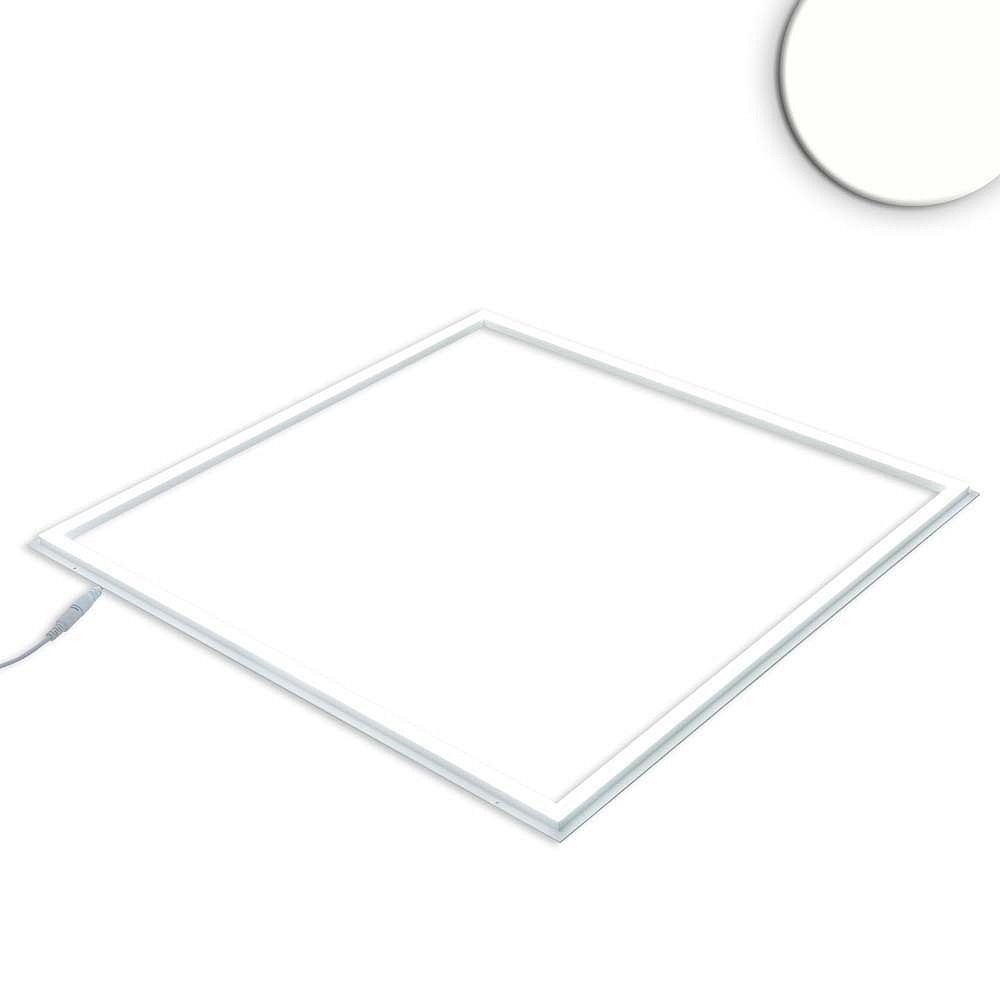

LED Panel Frame 620 (61.5 x 61.5cm)

The LED Panel Frame 620 from ISOLED is an illuminated frame with dimensions of 61.5 x 61.5 cm. It is ideal for lighting rooms and creates a pleasant lighting atmosphere.

High Performance and Energy Efficiency

With a power of 40W and a light output of 3700lm, the LED Panel Frame 620 provides excellent brightness. It consumes little energy and is therefore very energy efficient.

Pleasant Color Temperature

The color temperature of the LED Panel Frame is 4000K, which corresponds to a neutral white. This ensures natural and pleasant lighting in any room.

Flexible Dimming

The LED Panel Frame 620 features an analog dimming with a 1-10V control. This allows the brightness of the panel to be individually adjusted, creating a pleasant lighting ambiance.

Quality and Reliability

The IP40 protection of the LED Panel Frame ensures safe use in various environments. With the EAN number 9009377063947, you can verify the authenticity of the product and rely on the ISOLED brand.

Colour:
mat
white
Dimension:
L∕ W∕ H: 61,5∕ 61,5∕ 1,1 cm
Material:
aluminium
Product type:
LED panel
Lamp shape:
square
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-230 V~
Dimmable:
yes
Dimmability:
analog 1-10V
Power consumption:
40 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
diffuse
Light flux:
3700 lm
Light yield:
97,37 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
>83 Ra
1B
IK-Rating:
IK00 no impact resistance
lamp performance:
38 W
Fitting depth:
1 cm
Fitting opening square/rectangular width:
62.00 cm
Fitting opening square/rectangular length:
62.00 cm
Mounting:
recessed mounting
surfaced mounting
Protection class:
1
IP-protection class:
IP40
Additional information:
System power: 38W
Accessories:
control gear included
transformer box excluded
mounting set excluded
ambient temperature:
-20 - 40 °C
Energy efficiency category:
E
EPREL No:
820271
Energy consumption:
40 kWh/1.000 h
Article number:
ISO-113795
Brand:
ISOLED
Manufacturer:
ISOLED
Manufacturer information
ISOLED FIAI Handels GmbH, Egerbach 48, 6334, Schwoich, Austria, product-details-service@isoled.shop, www.isoled.shop/details
