LED panel Frame 620 (61.5 x 61.5cm), IP40, 40W 4000K 3700lm 120°, illuminated frame, push/DALI dimmable

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

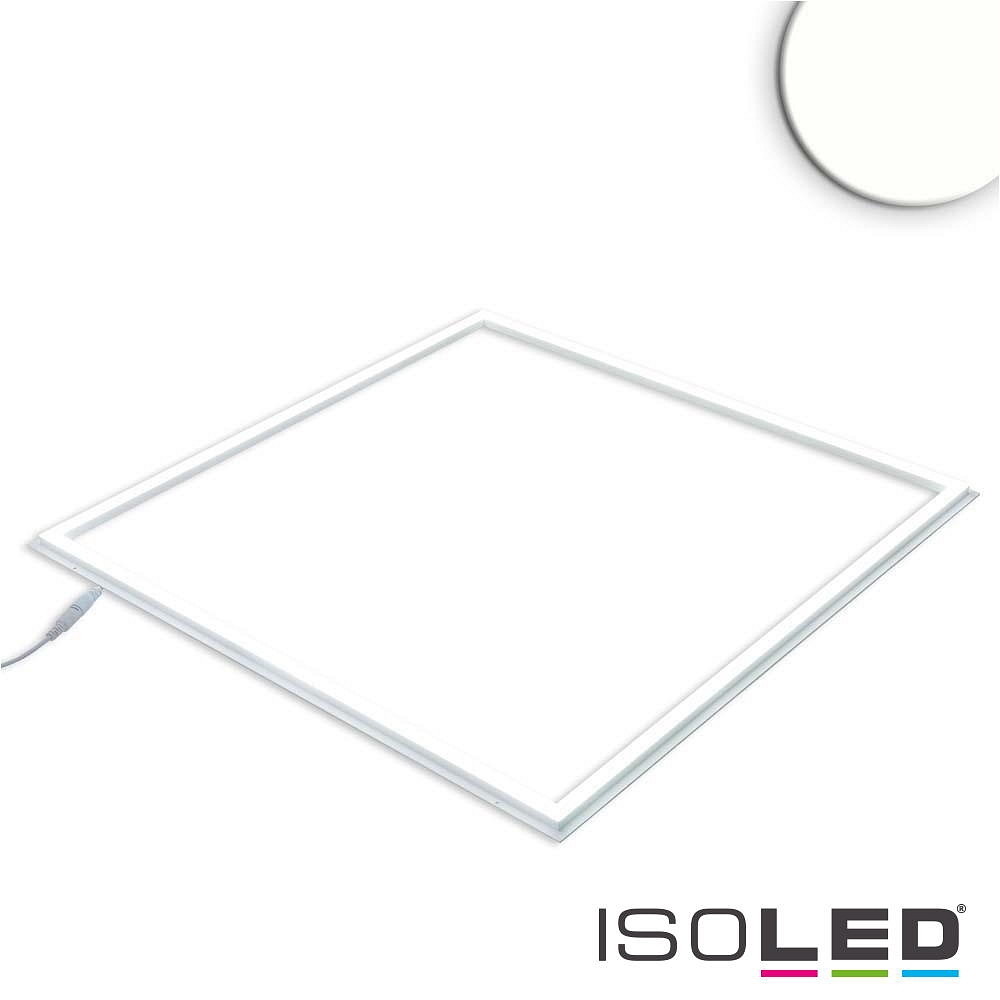

LED Panel Frame 620 (61.5 x 61.5cm)

The LED Panel Frame 620 from ISOLED is an illuminated frame with a size of 61.5 x 61.5 cm. With a power of 40W and a color temperature of 4000K, the panel provides pleasant lighting in any room.

High brightness and uniform illumination

With a light output of 3700lm and a beam angle of 120°, the LED Panel Frame 620 offers high brightness and uniform illumination. This makes it ideal for use in offices, shops, or living spaces.

Versatile dimming options

The panel is equipped with various dimming options, including DALI and switch. This allows you to adjust the brightness of the panel according to your preferences and create the perfect atmosphere in your space.

IP40 protection class for safe use

With an IP40 protection class, the LED Panel Frame 620 is protected against dust and splashing water, ensuring safe use in various environments. This makes the panel durable and reliable.

Quality from ISOLED

ISOLED stands for quality and reliability. With the LED Panel Frame 620, you get a high-quality product that provides long-lasting and energy-efficient lighting. The EAN number 9009377063961 guarantees the origin and quality of the product.

Article number:
ISO-113796
Brand:
ISOLED
Energy efficiency category:
E
EPREL No:
820272
Product type:
LED panel
Energy consumption:
40 kWh/1.000 h
Manufacturer:
ISOLED
Operating voltage:
220-230 V~
Dimmable:
yes
Dimmability:
DALI, switch
Lamp shape:
square
Power consumption:
40 W
LED can be replaced :
no
Bulb type:
fixed LED (non interchangeable)
Light colour:
neutral white
Light emission:
diffuse
Light flux:
3700 lm
Light yield:
97,37 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
>83 Ra
1B
IK-Rating:
IK00 no impact resistance
lamp performance:
38.00 W
Colour:
white
mat
Material:
aluminium
Fitting depth:
1 cm
Fitting opening square/rectangular width:
62.00 cm
Fitting opening square/rectangular length:
62.00 cm
Dimension:
L∕ W∕ H: 61,5∕ 61,5∕ 1,1 cm
Mounting:
recessed mounting
surfaced mounting
Field of application:
ceiling
Protection class:
1
IP-protection class:
IP40
Application area:
only suitable for indoor use
Additional information:
System power: 38W
Accessories:
control gear incl
transformer box excl
mounting set excl
ambient temperature:
-20 - 40 °C
