LED panel LED PANEL FLAT 300 R DALI controllable, dimmable, dimmable 20W 1900lm 3000K 120° 120° CRI >80

nobilé



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

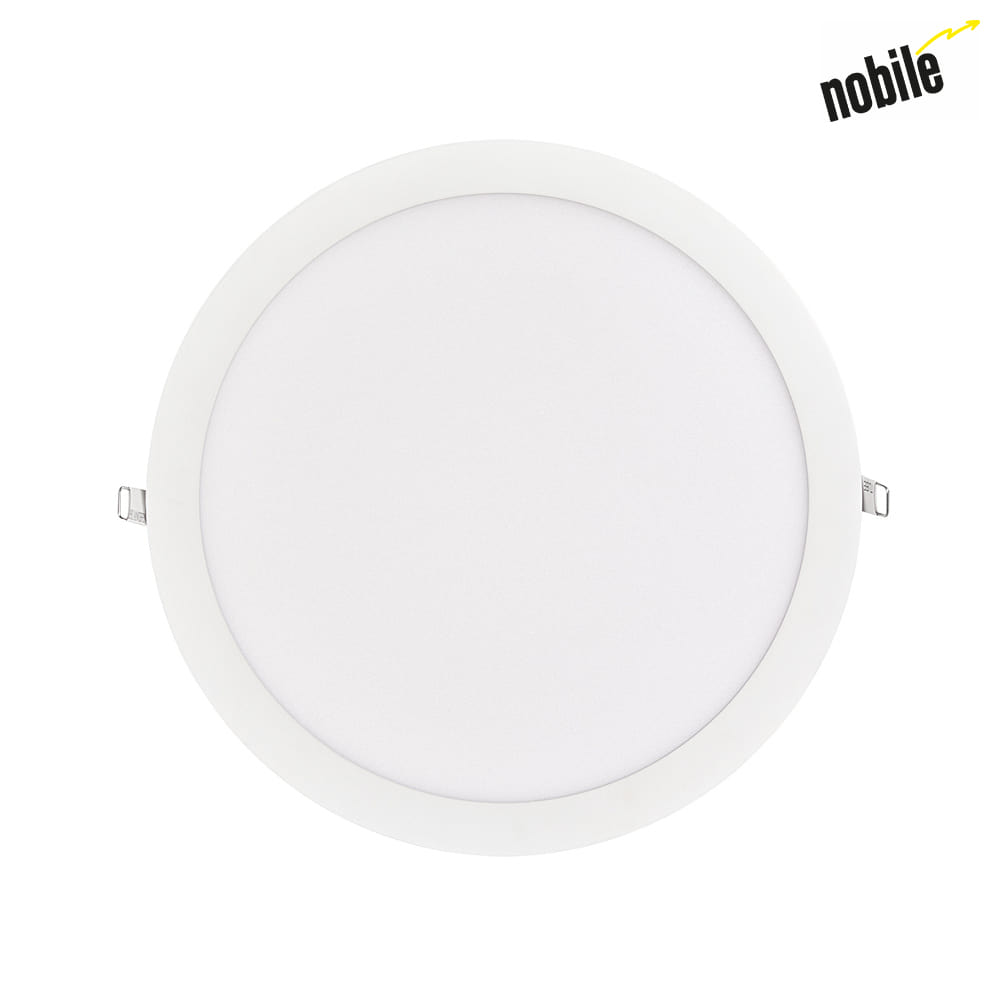

LED Panel FLAT 300 R

The LED Panel FLAT 300 R is a round luminaire with a power consumption of 20W and a color temperature of 3000K. The opal color ensures a pleasant light distribution, while the diffuser ensures uniform illumination. The color rendering index of 80Ra guarantees accurate color reproduction.

Technical details

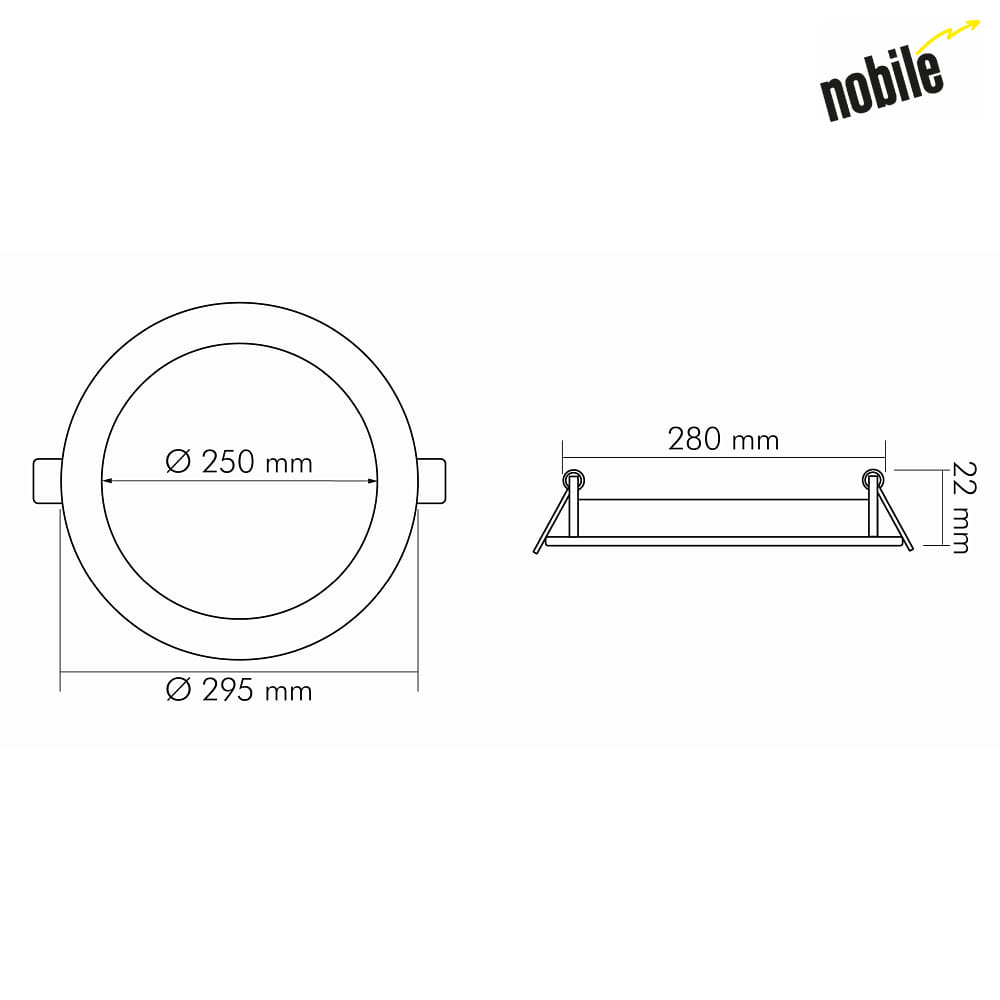

The dimensions of the LED panel are 29.5 x 29.5 x 2.2 cm and it has a luminous intensity of 815cd and a luminous flux of 2250lm. The energy efficiency class is F and the light output is 92lm/W. The panel cannot be dimmed and is suitable for ceiling and wall mounting.

Material and installation

The LED panel is made of aluminum and plastic and has a rated lamp life of 50000 hours. It is installed as a recessed luminaire and has a rated current of 350mA. A light source is included in the delivery and the panel has an IP protection rating of IP20.

Accessories and application area

The panel is supplied without a control gear and it is not possible to replace the LED. It has an operating temperature of 0 to +25°C and is supplied as a single unit. The application areas are both on the ceiling and on the wall.

Additional information

The EPREL number of the panel is 1076444 and it has a white color. The installation opening is 28 cm in diameter and the light color is warm white. The light distribution is direct and the panel is ideal for use in various rooms.

Article number:
NO-1574081512
Purchasing quantity:
1 piece
Brand:
nobilé
Energy efficiency category:
F
EPREL No:
1076444
Product type:
LED panel
Energy consumption:
20 kWh/1.000 h
Manufacturer:
nobilé
Dimmable:
no
Lamp shape:
round
Power consumption:
20 W
Bulbs in delivery:
yes
LED can be replaced :
no
Number of bulbs:
1
Light colour:
warm white
Light emission:
direct
Light flux:
2250 lm
Light intensity:
815 cd
Light yield:
92 lm/W
Nominal current:
350 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
80 Ra
UGR:
< 19
Colour:
opal
white
Material:
aluminium
plastic
Fitting opening circle :
28 cm
Dimension:
Ø∕ L∕ W∕ H: 29,5∕ 29,5∕ 29,5∕ 2,2 cm
Mounting:
recessed mounting
Field of application:
ceiling
wall
IP-protection class:
IP20
Additional information:
LED driver
Accessories:
control gear excl
ambient temperature:
0 - +25 °C
