LED panel PROFESSIONAL LINE UGR<19 8H - 124.5 X 30.8CM - 1-10V 2-pole, UGR < 19, dimmable 36W 1245lm 4000K CRI 80-89

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

High Quality and Efficiency

The LED Panel Professional Line from ISOLED is the perfect solution for indoor use. With a power consumption of 36W and a light output of 121lm/W, it offers excellent energy efficiency. Thanks to the neutral white light color and a color temperature of 4000K, the panel provides pleasant lighting.

Durable and Reliable

With an average lamp lifespan of 50,000 hours, you don't have to worry about frequent replacements. The panel has a color rendering index of 80-89Ra, ensuring good color reproduction. The IP42 protection class makes it ideal for ceiling use.

Easy Installation and Versatile Application

The LED panel comes with accessories such as a driver and can be easily installed. With dimensions of 124.5 x 30.8 x 1 cm, it fits perfectly on the ceiling. The dimming function of 1-10V allows for individual adjustment of brightness.

Environmentally Friendly and Energy Efficient

With an energy consumption of 36kWh/1,000 h and a power factor of 0.95, the panel is very energy efficient. It complies with energy efficiency class A1 BAT, contributing to a sustainable lighting solution.

Technical Details and Brand Quality

The LED Panel Professional Line from ISOLED is characterized by high-quality plastic material and easy network connection options. With an operating voltage of 220-240 volts and an extremely wide beam angle of over 80°, it offers uniform and pleasant light distribution. An ideal product for professional use.

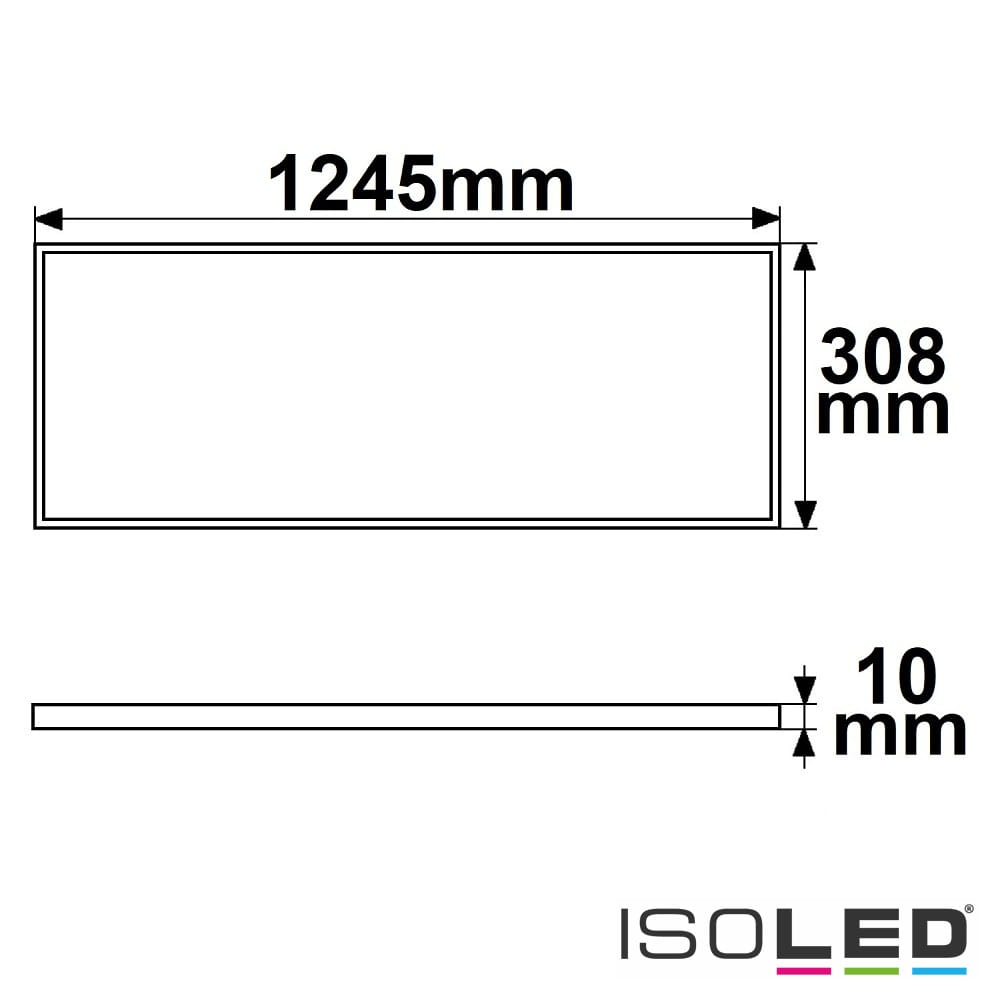

Dimension:
L∕ W∕ H: 124.5/30.8/1 cm
Material:
plastic
Product type:
LED panel
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
analog 1-10V
Power consumption:
36 W
LED can be replaced :
no
Light colour:
neutral white
Light emission:
diffuse
Beam direction:
down
Light flux:
1245 lm
Light yield:
121 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK00 no impact resistance
Fitting opening square/rectangular width:
124.5 cm
Fitting opening square/rectangular length:
30.8 cm
Mounting:
recessed mounting
Protection class:
1
IP-protection class:
IP42
Additional information:
Efficiency: 87%
Accessories:
driver included
ambient temperature:
-20°C ... +40°C
Energy efficiency of ballasts:
A1 BAT
Energy consumption:
36 kWh/1.000 h
Article number:
ISO-116034
Purchasing quantity:
1 piece
Brand:
ISOLED
Manufacturer:
ISOLED
Manufacturer information
ISOLED FIAI Handels GmbH, Egerbach 48, 6334, Schwoich, Austria, product-details-service@isoled.shop, www.isoled.shop/details
