LED power supply BASIC DIM CV LCP75AD-1H24V voltage constant, white

LED Power Supply BASIC DIM CV LCP75AD-1H24V (CV, DC)

The LED power supply BASIC DIM CV LCP75AD-1H24V is a voltage constant, dimmable power supply in the color white. With an operating voltage of 24V=, it is ideal for use in various applications. The switching cycles of the device are 25000 and the average lamp lifespan is an impressive 50000 hours.

Technical Details

The LED power supply has a plug type clamp connection for the power supply and a protection class of IP20. It is made of robust plastic and offers high efficiency with a power factor of 0.98. The ambient temperature in which the device can operate ranges from -40 to 85°C. Additionally, it is protected against short circuits, overloads, and overheating.

Versatile Application Possibilities

Thanks to the possibility of dimming with DALI2 / DALI1 and the intelligent touch dimmer function (iPush), the LED power supply is extremely flexible. It combines power supply and PWM dimmer in one device and can be used with various dimming options such as Analog 0-10V, Analog 1-10V, and Push dimmer.

Compact Size and Easy Installation

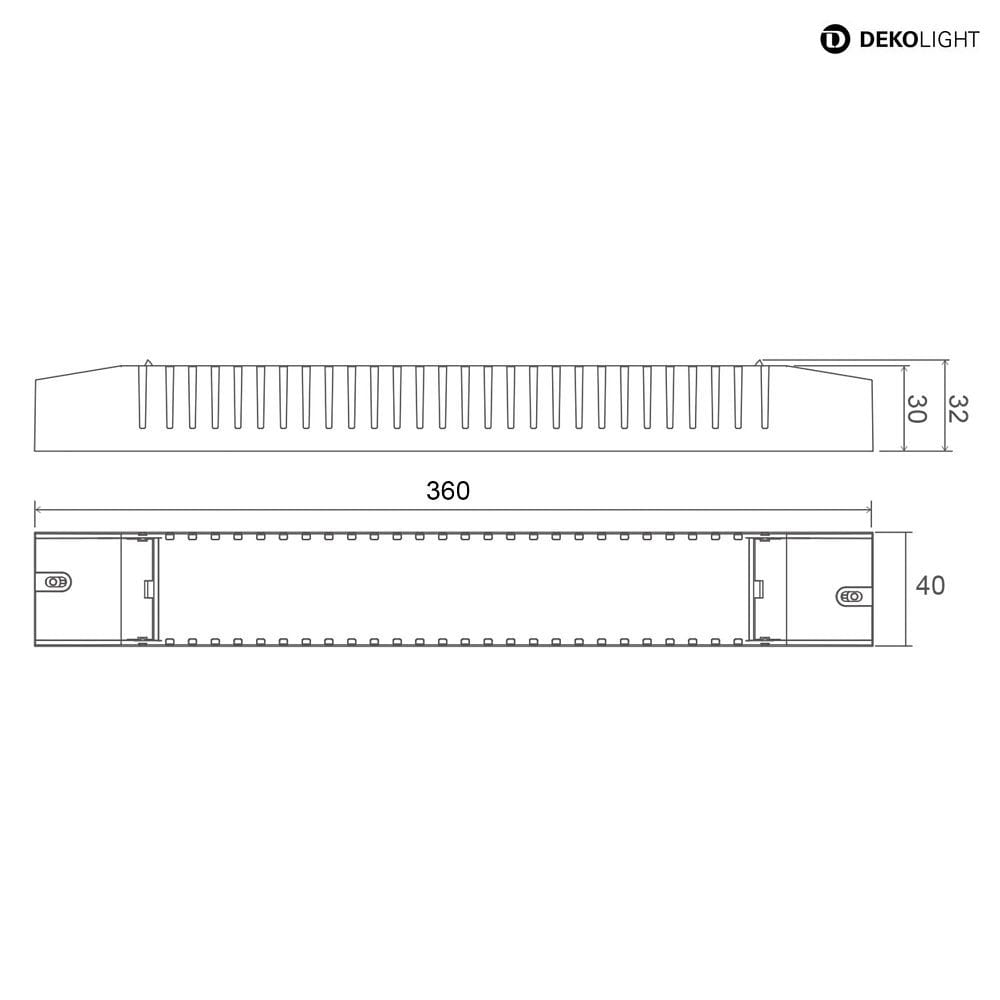

The LED power supply has a size of 4 x 3.2 x 36 cm, making it space-saving for installation in various environments. With a maximum quantity of circuit breakers of B10A=3, B16A=5, C10A=6, and C16A=10, it offers high compatibility and easy integration into existing systems.

Quality from Deko-Light

As a brand of Deko-Light, the LED power supply stands for quality and reliability. It was developed for professional use and offers high durability and easy handling. With its versatile features and technologies, the power supply is the ideal choice for demanding lighting projects.
