LED power supply unit 0-20W, 12V DC, IP20, 1-10V dimmable

LED power supply unit, IP20, 230V AC/DC, sec. 12V DC (SELV), 1-20W, terminal connection, 1-10V dimmable

The LED power supply unit with the item number BRUM-00003506 is a high-quality product that provides an operating voltage of 230V AC/DC and delivers a secondary output voltage of 12V DC (SELV). It features a terminal connection and is dimmable analogously from 1-10V.

Protection class: 2

The LED power supply unit is classified in protection class 2, ensuring safe operation. With dimensions of 14.5 x 5.5 x 1.9 cm and a weight of 70kg, it is compact and easy to handle.

Accessories: Dimmer excl

To expand the functionality, you can optionally add accessories such as dimmers, recessed housings, LED modules, LED strips, or luminaires. This allows you to customize the LED power supply unit according to your needs.

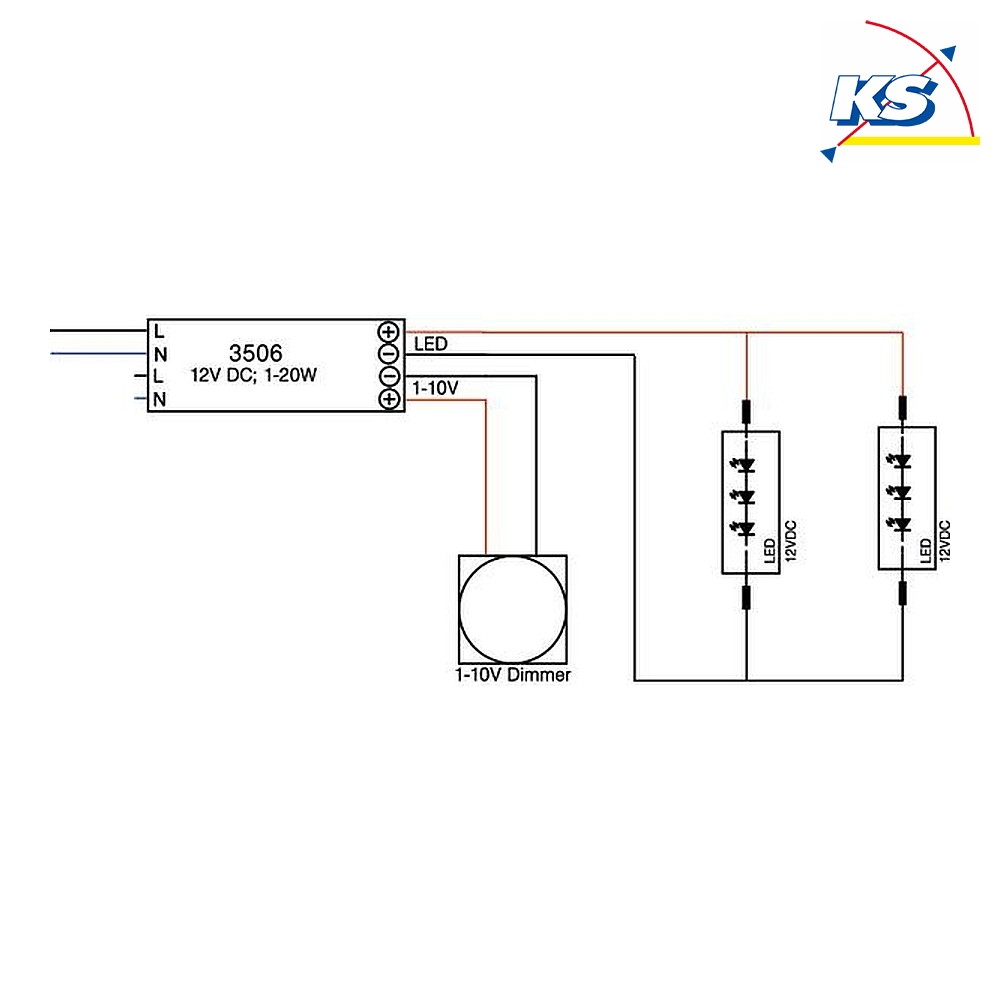

Dimmability: Analog 1-10V

Thanks to the possibility of analog dimming from 1-10V, you can adjust the brightness of your LED lighting according to your preferences. This creates a pleasant atmosphere in your spaces.

Additional information: Constant voltage LED driver with 12V DC output

The LED power supply unit is a reliable constant voltage LED driver with an output of 12V DC. It is ideal for dimming single-color LED modules, strips, or luminaires, and meets the requirements for safety lighting systems according to DIN EN 50172 VDE 0108-100:2005-01.
