LED Recessed Downlight, 12W, 3000K, 1100lm, round, IP54, DALI dimmable, white

Frisch-Licht



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

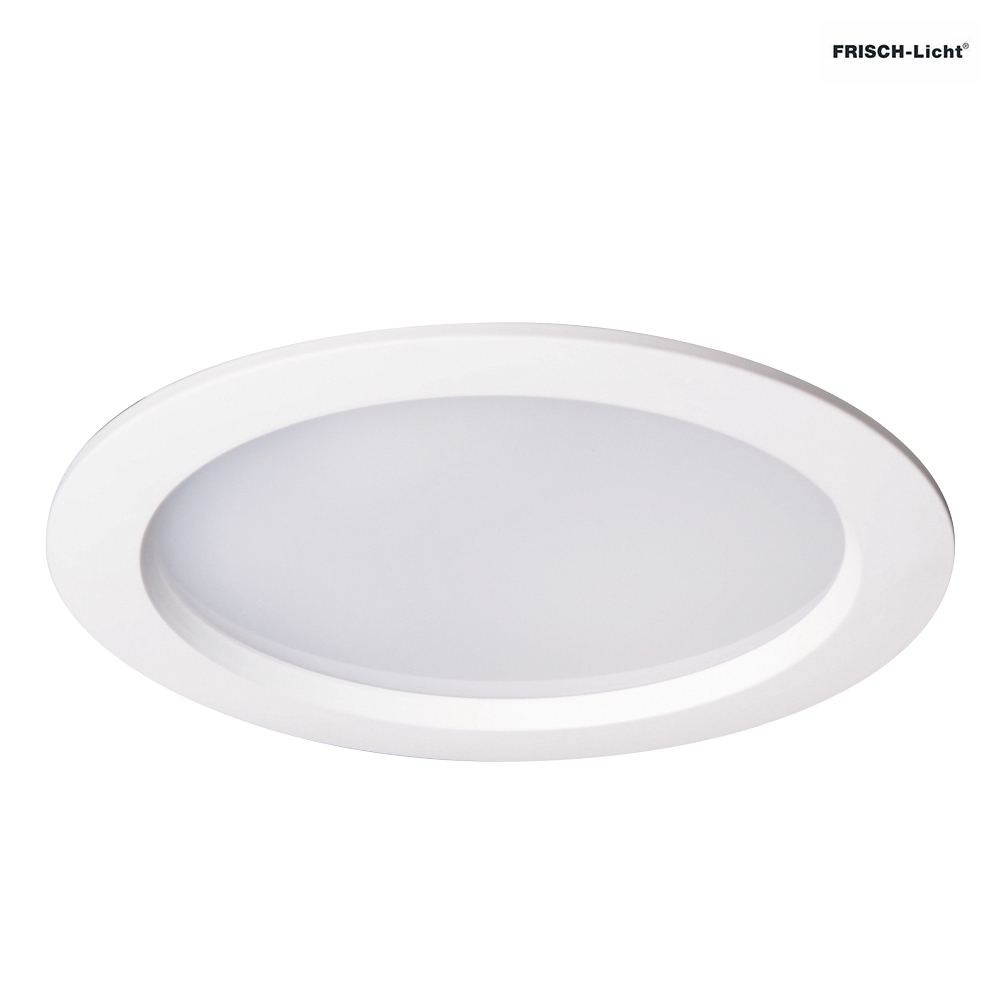

LED recessed downlight with DALI dimmability

The LED recessed downlight from Frisch-Licht impresses with its round shape and the possibility to dim the brightness using DALI. With a power consumption of 12W and a luminous flux of 1100lm, it provides pleasant lighting in your space. The warm white light color and the beam angle of 95° create a cozy atmosphere.

Technical details and features

The downlight has a protection class 2 and an IP54 protection rating, making it ideal for indoor use. The operating device is included and installation is done by recessed mounting. The visible part has a diameter of Ø 14 cm and a height of 0.6 cm. The material is aluminum and the material thickness is 3.5 cm.

Energy efficiency and environmental friendliness

With an energy efficiency class F and an energy consumption of 12kWh/1,000 h, the LED downlight is not the most energy-efficient, but still more environmentally friendly than traditional light sources. The average lamp lifespan of 50,000 hours also ensures a long service life.

Application area and possible uses

Thanks to its ceiling application area, the downlight is ideal for illuminating living spaces, offices, or corridors. Please note that its use outdoors is limited. The color temperature of 3000K and high color rendering index provide natural lighting.

Accessories and scope of delivery

The scope of delivery includes the downlight itself and the operating device. The installation opening is a circle with a diameter of 12 cm. The Frisch-Licht brand stands for high-quality lighting solutions and the product is clearly identifiable with the article number FL-EDL2140A.1183DA.

Article number:
FL-EDL2140A.1183DA
Purchasing quantity:
1 piece
Brand:
Frisch-Licht
Energy efficiency category:
F
Product type:
Recessed luminaire
Energy consumption:
12 kWh/1.000 h
Manufacturer:
Frisch-Licht
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI
Lamp shape:
round
Power frequency:
50-60 Hz
Power consumption:
12 W

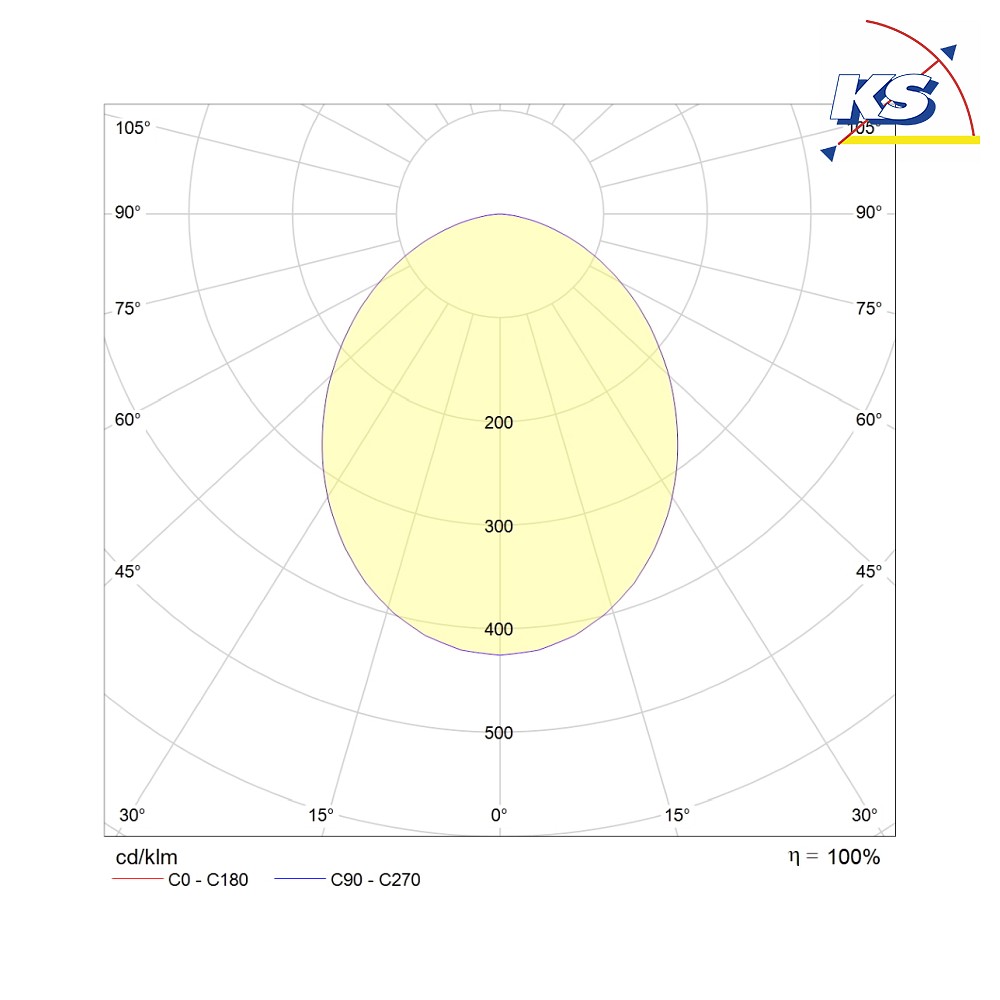

Emitting angle:
95 °
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
1
Temperature range:
-20 - +35 °C
Light colour:
warm white
Light emission:
direct
Light flux:
1100 lm
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
1B
IK-Rating:
IK06 up to 1.00 Joule
Colour:
white
Glass color:
opal
Material:
aluminium
Fitting depth:
3,5 cm
Fitting opening circle :
12 cm

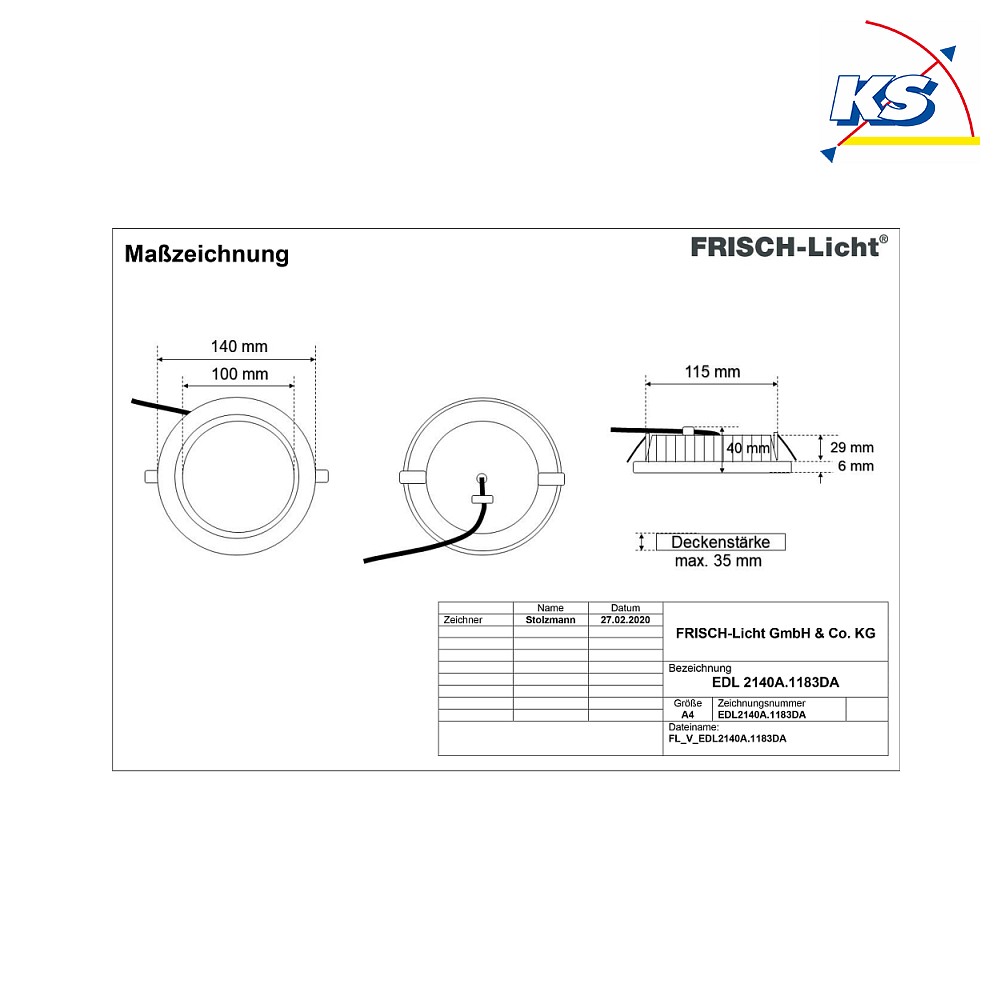

Dimension:
visible part-Ø∕ H: 14∕ 0,6 cm
light output-Ø: 10 cm
material thickness-H: 3,5 cm
Weight:
0,7 kg
Mounting:
recessed mounting
Field of application:
ceiling
Protection class:
2
IP-protection class:
IP54
Application area:
suitable for indoor use
limited suitable for outdoor use
Additional information:
Light emission: direct
Accessories:
control gear incl
ambient temperature:
Tq +25 °C
