LED Recessed Downlight, 15W, 3000K, 1200lm, IP20, swivelling, white

LED Recessed Downlight with IP20 Protection Class

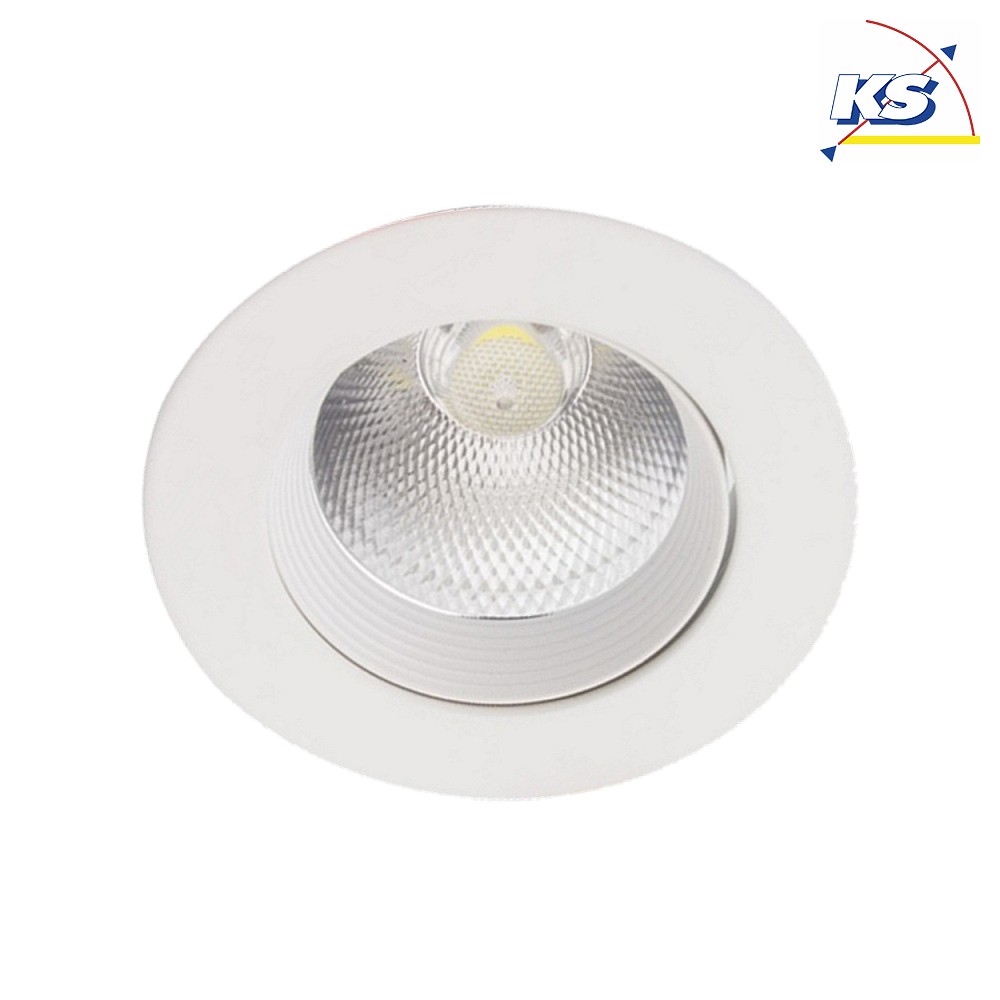

The LED recessed downlight from Frisch-Licht is a round luminaire with a faceted reflector and a swiveling beam angle of 30°. It is ideal for use in ceilings and is suitable for indoor use only. The luminaire has an energy efficiency class of F and an energy consumption of 15 kWh/1,000 h. With a power consumption of 15W and a warm white luminous flux of 1200lm, the downlight provides pleasant lighting.

Technical Details and Dimensions

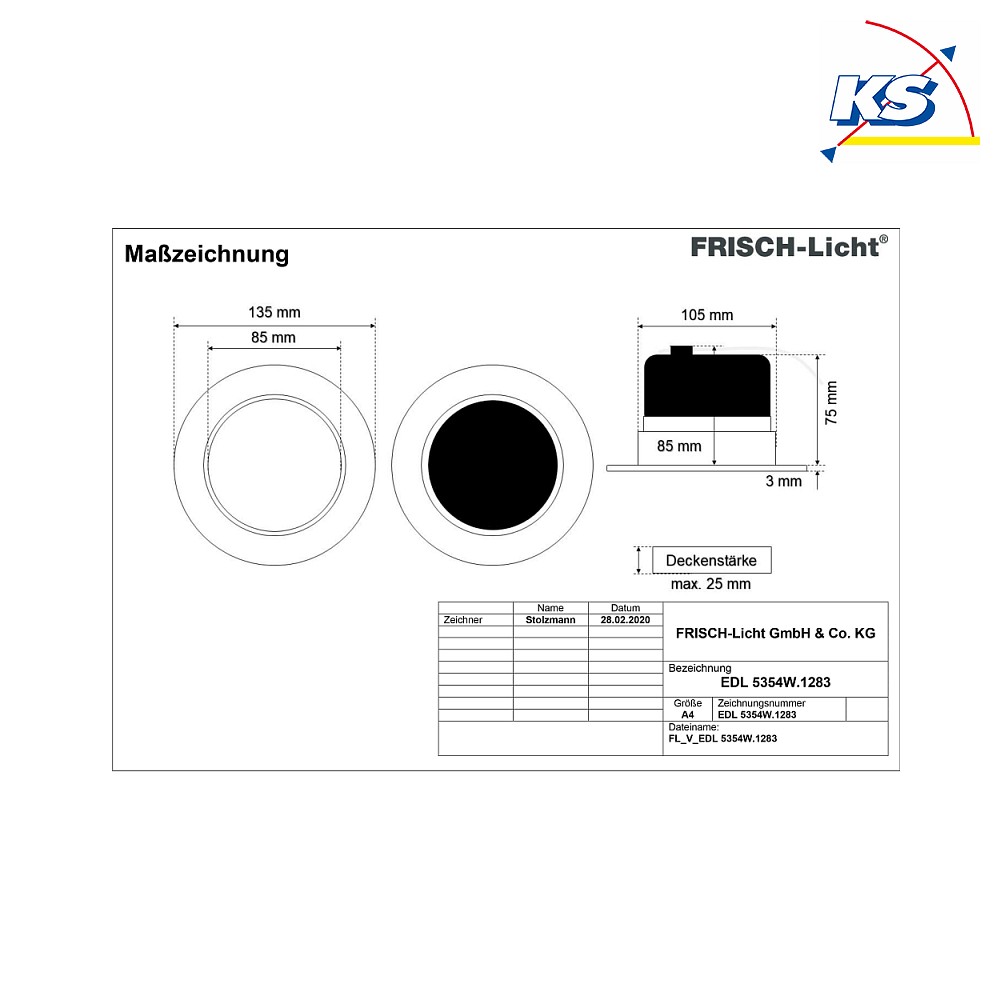

The LED recessed downlight has a visible part diameter of 13.5 cm and a recessed depth of 8.2 cm. The light emission has a diameter of 8.5 cm and the material thickness is 2.5 cm. The luminaire weighs 0.33 kg and is made of aluminum. The average lamp life is 35,000 hours and the color temperature is 3000K. The swivel range is 30° and the luminaire has a beam angle of 40°.

Accessories and Operation

The LED recessed downlight is supplied with a control gear and has an operating voltage of 220-240V~. The luminaire has an electronic ballast (standard EVG) and cannot be exchanged with other light sources. Installation is done by recessed mounting in a circular opening with a diameter of 11 cm.

Additional Information and Features

The downlight has an IP20 protection rating and a color rendering index of 1B. The color of the luminaire is white and the light distribution is direct. The mains frequency is 50-60Hz and the temperature range is between -20 and +35 °C. The ambient temperature should not exceed Tq +25°C. The downlight is ideal for use in indoor spaces and provides pleasant lighting.

Conclusion on the LED Recessed Downlight

The LED recessed downlight from Frisch-Licht impresses with its high-quality construction, warm white luminous flux, and swiveling beam angle. With a power consumption of 15W and a luminous flux of 1200lm, the luminaire is energy-efficient and provides pleasant lighting in indoor spaces. The easy recessed installation and the supplied control gear make the installation of the downlight uncomplicated. With its modern design and technical features, the LED recessed downlight is an ideal lighting solution for ceilings in living spaces, corridors, or offices.
