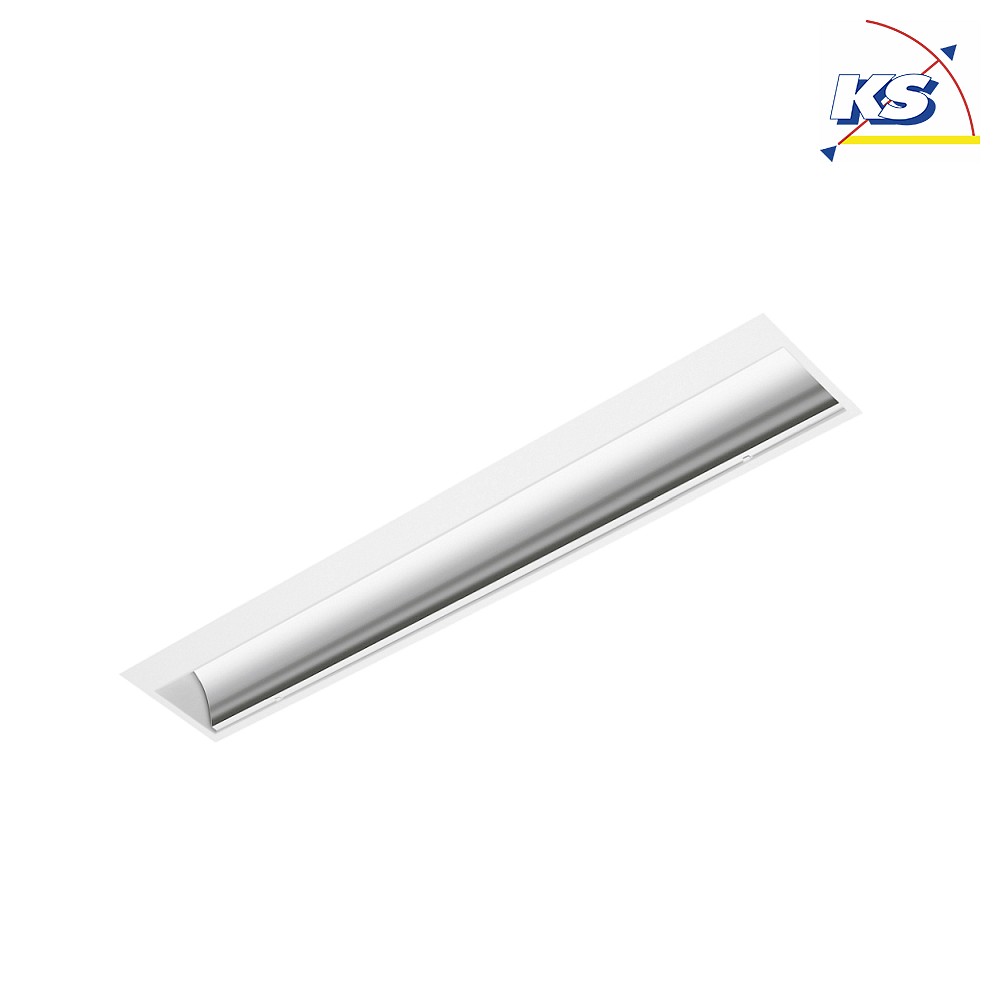

LED Recessed grid luminaire, asymmetrical, 20W, 4000K, 2500lm, IP20, DALI dimmable, white

LED Built-in Grid Light, Asymmetric, IP20, DALI Dimmable, White

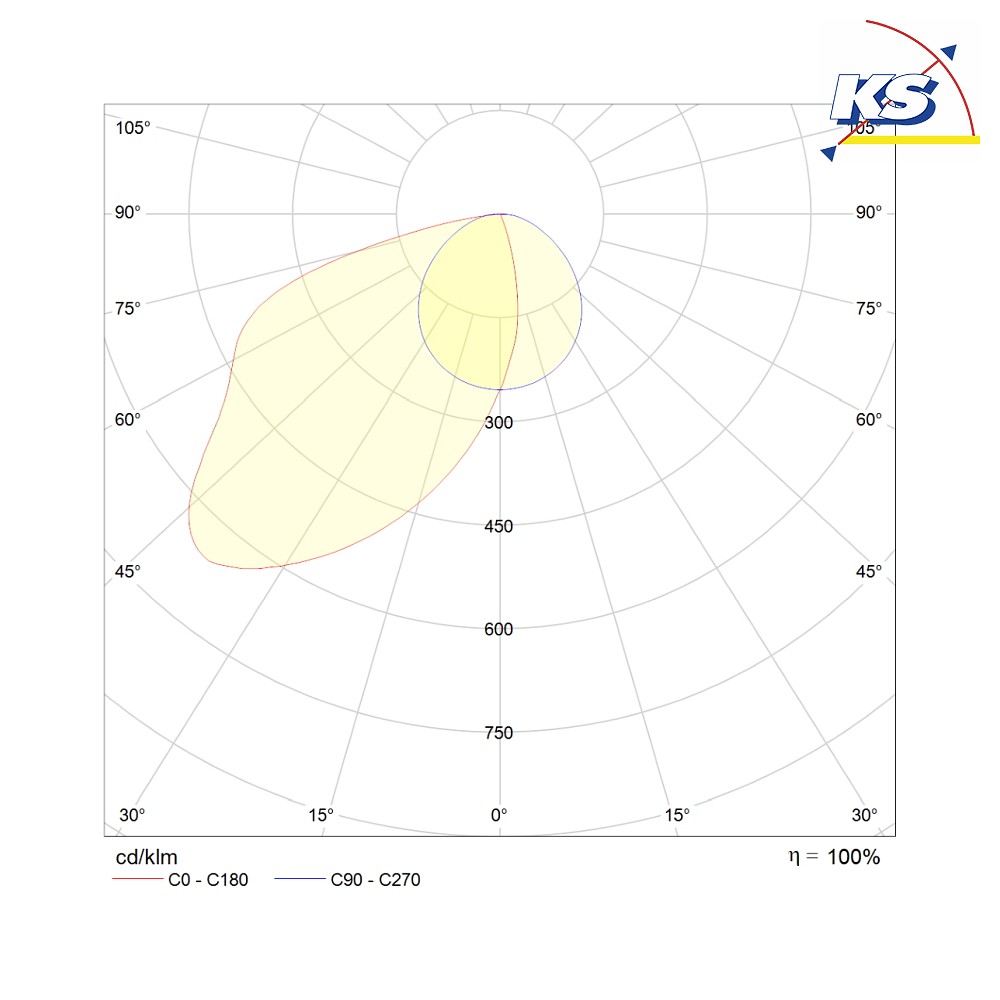

The LED built-in grid light in white color with a power consumption of 20W and a luminous flux of 2500lm is ideal for use in ceilings. With a beam angle of 65°, it provides direct light distribution in the room. The luminaire has an IP protection class of IP20 and can be operated with a DALI dimmable control gear.

Technical Details

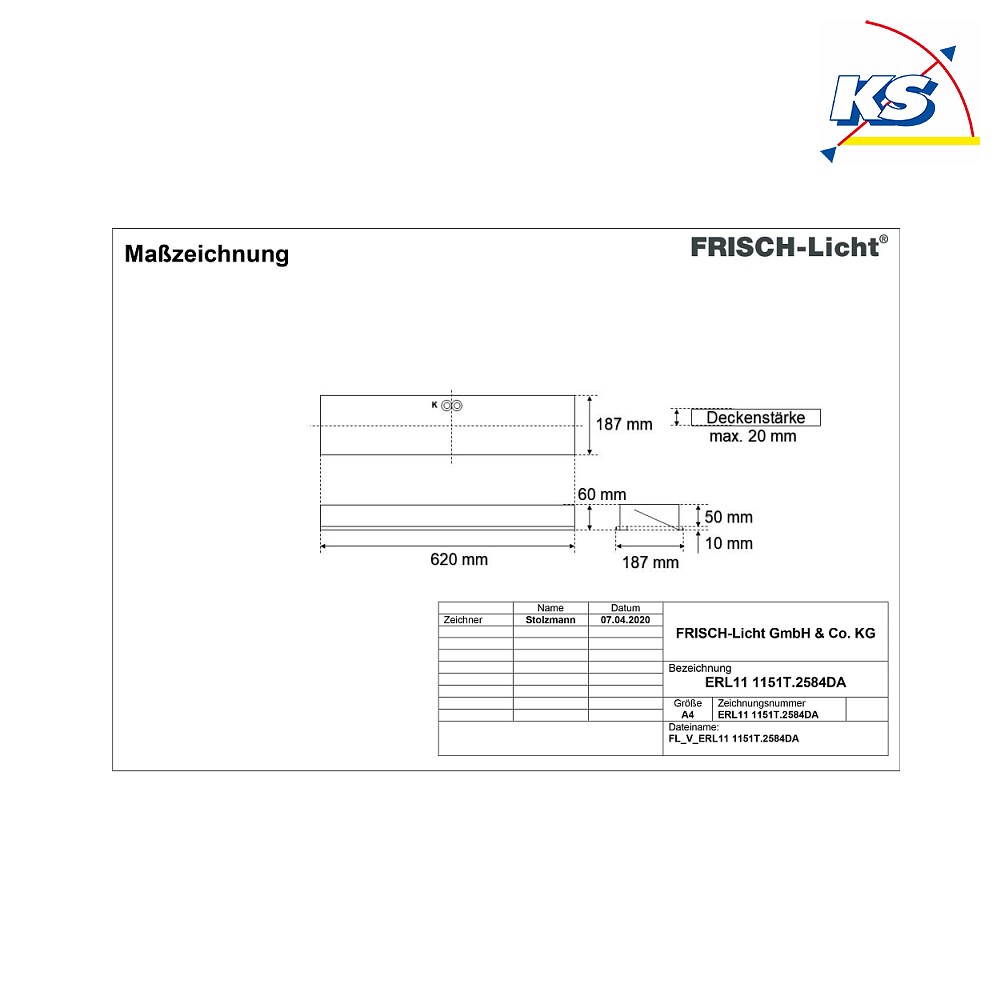

The square grid light has a size of L: 6 cm and a weight of 2.3kg. The installation depth is 5cm and the installation opening has a rectangular shape with a length of 62cm and a width of 18.7cm. The operating voltage is between 220-240V~ with a mains frequency of 50-60Hz. The average lamp life is 50000 hours.

Energy Efficiency and Color Temperature

The LED grid light has an energy consumption of 20kWh/1,000h and a color temperature of 4000K. The light color is neutral white with a color rendering index of 1B. The material of the luminaire is steel sheet, and it is suitable only for indoor use.

Accessories and Brand

The grid light is delivered including the control gear and can be used not only as a single luminaire but also for light band configurations. The brand Frisch-Licht stands for high-quality products and long life. The luminaire is not only dimmable but also suitable for use in emergency lighting situations.

Versatile Applications

Thanks to its asymmetric design and neutral white light, the LED built-in grid light is suitable for a variety of applications. Whether in the office, living room, or hallway - the luminaire provides pleasant lighting and creates a cozy atmosphere. With high light output and efficient energy utilization, it is an ideal choice for any room.
