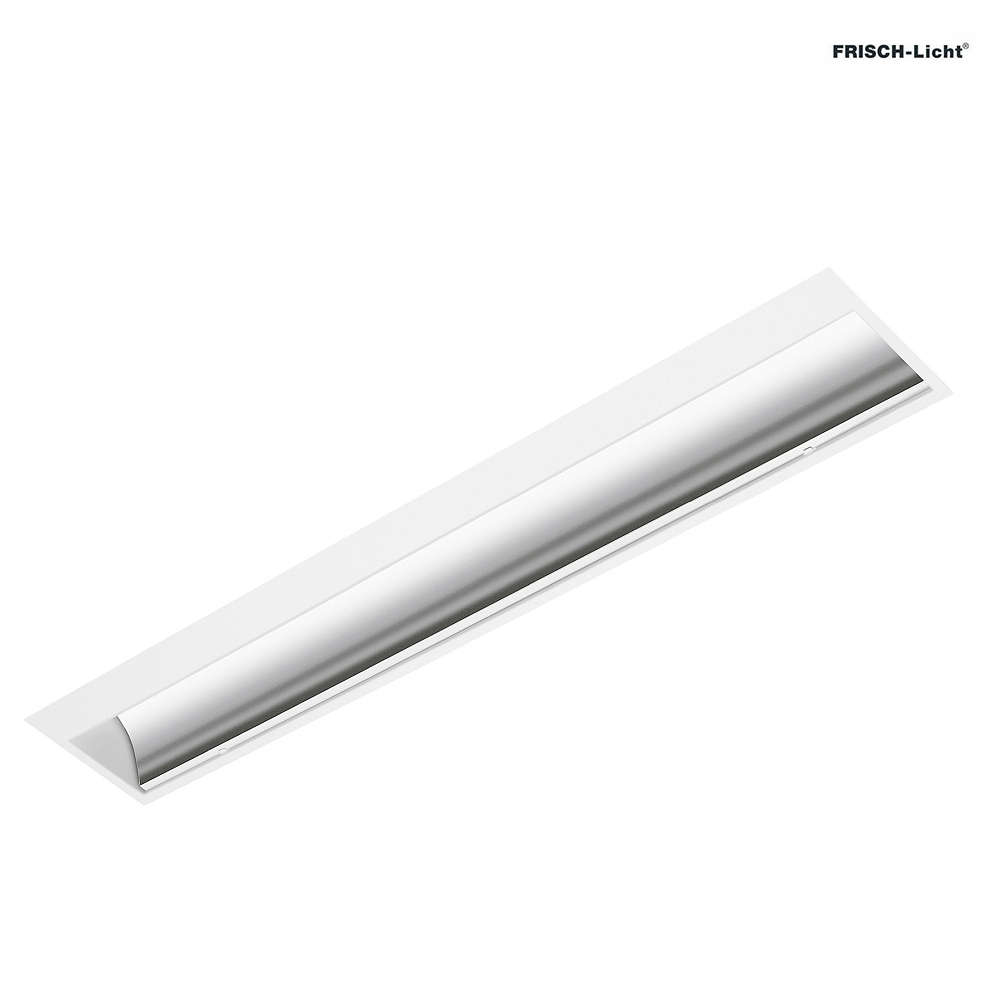

LED Recessed grid luminaire, asymmetrical, 50W, 4000K, 5000lm, IP20, DALI dimmable, white

LED Built-in Grid Light, asymmetric, IP20, DALI dimmable, white

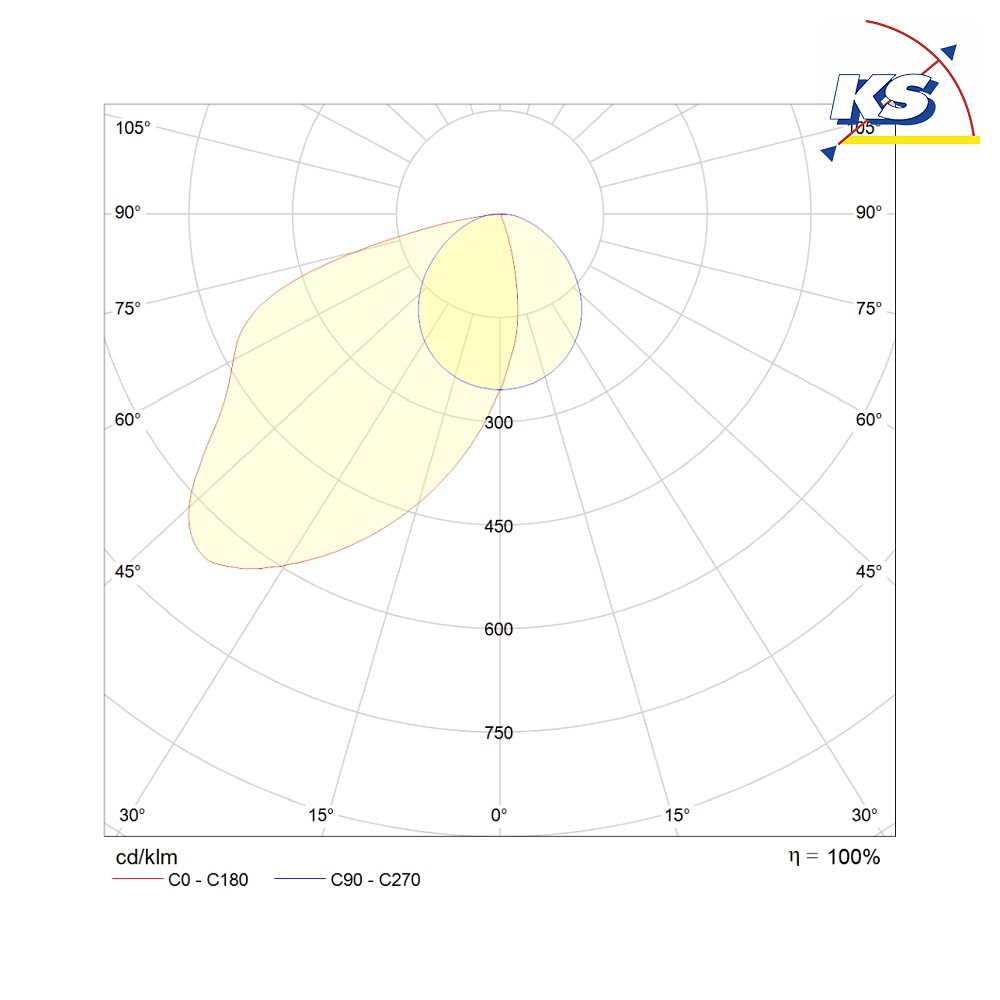

The LED built-in grid light in a square shape is ideal for ceiling mounting indoors. With a beam angle of 65°, it provides direct light distribution. The light has a power consumption of 40W and a luminous flux of 5000lm, equivalent to a neutral white light color. The material is made of sheet steel and the installation depth is 5cm.

Technical Details

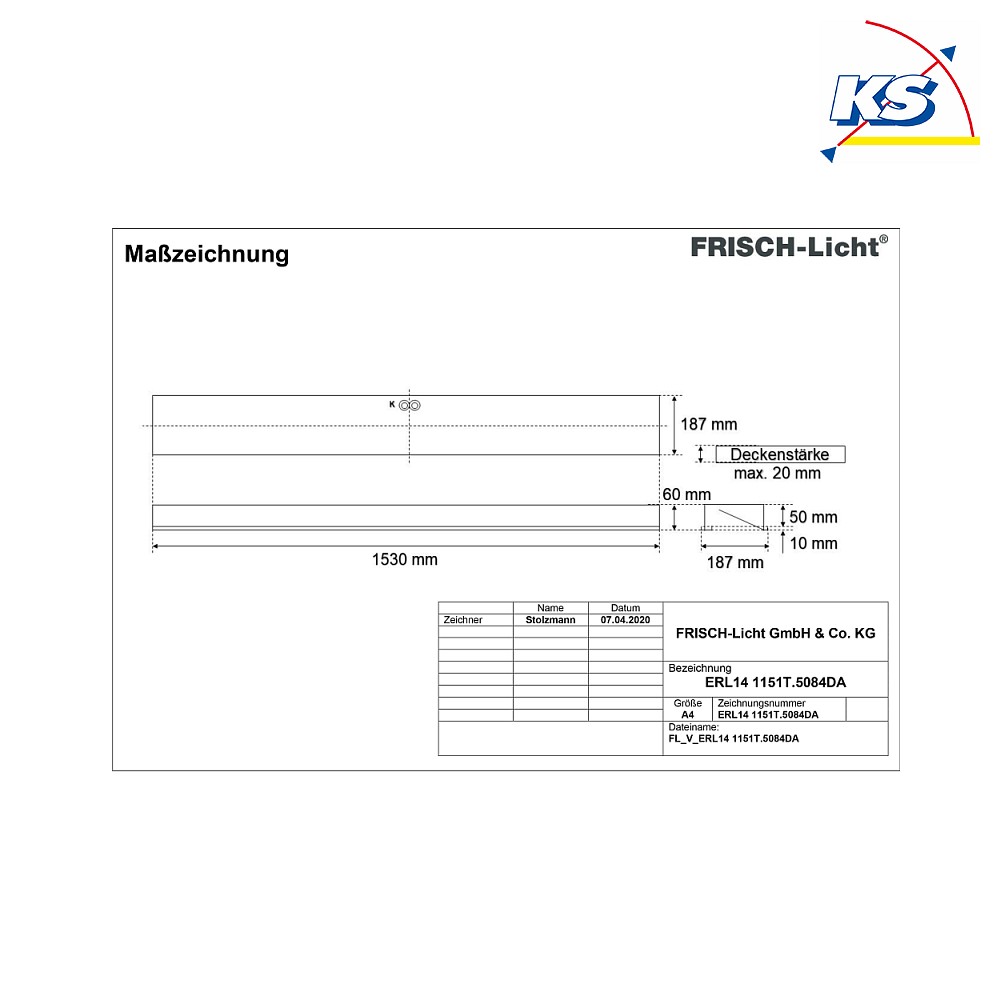

The installation opening of the light has a rectangular length of 154.5cm and a width of 18.7cm. The operating voltage is between 220-240V~ and the LED is not replaceable. With an energy consumption of 40kWh/1,000h and an average lamp lifespan of 50,000hrs, the light is very energy efficient.

Brand and Accessories

The LED built-in grid light is from the brand Frisch-Licht and comes with an operating device. The operating device is an electronic ballast (EB) and dimmable via the DALI system. The light weighs 5.7kg and has a size of T: 6cm.

Additional Information

The IP20 protection class guarantees protection against solid foreign objects with a diameter of 12.5mm. The light is suitable for emergency lighting and light band configuration. The temperature range is between -20 and +35°C, with the ambient temperature indicated as Tq +25°C.

EAN and Article Number

The unique EAN number for the LED built-in grid light is 4050341103621. The product's article number is FL-ERL141151T.5084DA. The color of the light is white and the color temperature is 4000K with a color rendering index of 1B.
