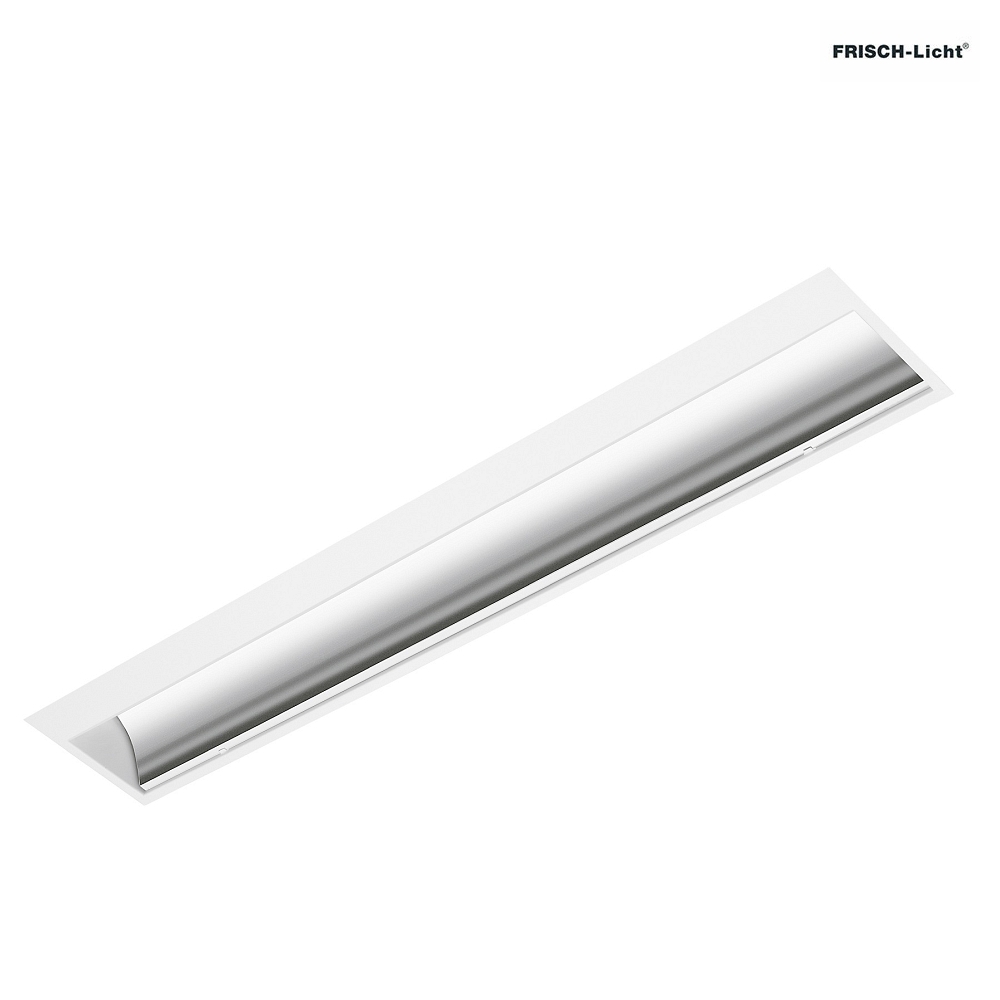

LED Recessed grid luminaire, asymmetrical, 50W, 4000K, 5000lm, IP20, white

LED built-in grid luminaire, asymmetrical, IP20, switchable, white

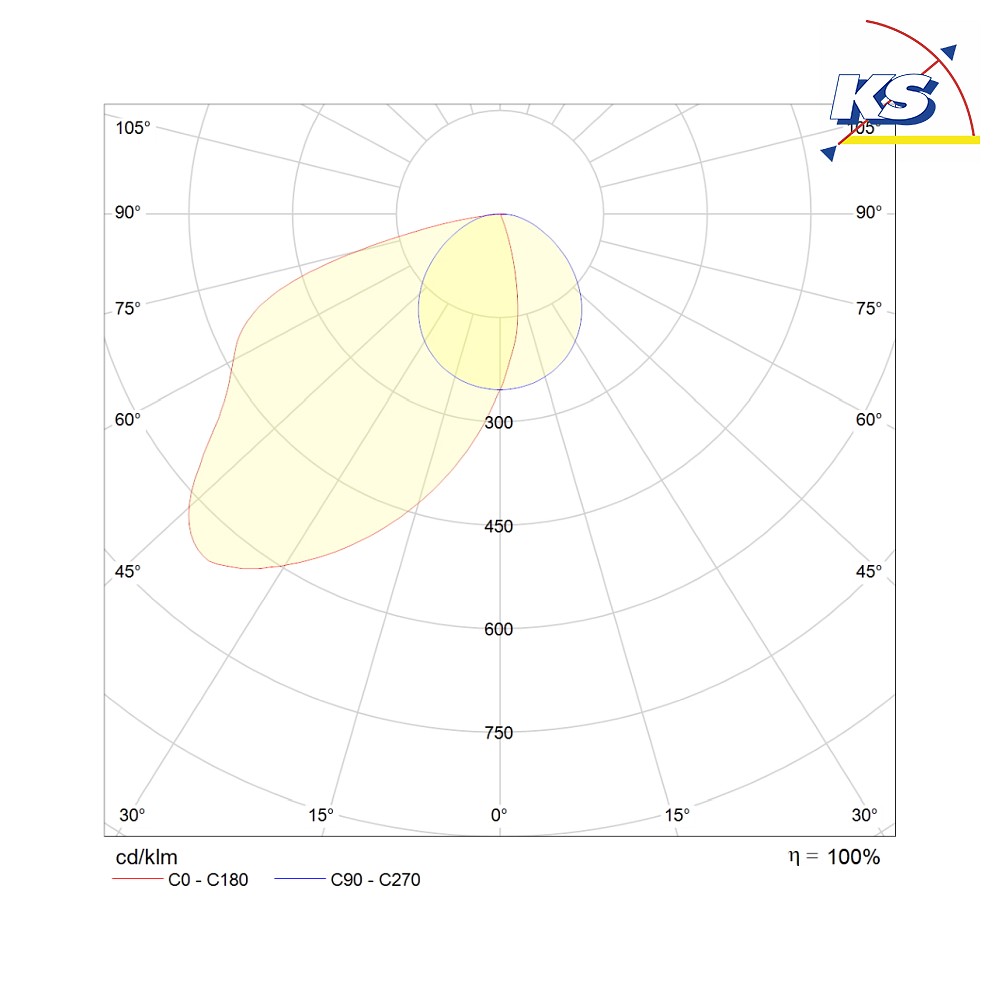

The LED built-in grid luminaire from Frisch-Licht is ideal for indoor use. With a beam angle of 65°, it provides uniform light distribution. The luminaire has a power consumption of 40W and a luminous flux of 5000lm, ensuring bright and energy-efficient lighting.

High quality and easy installation

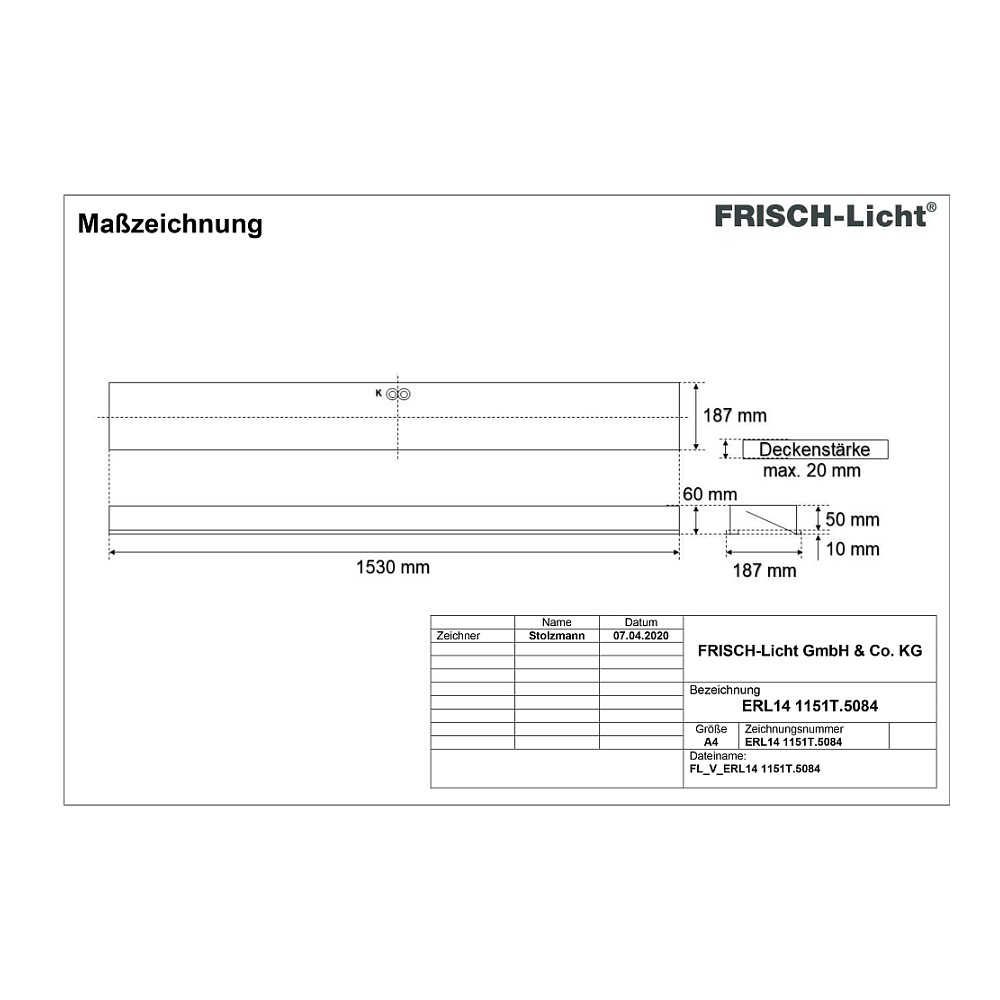

The grid luminaire is made of high-quality sheet steel and has a square shape. With a size of T: 6 cm and a weight of 5.7kg, it is robust and durable. Installation is done by recessed mounting, with a recessed depth of 5cm. The installation opening has a rectangular shape with a length of 154.5cm and a width of 18.7cm.

Convenient features and versatile applications

The grid luminaire is switchable and comes with a control gear included. It operates at a voltage of 220-240V~ and has a color temperature of 4000K. The color rendering index is 1B and the light color is neutral white. The luminaire is suitable for use in ceilings and is also suitable for light band configurations and emergency lighting.

Energy-efficient and long-lasting

With an energy consumption of 40kWh/1,000 h and an average lamp life of 50000 hours, the LED grid luminaire from Frisch-Licht is a sustainable lighting solution. The IP protection rating is IP20 and the temperature range is between -20 and +35 °C. The ambient temperature should not exceed Tq +25°C.

Technical details and further information

The grid luminaire has an electronic ballast (standard EVG) and operates at a mains frequency of 50-60Hz. The LED lamp type is fixed and not replaceable. The light distribution is direct and the system power is 40W. With the LED built-in grid luminaire, you get a high-quality lighting solution for indoor use with convenient features and high energy efficiency.
