LED Recessed spot DEEP ADJUST TRIMLESS 1.0, IP20, 350/500mA, 7/10W 4000K, CRi >90, white

Wever & Ducré



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

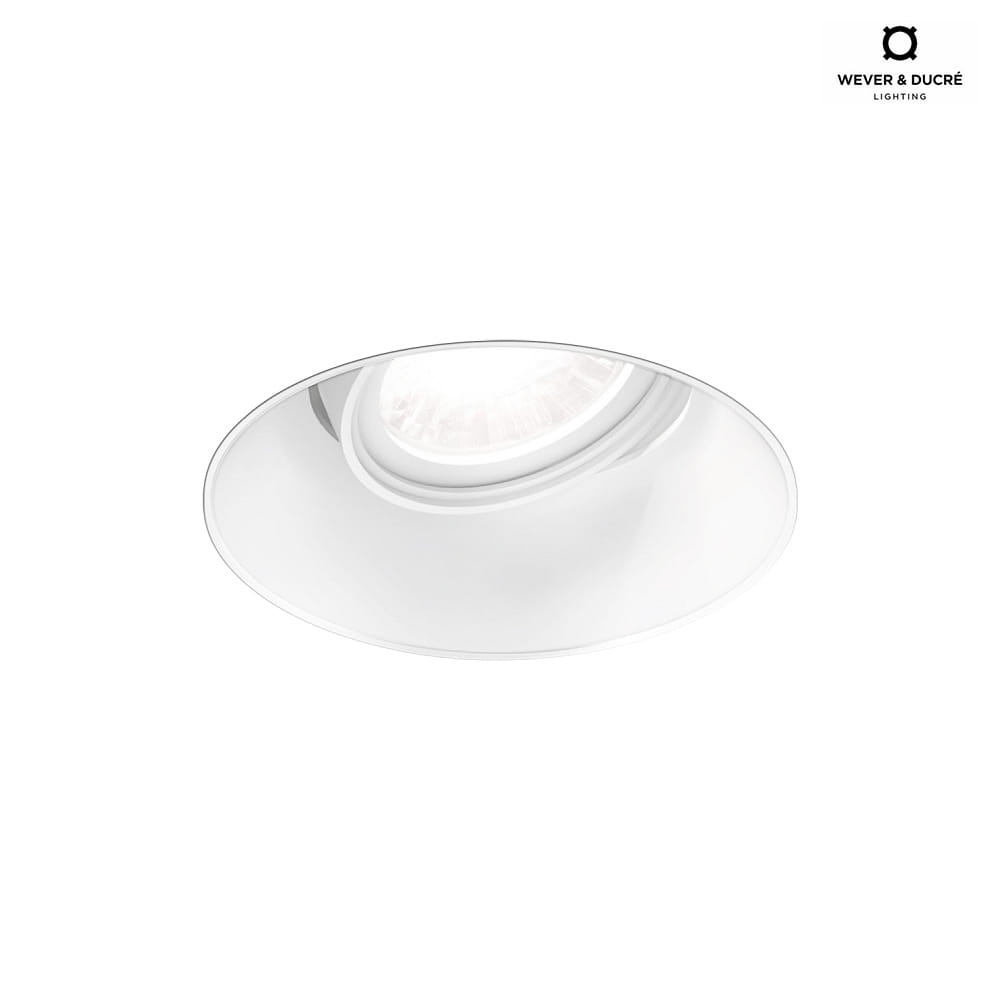

LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0

The LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0 is a high-quality spotlight for ceiling installation in indoor areas. With a beam angle of 36° and a color temperature of 4000K, it provides a pleasant neutral white light color. The color rendering index of >90Ra guarantees excellent color reproduction.

Technical Details

The spotlight has a power consumption of 7/10W and is operated with a COB LED. With a light efficiency of 68.9lm/W, it generates a luminous flux of 610 to 830lm. The LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0 has an average lamp lifespan of 50000 hours and is dimmable, depending on the operating device.

Design and Installation

The round design and compact size of Ø 9.6 cm make the spotlight a discreet element in the ceiling. The visible part has a height of 2 cm and can be rotated by 355°. The installation is simple and secure by recessing it into an 11 cm circular opening.

Material and Protection Rating

The LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0 is made of high-quality aluminum and plastic. With an IP20 protection rating, it is protected against dust and is ideal for indoor use. The weight of only 0.23 kg makes it easy to install on the ceiling.

Application Area and Accessories

Thanks to accessories such as mounting frames and power supplies, the spotlight can be individually adapted. With a rated current of 350/500mA and a swivel possibility of 35°, the LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0 offers versatile application possibilities for effective lighting.

Article number:
WEV-184861W7
Purchasing quantity:
1 piece
Brand:
Wever & Ducré
Product type:
downlight
Energy consumption:
10 kWh/1.000 h
Manufacturer:
Wever & Ducré
Dimmable:
yes
Dimmability:
depending on the control gear
Lamp shape:
round
Power consumption:
7/10 W
Emitting angle:
36 °
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Lamps/bulbs:
PlanarLED
Number of bulbs:
1
Light colour:
neutral white
Light emission:
direct
Light flux:
610 | 830 lm
Light yield:
68,9 lm/W
Nominal current:
350/500 mA
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
1A
lamp performance:
bei 350mA: 7 / bei 500mA: 10 W
Colour:
white
Material:
aluminium
plastic
Swivel range:
35 °
Turning range:
355 °
Fitting depth:
9.00 cm
Fitting opening circle :
11.00 cm

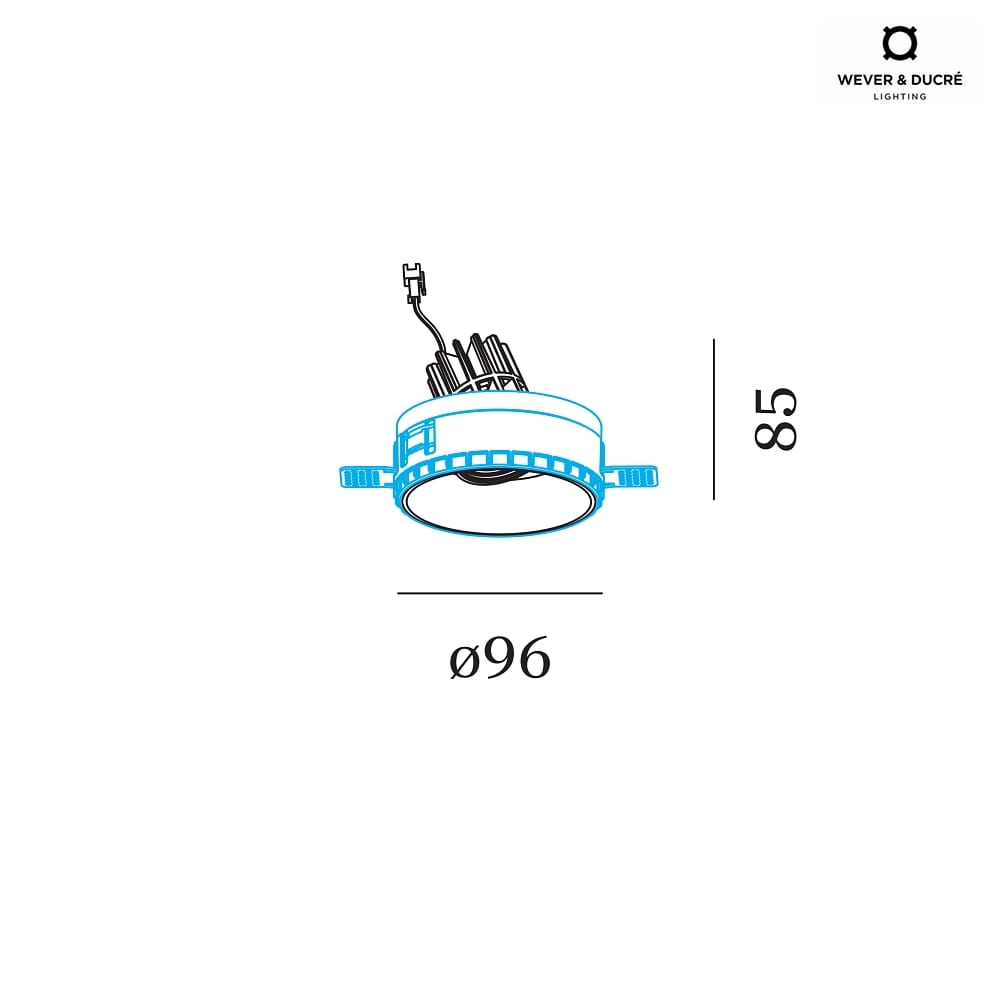

Dimension:
Ø∕ H: 9,6∕ 8,5 cm
Sichtbarer Teil-H: 2 cm
Weight:
0,23 kg
Mounting:
recessed mounting
Field of application:
ceiling
IP-protection class:
IP20
Application area:
only suitable for indoor use
Accessories:
mounting frame excl
power supply excl
