LED Strip CSP

LED Strip CSP, 5m, 14.4W/m, 480 LED/m, 4000K, 1360lm/m, Ra90, 24V, IP20

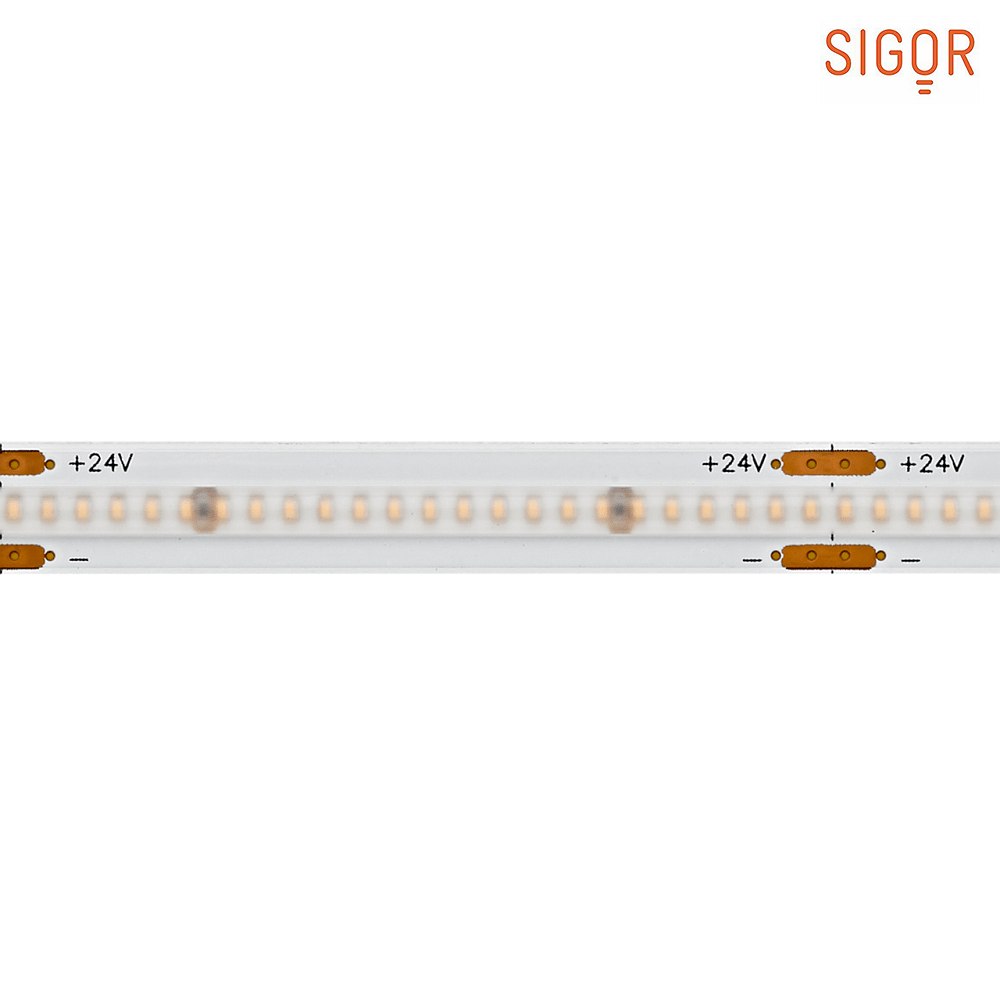

The LED Strip CSP from SIGOR is an efficient lighting solution for indoor use. With a length of 5 meters and a power of 14.4W/m, this strip offers a high light output of 1360lm/m. With a total of 480 LEDs per meter, it produces a uniform and bright lighting with a neutral white light color and a color temperature of 4000K.

Dimmable and energy efficient

Thanks to the dimming capability, the brightness of the strip can be individually adjusted. With an energy efficiency class F and an energy consumption of 72kWh/1,000h, this LED strip is both environmentally friendly and cost-effective to operate. The average lifespan is an impressive 72000 hours.

High quality and SIGOR brand

The LED Strip CSP comes from the renowned brand SIGOR, known for high-quality lighting solutions. With a color rendering index of 90Ra and a wide beam angle of 150°, this strip provides a natural and uniform illumination.

Technical details and dimensions

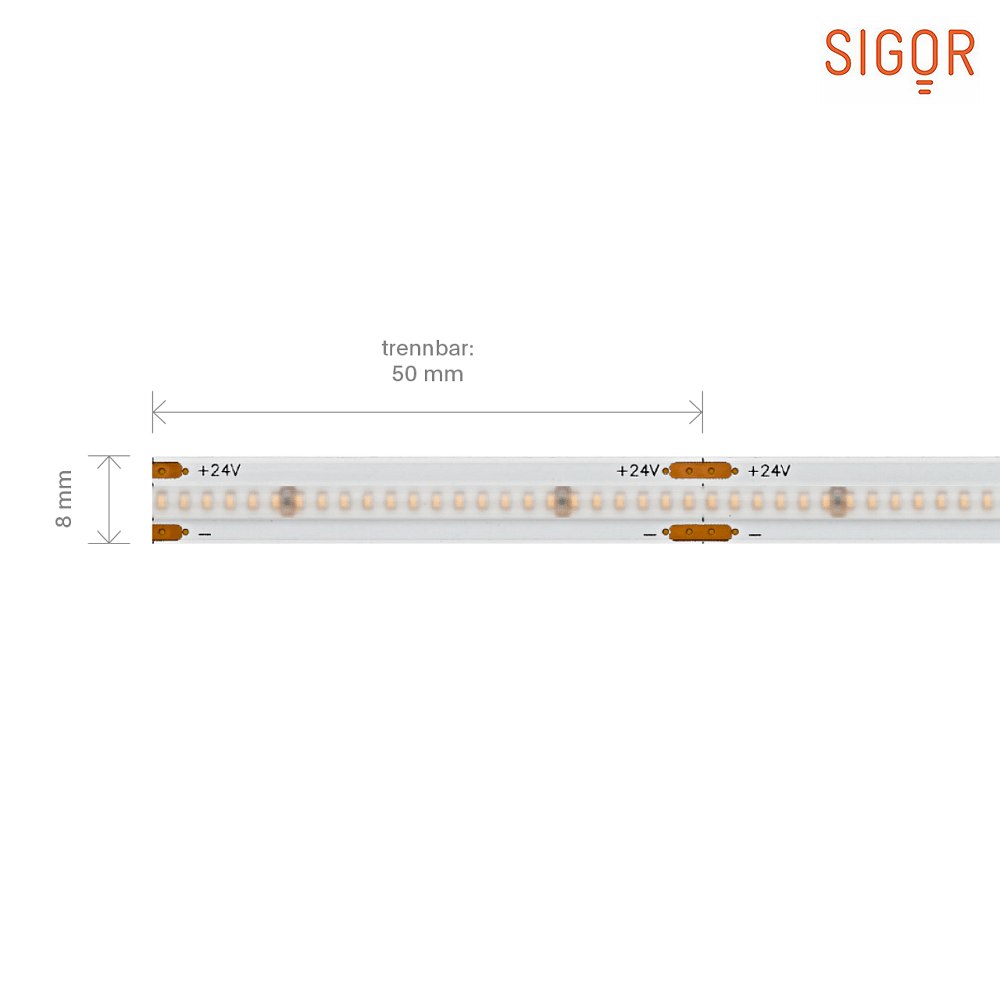

The LED strip has an operating voltage of 24V and a power consumption of 72W. The size is 500 x 0.8 x 0.2 cm (L/W/H) and the LED spacing is 0.21 cm. The strip can be cut every 5 cm. With a mean lamp life of 72000 hours and an IP protection rating of IP20, this strip is durable and safe to use.

Additional information and accessories

The LED Strip CSP features various additional functions such as color consistency (SDCM) of 3, primary and secondary feed-in every 100cm, and is configurable. The residual luminous flux at the end of life is 0.8. With a nominal current of 300mA and an ambient temperature of -40 to 65°C, this strip is versatile and easy to install.
