LED Wall luminaire QUAD 2 XL, square, 8,6W, COB LED, 3000K, 110°, anthracite

SLV

Print product information sheet▶

question regarding the article

SLV LED Wall luminaire QUAD 2 XL, square, 8,6W, COB LED, 3000K, 110°, anthracite

Print product information sheet▶

question regarding the article

Product data sheet

CHF 86,73

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 129.00

You save 32,8 %

Shipping time: 3-4 weeks

Product no.: 232445
EAN: 4024163148665
In stock: 354

Alternative product variants:

LED Wall luminaire QUAD 2 XL, square, 8,6W, COB LED, 3000K, 110°, white LED Wall luminaire QUAD 2 XL, square, 8,6W, COB LED, 3000K, 110°, anthracite

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

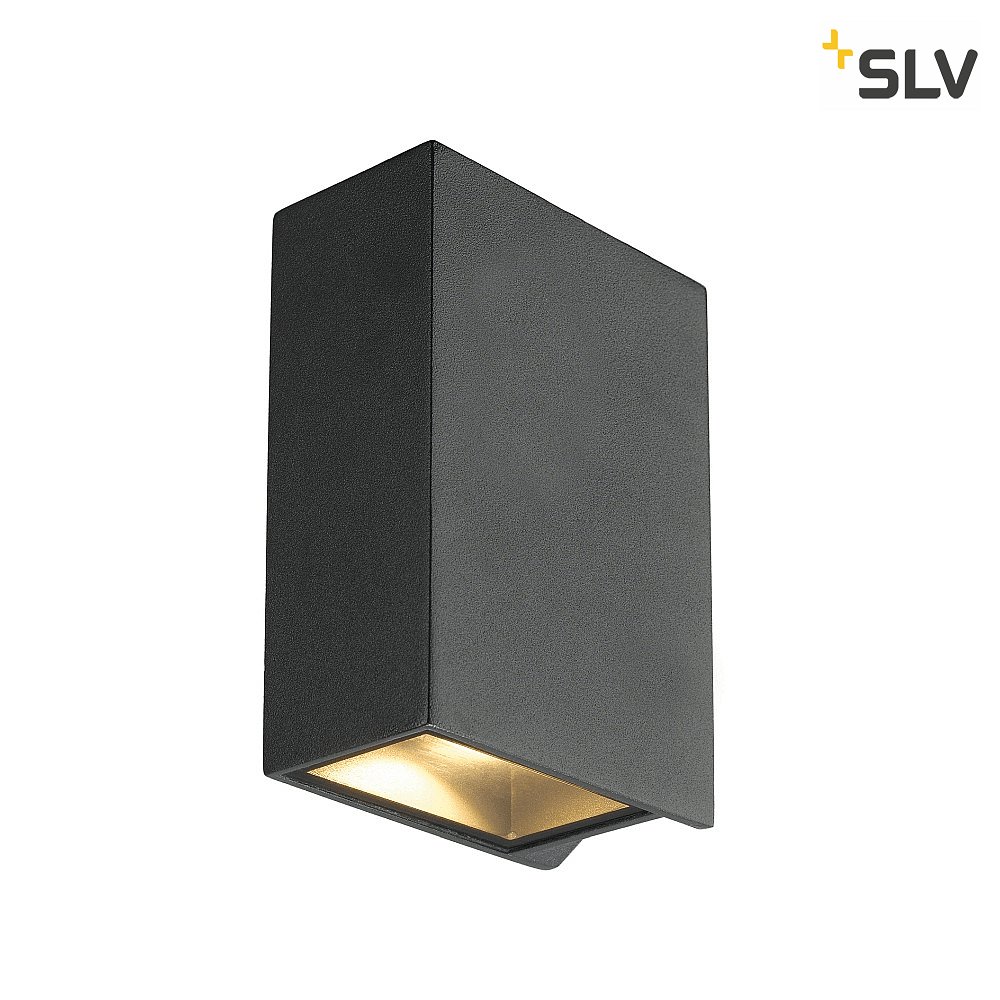

LED Wall Light QUAD 2 XL

The LED Wall Light QUAD 2 XL is a square light that operates at 8.6W. It features a COB LED with a color temperature of 3000K and a wide beam angle of 110°. The light has the item number 232445 and the EAN 4024163148665.

Design and Dimensions

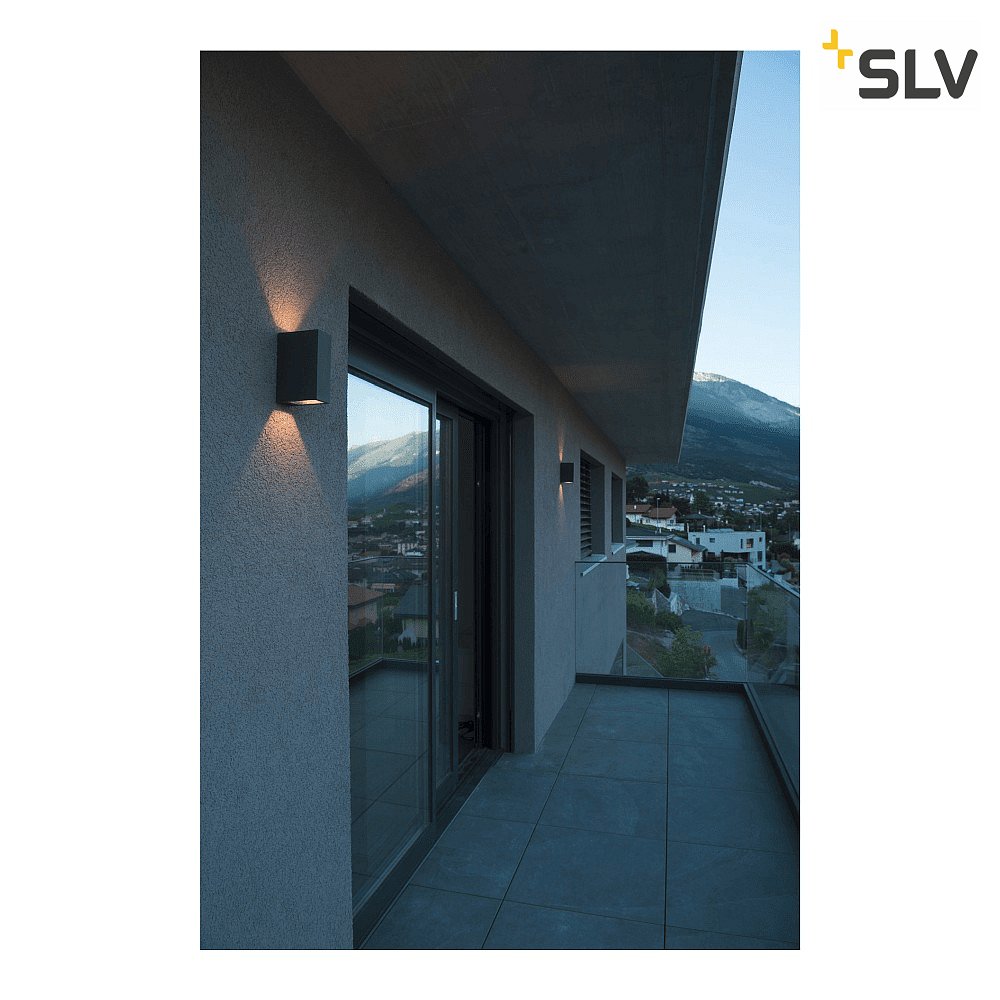

The wall light has dimensions of 5.3 x 15 x 10.2 cm and weighs 0.97 kg. It is anthracite in color and is made of aluminum and glass. Thanks to its IP44 protection rating, the light is suitable for both indoor and outdoor use.

Light Output and Energy Efficiency

The LED Wall Light QUAD 2 XL has a luminous flux of 520lm and a color rendering index of 80Ra. The power consumption is 8.6W and the LED has an average lifespan of 30000 hours. The energy efficiency class of the light is F.

Accessories and Special Features

The driver is included in the delivery of the wall light. The light has an integrated converter for 100-277V AC to 350mA DC constant current. It is sold as a single unit with a protection class of 1. Please note that the built-in LED bulbs cannot be replaced.

Application and Installation

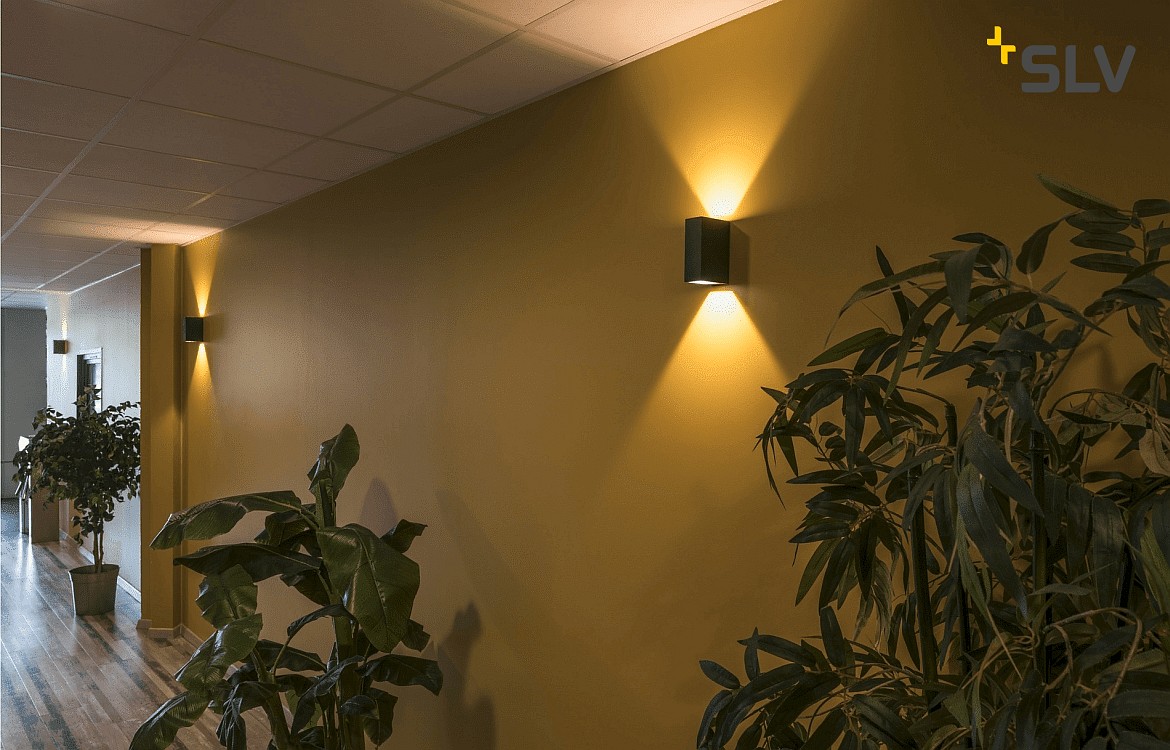

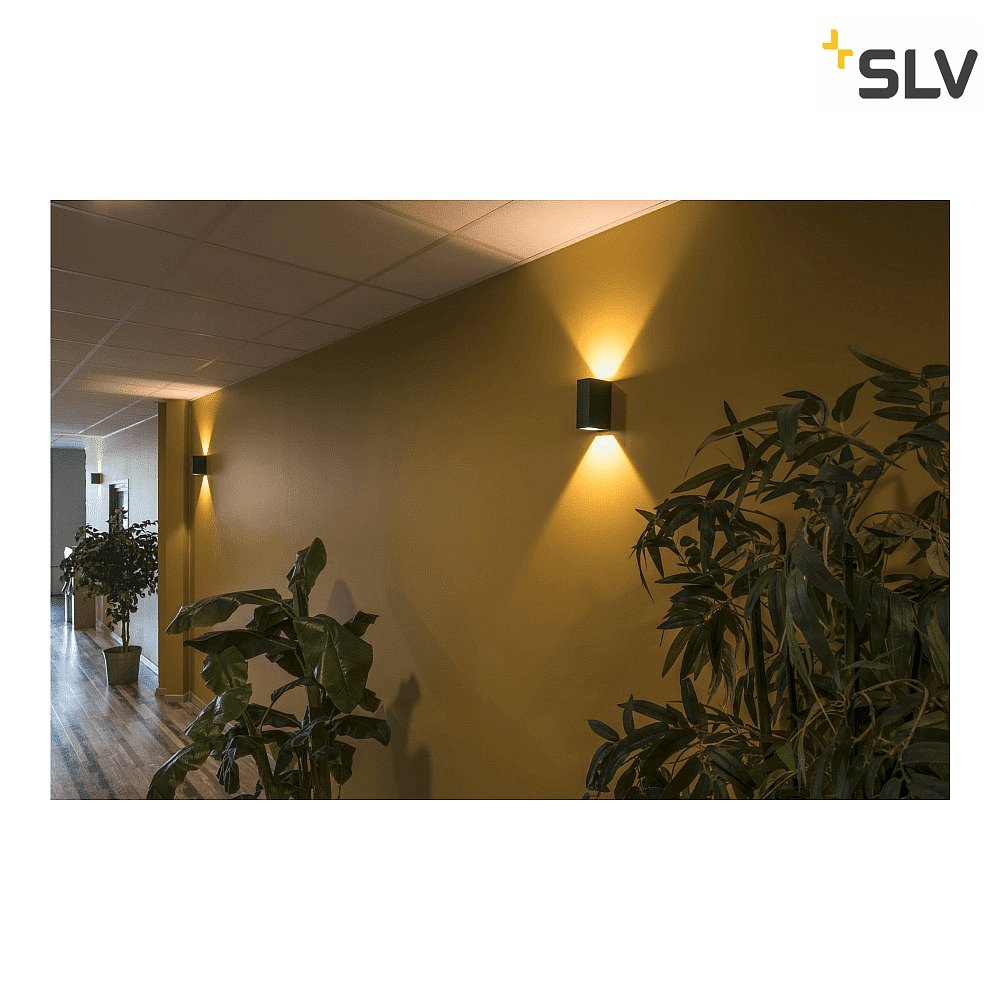

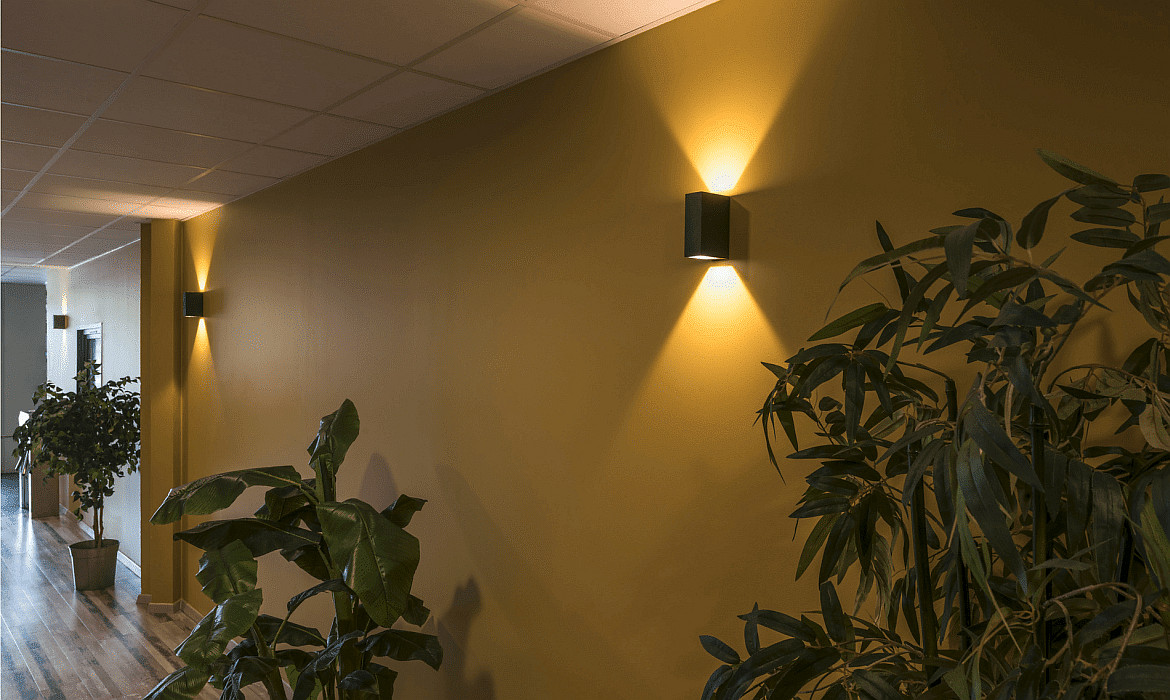

The LED Wall Light QUAD 2 XL is ideal for wall mounting. It produces a two-beam light output upwards and downwards. The mounting surface is located on the narrow side of the light (vertically). If needed, we are happy to provide you with a light distribution curve of the product.

Colour:

anthracite

Dimension:

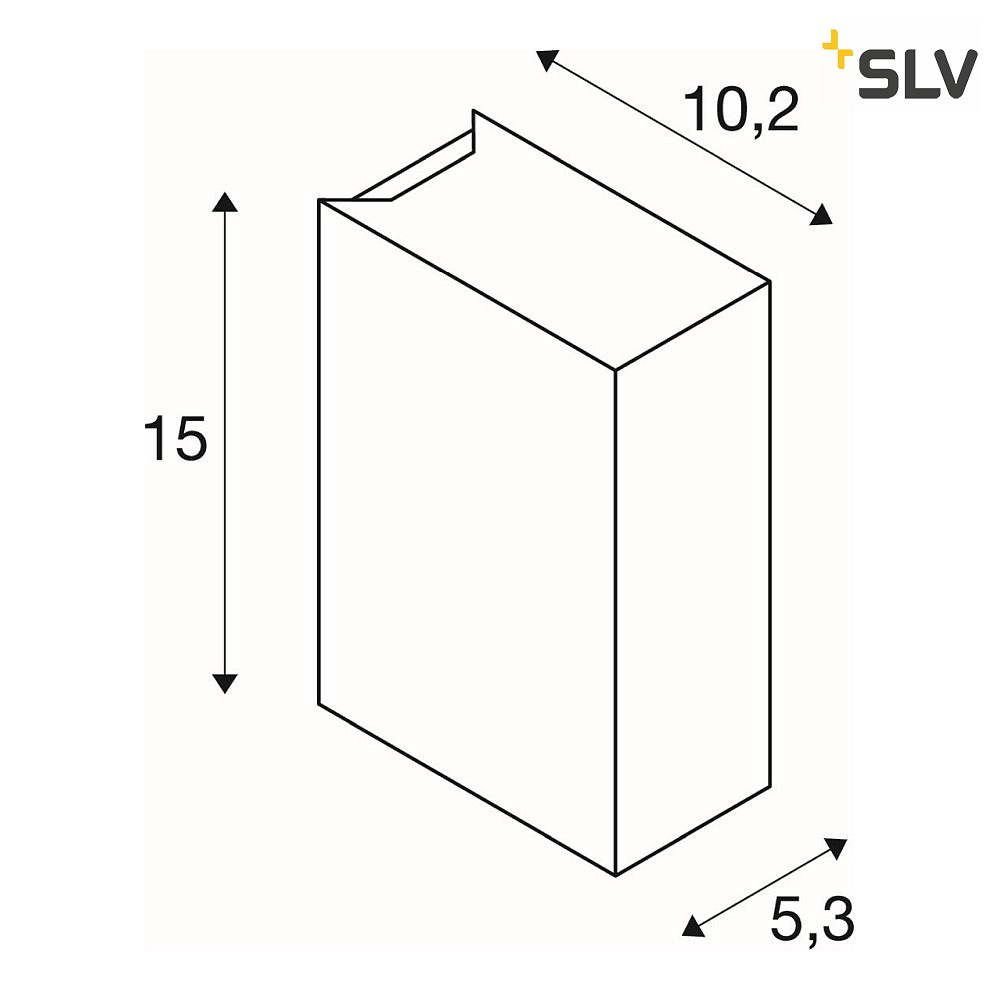

W∕ H∕ D: 5,3∕ 15∕ 10,2 cm

Material:

aluminium
glass

Weight:

0,97 kg

Product type:

Wandleuchte

Lamptype:

LED

Bulbs in delivery:

yes

Field of application:

wall

Power consumption:

8,6 W

Emitting angle:

110 °

LED can be replaced :

Lamps/bulbs:

2x COB LED, 8,6W

Light flux:

520 lm

Colour temperature:

3000 K

Average life span of a bulb in hours:

30000 h

Colour rendering index:

80 Ra

Protection class:

IP-protection class:

IP44

Additional information:

Integrated converter for 100-277V AC voltage to 350mA constant DC.
The luminaire includes built-in LED lamps. The lamps can not be replaced.
Premium LED
3 beam angles available
Mounting surface on the narrow side (vertical)
Lighting effect up and down
Light emission bidirectional

Accessories:

driver included

Energy efficiency category:

EPREL No:

916530

Article number:

232445

Purchasing quantity:

1 piece

Brand:

SLV

Manufacturer information
SLV GmbH, Daimlerstraße 21-23, Übach-Palenberg, Germany, info@slv.de
