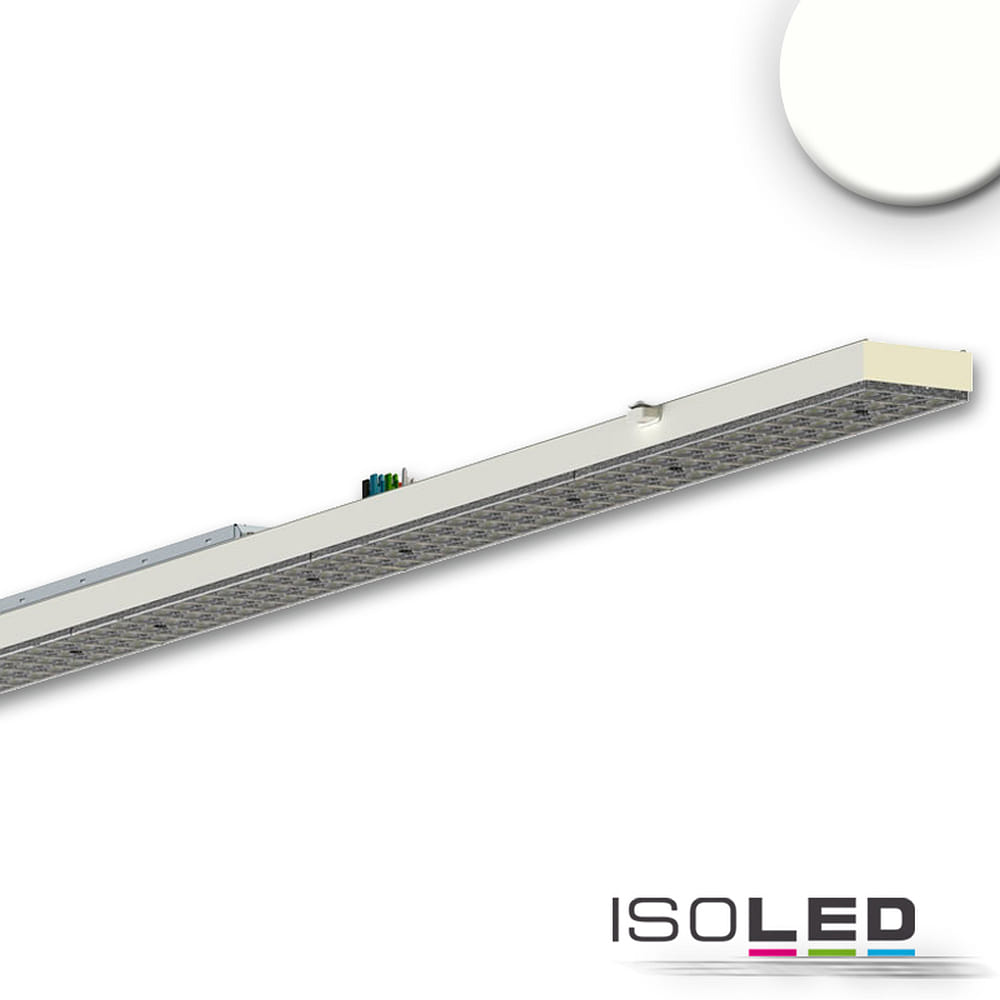

light strip system FAST FIX LINEAR SYSTEM IP54 MODULE DALI controllable IP54, white dimmable

ISOLED



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient Lighting System

The FastFix LED linear system from ISOLED is a high-quality lighting system that is ideal for indoor use. With a power range of 25-75W and a neutral white light color, this system provides bright and pleasant lighting in your space. Thanks to the integrated control gear, installation is easy and efficient.

Versatile Applications

The light band system is equipped with a lens optic that allows for symmetrical light distribution with a beam angle of 30°. This makes the system ideal for ceiling mounting and offers versatile application possibilities in various indoor spaces such as living rooms, offices, or hallways.

Energy-Efficient and Durable

With an energy efficiency class of C and an energy consumption of 25-75kWh/1,000h, the FastFix LED linear system from ISOLED is not only energy-efficient but also long-lasting. The average lamp lifespan is 36,000 hours, ensuring long-term and reliable lighting.

Easy Control and Dimmability

Thanks to the DALI dimmability of the system, you can adjust the brightness of the lighting according to your needs. With accessories such as a switch and controller, you can easily control the light band system and create the desired atmosphere in your space.

High-Quality Materials and Easy Installation

The FastFix LED linear system from ISOLED is characterized by high-quality materials such as aluminum and plastic, ensuring a long lifespan and robust construction. The assembly and system-specific installation with the included accessories is simple and straightforward, allowing you to quickly and easily install the lighting system.

Colour:
white
Dimension:
L∕ W∕ D: 143,7∕ 6,8∕ 4,2 cm
Material:
plastic
aluminium
Product type:
light strip system
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
180-265 V~
Dimmable:
yes
Dimmability:
DALI
Power frequency:
50/60 Hz
Power consumption:
25-75 W
Emitting angle:
30 °
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
33
Light colour:
neutral white
Light emission:
symmetriccal
Light flux:
10600 lm
Nominal current:
416-283 mA
Colour temperature:
5000 K
Average life span of a bulb in hours:
36000 h
Colour rendering index:
>80 Ra
1B
Wire/connection lead diameter:
2,5 ² mm
Plug type:
plug
Mounting:
mounting accessories required
system based mounting
surfaced mounting
Protection class:
1
IP-protection class:
IP54
Additional information:
Transformer power: 21 VA
Accessories:
control gear included
mounting accessories excluded
cover included
switch excluded
control excluded
bar recording excluded
ambient temperature:
-20 ... +45 °C
Energy efficiency category:
C
EPREL No:
824404
Energy consumption:
25-75 kWh/1.000 h
Article number:
ISO-115230
Purchasing quantity:
1 piece
Brand:
ISOLED
Manufacturer:
ISOLED
