luminaire head M-POL M CLEAR DALI controllable IP65, anthracite dimmable

SLV


E
Product data sheet

CHF 258,84

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 385.00

You save 32,8 %

Shipping time: 4-5 days

Product no.: 1006390
EAN: 4024163266505
In stock


Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

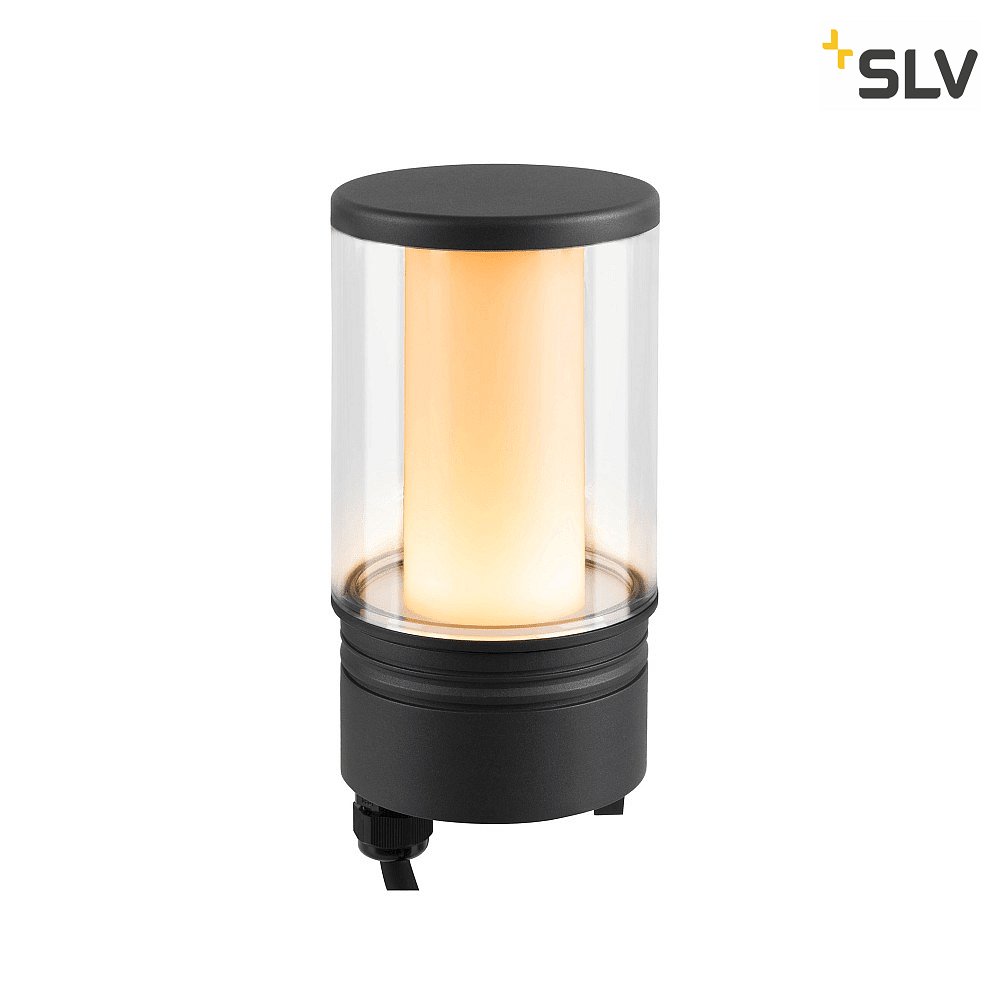

LED Luminaire Head M-POL M CLEAR, IP65 IK10, 19W, 2700/3000K, 1150-1230lm, CRI90, DALI dimmable, anthracite

The LED Luminaire Head M-POL M CLEAR from SLV is a high-quality luminaire head for outdoor use. With a power consumption of 19W and a luminous flux of 1150-1230lm, it provides excellent lighting for your outdoor area. Thanks to the high color rendering index of 90Ra, you get very good color reproduction.

Accessories and Technical Details

The luminaire head comes with a driver and has the option for through-wiring to install multiple luminaires in a row. The installation is system-specific and can be done with various accessories. The luminaire head can be connected to the power grid via an open cable end and is switchable and dimmable with DALI automation systems.

Material and Protection Class

The LED Luminaire Head M-POL M CLEAR is made of aluminum and glass and is particularly robustly constructed. It has IP protection against moisture and foreign objects (IP65) as well as IK10 vandalism protection. The protection class of the luminaire head is 1, making it particularly safe and durable.

Application Area and Possible Uses

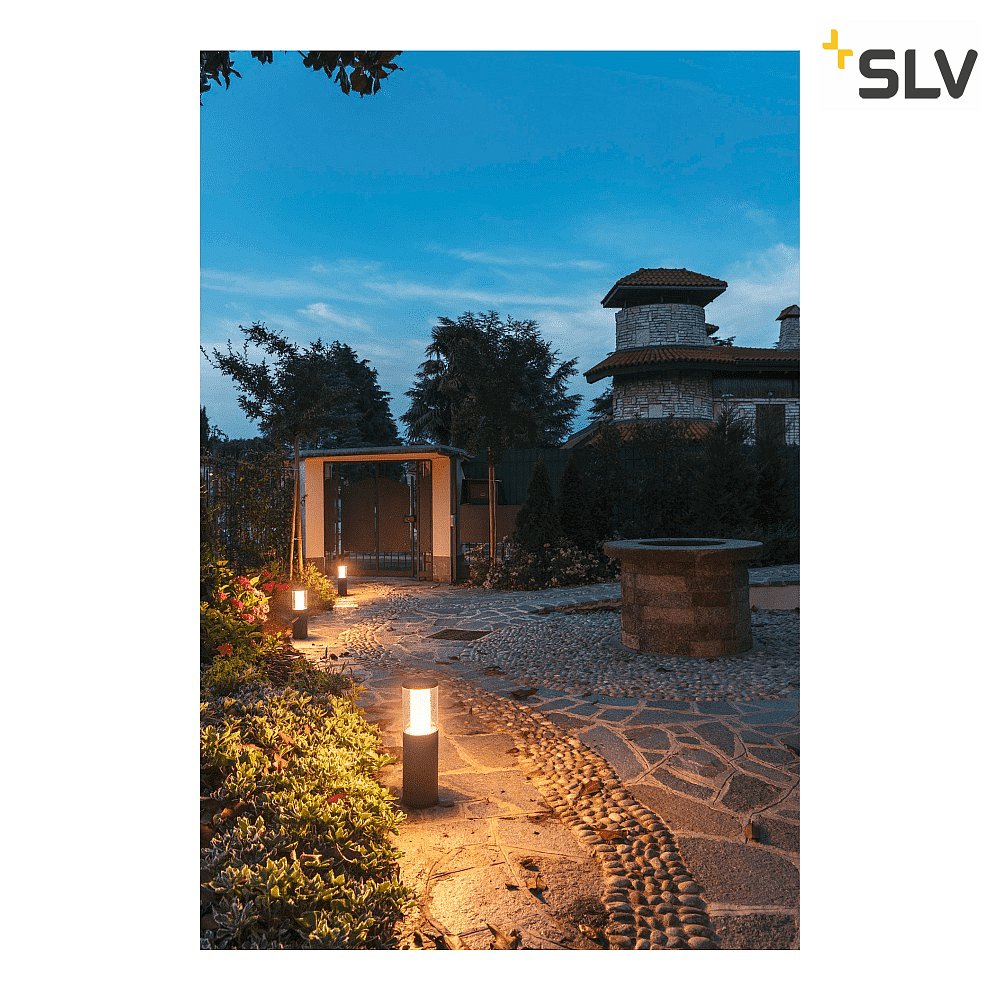

Thanks to its energy efficiency class E and low energy consumption of 19kWh/1,000h, the luminaire head is also economically viable. It is particularly well suited for ground use in outdoor areas and can be used in a variety of ways for outdoor lighting design. Choose from different sizes, designs, and control options to find the optimal solution for your project.

Further Information and Conclusion

The LED Luminaire Head M-POL M CLEAR offers a long-lasting, maintenance-free LED lighting with an average lamp lifespan of 50,000 hours. With its high-quality craftsmanship, the option for individual control, and the wide selection of accessories, it is the ideal solution for demanding outdoor lighting design. Choose quality and efficiency with the LED Luminaire Head M-POL M CLEAR from SLV.

Article number:
1006390
Purchasing quantity:
1 piece
Brand:
SLV
Energy efficiency category:
E
EPREL No:
1370514
Product type:
luminaire head
Energy consumption:
19 kWh/1.000 h
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI
Lamp shape:
round
Power frequency:
50/60 Hz
Power consumption:
19 W
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Number of bulbs:
1
Voltage:
open cable end
Light emission:
direct and indirect
Light flux:
1150-1230 lm
Nominal current:
500 mA
Colour temperature:

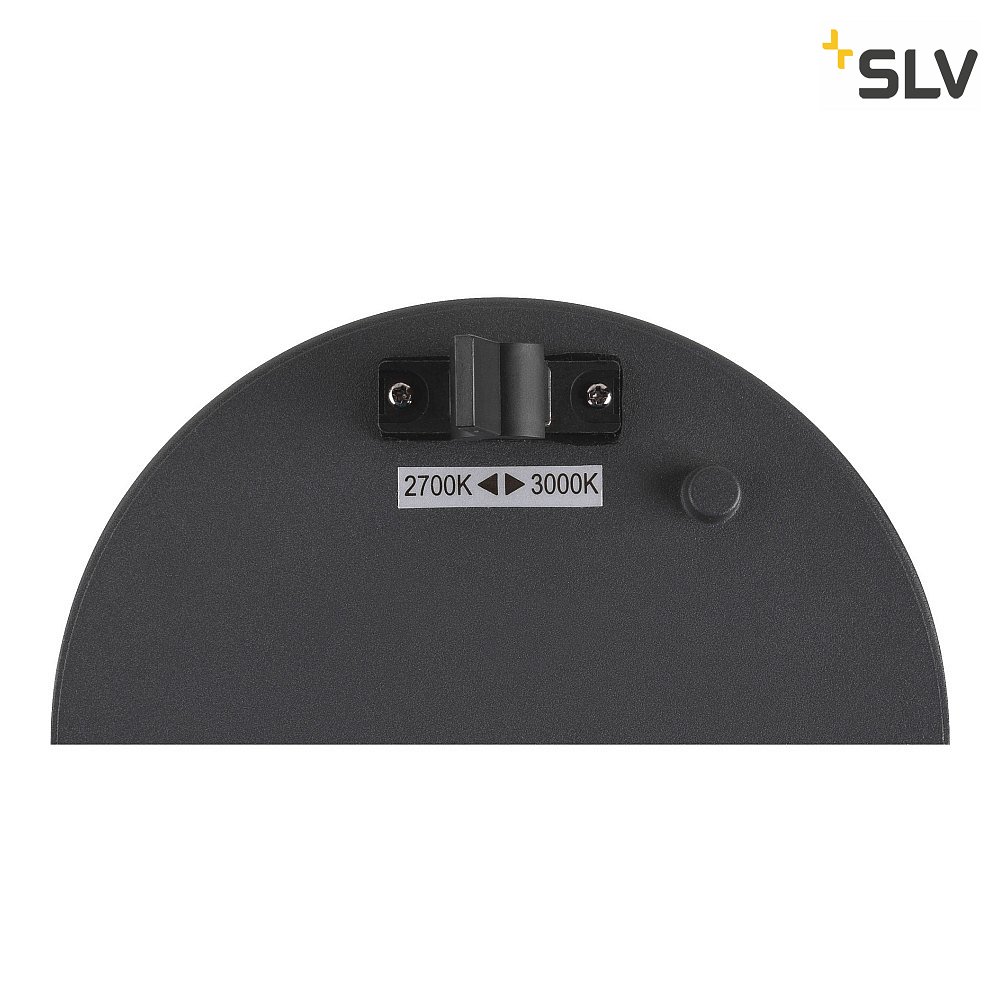

2700 | 3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
90 Ra
IK-Rating:
IK10 up to 20.00 Joule
Colour:
anthracite
Material:
aluminium
Throughwiring (installation of multiple luminaires in a row) is possible:
yes
Dimension:

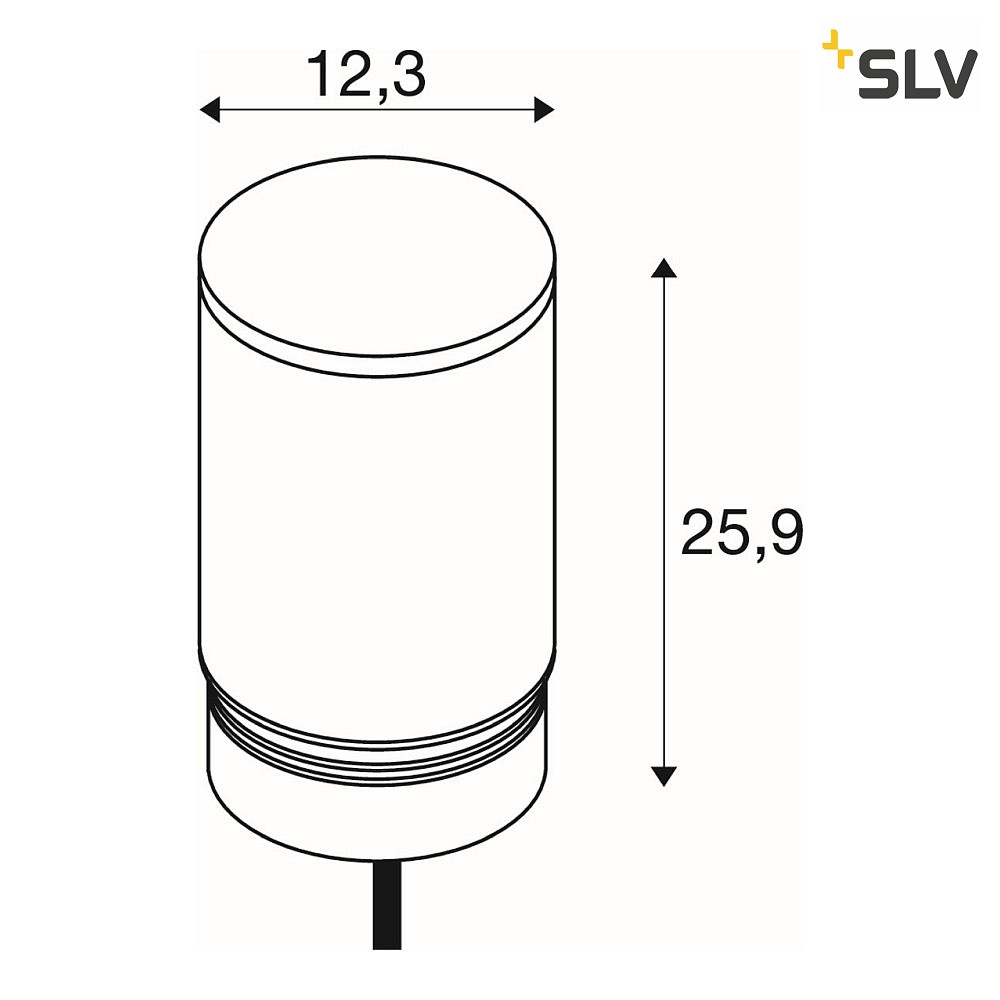

Ø∕ H: 12,3∕ 25,9 cm
Weight:
1,38 kg
Length of connection lead:
90 cm
Plug type:
open cable end
Mounting:
mounting accessories required
system based mounting
Field of application:
floor
Protection class:
1
IP-protection class:
IP65
Application area:
suitable for outdoor use
Additional information:
Notice for the end user: The light source of this luminaire may only be replaced by the manufacturer or by a service technician appointed by him.
Very good colour rendering.
Accessories:
connection box excl
concrete anchor excl
controller excl
Dimmer excl
socket excl
driver incl
ambient temperature:
-20 - 35 °C
