luminaire module VIGO - 150CM rigid, with diffuser, magnetic mounting IP20, nickel matt, satined, anodised dimmable

Helestra



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

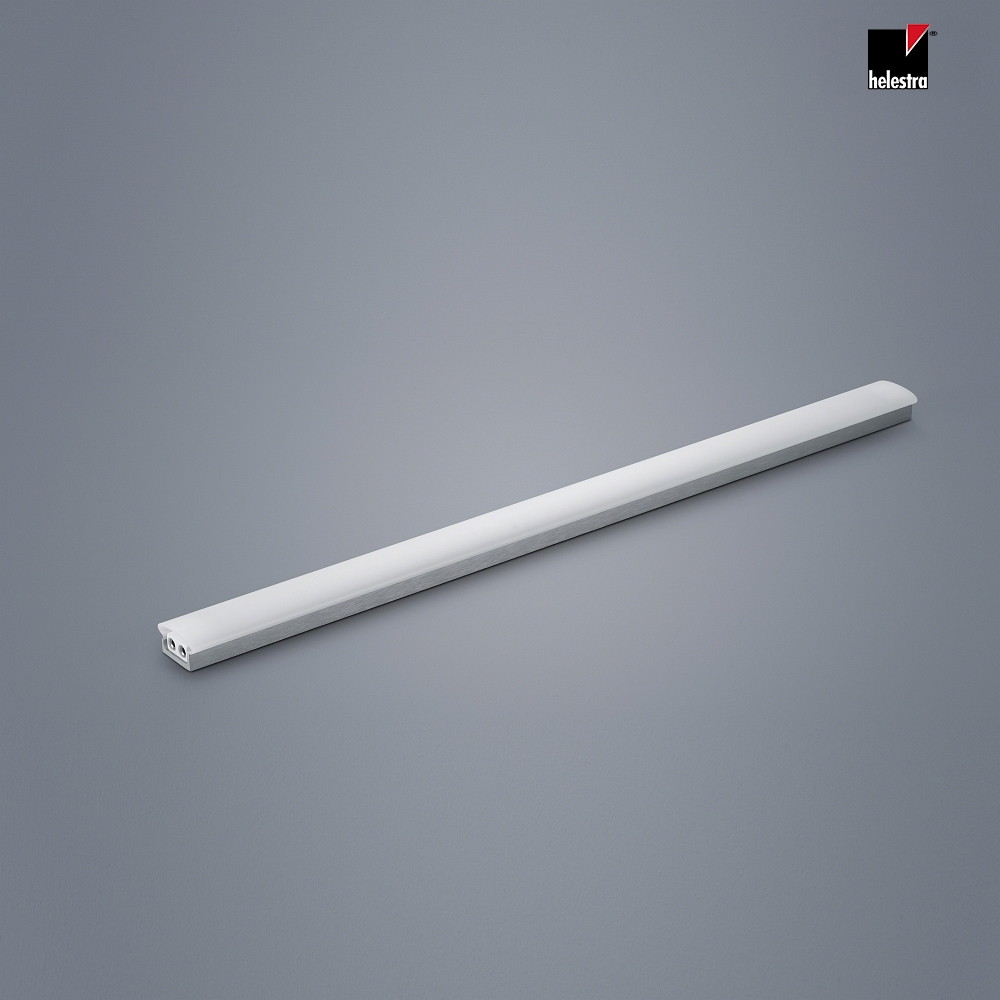

LED Surface-mounted light module VIGO

The LED surface-mounted light module VIGO from Helestra is a versatile lighting element for indoor use. With a power consumption of 26.5W and a luminous flux of 3270lm, it provides dimmable, warm white light output with good color rendering. The satin acrylic diffuser provides a soft, homogeneous surface light without glare or flicker.

Areas of application

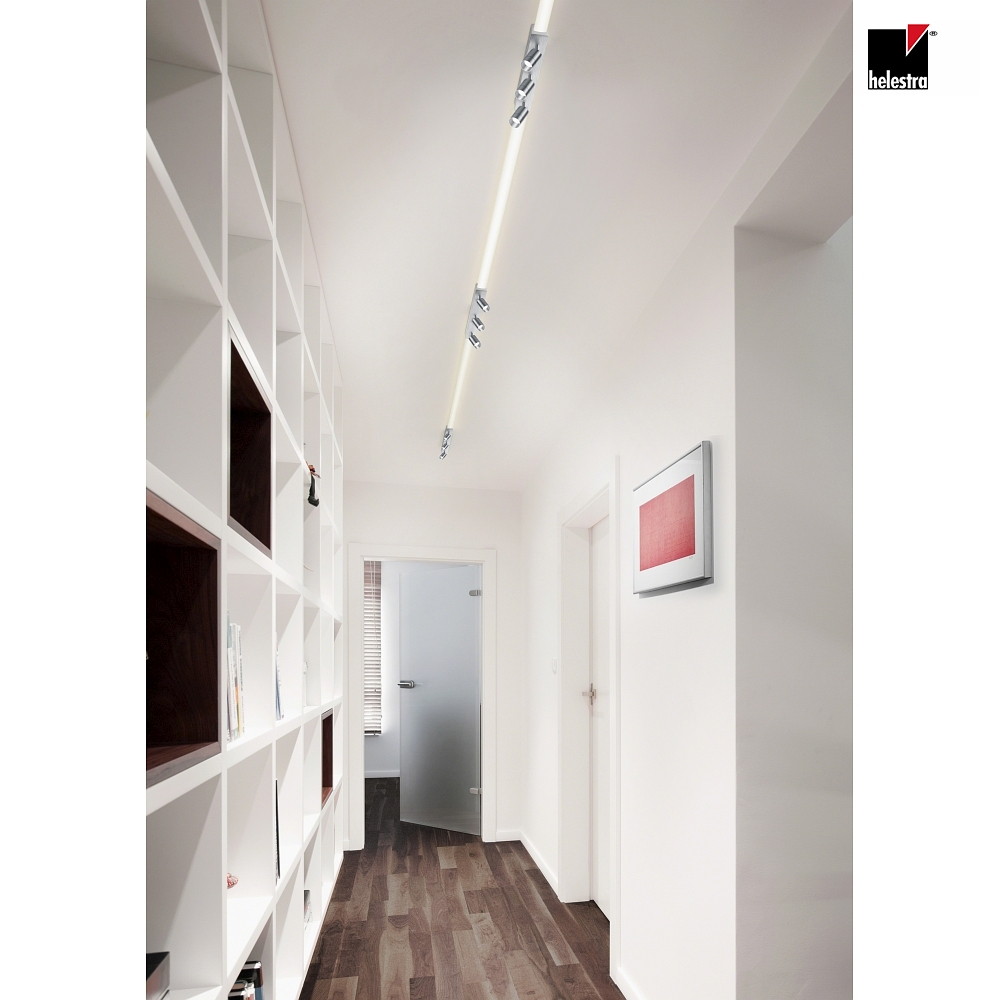

The flat VIGO diffuser light rails can be mounted on ceilings and walls in dry indoor areas. They can be easily attached with surface-mounted magnetic adapters. The rails are square and have a total length of 150cm. They are perfect for ceiling and wall lights as well as for module systems, light strips, and object lights.

Material and accessories

The LED light module VIGO is made of satin acrylic and nickel matte aluminum. Included in the delivery are mounting magnets, diffusers, LED modules, and plug connectors. The dimmer, remote control, and driver are not included. The power supply is via a system plug.

More information

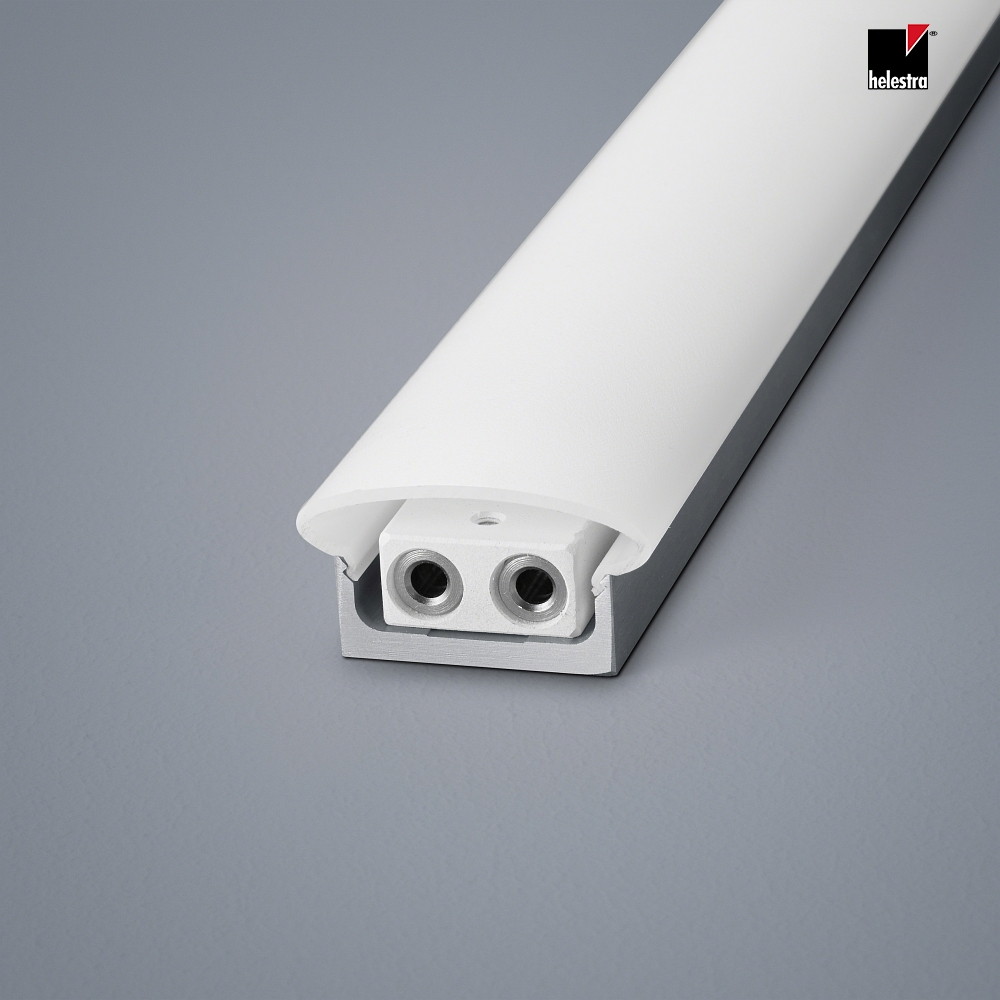

The VIGO light rails are equipped with plug connectors on both sides for easy connection. Various other elements are available to connect the rails with and without integrated LED lighting. The system is controlled by a programmable radio remote control included in the converter's delivery. Thanks to the manufacturer's practical online configurator, good planning of the system is guaranteed.

Technical details

The LED surface-mounted light module VIGO has an energy efficiency class of D and protection class 3. The color temperature is 3000K and the color rendering index is over 85Ra. With a length of 150cm and a weight of 0.8kg, the light module offers an effective and energy-saving lighting solution for indoor use.

Colour:
nickel matt
satined
Glass color:
satined

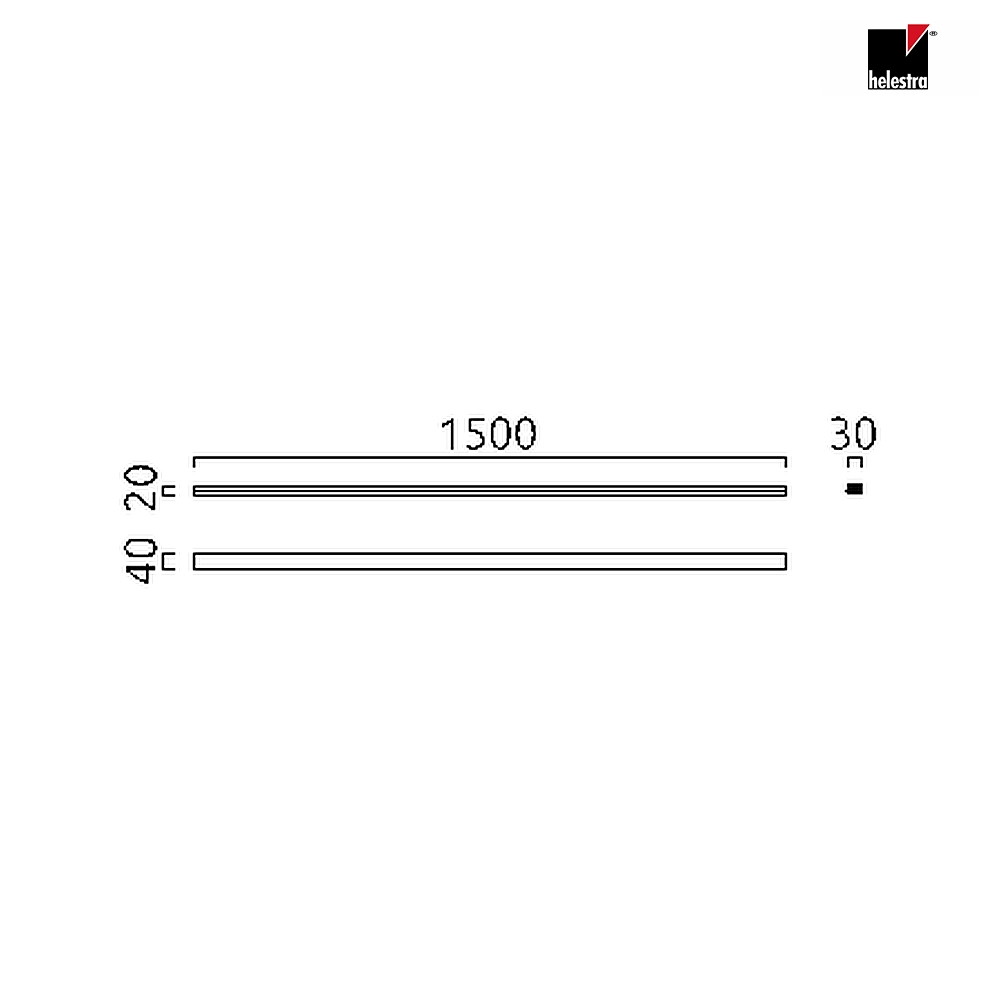

Dimension:
total-L: 150 cm
diffuser-B: 4 cm
housing-B: 3 cm
Material:
acrylic
aluminium
Weight:
0,8 kg
Product type:
luminaire module
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
suitable for indoor use
Field of application:
ceiling
wall
Operating voltage:
5-24 V=
Dimmable:
yes
Dimmability:
with remote control,manufacturer specific
Power consumption:
26,5 W
LED can be replaced :
no
Voltage:
system connector
Light colour:
warm white
Light emission:
direct
Beam direction:
lateral / down
Light flux:
3270 lm
Colour temperature:
3000 K
Colour rendering index:
>85 Ra
1B
Protection class:
3
IP-protection class:
IP20
Accessories:
mounting magnet included
diffuser included
LED module included
plug-in contact sockets included
dimmer excluded
remote control excluded
driver excluded
Energy efficiency category:
D
Energy consumption:
27 kWh/1.000 h
Article number:
HEL-15/1602.18
Purchasing quantity:
1 piece
Brand:
Helestra
Manufacturer:
Helestra
