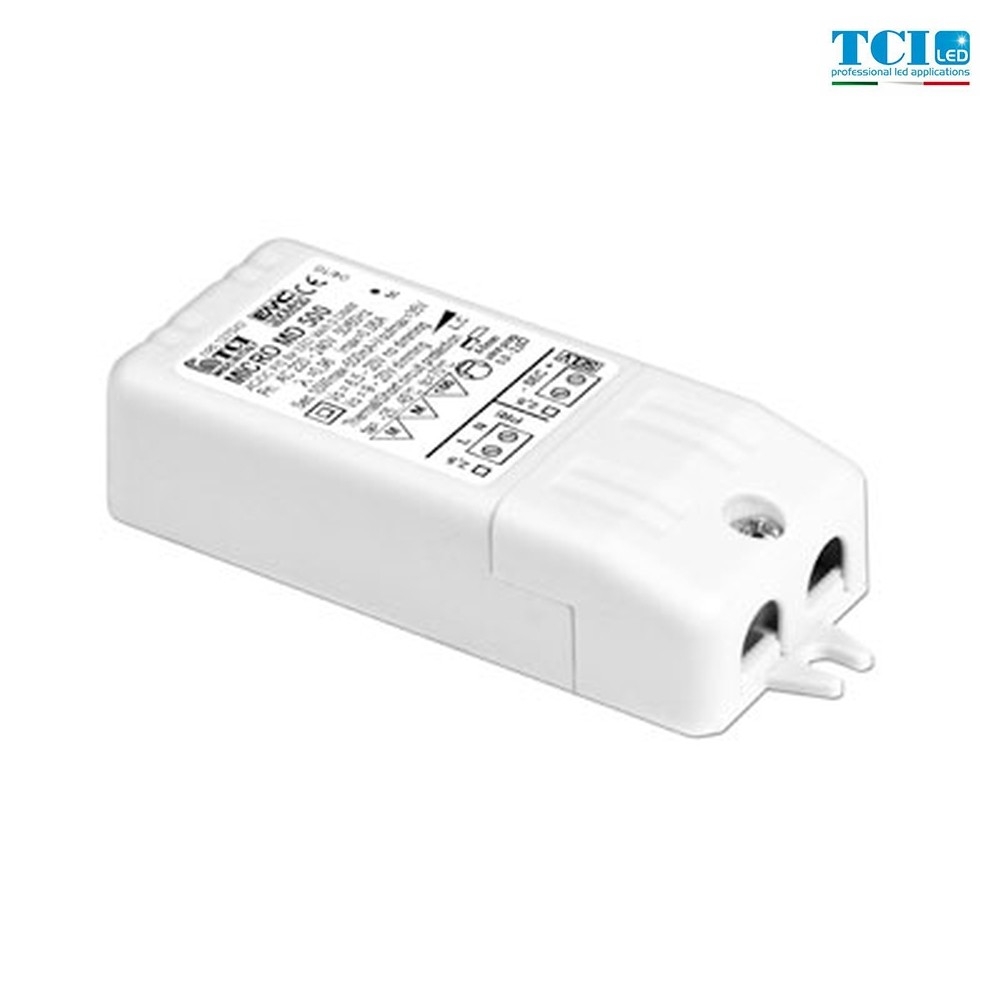

MICRO MD 500, dimmable LED converter 10W 500mA - phase trailing edge, dim-to-warm suitable

TCI


CHF 15,19

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 19.22

You save 21,0 %

Shipping time: 8-10 days

Product no.: TCI-127042
EAN: 8010703365896
In stock: 50


Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Technical data of the MICRO MD 500

The Dimmable LED Converter 10W 500mA - Phase cut, also known as MICRO MD 500, is a high-quality converter for LED lights. It has a constant current of 500mA and is specifically designed for Dim-to-Warm LED lights. With an operating voltage of 230 volts and a protection class 2, it is ideal for indoor use.

Dimensions and installation of the converter

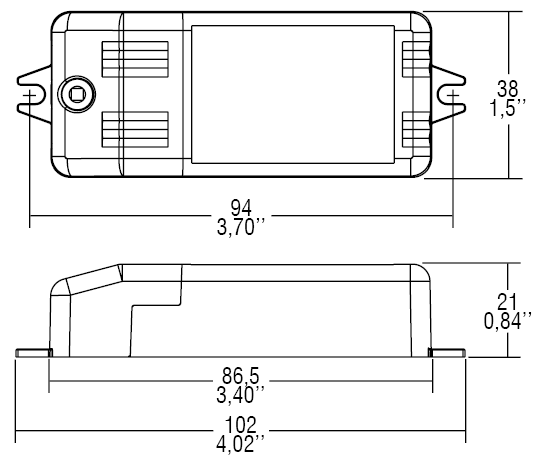

The MICRO MD 500 has a compact size of 8.7 x 3.8 x 2.1 cm and a weight of only 0.1 kg. It can be used for both recessed and surface mounting. Thanks to its ENEC certification, it can be safely mounted on normal flammable surfaces.

Safety and protection functions

The converter has various protection mechanisms to ensure safe use. These include short circuit protection, overload protection, overvoltage protection, and overheat protection. In case of temperatures above 110°C in case of a fault, a short circuit window fuse transformer protects the converter from damage.

Dimmability and light color

The MICRO MD 500 supports Dim-to-Warm functions as well as phase cut dimming. With its light color in white and the ability to connect Dim-to-Warm LED lights, it offers versatile applications for individual lighting.

Additional information and brand quality

The converter comes from the renowned brand TCI and is ENEC certified. It is IP20 certified and provides flicker-free light. With the MICRO MD 500, you get a reliable product with high-quality craftsmanship and extensive protection functions for your LED lighting.

Article number:
TCI-127042
Purchasing quantity:
1 piece
Brand:
TCI
Product type:
converter
Operating voltage:
230 V~
Dimmable:
yes
Dimmability:
dim to warm, trailing edge
Constant current:
500 mA
Power frequency:
50-60 Hz
Bulb type:
LED
Colour:
white
Dimension:
L∕ W∕ H: 8,7∕ 3,8∕ 2,1 cm
Weight:
0,1 kg
Short circuit protected safety transformer:
yes
Protected by more than 110°C in fault:
yes
Suitable for fastening on normal inflammable surfaces:
yes
Mounting:
recessed mounting
surfaced mounting
Protection class:
2
IP-protection class:
IP20
Application area:
only suitable for indoor use
Additional information:
Suitable for dim-towarm LEDs.
With the sync-cable up to 10 divices in a row can be switched and switched via the first in row (1 "master" + 9 "slave").
With shortcut circuit protection
20W 24V max. 900mA
22W 28V max. 900mA
10W 12V max. 900mA
