motion detector HELA HF SENSOR programmable, analogue 0-10V dimming output, black

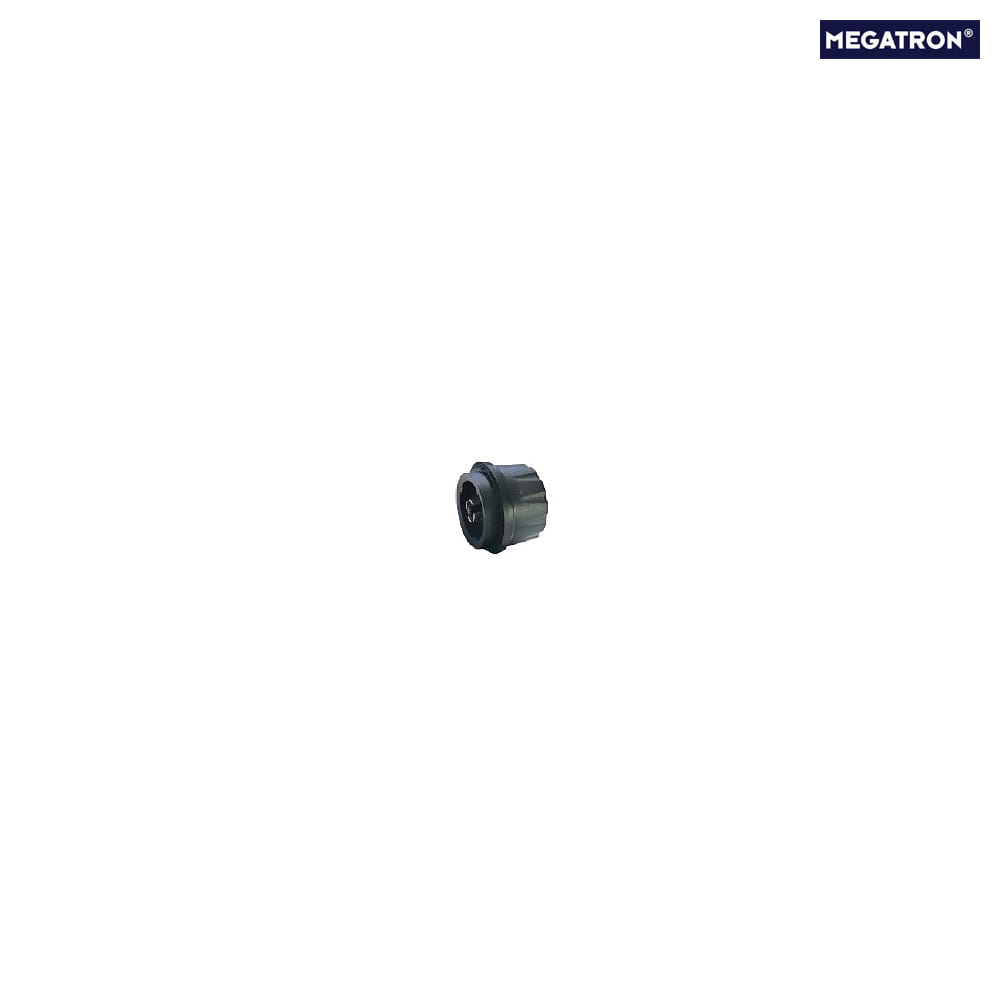

HF Sensor Module for LED High Bay Light HELA (Part No. MT87034)

The HF sensor module is an accessory for the LED high bay light HELA from MEGATRON. It is programmable and available in black color. With an IP65 protection rating, the sensor module is protected against dust and water ingress.

Technical Details

The HF sensor module has a rated current of 30mA and is connected with a system connector. The operating voltage ranges between 10.5-15 volts. The sensor has a maximum range of 16 meters at 100% power.

Installation and Use

The sensor module is mounted as part of the system and is suitable for a maximum installation height of 12 meters. It can be attached to the underside of the light with a socket according to Zhaga Book 18 and a bayonet lock. The twilight setting allows for automatic adjustment of the lighting based on ambient brightness.

Additional Features

The HF sensor module has an analog dimming range of 0-10V and can only be used with the analog dimmable 5-step version MT87034. It can be configured with a separately available remote control (Part No. MT87117) and allows for detection in a range of up to 16 meters.

Quality and Material

The HF sensor module is made of high-quality polycarbonate (PC) and has a weight of 30kg. It is suitable for indoor use, but can be used outdoors to a limited extent. The size of the module is Ø 4.8 cm x H 3.3 cm.
