MP 50 K3, multi LED converter 50W, non dimmable

TCI

Print product information sheet▶

question regarding the article

Print product information sheet▶

question regarding the article

CHF 34,63

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 43.84

You save 21,0 %

Shipping time: 4-5 weeks

Product no.: TCI-122204
EAN: 8010703307216
In stock: 50

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

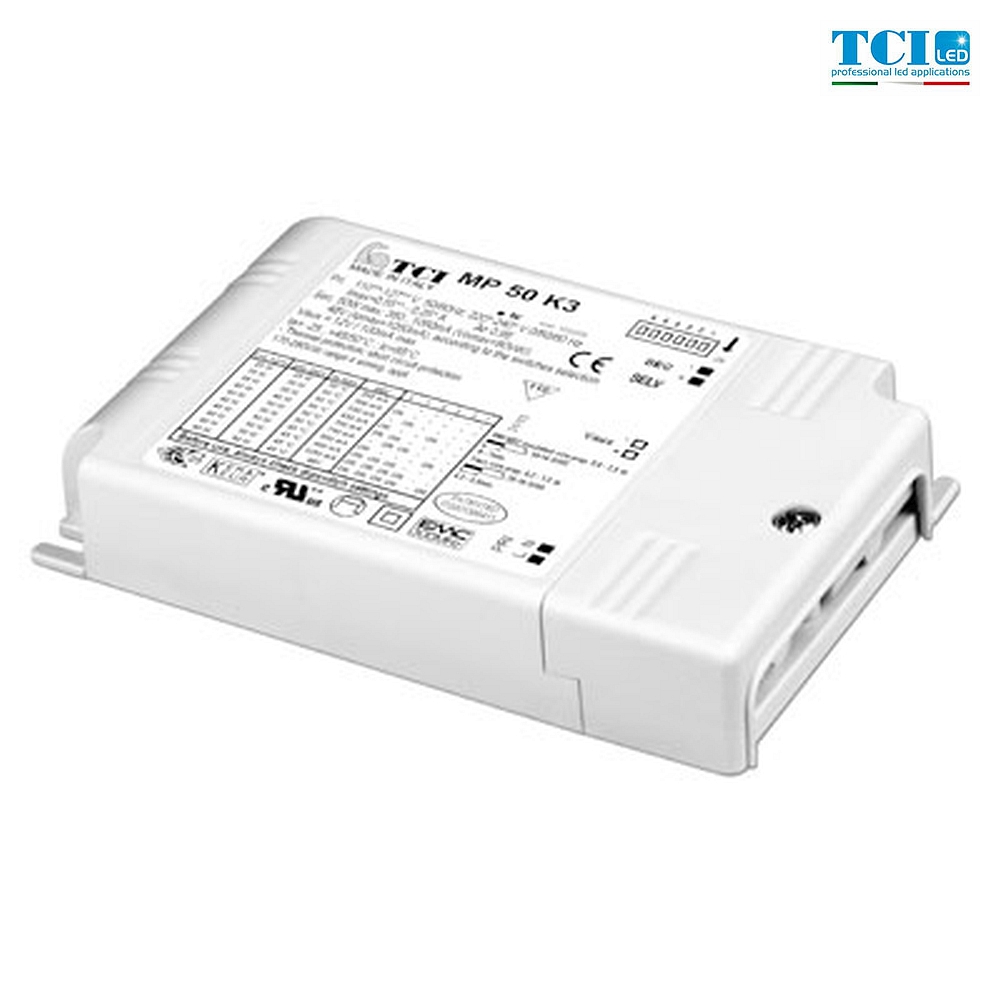

Multi LED Constant Current Converter MP 50 K3

The Multi LED Constant Current Converter MP 50 K3 offers a versatile solution for powering LED lights. With a constant current range of 350-1050mA and a power output of 25W-50W, various LED lights can be efficiently operated. The ENEC certification guarantees the safety and quality of this product.

Technical Details

The converter features a short-circuit window fuse transformer to provide reliable protection in case of a fault. With protection against over 110°C in case of a fault, overload protection, overvoltage protection, overheating protection, and short-circuit protection, the safety of your LED lights is ensured. Additionally, the converter has an additional 12V AUX output for additional applications.

Adjustable Output Currents

The Multi LED Constant Current Converter MP 50 K3 offers the ability to adjust the output current via DIP switches. With various settings from 350mA to 1050mA, you can customize the optimal operating conditions for your LED lights. It is important to keep an eye on the forward voltage (Vf) on the driver to avoid overloading.

Installation and Connection

The converter can be used for both recessed and surface-mount installations. With a plug-in type terminal connection and a mains connection via terminals, installation is easy and straightforward. Mounting on normally flammable surfaces is also possible, allowing you to securely attach the LED lights.

Additional Information

The Multi LED Constant Current Converter MP 50 K3 is suitable for indoor use and offers a protection class 2. With an operating voltage of 220-240V and an IP protection rating of IP20, you can safely operate the LED lights. The size of the converter is L/W/H: 12.4/7.9/2.2 cm, and the weight is 0.15kg. The product is from the brand TCI and is suitable for LED lights of protection classes 1 and 2.

Colour:

white

Dimension:

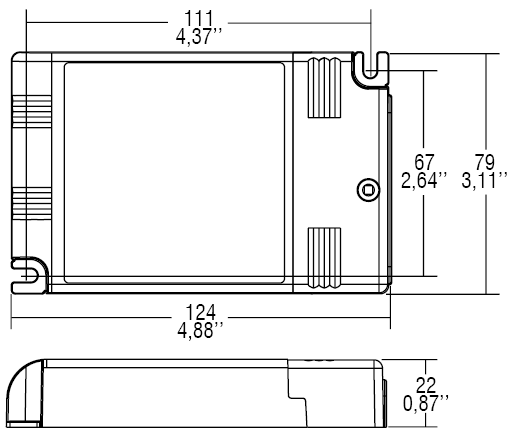

L∕ W∕ H: 12,4∕ 7,9∕ 2,2 cm

Weight:

0,15 kg

Product type:

converter

Bulbs in delivery:

Application area:

only suitable for indoor use

Operating voltage:

220-240 V~

Dimmable:

Constant current:

350-1050 mA

Power frequency:

50-60 Hz

Bulb type:

LED

Voltage:

Clamp

Short circuit protected safety transformer:

yes

Protected by more than 110°C in fault:

yes

Plug type:

clamping connection

Suitable for fastening on normal inflammable surfaces:

yes

Mounting:

recessed mounting
surfaced mounting

Protection class:

IP-protection class:

IP20

Additional information:

Brighness can be adjusted with the DIP-switch.
Flicker free.
Adjustable constant current.
With overload protection
With overvoltage protection
With overheat protection
With shortcut circuit protection
20W 24V max. 900mA
22W 28V max. 900mA
10W 12V max. 900mA
With shortcut circuit protection

Article number:

TCI-122204

Purchasing quantity:

1 piece

Brand:

TCI

Manufacturer:

TCI

Manufacturer information
TCI TELECOMUNICAZIONI ITALIA S.R.L., Via Parma 14, 21047, Saronno, Italy, info@tci-lightshop.it
