Outdoor surface mounting LED luminaire FONDA, IP66 IK10, OVAL, 32.8 x 23.5cm, 10.5W 4000K 800lm, vandalism protected, silver

Megaman

Print product information sheet▶

question regarding the article

Print product information sheet▶

question regarding the article

CHF 38,84

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 53.13

You save 26,9 %

Shipping time: 3-4 weeks

Product no.: MM77111
EAN: 4020856771110
In stock: 100

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

Description
Technical details

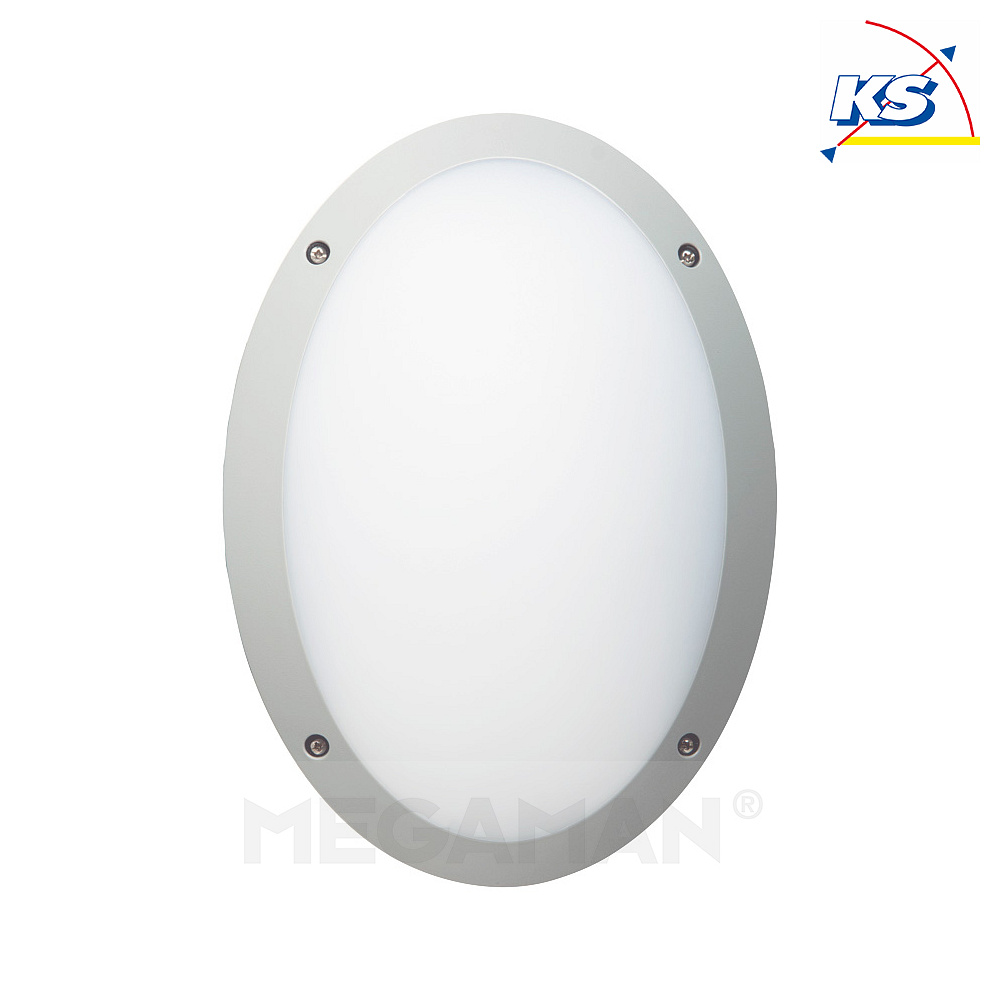

Outdoor LED surface-mounted luminaire FONDA

The outdoor LED surface-mounted luminaire FONDA is vandal-proof and is ideal for use in areas prone to vandalism. With a size of 32.8 x 23.5cm and an oval design, it provides effective lighting for ceilings indoors and outdoors.

Technical Details

The luminaire has a power consumption of 10.5W and a luminous flux of 800lm. With a color temperature of 4000K and a color rendering index of 80-89Ra, it produces a pleasant neutral white light color. The LED luminaire has an average lamp life of 25000 hours and is flicker-free (<3%).

Versatile Applications

Thanks to protection class 2 and IP66 protection rating, the FONDA surface-mounted luminaire is suitable for both indoor and outdoor use. It is ideal for spaces such as kitchens, bathrooms, hallways, passages, hotels, and commercial spaces. Additionally, it is equipped with IK10 vandalism protection.

Easy Installation and Connection

The LED luminaire is installed using surface-mounted installation. With the included driver and various connection options (L / N / PE), the luminaire can be easily connected to direct current (DC) and alternating current (AC) of 180-260V. It is also suitable for emergency lighting operation.

Quality and Safety

The FONDA surface-mounted luminaire from Megaman impresses not only with its high-quality craftsmanship but also with its impact resistance. The housing is IK03 impact-resistant and the opal PMMA cover ensures uniform light distribution. With 2 rear and 3 side cable entries, installation is easy and secure.

Colour:

silver

Dimension:

W∕ H∕ D: 23,5∕ 32,8∕ 9,1 cm

Material:

plastic

Weight:

0,666 kg

Product type:

outdoor wall luminaire

Lamp shape:

oval

Bulbs in delivery:

yes

Application area:

suitable for indoor use
suitable for outdoor use

Field of application:

ceiling

Operating voltage:

180-260 V

Dimmable:

Power consumption:

10,5 W

Emitting angle:

110 °

Bulb type:

LED

Lamps/bulbs:

SMD LED

Light colour:

neutral white

Light emission:

diffuse

Light flux:

800 lm

Light intensity:

320 cd

Colour temperature:

4000 K

Average life span of a bulb in hours:

25000 h

Switching cycles:

100000

Colour rendering index:

80-89 Ra
1B

Plug type:

clamping connection

Mounting:

surfaced mounting

IP-protection class:

IP66

Additional information:

Suitable for connection to DC or AC cicuits: 180-260V.
Flicker free < 3%.
Connection types: L / N / PE
Luminous flux differs, depending on chosen wattage.
Available levels: 22W (2000lm) / 15W (1500lm) / 10W (1000lm)
Lateral cable inputs for surface mounting.
For example suitable for kitchen, sanitary rooms, hallways, passageways, hotels or commercial premises.

Accessories:

driver included

ambient temperature:

-30 ... +40 °C

Energy consumption:

11 kWh/1.000 h

Article number:

MM77111

Purchasing quantity:

1 piece

Brand:

Megaman

Manufacturer:

Megaman

Manufacturer information
IDV Import- und Direkt- vertriebsges. mbH, Birkenweiherstr. 2, 63505, Langenselbold, Germany, info@megaman.de, https://www.megaman.de
