outdoor wall luminaire AFRODITA LED DOUBLE EMISSION - 30CM up / down, DALI controllable IP66, anthracite dimmable

LEDS C4



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

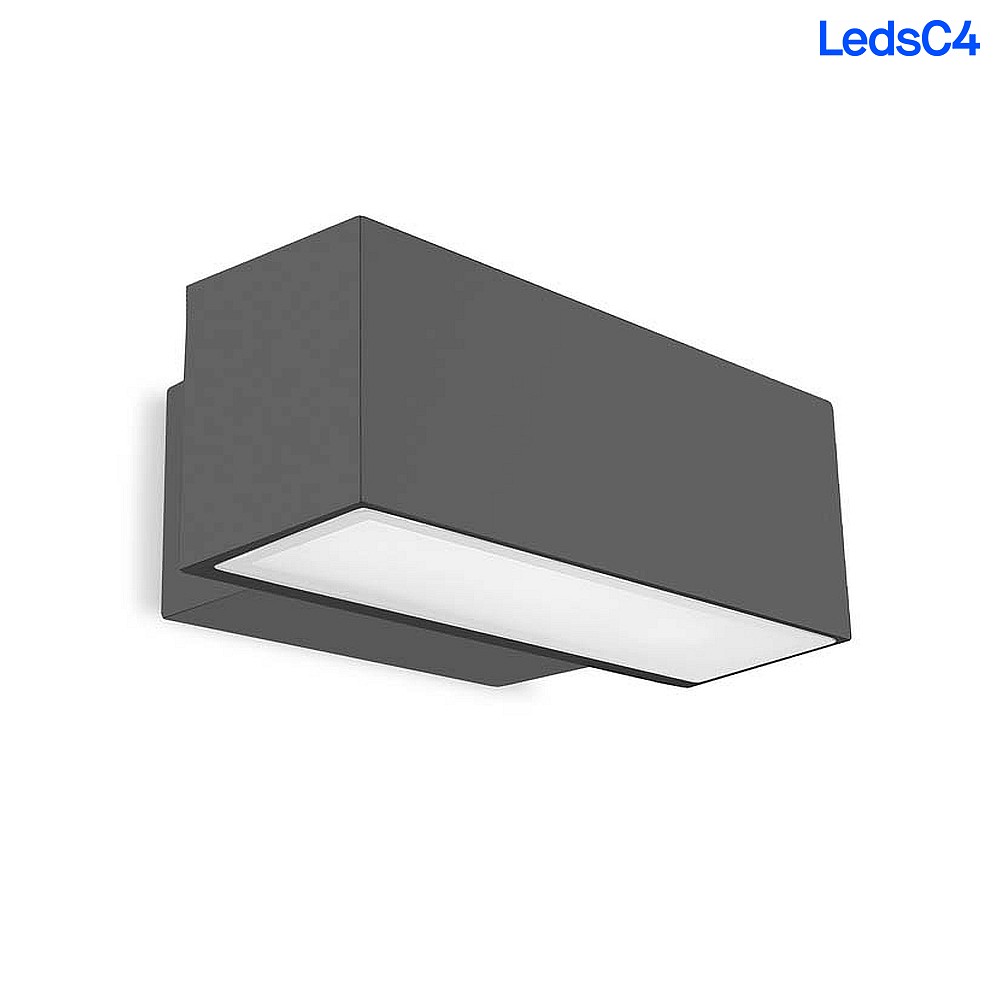

LED Outdoor Wall Light AFRODITA LED DOUBLE EMISSION

The LED outdoor wall light AFRODITA LED DOUBLE EMISSION is a high-quality luminaire with a square, minimalist design. Measuring 30 x 12 x 17 cm and weighing 2.49 kg, it is perfect for basic outdoor lighting. The luminaire has an up/down emission that produces warm white light with a color temperature of 3000K.

Technical Details

The LED outdoor wall light has a power consumption of 40.7W and a light output of 3485lm, with a luminous efficacy of 86lm/W. The beam angle is 2x 88°, and the energy efficiency class is E. The color rendering index is between 80-89Ra with a color rendering grade of 1B. The luminaire is made of aluminum and partly satin-finished glass, allowing for optimal passive heat dissipation.

Protection and Accessories

The LED outdoor wall light is IP66 protected against moisture and foreign objects and is IK04 impact and shock resistant. It is resistant to sea air and suitable for installation near the coast. The package includes the connection cable, dimmer, glass, and driver. The luminaire can be digitally dimmed with DALI-2 automation systems or PUSH dimmers.

Application and Installation

The LED outdoor wall light AFRODITA is suitable for outdoor areas and is mounted in a built-up manner. The light source and LED driver are integrated into the housing, allowing for easy installation. The luminaire is ready for direct connection to the mains voltage and can be easily recycled by a professional.

Additional Information and Availability

The LED outdoor wall light AFRODITA is available in various versions, including switchable, DALI-dimmable, and CASAMBI-dimmable variants. Other products from the AFRODITA series are also available, with single or double emission and with integrated LEDs or for individual, interchangeable light sources. The luminaire offers very low color temperature deviation (MacAdam <3) and is easily recyclable.

Article number:
LEDS-05-E048-Z5-CL
Purchasing quantity:
1 piece
Brand:
LEDS C4
Energy efficiency category:
E
Product type:
outdoor wall luminaire
Energy consumption:
41 kWh/1.000 h
Manufacturer:
LEDS C4
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI, switch dimming, push dimmer
Lamp shape:
square
Power frequency:
50-60 Hz
Power consumption:
40,7 W
Emitting angle:
2x 88 °
Bulbs in delivery:
yes
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Voltage:
Clamp
Light colour:
warm white
Light emission:
direct and indirect
Light flux:
3485 lm
Light yield:
86 lm/W
Nominal current:
1400 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
L80/B20: 50000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
lamp performance:
37,6 W
Colour:
anthracite
Material:
aluminium
glass
Dimension:
W∕ H∕ D: 30∕ 12∕ 17 cm
Weight:
2,49 kg
Wire/connection lead diameter:
5 … 10 mm
Plug type:
clamping connection
Mounting:
surfaced mounting
Field of application:
wall
Protection class:
1
IP-protection class:
IP66
Application area:
suitable for outdoor use
Additional information:
Efficiency: 87%
Accessories:
connection cable excl
controller excl
Dimmer excl
glass incl
driver incl
