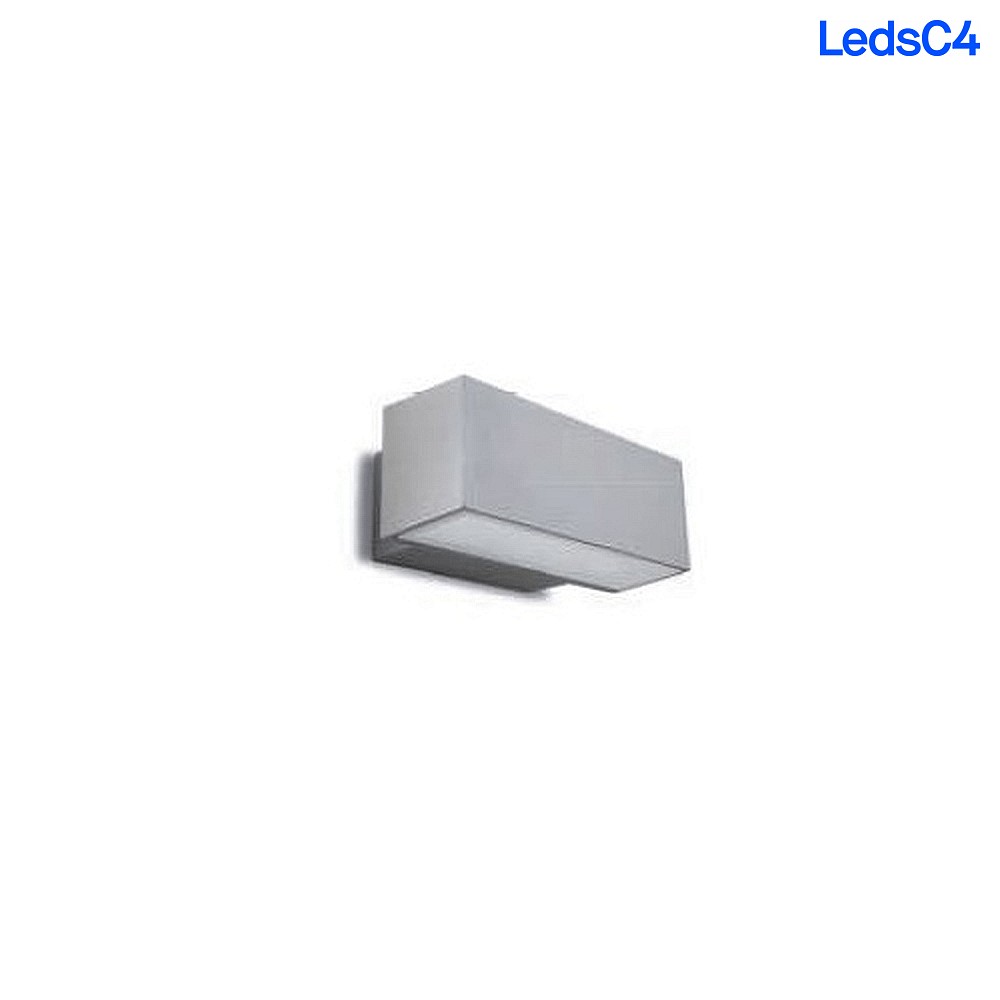

outdoor wall luminaire AFRODITA LED DOUBLE EMISSION - 30CM up / down, DALI controllable IP66, grey dimmable

LEDS C4



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Outdoor Wall Light AFRODITA LED DOUBLE EMISSION, IP66 IK04, Up/Down, 30cm, DALI dimmable, 40.7W

The LED outdoor wall light AFRODITA LED DOUBLE EMISSION is a high-quality light fixture with a square, minimalist design. With dimensions of 30 x 12 x 17 cm, it is perfect for outdoor use. The fixture features Up/Down lighting with warm white, soft emission upwards and downwards, ideal for general outdoor lighting.

Universally dimmable and easy to install

This 30cm Down version of the AFRODITA LED DOUBLE EMISSION is universally dimmable and can be digitally dimmed with DALI-2 automation systems or PUSH dimmers / electronic light switches. The fixture is easy to install and can be directly connected to the mains voltage.

Robust construction and high protection rating

Thanks to its sturdy construction of aluminum and partially frosted glass (sandblasted), the AFRODITA LED DOUBLE EMISSION is particularly durable. With an IP rating of IP66, the fixture is protected against moisture and foreign objects, while the IK04 rating makes it impact and shock resistant. The fixture is also resistant to sea air, making it ideal for installation near the coast.

Energy efficient and environmentally friendly

The AFRODITA LED DOUBLE EMISSION is energy efficient and consumes only 41 kWh per 1000 hours. With a power consumption of 40.7W and a light output of 86lm/W, the fixture provides a warm white light color with a luminous flux of 3485lm. The LED technology ensures a long lifespan of up to 50,000 hours.

Many application possibilities and extensions

The AFRODITA LED DOUBLE EMISSION is versatile and can be purchased as a switchable, DALI dimmable, or CASAMBI dimmable version. Other items from the AFRODITA series are also available, both with single and double emission as well as with integrated LEDs or for use with individual, replaceable light sources.

Colour:
grey
Dimension:
W∕ H∕ D: 30∕ 12∕ 17 cm
Material:
aluminium
glass
Weight:
2,49 kg
Product type:
outdoor wall luminaire
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
suitable for outdoor use
Field of application:
wall
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI, switch dimming, push dimmer
Power frequency:
50-60 Hz
Power consumption:
40,7 W
Emitting angle:
2x 88 °
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Voltage:
Clamp
Light colour:
warm white
Light emission:
direct and indirect
Light flux:
3485 lm
Light yield:
86 lm/W
Nominal current:
1400 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
L80/B20: 50000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
lamp performance:
37,6 W
Wire/connection lead diameter:
5 … 10 mm
Plug type:
clamping connection
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP66
Additional information:
Efficiency: 87%
Accessories:
connection cable excluded
controller excluded
dimmer excluded
glass included
driver included
Energy efficiency category:
E
Energy consumption:
41 kWh/1.000 h
Article number:
LEDS-05-E048-34-CL
Purchasing quantity:
1 piece
Brand:
LEDS C4
Manufacturer:
LEDS C4
Manufacturer information
LedsC4 S.A., Afores s/n, 25750, Torà Lleida, Spain, ledsc4@ledsc4.com
