outdoor wall luminaire AFRODITA LED DOUBLE EMISSION - 30CM up / down, DALI controllable IP66, white dimmable

LEDS C4



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

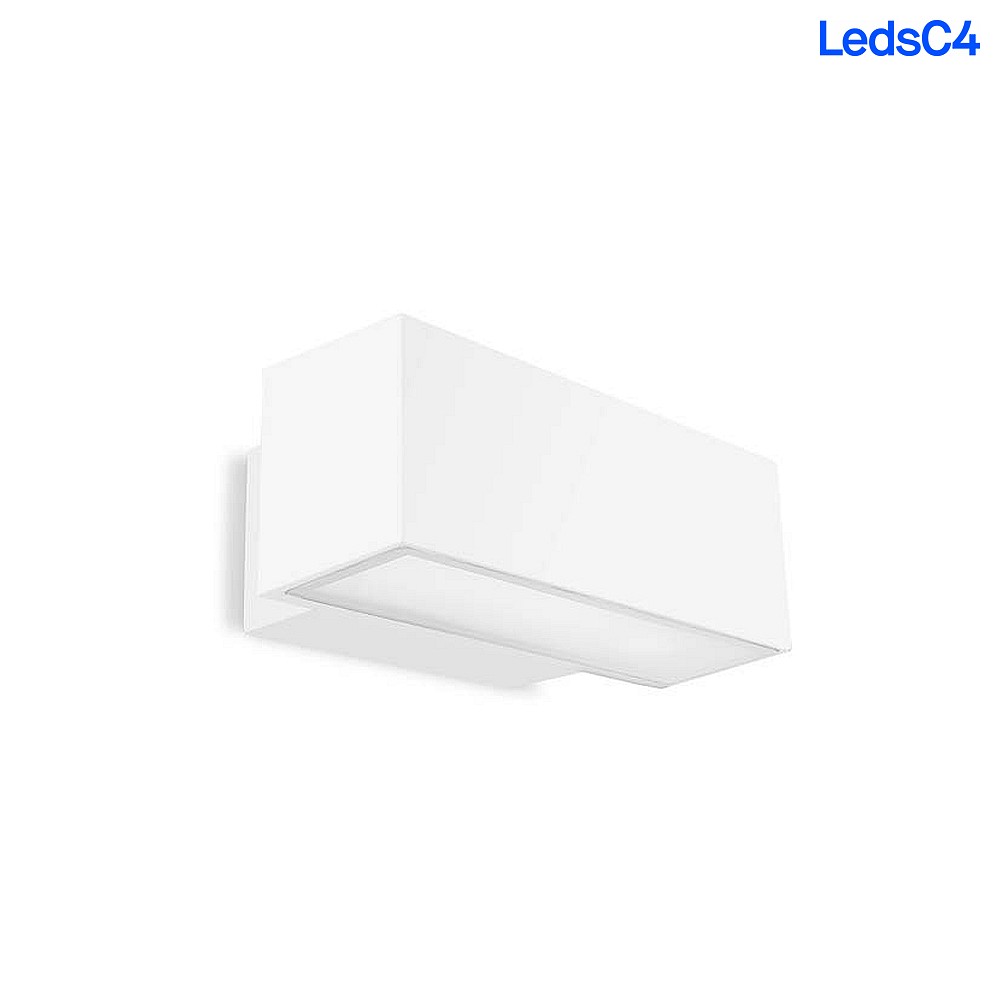

LED Outdoor Wall Light AFRODITA LED DOUBLE EMISSION

The LED Outdoor Wall Light AFRODITA LED DOUBLE EMISSION is a high-quality outdoor light with a square and minimalist design. With dimensions of 30 x 12 x 17 cm, this light is perfect for general lighting in outdoor areas. The universally dimmable down version emits warm white light upwards and downwards, providing a soft and pleasant illumination.

Technical Details

The LED outdoor wall light has a power consumption of 40.7W and an energy consumption of 41kWh/1,000 h. With a warm white light color and a luminous flux of 3485lm, the light offers a high light output of 86lm/W. Thanks to its aluminum housing and partially frosted glass, the light is sturdy and durable.

Safety and Protection

The LED outdoor wall light has IP66 protection against moisture and foreign objects, as well as IK04 impact and shock resistance. It is also resistant to sea air, making it suitable for installation near the coast. The color consistency of the light is very low, ensuring a consistent color temperature.

Easy Installation and Dimming

The light can be directly connected to the mains voltage, as the light source and LED driver are already integrated into the housing. Dimming is done digitally either with DALI-2 automation systems or with a PUSH dimmer or electronic light switch. The light is also easily recyclable and can be easily maintained by a professional.

Additional Information and Accessories

The LED Outdoor Wall Light AFRODITA LED DOUBLE EMISSION comes with accessories including a connection cable, a controller, a dimmer, glass, and driver. It is part of the AFRODITA series, which includes other variants with single or double-sided emission and various dimming options. The light is ideal for outdoor use, providing attractive lighting in any garden or on any terrace.

Colour:
white
Dimension:
W∕ H∕ D: 30∕ 12∕ 17 cm
Material:
aluminium
glass
Weight:
2,49 kg
Product type:
outdoor wall luminaire
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
suitable for outdoor use
Field of application:
wall
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
DALI, switch dimming, push dimmer
Power frequency:
50-60 Hz
Power consumption:
40,7 W
Emitting angle:
2x 88 °
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Voltage:
Clamp
Light colour:
warm white
Light emission:
direct and indirect
Light flux:
3485 lm
Light yield:
86 lm/W
Nominal current:
1400 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
L80/B20: 50000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
lamp performance:
37,6 W
Wire/connection lead diameter:
5 … 10 mm
Plug type:
clamping connection
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP66
Additional information:
Efficiency: 87%
Accessories:
connection cable excluded
controller excluded
dimmer excluded
glass included
driver included
Energy efficiency category:
E
Energy consumption:
41 kWh/1.000 h
Article number:
LEDS-05-E048-14-CL
Purchasing quantity:
1 piece
Brand:
LEDS C4
Manufacturer:
LEDS C4
Manufacturer information
LedsC4 S.A., Afores s/n, 25750, Torà Lleida, Spain, ledsc4@ledsc4.com
