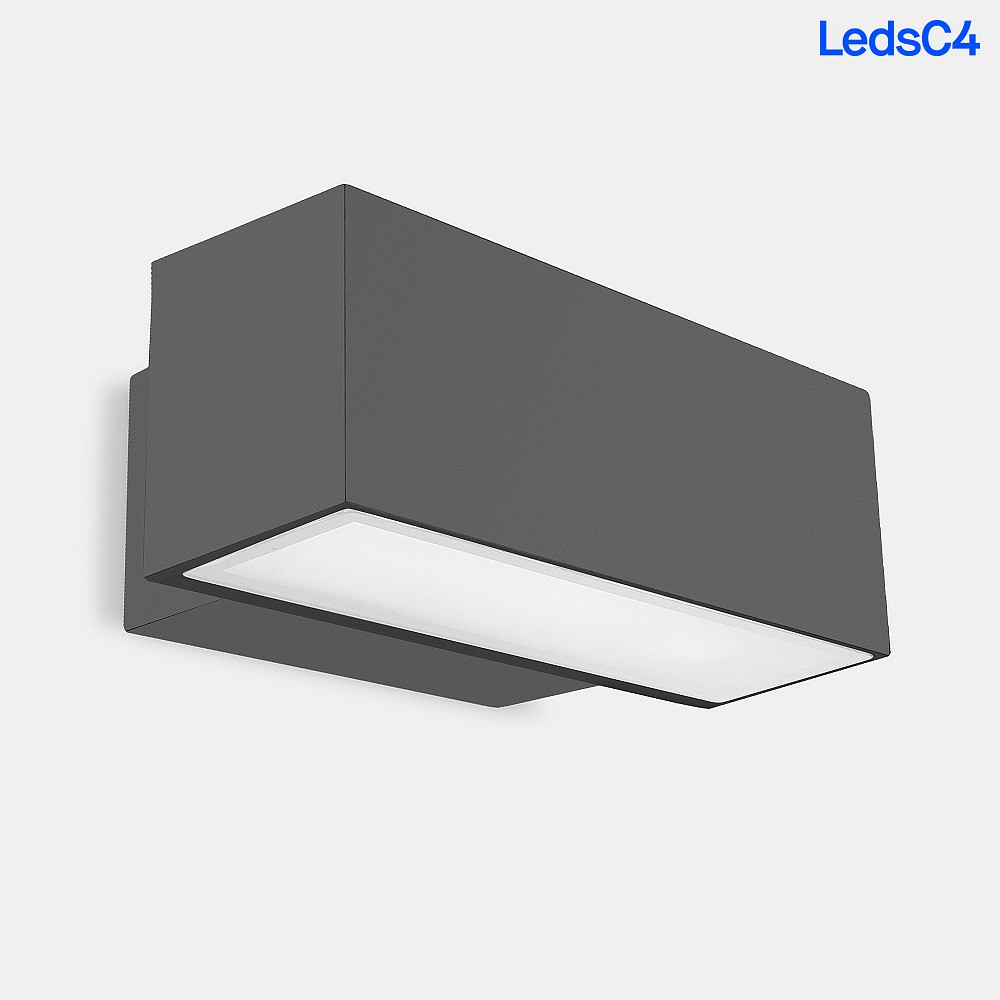

outdoor wall luminaire AFRODITA LED DOUBLE EMISSION - 30CM up / down, switchable IP66, anthracite

LEDS C4



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Outdoor Wall Light AFRODITA LED DOUBLE EMISSION

The LED Outdoor Wall Light AFRODITA LED DOUBLE EMISSION is a high-quality lighting product for outdoor use. With a power consumption of 40.7W, it provides a warm white, soft emission upwards and downwards, ideal for general outdoor lighting. With its square, minimalist shape and sturdy construction made of aluminum and partly satinized glass, it fits perfectly into modern architectural styles.

Technical Details and Accessories

The LED Outdoor Wall Light AFRODITA has an IP66 protection rating, protecting it from moisture and foreign objects, as well as an IK04 protection against impacts. The beam angle is 2x 88°, and the luminaire has dimensions of 30 x 12 x 17 cm. Included in the delivery are a connection cable, an electronic ballast, glass, and drivers. The luminaire has a lifespan of 50,000 hours and a luminous efficacy of 86lm/W.

Energy Efficiency and Application

The LED Outdoor Wall Light AFRODITA has an energy efficiency class G and an energy consumption of 41kWh/1,000h. It is ideal for wall lighting outdoors and can be installed near the coast due to its robust construction. The luminaire is easy to install and can be directly connected to the mains voltage.

Additional Information and Features

The LED Outdoor Wall Light AFRODITA offers a color rendering index of 80-89Ra and a color rendering grade of 1B. It has high color consistency with low deviations in color temperature and is easily recyclable. The melanopic effect factor is 0.501, and the photobiological risk is RG0. The luminaire also has a power factor of 0.98 and can be easily maintained and repaired by a professional.

Variations and Compatibility

The LED Outdoor Wall Light AFRODITA is part of a series of luminaires with various designs. It is available in single or double emission and can be supplied with integrated LEDs or for individual, interchangeable light sources. The luminaire offers a versatile lighting solution for outdoor use with modern design and high energy efficiency.

Colour:
anthracite
Dimension:
W∕ H∕ D: 30∕ 12∕ 17 cm
Material:
aluminium
glass
Weight:
2,47 kg
Product type:
outdoor wall luminaire
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
suitable for outdoor use
Field of application:
wall
Operating voltage:
220-240 V~
Dimmable:
no
Power frequency:
50-60 Hz
Power consumption:
40,7 W
Emitting angle:
2x 88 °
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Voltage:
Clamp
Light colour:
warm white
Light emission:
direct and indirect
Light flux:
3485 lm
Light yield:
86 lm/W
Nominal current:
1050 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
L80B20: 50000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
lamp performance:
37,6 W
Wire/connection lead diameter:
5 … 10 mm
Plug type:
clamping connection
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP66
Additional information:
Output: 1x 6,25A max.
Accessories:
driver included
glass included
electronic ballast (ECG) included
connection cable excluded
Energy efficiency category:
G
Energy consumption:
41 kWh/1.000 h
Article number:
LEDS-05-E070-Z5-CL
Purchasing quantity:
1 piece
Brand:
LEDS C4
Manufacturer:
LEDS C4
Manufacturer information
LedsC4 S.A., Afores s/n, 25750, Torà Lleida, Spain, ledsc4@ledsc4.com
