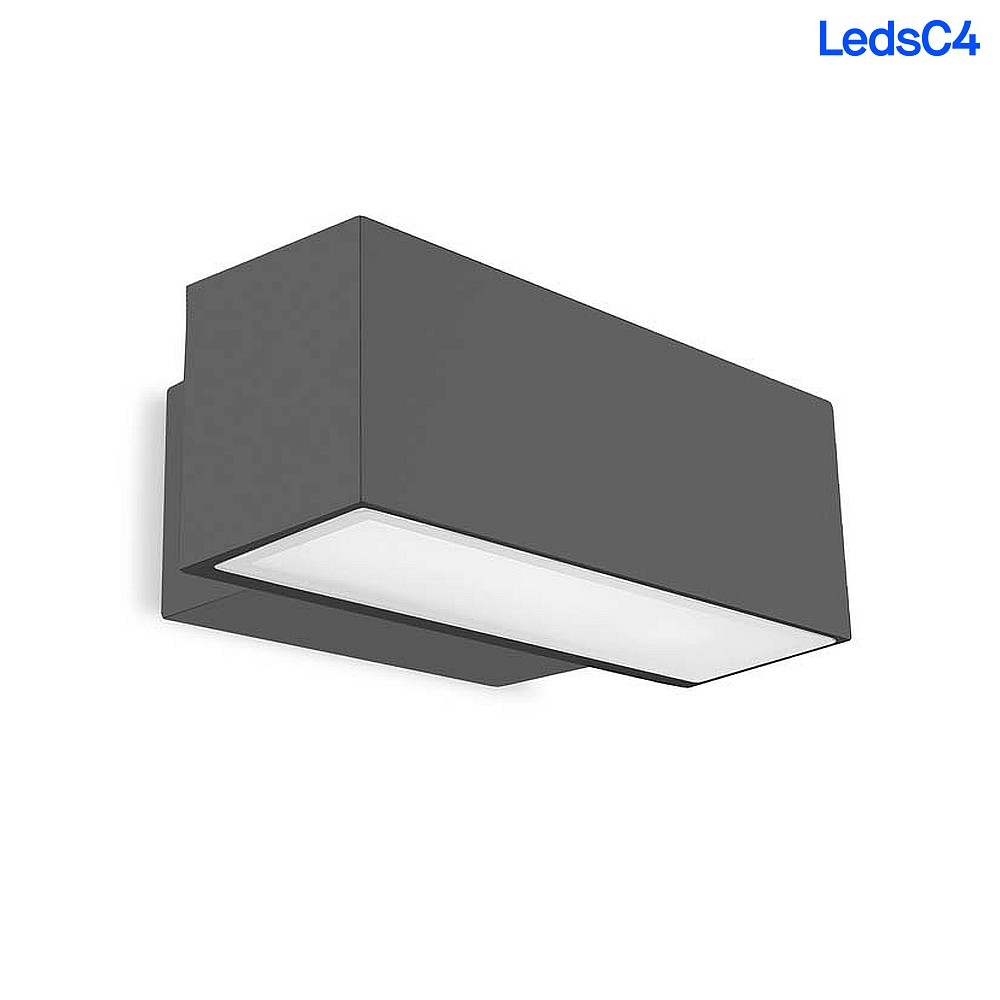

outdoor wall luminaire AFRODITA LED SINGLE EMISSION - 30CM down, Bluetooth controllable IP66, anthracite dimmable

LEDS C4



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Outdoor Wall Light AFRODITA LED SINGLE EMISSION, IP66 IK04, 30cm, CASAMBI dimmable, 23.3W

The LED outdoor wall light AFRODITA LED SINGLE EMISSION is a high-quality luminaire in a square and minimalist design. With dimensions of 30x12x17 cm, it is perfect for general outdoor lighting. The luminaire features a CASAMBI-dimmable 30cm down version with a neutral white and soft downward emission, creating a pleasant atmosphere.

Accessories and Technical Details

The AFRODITA LED SINGLE EMISSION comes with various accessories including a dimmer, receiver, glass, and driver. The luminaire has a power consumption of 23.3W and a lamp power of 22.1W. It offers a warm white light color with a luminous flux of 1949lm and a luminous efficacy of 84lm/W.

Smart Control and Operation

This outdoor wall light features an integrated CASAMBI Bluetooth receiver with a dimming module. With the corresponding app, you can conveniently control the luminaire from your smartphone, tablet, or a compatible Bluetooth remote control. The Bluetooth signal range is up to 10 meters indoors and up to 20 meters outdoors.

Robust Construction and Safety

The AFRODITA LED SINGLE EMISSION is made of aluminum and partially frosted glass, ensuring a stable construction and optimal heat dissipation. The luminaire has IP66 protection against moisture and foreign objects, as well as IK04 impact resistance. It is also resistant to sea air and can be installed in coastal areas.

Sustainability and Energy Efficiency

Thanks to LED technology and the high-quality TCI operating device, the AFRODITA LED SINGLE EMISSION is energy-efficient and durable. The luminaire has an energy efficiency class E and consumes only 24kWh/1,000h. The possibility of replacing the LED module and LED driver by a professional makes the luminaire easily recyclable.

Colour:
anthracite
Dimension:
W∕ H∕ D: 30∕ 12∕ 17 cm
Material:
glass
aluminium
Weight:
2,27 kg
Product type:
outdoor wall luminaire
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
suitable for outdoor use
Field of application:
wall
Operating voltage:
100-240 V~
Dimmable:
yes
Dimmability:
CASAMBI App & Bluetooth
Power frequency:
50-60 Hz
Power consumption:
23,3 W
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Voltage:
Clamp
Light colour:
warm white
Light emission:
diffuse
Light flux:
1949 lm
Light yield:
84 lm/W
Nominal current:
350 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
L80B20: 50000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
lamp performance:
22,1 W
Wire/connection lead diameter:
5 … 10 mm
Plug type:
clamping connection
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP66
Accessories:
driver included
glass included
receiver included
dimmer included
smart home central excluded
smart device excluded
remote control excluded
Energy efficiency category:
E
Article number:
LEDS-05-E020-Z5-CL
Purchasing quantity:
1 piece
Brand:
LEDS C4
Manufacturer:
LEDS C4
Manufacturer information
LedsC4 S.A., Afores s/n, 25750, Torà Lleida, Spain, ledsc4@ledsc4.com
