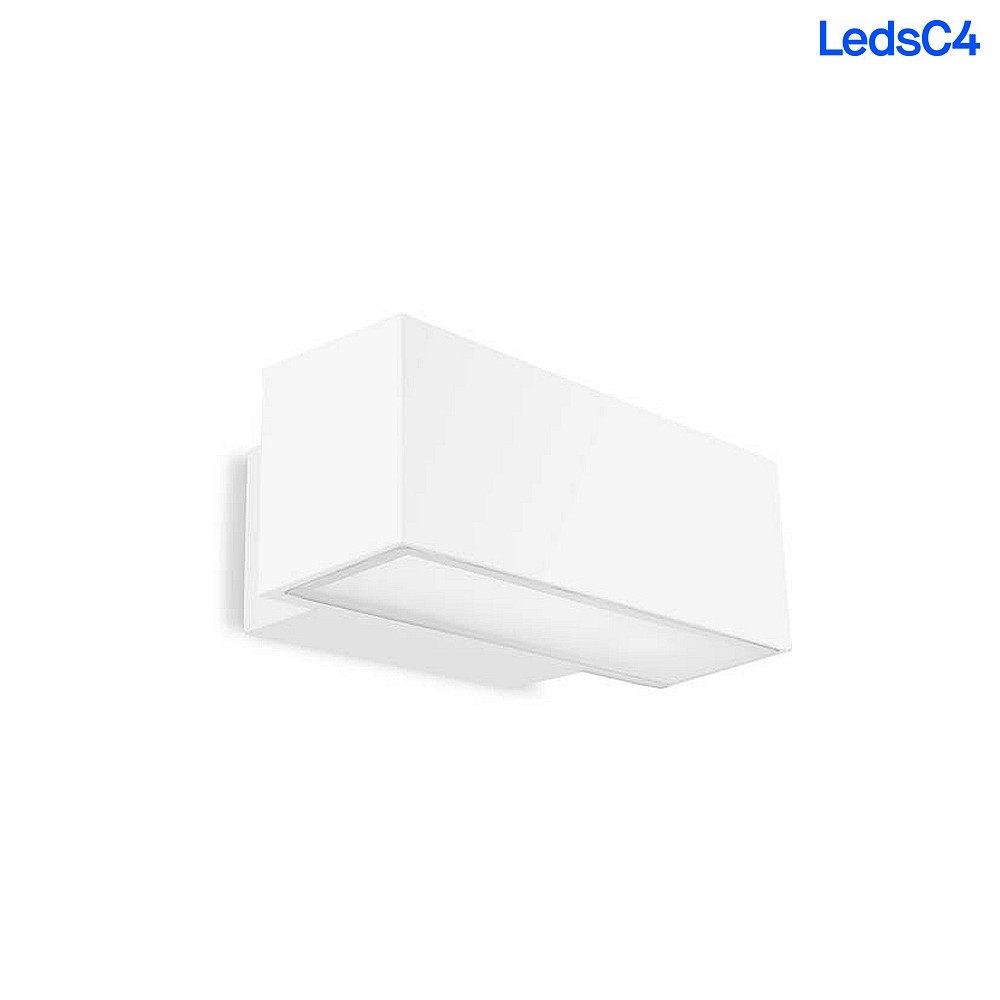

outdoor wall luminaire AFRODITA LED SINGLE EMISSION - 30CM down, Bluetooth controllable IP66, white dimmable

LEDS C4



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED Outdoor Wall Light AFRODITA LED SINGLE EMISSION, IP66 IK04, 30cm, CASAMBI dimmable, 23.3W

The LED outdoor wall light AFRODITA LED SINGLE EMISSION is a high-quality light in a square, minimalist design. With dimensions of 30x12x17 cm, it offers a CASAMBI-dimmable 30cm down version with a neutral white, soft downward emission, ideal for general lighting in outdoor areas.

Integrated CASAMBI Bluetooth Receiver

This version comes with an integrated CASAMBI Bluetooth receiver including a dimming module. This allows the light to be easily controlled from a smartphone, tablet, or compatible Bluetooth remote controls. With appropriate converters (DALI to CASAMBI), the light can also be easily integrated into existing systems.

Robust Construction and High Protection

The LED outdoor wall light is made of aluminum and partially frosted glass, ensuring a sturdy construction. With IP66 protection against moisture and foreign objects, as well as IK04 impact resistance, the light is suitable for use in coastal areas. It is optimally prepared for direct connection to mains voltage.

Versatile Applications

Thanks to the ability to dim the light via the Bluetooth app, the CASAMBI app, or Bluetooth, the LED outdoor wall light AFRODITA LED SINGLE EMISSION offers flexible application possibilities. It is also available in switchable, DALI-dimmable, and other variants, and is easily recyclable.

Technical Details and Efficiency

The LED outdoor wall light has a power consumption of 23.3W and a warm white light color. With a light output of 84lm/W and a luminous flux of 1949lm, it offers an efficient lighting solution. The average lamp lifespan is L80B20: 50000 hours, ensuring a long lifespan. With an energy efficiency class of E and an energy consumption of 24kWh/1000h, the light is also convincing in terms of efficiency.

Colour:
white
Dimension:
W∕ H∕ D: 30∕ 12∕ 17 cm
Material:
aluminium
glass
Weight:
2,27 kg
Product type:
outdoor wall luminaire
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
suitable for outdoor use
Field of application:
wall
Operating voltage:
100-240 V~
Dimmable:
yes
Dimmability:
CASAMBI App & Bluetooth
Power frequency:
50-60 Hz
Power consumption:
23,3 W
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Voltage:
Clamp
Light colour:
warm white
Light emission:
diffuse
Light flux:
1949 lm
Light yield:
84 lm/W
Nominal current:
350 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
L80B20: 50000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
lamp performance:
22,1 W
Wire/connection lead diameter:
5 … 10 mm
Plug type:
clamping connection
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP66
Accessories:
driver included
glass included
receiver included
dimmer included
smart home central excluded
smart device excluded
remote control excluded
Energy efficiency category:
E
Article number:
LEDS-05-E020-14-CL
Purchasing quantity:
1 piece
Brand:
LEDS C4
Manufacturer:
LEDS C4
Manufacturer information
LedsC4 S.A., Afores s/n, 25750, Torà Lleida, Spain, ledsc4@ledsc4.com
