outdoor wall luminaire AFRODITA LED SINGLE EMISSION - 30CM down, DALI controllable IP66, white dimmable

LEDS C4



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

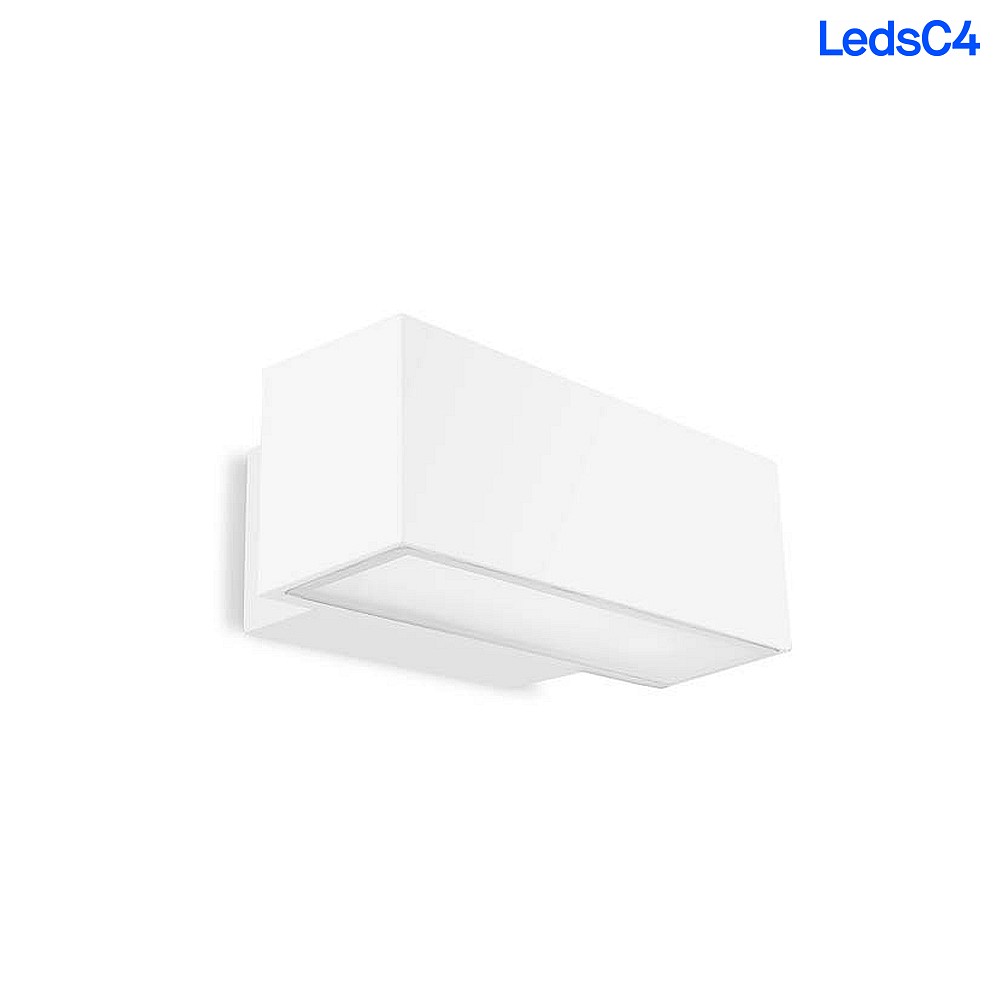

LED Outdoor Wall Light AFRODITA LED SINGLE EMISSION, IP66 IK04, 30cm, DALI dimmable, 19W

The LED outdoor wall light AFRODITA LED SINGLE EMISSION is a high-quality light fixture with a square and minimalist design. It is perfect for general lighting in outdoor areas and emits warm white light downwards. With dimensions of 30 x 12 x 17 cm and a weight of 2.27 kg, it is compact and easy to install.

Universally dimmable and energy efficient

Thanks to its dimmability with 0-10V / 1-10V, DALI-2 automation systems or PUSH dimmers / electronic light switches, the brightness of the light can be individually adjusted. With an energy efficiency class of E and an energy consumption of 24 kWh/1,000 h, the LED outdoor wall light AFRODITA LED SINGLE EMISSION is also particularly energy efficient.

Robust and weather resistant

Thanks to its sturdy construction of aluminum and partially frosted glass, the fixture is particularly robust. It features IP66 protection against moisture and foreign objects, as well as IK04 impact resistance. The passive heat dissipation through the aluminum housing ensures optimal cooling and extends the lifespan of the LED.

Versatile application possibilities

The LED outdoor wall light AFRODITA LED SINGLE EMISSION is not only suitable for outdoor use, but also suitable for installation in coastal areas. It is resistant to sea air and can be easily combined with other similar lights due to its color consistency.

Easy installation and maintenance

The fixture is already integrated with a light source and an LED driver in the housing, making it ready for connection. Both the LED module and the LED driver can be replaced by a professional, making maintenance and any necessary repairs easier. The fixture is also easily recyclable, highlighting its environmentally friendly nature.

Colour:
white
Dimension:
W∕ H∕ D: 30∕ 12∕ 17 cm
Material:
glass
aluminium
Weight:
2,27 kg
Product type:
outdoor wall luminaire
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
suitable for outdoor use
Field of application:
wall
Operating voltage:
100-240 V~
Dimmable:
yes
Dimmability:
analog 0-10V, analog 1-10V, DALI, push dimmer
Power frequency:
50-60 Hz
Power consumption:
23,3 W
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Voltage:
Clamp
Light colour:
warm white
Light emission:
diffuse
Light flux:
1949 lm
Light yield:
84 lm/W
Nominal current:
350 mA
Colour temperature:
3000 K
Average life span of a bulb in hours:
L80B20: 50000 h
Colour rendering index:
80-89 Ra
1B
IK-Rating:
IK04 up to 0.50 Joule
lamp performance:
22,1 W
Wire/connection lead diameter:
5 … 10 mm
Plug type:
clamping connection
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP66
Accessories:
driver included
glass included
electronic ballast (ECG) included
dimmer excluded
controller excluded
connection cable excluded
Energy efficiency category:
E
Article number:
LEDS-05-E047-14-CL
Purchasing quantity:
1 piece
Brand:
LEDS C4
Manufacturer:
LEDS C4
Manufacturer information
LedsC4 S.A., Afores s/n, 25750, Torà Lleida, Spain, ledsc4@ledsc4.com
