pendant luminaire EVENT-PANEL TRANSPARENT RGBNW up / down, dimmable, RGBW IP20, clear, transparent, white dimmable

Deko-Light



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED EVENT-PANEL TRANSPARENT RGBNW

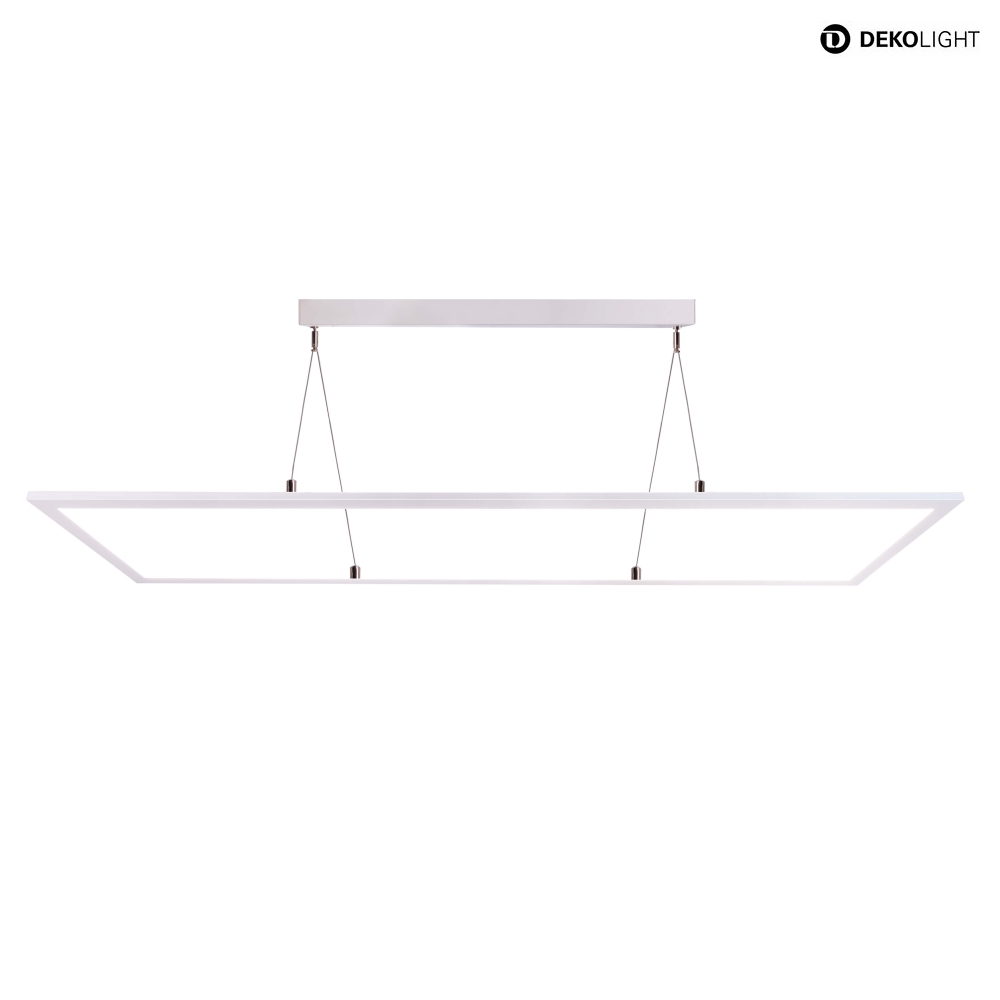

The LED EVENT-PANEL TRANSPARENT RGBNW is a square pendant light measuring 119.5 x 29.5 x 1.38 cm. With a power consumption of 63W and a luminous intensity of 550cd, this light produces bright light with a luminous flux of 4265lm. The light is distributed both directly and indirectly, creating fascinating light effects in your spaces.

Technical Details

The LED EVENT-PANEL is dimmable and can be controlled with appropriate accessories. It has a color rendering index of 80Ra and a color temperature of 4000K. The light has an IP20 protection rating and is suitable for indoor use, such as in offices, shops, exhibitions, fairs, theaters, or events.

Accessories

The package includes a connection cable, a suspension, and a canopy. The connection cable has a length of 300cm, and the light can be mounted with or without suspension/canopy. It operates on low voltage 24V DC and can be controlled with all common controllers.

Applications

With side light emission towards the center of the light, a transparent light diffuser, and the ability to switch between neutral white and colored light (RGB), the LED EVENT-PANEL creates fascinating light effects. It is also suitable for backlighting text and is a real eye-catcher in your spaces.

Longevity

The average lamp lifespan is 30000 hours, and the light has a high switching cycle count of 15000. The start-up time at 60% luminous flux is only 1 second, and the ignition time is 0.5 seconds. The Deko-Light brand stands for high-quality lighting solutions that enhance your spaces.

Colour:
clear
transparent
white
Dimension:

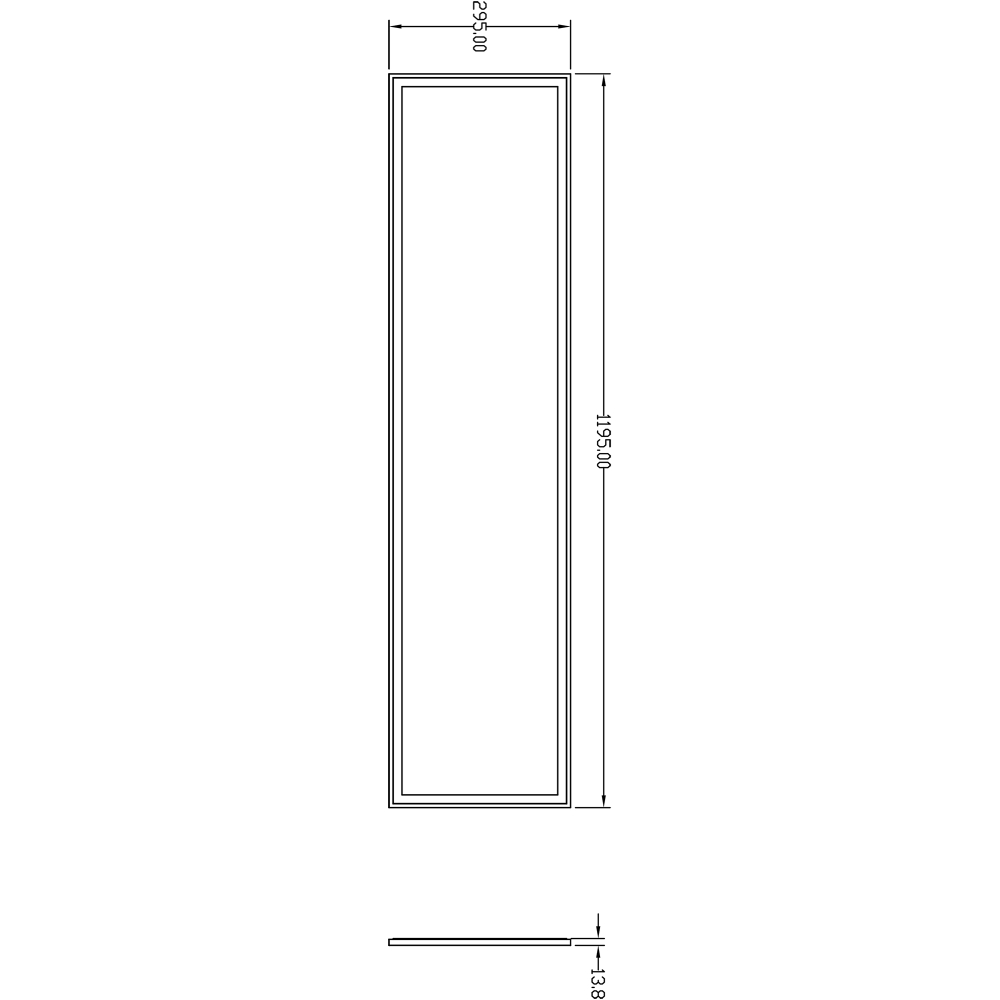

Leuchtenkörper-L∕ W∕ H: 119,5∕ 29,5∕ 1,38 cm
Material:
aluminium
Weight:
5,7 kg
Product type:
pendant luminaire
Lamp shape:
square
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling
Dimmable:
yes
Dimmability:
with optional features only
Power consumption:
63 W
Emitting angle:
150 °
LED can be replaced :
no
Bulb type:
LED
Light colour:
RGB + neutral white (RGBNW)
Light emission:
direct and indirect
Light flux:
4265 lm
Light intensity:
550 cd
Colour temperature:
4000 K
Average life span of a bulb in hours:
30000 h
Switching cycles:
15000
Colour rendering index:
80 Ra
1B
Length of connection lead:
300 cm
Plug type:
open cable end
Mounting:
surfaced mounting
Protection class:
3
IP-protection class:
IP20
Accessories:
power supply unit excluded
suspension included
connection cable included
canopy included
ambient temperature:
-20 ... +40 °C
Energy consumption:
63 kWh/1.000 h
Article number:
D-620032
Purchasing quantity:
1 piece
Manufacturer:
Deko-Light
Manufacturer information
Deko-Light Elektronik Vertriebs GmbH, Auf der Hub 2, 76307, Karlsbad, Germany, deko@deko-light.com
