PIR motion sensor with sensor head, distance max. 300cm, 230V, 500VA

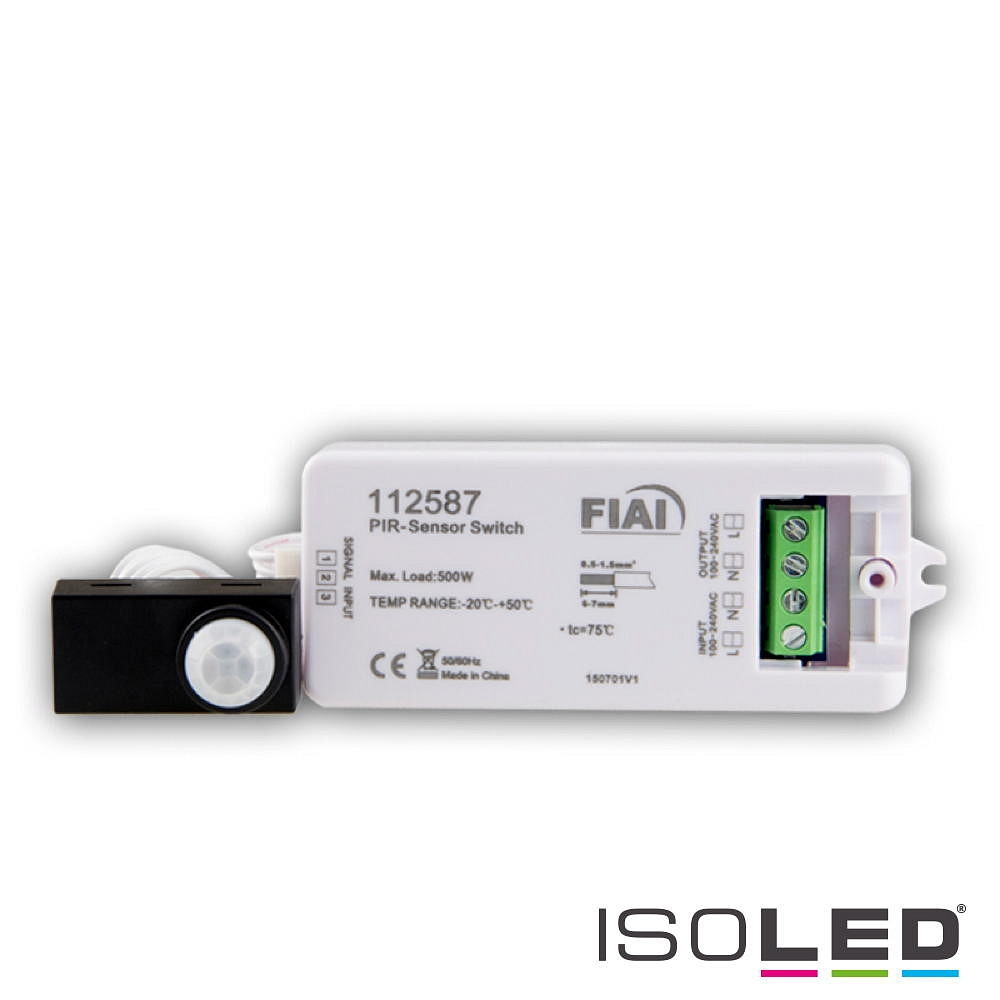

PIR Motion Detector with Sensor Head

The PIR motion detector with sensor head from ISOLED offers a maximum detection range of 300 cm and an operating voltage of 230V with a load of up to 500VA. This motion detector is ideal for indoor use and has a detection angle of 120 degrees.

Design and Installation

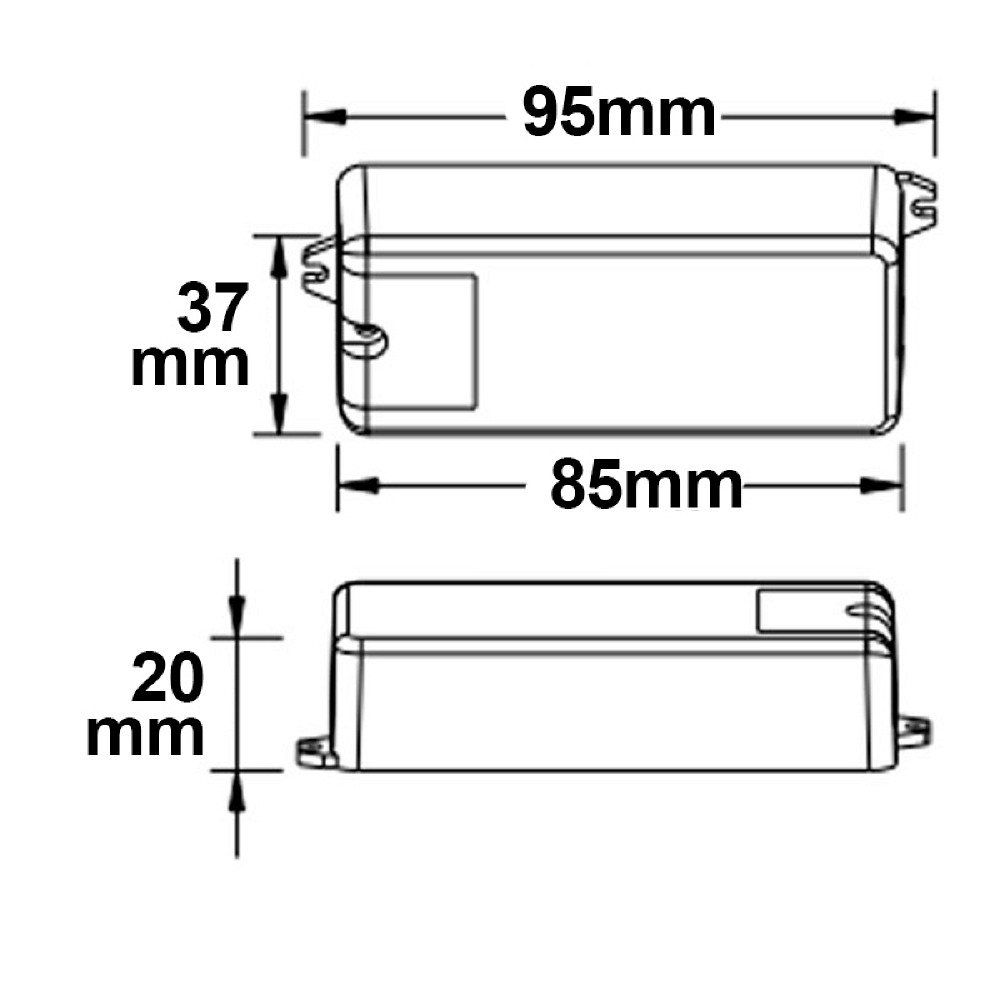

The motion detector has a glossy metallic-white color and a compact size of 3.7 x 2 x 9.5 cm. The sensor has a diameter of 0.7 cm and requires a mounting depth of just 1 cm. Installation is done by recessing into the ceiling or wall with a mounting opening of 7 cm in diameter for circles and a mounting opening of 1 x 2 cm for rectangles.

Sensor Technology and Range

The sensor technology of the motion detector is based on Passive Infrared (PIR) technology, which detects movements in the room. The motion detector has a range of 3 meters and can cover a maximum presence area of 6 meters. The time setting is fixed at 50 seconds.

Additional Information

The connection of the motion detector is done by crimping and it has a start-up current of at least 0.01A to a maximum of 3A. The motion detector is suitable for C-load and has the IP protection class IP20. With a recessed mounting type, the ISOLED motion detector is a practical and effective solution for automatic lighting control indoors.

ISOLED Quality

The ISOLED brand stands for high-quality products in the field of lighting technology. The item number ISO-112587 guarantees the reliability and durability of the motion detector. Trust ISOLED for efficient and modern lighting control in your home or office.
