Radium LED Strip RaLED Colormix Star 500, IP00, 24Vdc, 70 LED/m, 14.4W/m RGB 560lm/m 120°, customizable x 1cm

RADIUM

Print product information sheet▶

question regarding the article

RADIUM Radium LED Strip RaLED Colormix Star 500, IP00, 24Vdc, 70 LED/m, 14.4W/m RGB 560lm/m 120°, customizable x 1cm

Print product information sheet▶

question regarding the article

CHF 13,14

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 21.49

You save 38,9 %

Shipping time: out of stock

Product no.: RARSTA2171
EAN: 4003556007246
In stock: 0

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

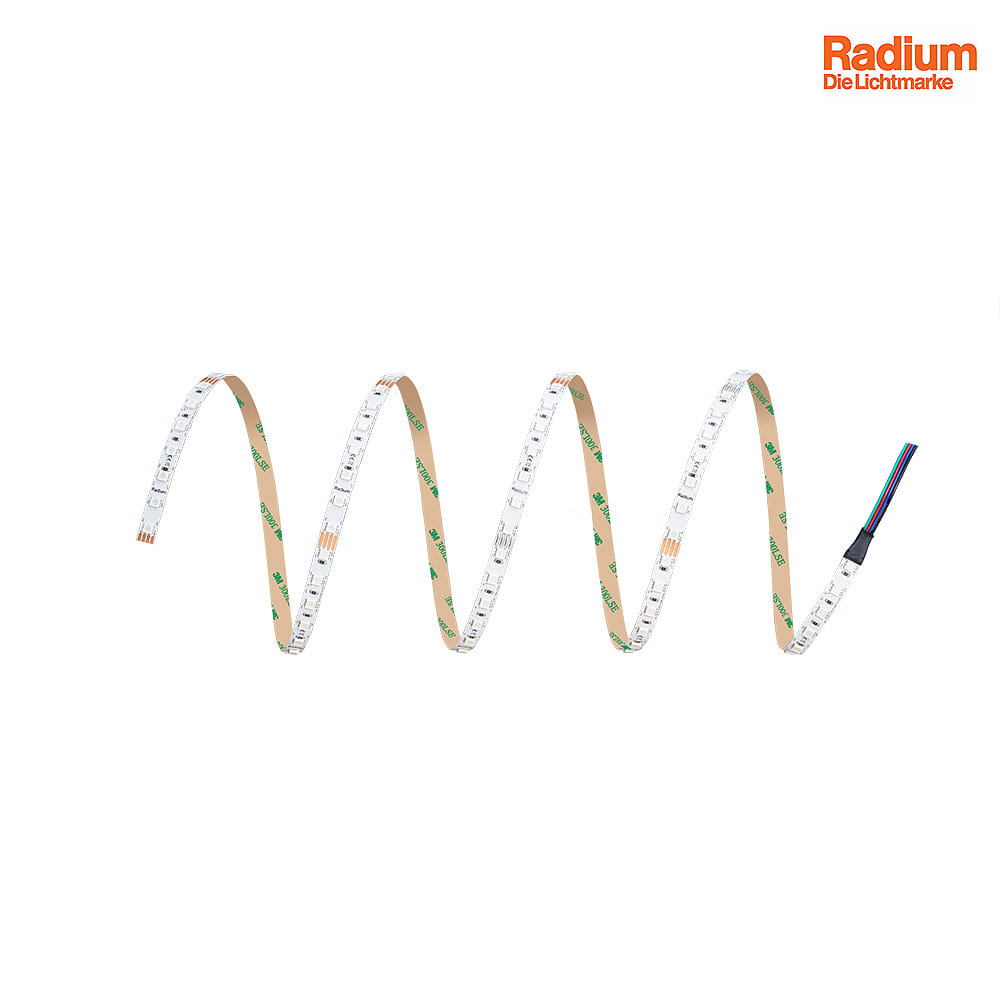

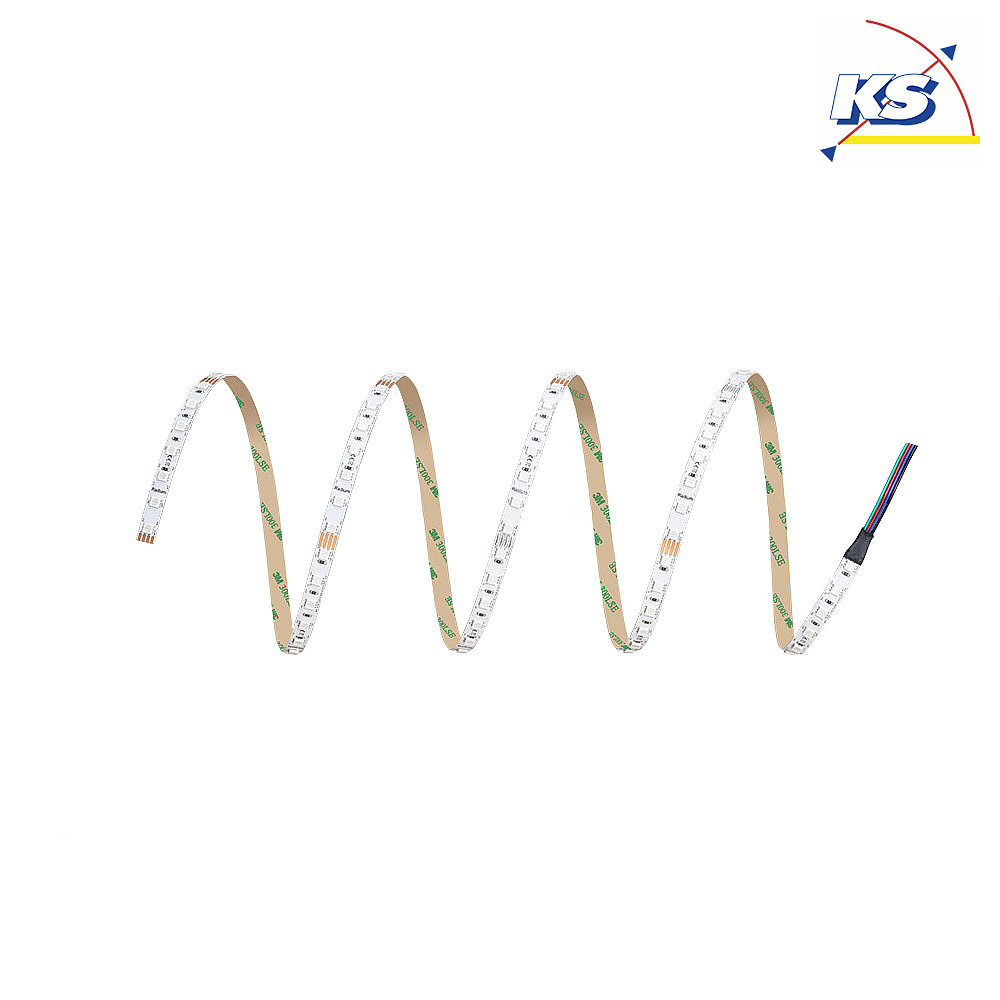

Radium LED Strip RaLED Colormix Star 500

The Radium LED Strip RaLED Colormix Star 500 is a versatile LED strip that is ideal for lighting up various areas. With an operating voltage of 24V and a power consumption of 14.4W, this strip offers high energy efficiency and an impressive light output of 560lm.

Technical Details

The LED strip features 70 LEDs per meter and a color temperature of RGB + 3000K. With a beam angle of 120° and a color rendering index of over 80Ra, this strip provides clear and natural lighting. The LED strip has an average lamp lifespan of 30,000 hours, making it durable and reliable.

IP Protection Rating and Size

The Radium LED Strip RaLED Colormix Star 500 has an IP protection rating of IP00, making it suitable for indoor use. With a size of 100 x 1 x 0.2 cm and a maximum operable LED spacing of 1.43 cm, this strip offers a flexible and adaptable lighting solution.

Connection Options

The connection cable of the LED strip is soldered on both sides and has a length of 50 cm each. The strip is divisible every 10 cm, allowing it to be easily customized to your specific requirements. For optimal operation, it is recommended to use the strip with a multi-channel LED dimmer.

Additional Information and Recommendations

To extend the lifespan of the LED strip, it is recommended to use an aluminum profile for cooling. The minimum bending radius is 2.5 cm and the shortest unit is 10 cm. The LED strip offers a high light output of 39 lm/W and is ideal for use in various applications.

Article number:

RARSTA2171

Manufacturer ordering code:

LED STRIP 500 S RGB/24V IND

Purchasing quantity:

1 piece

Brand:

Radium

Energy consumption:

15 kWh/1.000 h

Manufacturer:

Radium

luminary type:

LED Strip

Power consumption:

14,4 W

Emitting angle:

120 °

Bulb type:

LED

Number of bulbs:

70 LED/m

Light flux:

560 lm

Light yield:

39 lm/W

Colour temperature:

RGB + 3000 K

Average life span of a bulb in hours:

30000 h

Colour rendering index:

>80 Ra
1B

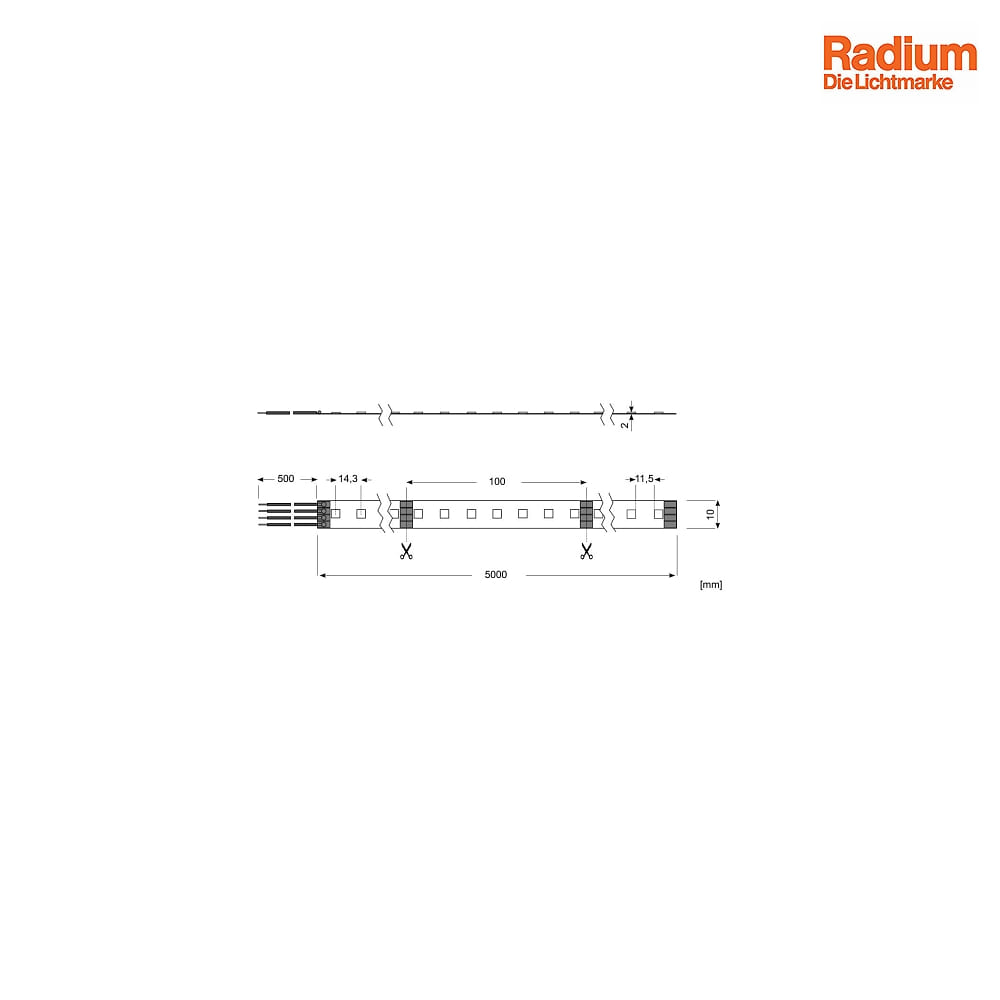

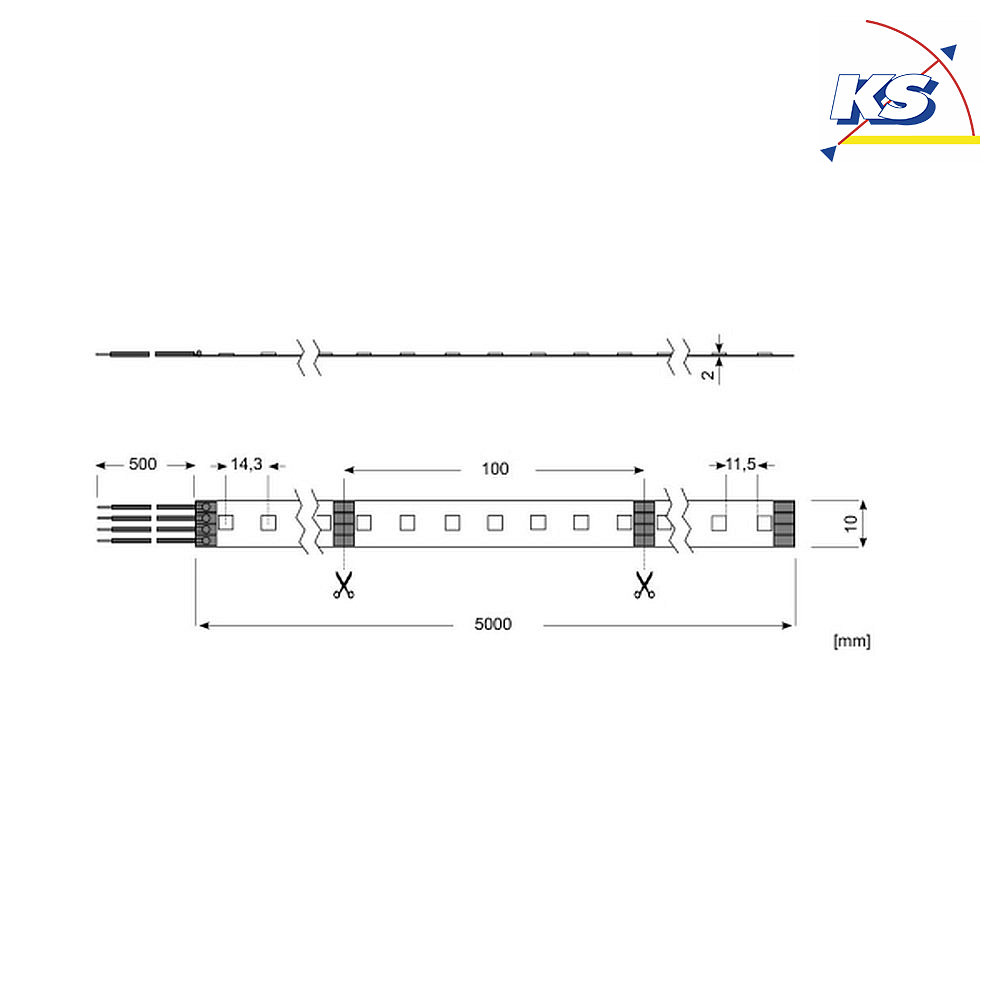

Dimension:

L∕ W∕ H: 100∕ 1∕ 0,2 cm
LED Abstand (Pitch)-L: 1,43 cm
Maximal betreibbare Länge-L: 700 cm

Weight:

0,023 kg

Wire/connection lead diameter:

0.32 ² mm

Length of connection lead:

2x 50 cm

IP-protection class:

IP00

Additional information:

Price per 100 cm or part thereof!
Factory assembly and mounting extra charge.
Connection cable soldered on both sides, each 50cm.
Distance between LED chips (pitch): 14,3mm
Maximum operable length: 7 meters
Separable every 10cm
Long service life: 30.000 h L70B10
Optimal function with multi-channel LED dimmers
An aluminum profile for cooling is required for the correct operation of the LED strip.
Minimum bending radius: 2,5cm.
Shortest unit (SEU): 10cm.

ambient temperature:

-20 - +45 °C

Tc (°C):

75 °C
